indoor badminton court lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Professional Indoor Badminton Court Lighting Solutions

Change your badminton office with our premium indoor badminton court lighting frameworks. At Xi'an Razorlux Optoelectronic Innovation Co., Ltd., we specialize in conveying high-performance Driven lighting arrangements that meet the requesting prerequisites of proficient badminton courts. Our progressed lighting innovation guarantees ideal perceivability, uniform brightening, and vitality proficiency for both recreational and competitive play environments.

product-1-1

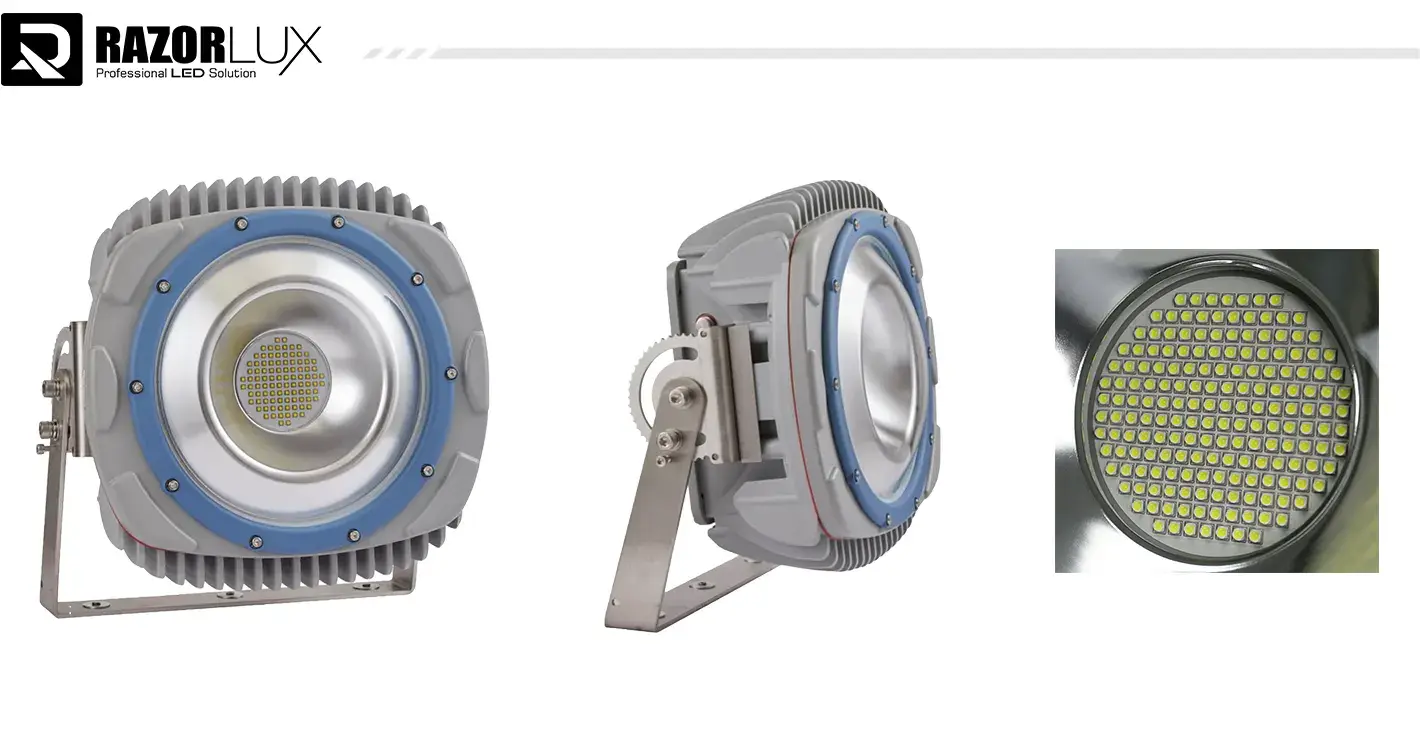

Product Introduction

Our protected multi-function plan conveys extraordinary execution over all indoor sports situations. The lighting framework highlights cutting-edge Driven innovation particularly designed for badminton court applications.

product-1-1

Specification

Model		RGL-180A
Beam Angle		60° 120° 140°*60°
Stable Flux (5700K after 1 hour)		21600 lm
Dimension (mm)		360358306mm
	LEDs	162W
Power	Driver	18W
Consumption	Total	180W
Replace HID Lamp		400 ~ 500W
Net Weight		10kg
Color Temperature		2000-6000K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80-315Vac input voltage without additional adapter
DC Input		80 ~ 400Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Why Choose Our Indoor Badminton Court Lighting?

Superior Light Quality: Our Driven installations give reliable, flicker-free brightening that diminishes eye strain amid expanded play sessions.

Energy Proficiency: With 130LM/W productivity, you'll essentially diminish power costs whereas keeping up amazing light output.

Professional-Grade Execution: Meets worldwide badminton court lighting measures for competitive play environments.

Flexible Bar Alternatives: Different bar points guarantee idealize light dispersion for distinctive court configurations.

Long Life expectancy: Built to final with premium components and 5-year guarantee coverage.

Easy Establishment: Streamlined mounting framework rearranges establishment and upkeep procedures.

product-1-1

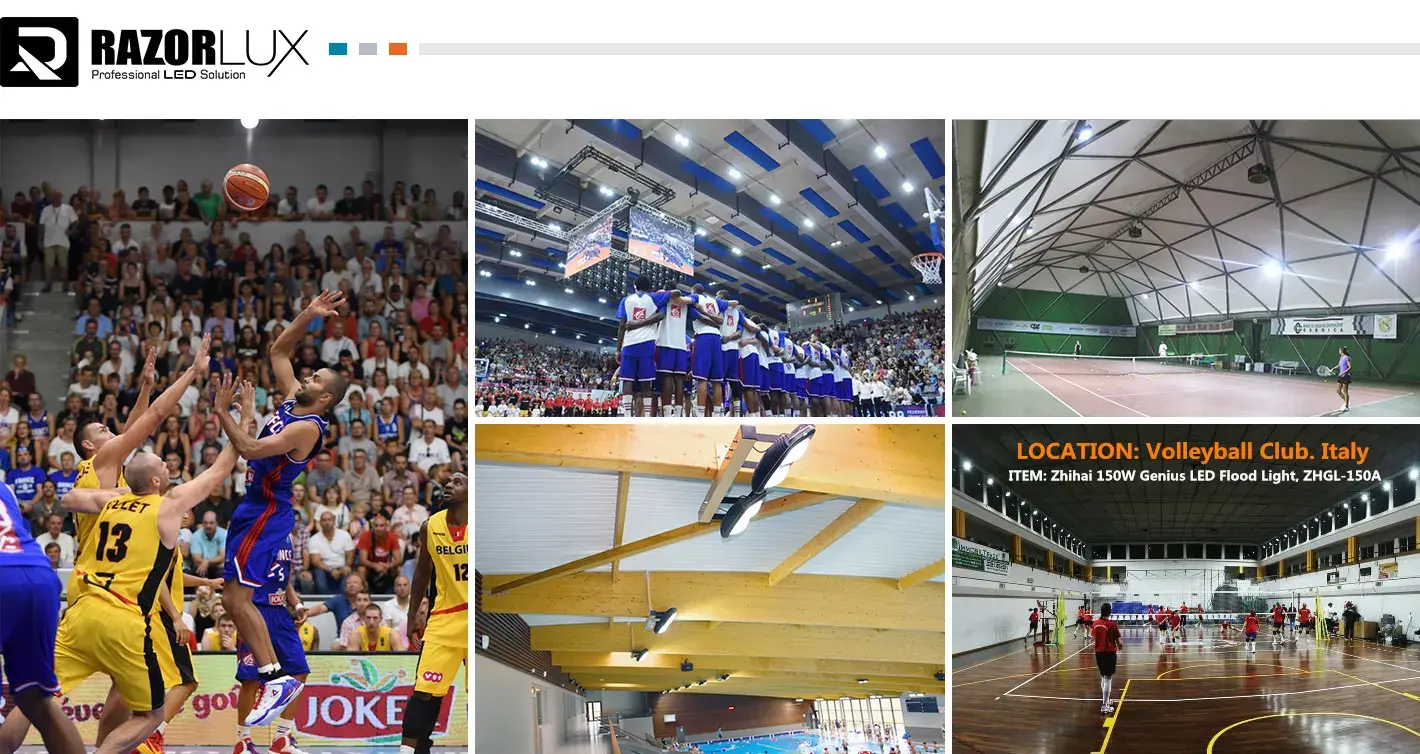

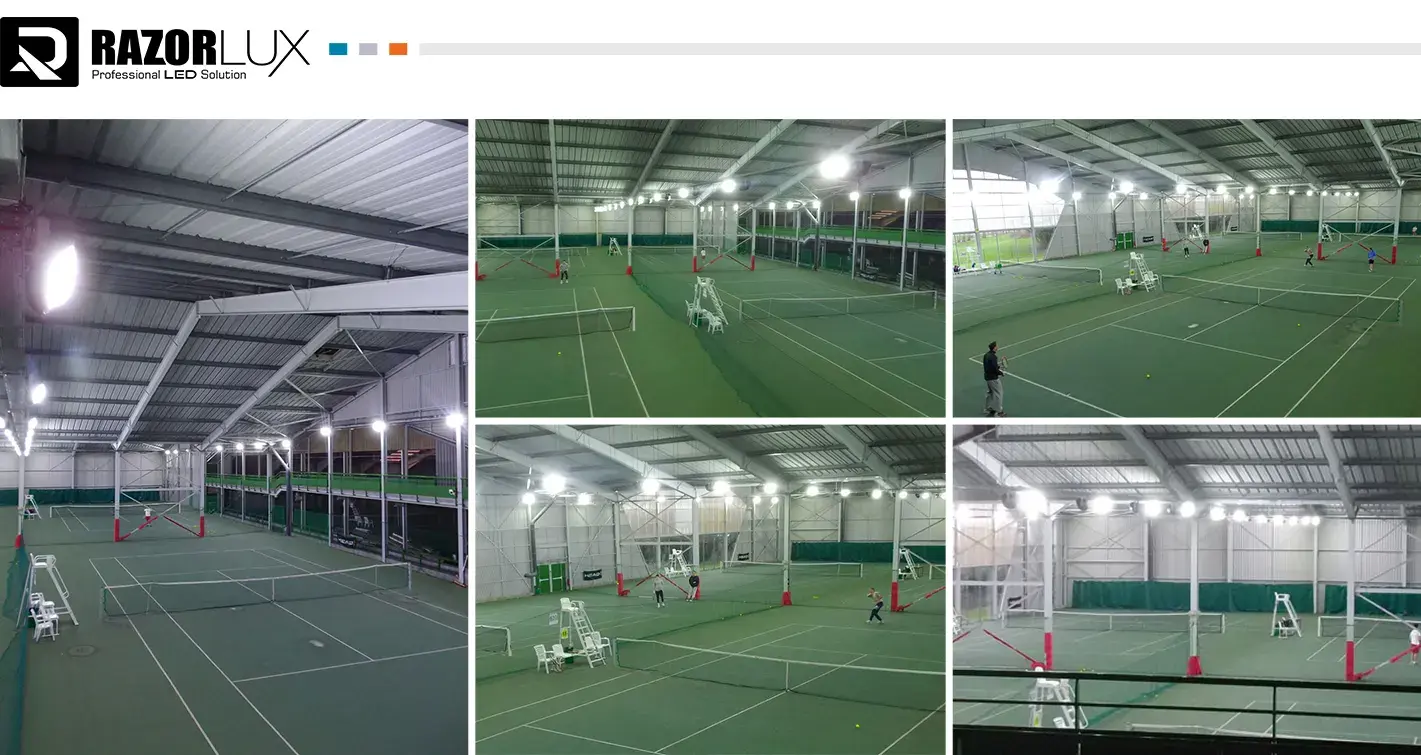

Application

Our badminton court lighting arrangements serve differing indoor sports facilities:

• Proficient Competition Settings - Championship-level courts requiring broadcast-quality lighting standards

• Community Amusement Centers - Multi-purpose offices facilitating casual and competitive badminton activities

• Private Sports Clubs - Elite settings requesting premium lighting execution for part satisfaction

• Instructive Educate - Schools and colleges with indoor exercise rooms utilized for badminton training

• Corporate Wellness Centers - Working environment recreational offices advancing representative wellness programs

• Preparing Institutes - Specialized coaching offices requiring reliable lighting for expertise development

• Inn and Resort Sports Offices - Visitor excitement settings with professional-grade lighting requirements

• Civil Sports Complexes - Open offices serving assorted community badminton programs and leagues

product-1-1

Quality Control

We keep up thorough quality measures through our ISO9001-certified fabricating handle. Each installation experiences comprehensive testing counting photometric examination, warm cycling, and electrical security confirmation. Our quality confirmation group conducts multi-stage assessments to guarantee reliable execution and reliability.

product-1-1

Shipment Samples

Sample orders are accessible for execution assessment some time recently bulk buys. We give sped up test shipping inside 3-5 commerce days through express carriers. Tests incorporate total specialized documentation and establishment direction materials.

Packaging and Transportation

Each installation is independently bundled in defensive froth embeds inside strong cardboard cartons. We offer adaptable shipping choices counting discuss cargo for critical conveyances, rail transport for cost-effective arrangements, and ocean cargo for huge volume orders. All shipments incorporate following data and protections coverage.

product-1-1

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

Customer fulfillment drives our persistent advancement endeavors. We effectively collect criticism on item execution, conveyance encounter, and benefit quality. This profitable input makes a difference us upgrade our indoor badminton court lighting arrangements and surpass client desires consistently.

After Sales Service

Our comprehensive bolster incorporates specialized interview, establishment direction, and incite guarantee benefit. We keep up responsive client benefit groups prepared to address any questions or concerns. Substitution parts and update alternatives are promptly accessible all through the item lifecycle.

Qualification Certification

Our items meet worldwide security and execution guidelines with certifications counting RMRS for marine applications, UL for North American markets, CE for European compliance, and SAA for Australian prerequisites. These certifications illustrate our commitment to worldwide quality measures.

product-1-1

FAQ

Q: What is the recommended mounting height for badminton court lighting?

A: The optimal mounting height ranges from 7-12 meters depending on court size and ceiling structure. Our technical team provides specific recommendations based on your facility dimensions.

Q: How many fixtures are needed for a standard badminton court?

A: A regulation court typically requires 8-12 fixtures depending on mounting height and desired illumination levels. We provide detailed lighting calculations for your specific requirements.

Q: Do your fixtures support dimming controls?

A: Yes, our systems are compatible with 0-10V and DALI dimming protocols for flexible light level management during different activities.

Q: What is the expected lifespan of these LED fixtures?

A: Our lighting systems are designed for 50,000+ hours of operation with minimal light degradation over time.

Q: Can you provide lighting design services for new facilities?

A: Absolutely! We offer comprehensive lighting design services including photometric calculations, layout optimization, and compliance verification for your badminton facility.

Contact Us

Ready to upgrade your badminton facility with professional indoor badminton court lighting? Our lighting specialists are here to help you create the perfect playing environment.
