led stadium flood lights
Rated Power: 800W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 45KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

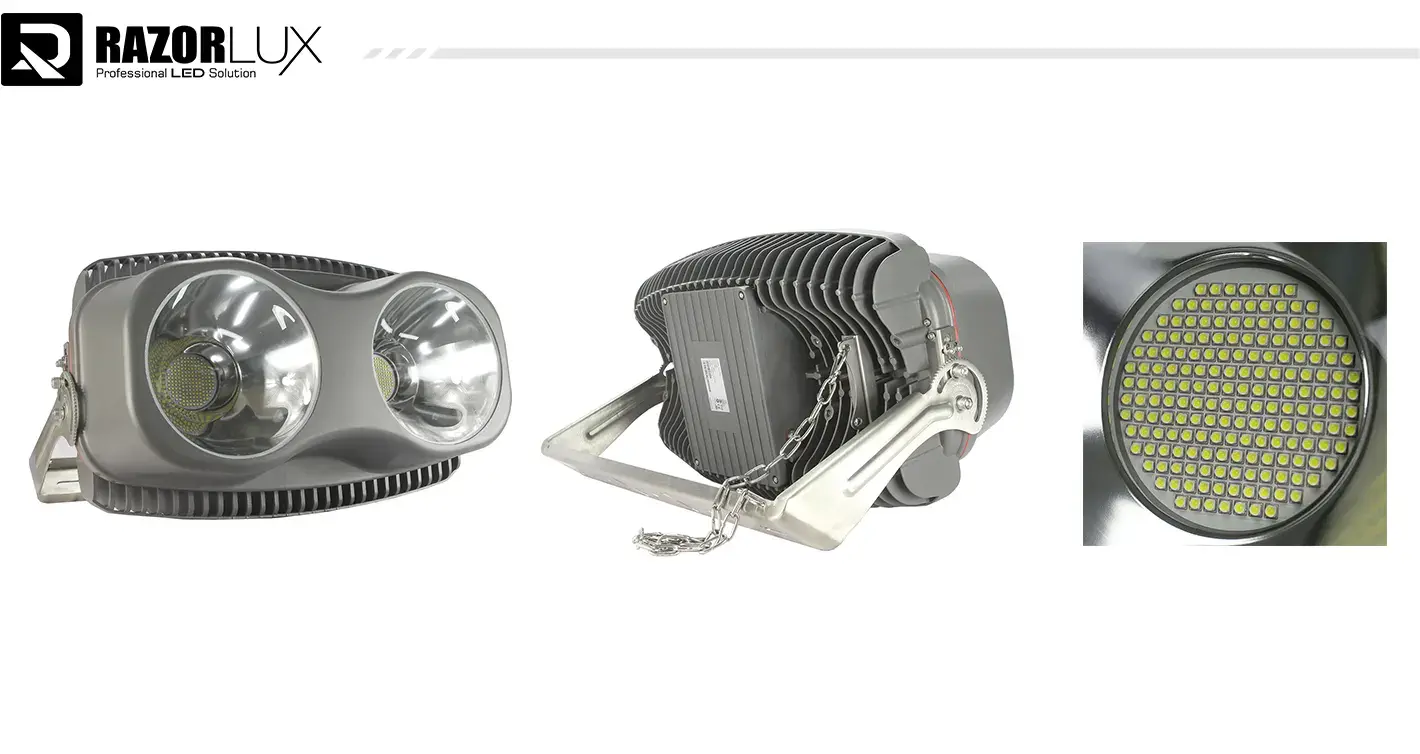

Professional LED Stadium Flood Lights - Premium Lighting Solutions for Sports Venues
When you require solid, high-performance lighting for sports stadiums, our led stadium flood lights provide unmatched brightness and proficiency. These professional-grade installations are built to light up expansive open air spaces with crystal-clear perceivability that meets broadcast guidelines. Our 800W stadium lighting frameworks combine cutting-edge innovation with strong development, guaranteeing your scene gives ideal lighting conditions for players, onlookers, and tv scope. Each driven stadium surge lights unit highlights progressed warm administration and weatherproof plan for reliable execution in all conditions.
Product Specifications
Model | RGL-800P-L20 | |
Beam Angle | 20° | |
Stable Flux (5700K after 1 hour) | 88000lm | |
Dimension (mm) | 671*405*322 | |
| LEDs | 720W |
| Driver | 80W |
| Total | 800W |
Replace HID Lamp | 1500~2500W | |
Net Weight | 45kg | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 65,IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80~305Vac | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our Professional Stadium Lighting?
Patented Multi-Function Plan: Our inventive designing guarantees ideal execution over all working situations. The protected plan maximizes light yield whereas minimizing vitality consumption.
Superior Vitality Proficiency: Encounter up to 70% vitality reserve funds compared to conventional metal halide frameworks. Your stadium benefits from diminished operational costs and natural impact.
Broadcast-Quality Light: Tall CRI values and flicker-free operation guarantee culminate color rendering for HD tv and spilling broadcasts.
Extreme Climate Assurance: IP67 rating and marine-grade materials ensure solid operation in unforgiving open air conditions, from overwhelming rain to extraordinary temperatures.
Flexible Bar Control: Different bar point alternatives permit exact light conveyance, dispensing with dim spots and guaranteeing uniform scope over your whole playing field.

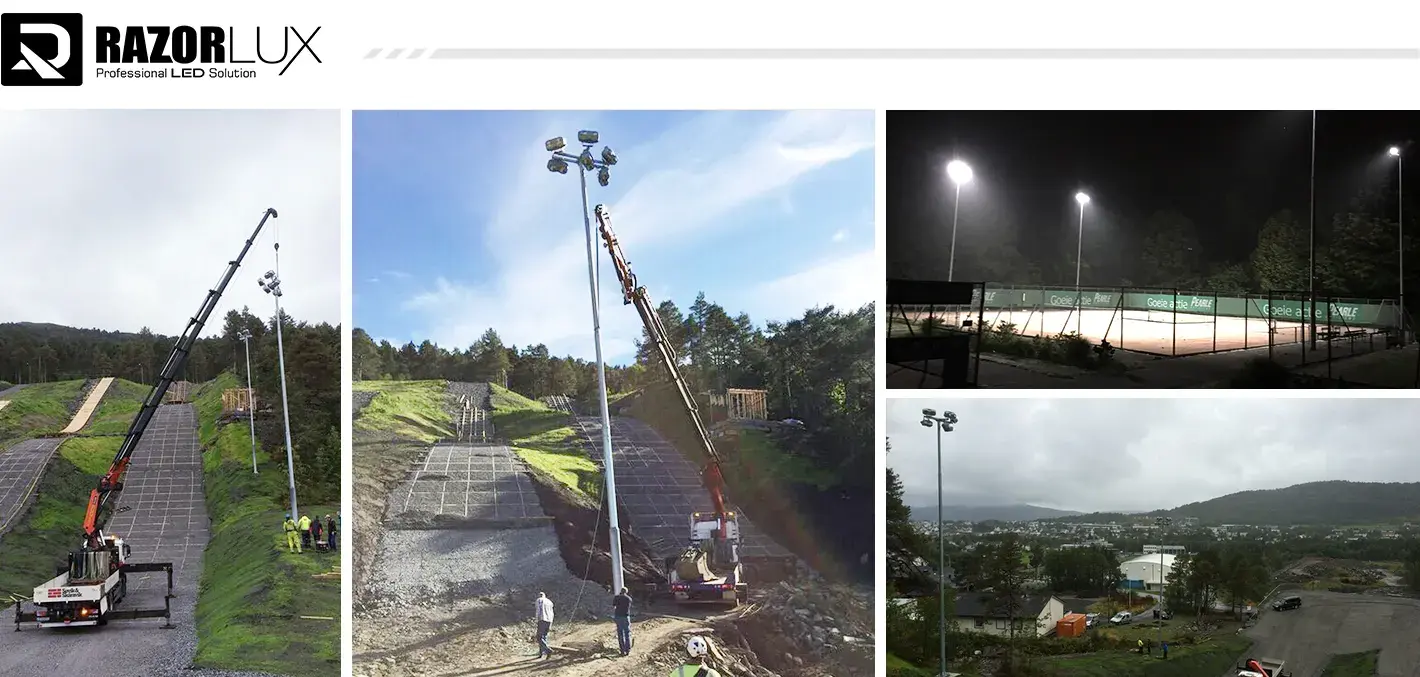

Application Areas
- Professional Sports Stadiums: Football, soccer, baseball, and cricket scenes requiring broadcast-quality lighting
- Multi-Purpose Field Complexes: Indoor and open air offices facilitating different donning occasions and concerts
- Training Offices: Hone areas and preparing complexes for proficient and collegiate sports programs
- Municipal Sports Centers: Community stadiums serving neighborhood alliances and tall school athletics
- Racing Scenes: Horse dashing tracks, auto dashing circuits, and motorsport facilities
- Tennis Complexes: Proficient and recreational tennis courts requiring exact illumination
- Golf Course Lighting: Driving ranges and putting greens for amplified playing hours
- Outdoor Occasion Spaces: Concert scenes, celebrations, and large-scale open air gatherings
- Airport Foundation: Runway and taxiway lighting for flying security requirements
- Industrial Offices: Expansive fabricating plants, shipyards, and development destinations requiring effective illumination
- Marine Applications: Harbour offices, seaward stages, and commercial angling operations
- Emergency Administrations: Look and protect operations, catastrophe help, and crisis lighting deployments
Quality Control
Our fabricating prepare takes after thorough quality guidelines kept up for over 22 successive a long time. Each unit experiences comprehensive testing counting photometric examination, warm cycling, and vibration resistance verification.
We actualize military-grade quality control frameworks with DFEMA disappointment mode investigation. Each generation clump gets certification testing to guarantee compliance with worldwide security and execution standards.
Our Xi'an Driven Lighting Designing Research facility, authorized by China's National Advancement and Change Commission, conducts continuous investigate and quality enhancements to keep up industry-leading performance.
Shipment Samples
We give customized tests and models to confirm execution some time recently your bulk arrange. Test units incorporate total specialized documentation, establishment guides, and execution test reports.
Sample conveyance regularly takes 3-5 commerce days through express shipping. Each test comes with a 30-day assessment period to guarantee total fulfillment with light quality and construction.
Packaging and Transportation
Each installation is separately bundled in custom-molded froth embeds inside fortified cardboard holders. Anti-static security shields electronic components amid transport.
We offer adaptable shipping alternatives counting discuss cargo, rail transport, and sea shipping to meet your venture timeline and budget necessities. Our worldwide coordinations organize guarantees secure conveyance to any goal worldwide.
Professional establishment guides and specialized drawings are included with each shipment to encourage smooth establishment and setup.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Quality Assurance & Certification
Our led stadium flood lights keep up certifications from driving worldwide testing organizations counting UL (North America), TÜV (Europe), SAA (Australia), and RMRS (Marine applications).
ISO9001 quality administration certification has been ceaselessly kept up since 2001. All items comply with RoHS natural orders and territorial security requirements.
Our devoted quality confirmation group incorporates over 10 teachers and specialists, with 30% of workers holding bachelor's degrees or higher.
After Sales Service
We stand behind our products with comprehensive 5-year warranty coverage and responsive technical support. Our global service network provides local assistance for installation guidance and troubleshooting.
Warranty services include component replacement, on-site repairs when applicable, and complete system diagnostics. Our technical team offers remote support capabilities to minimize downtime.
Extended warranty options are available for critical applications requiring additional coverage and priority service response.
FAQ
How long do these stadium lights last?
Our lights are rated for 50,000+ operating hours, which translates to approximately 15-20 years of typical stadium use. The 5-year warranty provides additional peace of mind.
Can these lights work with existing dimming controls?
Yes, our fixtures support 0-10V and DALI dimming protocols. We also offer custom control integration to work with your existing stadium management systems.
What's the actual power consumption compared to metal halide lights?
Our 800W units provide equivalent illumination to 2000W metal halide systems, delivering approximately 70% energy savings while improving light quality and uniformity.
Are these suitable for harsh coastal environments?
Absolutely. The IP67 rating, marine-grade stainless steel brackets, and RMRS certification make these ideal for coastal stadiums and marine applications where salt air corrosion is a concern.
How quickly can these lights reach full brightness?
Unlike traditional stadium lighting, our units reach 100% brightness instantly with no warm-up time required. This is perfect for emergency lighting and rapid event setup requirements.
Contact Us
Ready to upgrade your led stadium flood lights system? Our technical team is here to help you design the perfect lighting solution for your venue.
Email: sam@razorlux.com
Get professional lighting layout design and brightness calculations tailored to your specific stadium requirements. contact us today for detailed product information and competitive pricing.
