led volleyball lights
Rated Power: 210W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Led Volleyball Lights | 50% Energy Savings + 5-Year Warranty
Instant-On Performance
No more warmup delays. Led volleyball lights reach full brightness in <1 second — perfect for quick training sessions.
Tournament-Grade Visibility
130 lumens per wattdelivers fresh, shadow-free lighting that meets FIVB guidelines. Players track the ball precisely indeed amid fast-paced rallies.

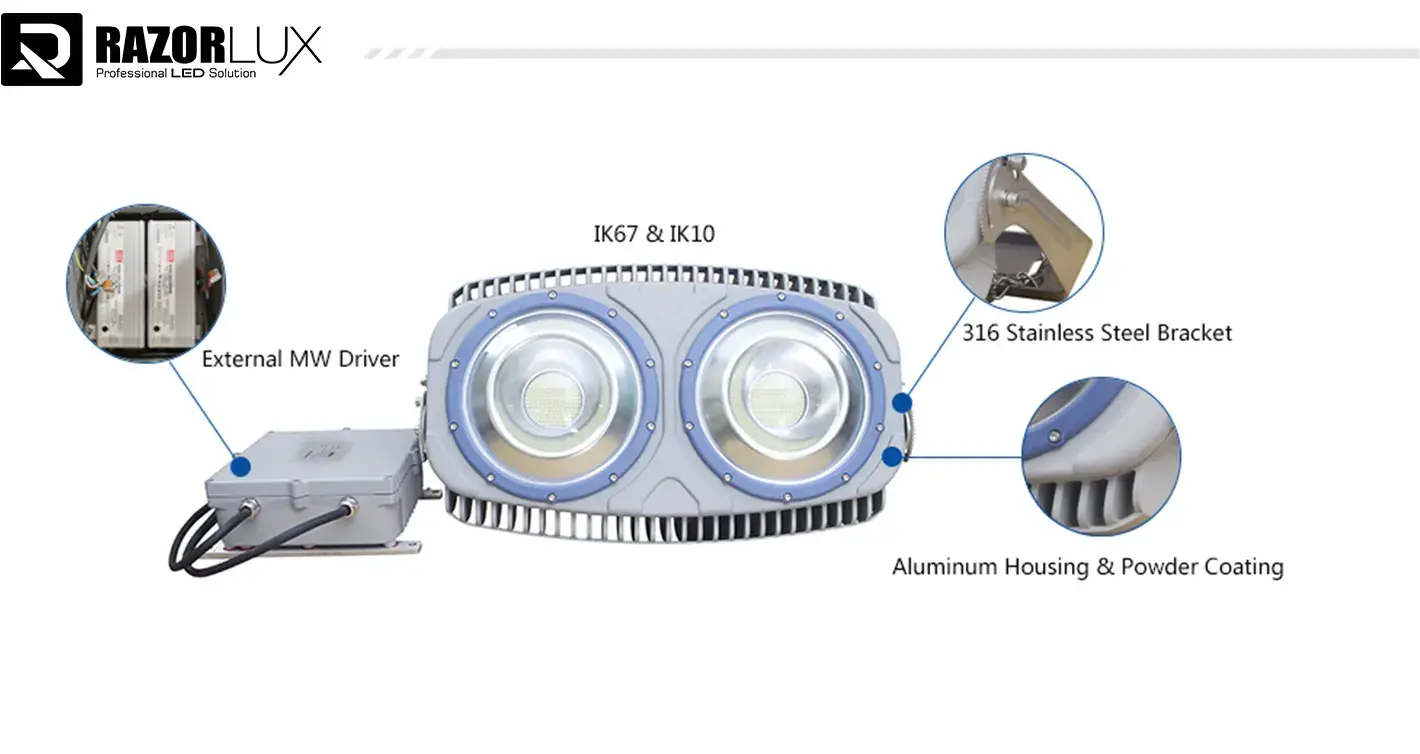

Built for Tough Environments
- IP67 waterproof rating: Rain, stickiness, and clean can't penetrate
- 15kg stainless steel lodging: Stands up to erosion in coastal/pool areas
- -40°C to +50°C working extend: Works in unheated exercise centers or open air courts
Flexible Control Options
- Dimming compatible(0-10V/DALI): Lower brightness for hone = additional savings

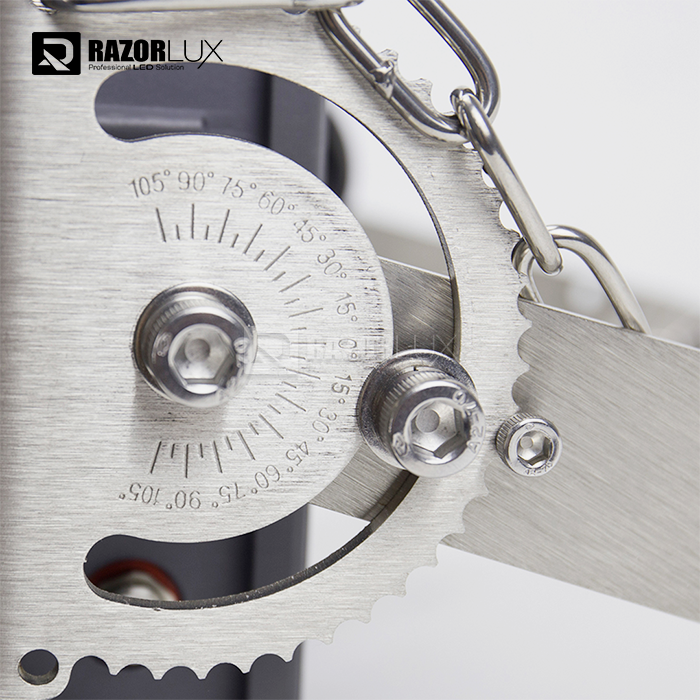

- 7 bar point alternatives: We'll coordinate the culminate point to your ceiling tallness
Led Volleyball Lights Specification
| Feature | Specification |
| Model Number | RGL-210A |
| Rated Power | 210W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 27300LM |
| Beam Angle | 20°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel 316 |
| Net Weight | 15KG |
| Warranty | 5 Years |
| Certificates | RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001,Salt Spray Testing, C4M |
| More Available Powers | 90W,120W, 150W, 180W, 210W, 270W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W |

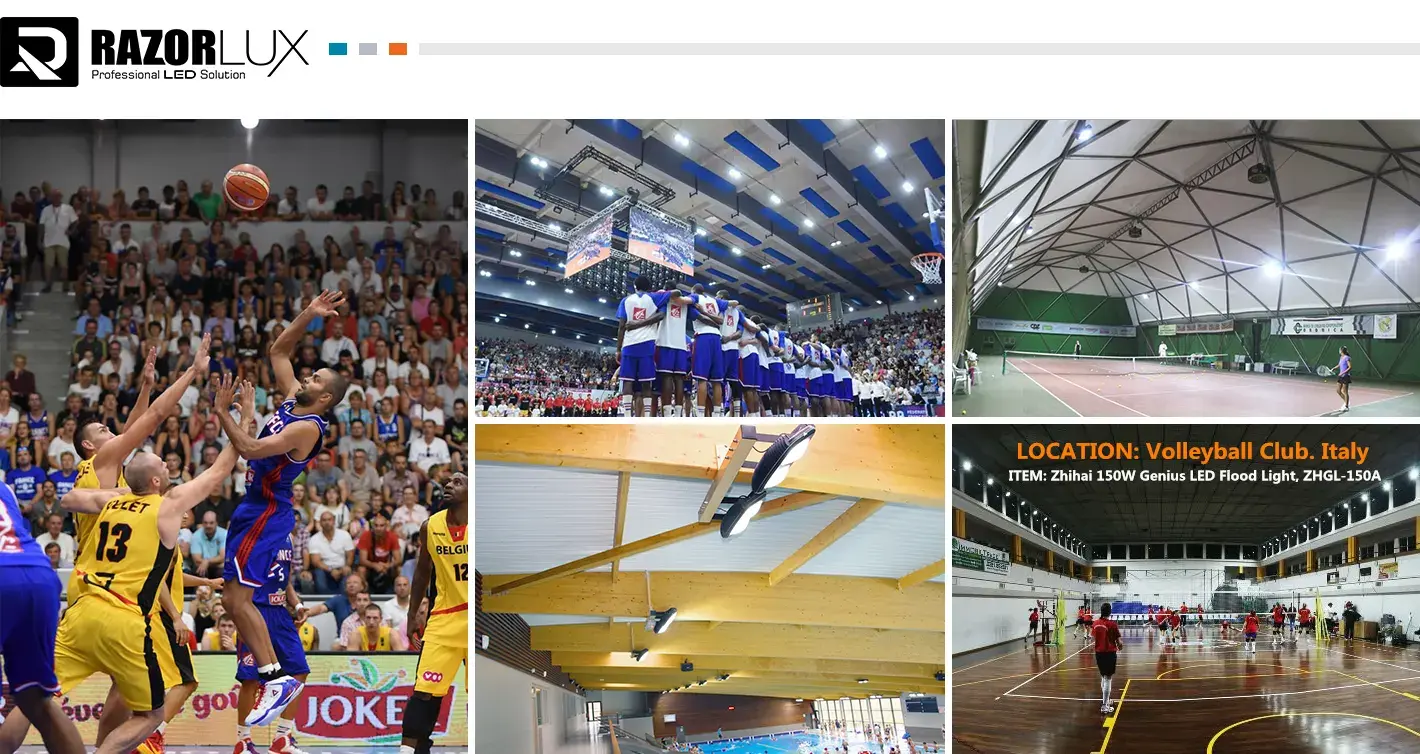

Proven in Demanding Applications
Indoor Arenas
· University competition venues
· Olympic training centers
· Multi-sport complexes
Outdoor Courts
· Beach volleyball (resists salt spray)
· Rooftop facilities (wind-rated brackets)
· Parks & recreation departments
Specialized Facilities
· Military bases (voltage fluctuation protection)
· Coastal resorts (316 stainless steel option)
· Schools (DLC rebate eligible)
Led volleyball lights prove in demanding applications.
Common Questions Answered
"Will these work with my existing electrical system?"
Yes. The 90-305V input range accommodates voltage variations in older buildings or generator-powered outdoor courts.
"How many fixtures do I need for a standard court?"
Typically 4-8 fixtures, depending on mounting height.We provide free layout design— just send us your court dimensions.
"What about glare during serves?"
Our asymmetric beam optics (140°x60°) direct light onto the court surface, not into players' eyes. Tested with professional athletes.
"Can I dim the lights?"
Absolutely. Choose 0-10V or DALI dimming. Great for reducing costs during practice sessions.
Ready to Upgrade?
Get a quote of led volleyball lights in 24 hours:
Email:sam@razorlux.com
