outdoor stadium lights
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

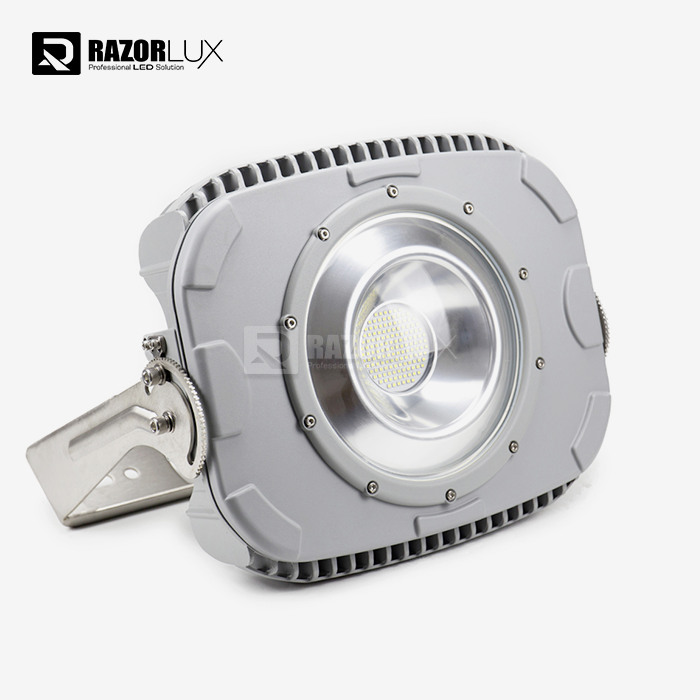

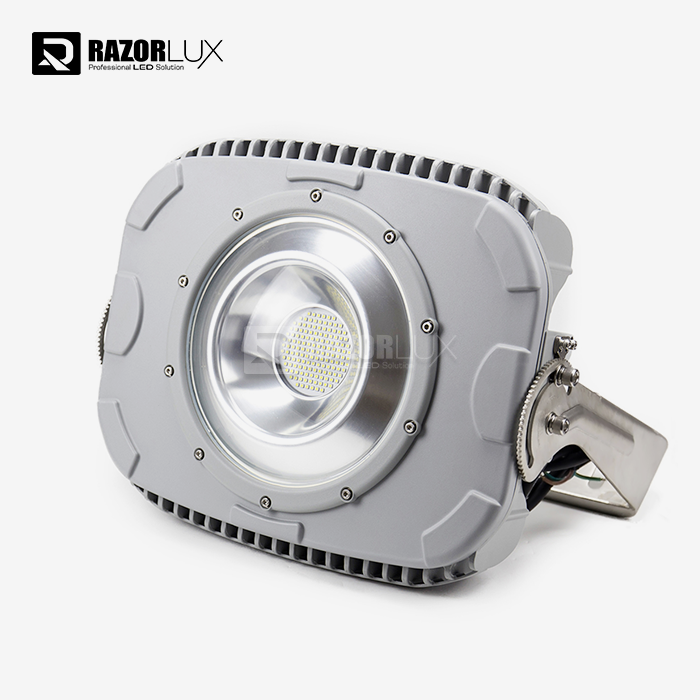

Professional Outdoor Stadium Lights - High-Performance LED Solutions
Product Introduction
Change your sports setting with our cutting-edge outdoor stadium lights that provide uncommon brightness and unwavering quality. Our 400W Driven stadium lighting framework combines licensed multi-function plan with military-grade quality, making it idealize for all open air situations. Whether you're enlightening a proficient soccer field or community sports complex, these lights give reliable, high-quality brightening that upgrades both player execution and onlooker experience.
Specification
Model | RGL2-400A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 52000lm | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 15kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our Outdoor Stadium Lights?
Proven Innovation Brilliance: With over 200 licenses covering Driven chip bundling, control supply control, and light plan, our lights speak to the apex of lighting innovation.
Military-Grade Strength: Our IP67-rated lodging withstands extraordinary climate conditions. The vigorous stainless steel bracket guarantees steady mounting indeed in unforgiving environments.
Energy Proficiency: Expend up to 75% less power than conventional metal halide frameworks whereas conveying prevalent brightness at 130LM/W efficiency.
Instant Execution: Not at all like conventional stadium lights, our Driven frameworks give moment full brightness with no warm-up time required.
Flexible Plan Choices: Numerous pillar points oblige diverse field sizes and lighting prerequisites, from contract spot lighting to wide zone coverage.
Global Compliance: Certified for utilize around the world with RMRS, UL, TÜV, CE, and SAA endorsements guaranteeing secure operation anywhere.
Applications
Professional Soccer Stadiums: Light up FIFA-standard areas with uniform brightness dissemination for broadcast matches and competition play
Baseball and Softball Complexes: Give clear perceivability for infield and outfield ranges with customizable pillar designs for distinctive field configurations
American Football Areas: Provide reliable lighting over 100-yard areas with negligible glare for players and ideal seeing for spectators
Cricket Grounds: Make indeed brightening for oval-shaped scenes with specialized wide-angle pillar choices for comprehensive coverage
Track and Field Offices: Bolster numerous athletic disciplines with flexible lighting that adjusts to different occasion requirements
Tennis Courts: Guarantee exact perceivability for fast-paced gameplay with tall CRI color rendering for precise ball tracking
Multi-Purpose Sports Complexes: Suit ball, volleyball, and other court sports with movable lighting escalated levels
Community Diversion Centers: Give secure, energy-efficient lighting for nearby associations and recreational activities
University and School Athletic Areas: Make ideal learning situations for understudy competitors with professional-grade illumination
Training Offices: Back year-round hone plans with dependable lighting that withstands overwhelming utilize and climate exposure

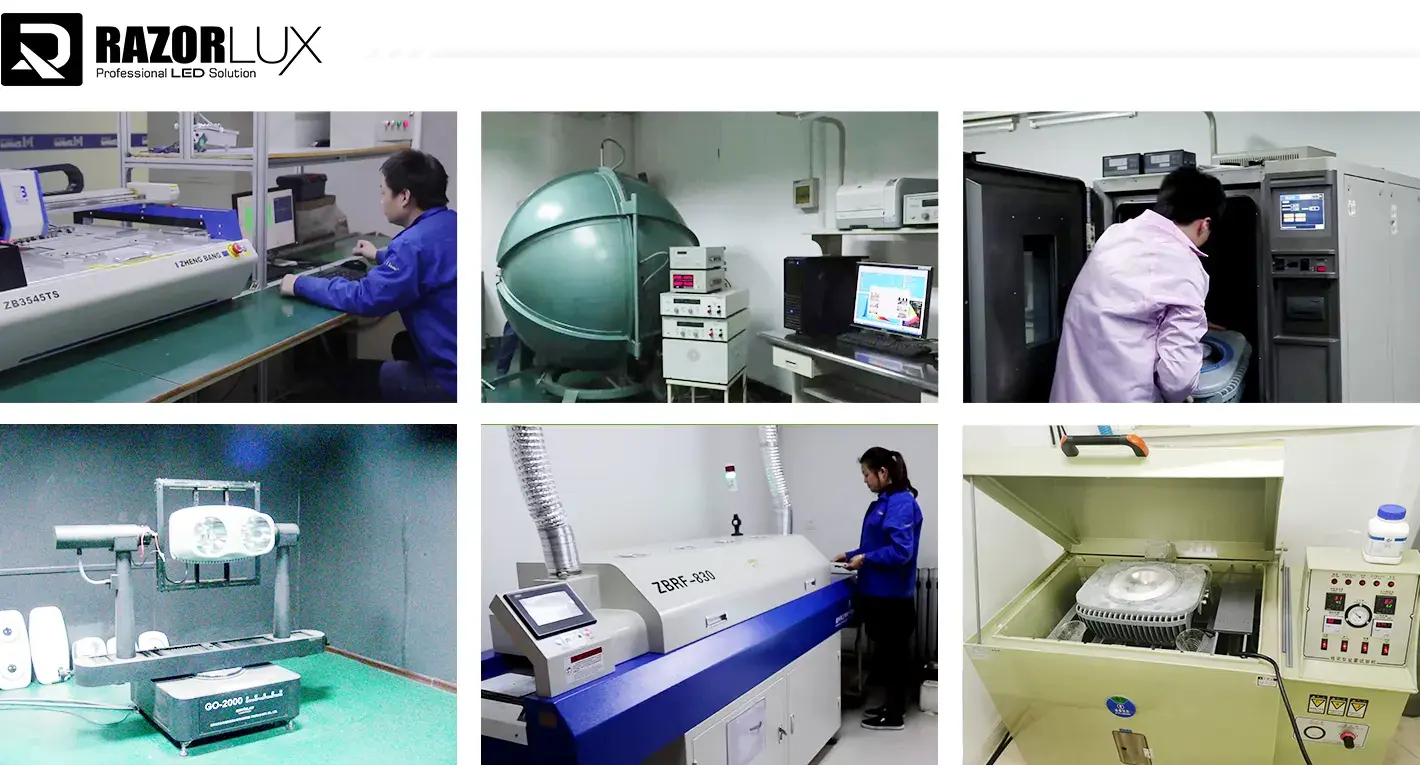

Quality Control
Our comprehensive quality affirmation handle guarantees each light meets the most noteworthy measures. We keep up ISO9001 certification for 22 successive a long time, illustrating our commitment to reliable quality.
Each unit experiences thorough testing counting warm cycling, vibration resistance, and waterproof confirmation. Our Xi'an Driven Lighting Designing Research facility, authorized by China's National Improvement and Change Commission, conducts progressed execution testing.
Every light gets person assessment for glowing flux, color temperature exactness, and electrical security some time recently Packaging.
Shipment Samples
We give customized tests to guarantee our lighting meets your particular prerequisites some time recently bulk orders. Test testing permits you to assess brightness levels, pillar designs, and mounting compatibility for your venue.
Our specialized group can get ready tests with distinctive bar points or color temperatures based on your extend details. Test conveyance ordinarily takes 7-10 trade days through express shipping.
Packaging and Transportation
Each light is carefully pressed in custom-molded froth embeds inside strengthened cardboard boxes. Defensive materials anticipate harm amid transport whereas keeping up compact measurements for proficient shipping.
We offer adaptable shipping alternatives counting discuss cargo for critical ventures, rail transport for cost-effective conveyance, and sea shipping for expansive orders. All bundles incorporate point by point dealing with informational and establishment documentation.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Customer fulfillment drives our ceaseless change. We effectively collect criticism on item execution, establishment encounter, and long-term unwavering quality to improve our open air stadium lights.
Our responsive client benefit group addresses any concerns expeditiously, guaranteeing your lighting venture conveys anticipated execution all through its operational life.
After Sales Service
Our comprehensive 5-year guarantee covers all components counting Driven chips, drivers, and lodging materials. Specialized back is accessible all through the item lifecycle.
We give farther diagnostics help and on-site back for complex establishments. Our worldwide benefit arrange guarantees fast reaction times for guarantee claims and specialized questions.
Preventive support rules offer assistance maximize light life expectancy and keep up ideal execution over a long time of operation.
Qualification Certification
Our outdoor stadium lights meet worldwide security and execution measures with certifications from recognized testing research facilities around the world. RMRS certification approves marine-grade strength, whereas UL posting guarantees electrical security compliance.
TÜV certification affirms European Union prerequisites, and SAA endorsement empowers Australian advertise get to. All certifications experience standard recharging to keep up current compliance status.
FAQ
Q: How do these LED Stadium Lights compare to traditional metal halide fixtures in terms of energy savings?
A: Our LED systems consume up to 75% less electricity than comparable metal halide lights while providing superior brightness and color quality. The 130LM/W efficiency significantly reduces operational costs.
Q: What maintenance is required for these outdoor stadium lighting systems?
A: Minimal maintenance is needed due to the 50,000+ hour LED lifespan. Periodic cleaning of the lens surface and annual inspection of mounting hardware are typically sufficient.
Q: Can the lights be dimmed for different events or training sessions?
A: Yes, our systems support 0-10V and DALI dimming protocols, allowing customized lighting levels for various activities and energy conservation during non-peak hours.
Q: How quickly can these lights reach full brightness when turned on?
A: Our LED technology provides instant full brightness with no warm-up period required, unlike traditional stadium lighting that may take several minutes to reach operating temperature.
Q: What beam angle should I choose for my specific sports venue?
A: Beam angle selection depends on mounting height and coverage requirements. Our technical team provides free lighting design consultation to determine optimal configurations for your facility.
Q: Are these lights suitable for coastal or marine environments?
A: Absolutely. The IP67 rating and stainless steel construction provide excellent corrosion resistance. Our RMRS marine certification validates performance in harsh saltwater environments.
Contact Us
For technical specifications, custom quotes, or project consultation regarding our outdoor stadium lights, contact our expert team:
Email: sam@razorlux.com
Our lighting specialists are ready to help you design the perfect illumination solution for your sports venue with professional guidance and comprehensive support.
