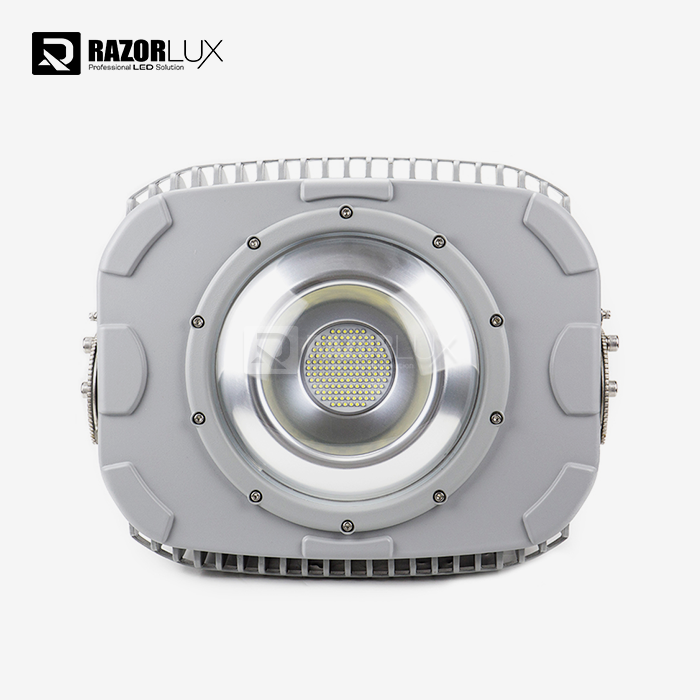

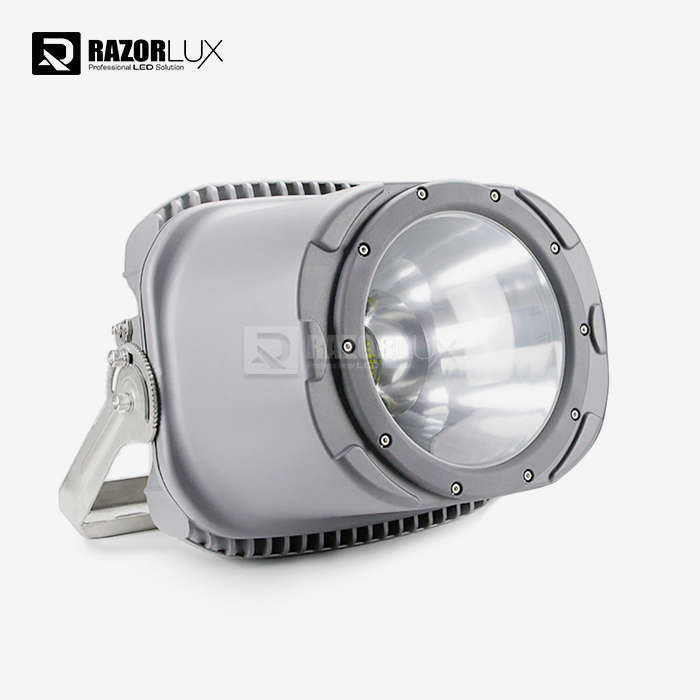

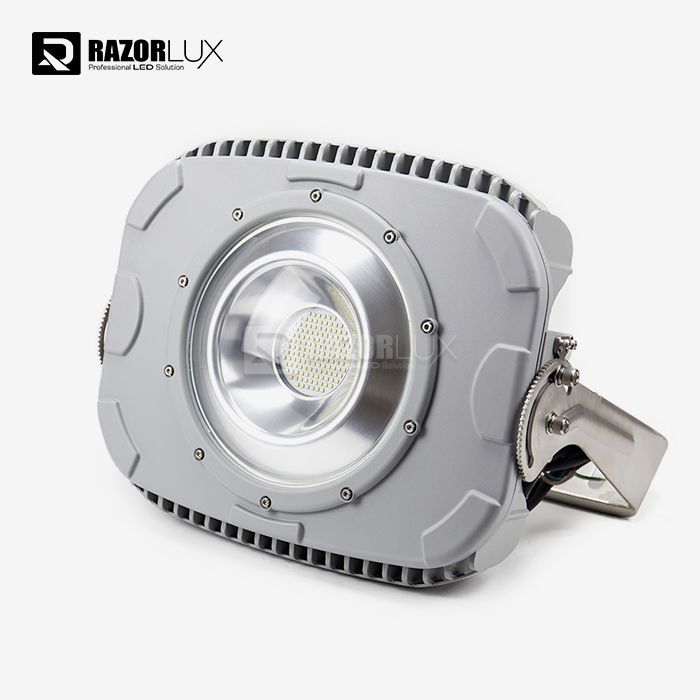

badminton court flood lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W

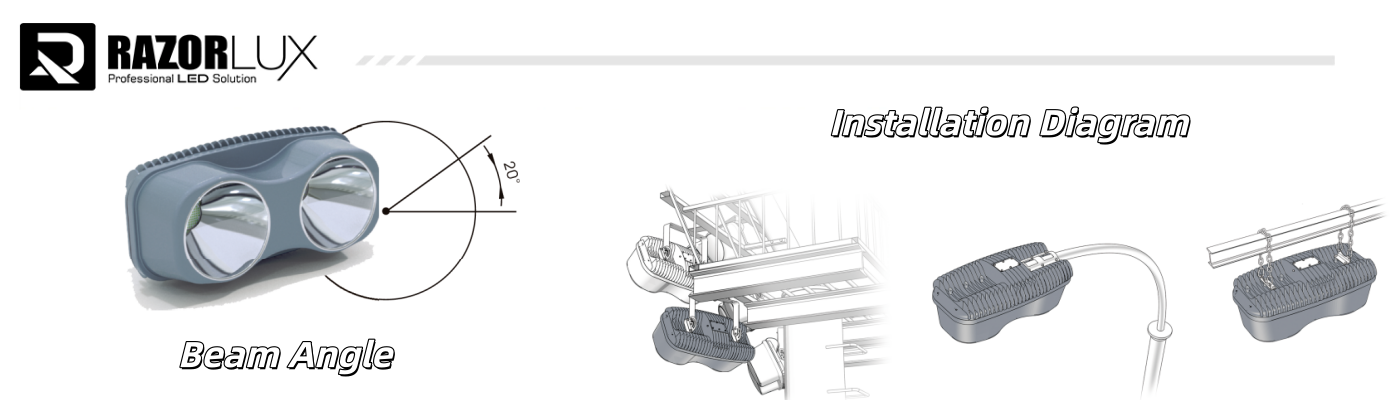

Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Professional LED Badminton Court Flood Lights | 400W Industrial Floodlights

Numerous office supervisors tell us they battle with:

Uneven lightingcreating dim spots that influence player performance
Sky-high power billsfrom obsolete metal halide systems
Frequent bulb replacementsdisrupting court schedules
Poor color renderingmaking shuttlecock following difficult
Glare issuescausing player complaints

Sound familiar?Our badminton court flood lights framework fathoms all these challenges.

product-1-1

Badminton Court Flood Lights Specification

Model		RGL2-400A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		52000lm

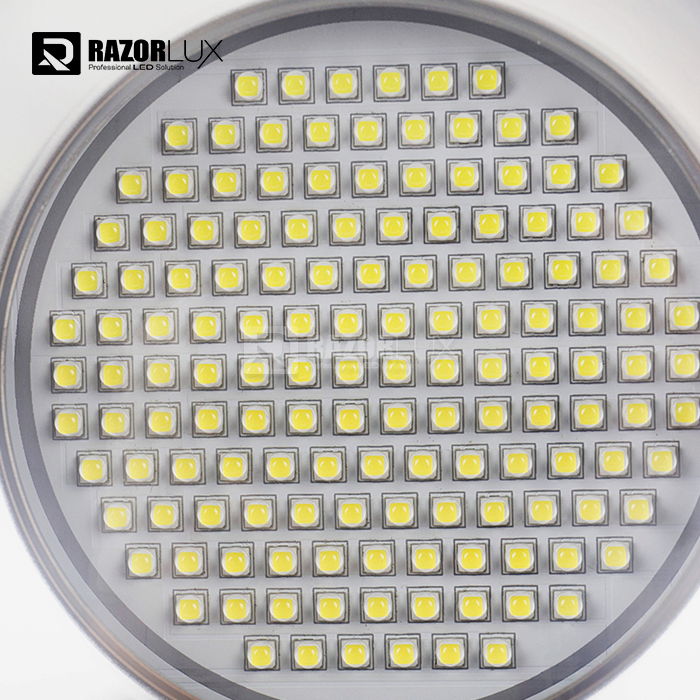

	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		15kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

product-1-1

Why 500+ Facilities Choose Razorlux Lighting

Professional-Grade Illumination

Meets BWF (Badminton World Federation) lighting standards:

Standard Requirement	Our Performance
Horizontal Illuminance	500-750 lux
Uniformity	>0.7
Glare Control (GR)	<30
Color Rendering (CRI)	>75 (up to 90 available)

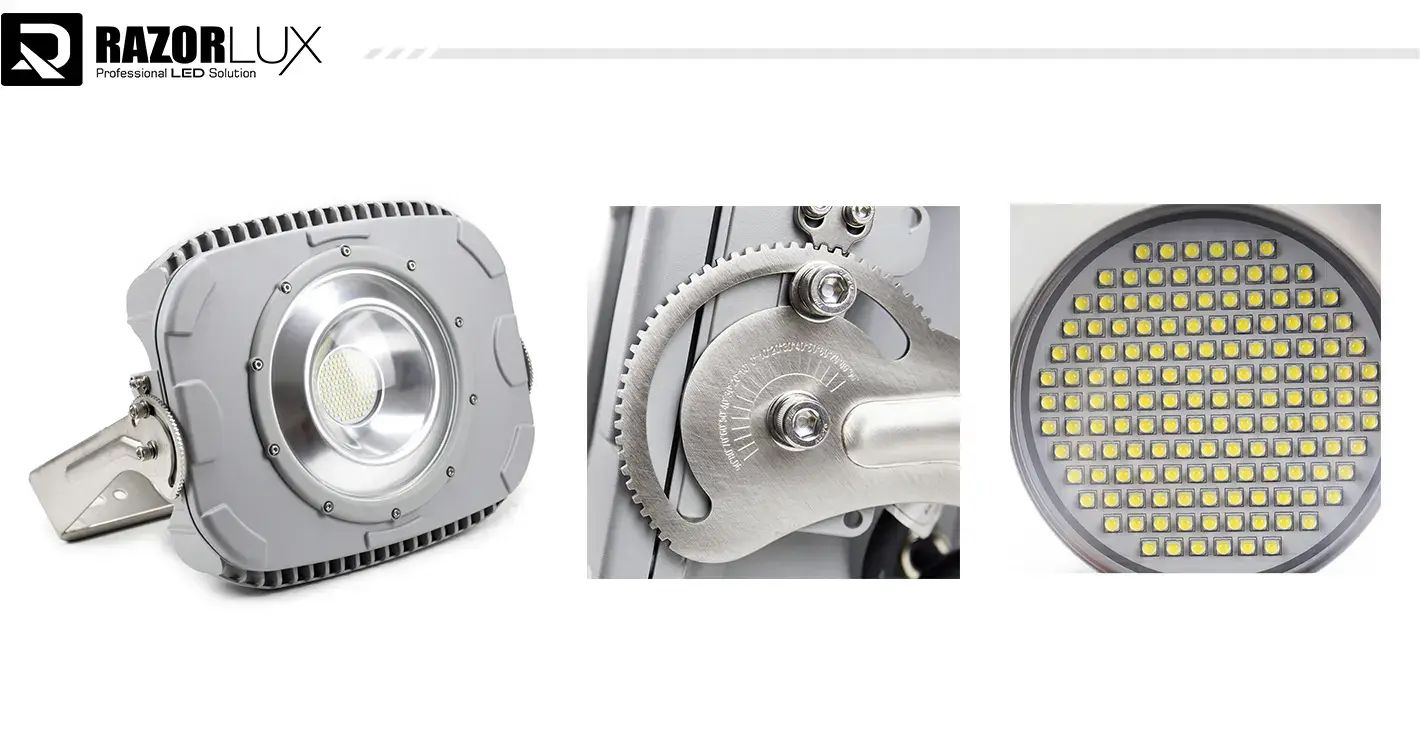

Built to Last in Any Environment

20+ years of LED engineering expertisewent into these fixtures:

· IP67 weatherproof rating— Survives heavy rain, dust storms, and humidity

· Patented thermal management— Keeps LEDs cool for consistent output

· Stainless steel mounting— No rust, no corrosion, even in coastal areas

· Wide voltage tolerance(AC90-305V) — Stable performance despite power fluctuations

Real-world proof:Our badminton court flood lights operate flawlessly in facilities from Dubai (50°C summers) to Norway (-20°C winters).

product-1-1

See The Difference (Before/After)

[Insert comparison images: Old metal halide vs. LED installation]

Left:Uneven lighting, visible shadows, yellowish tone

Right:Uniform coverage, crisp white light, no dark spots

product-1-1

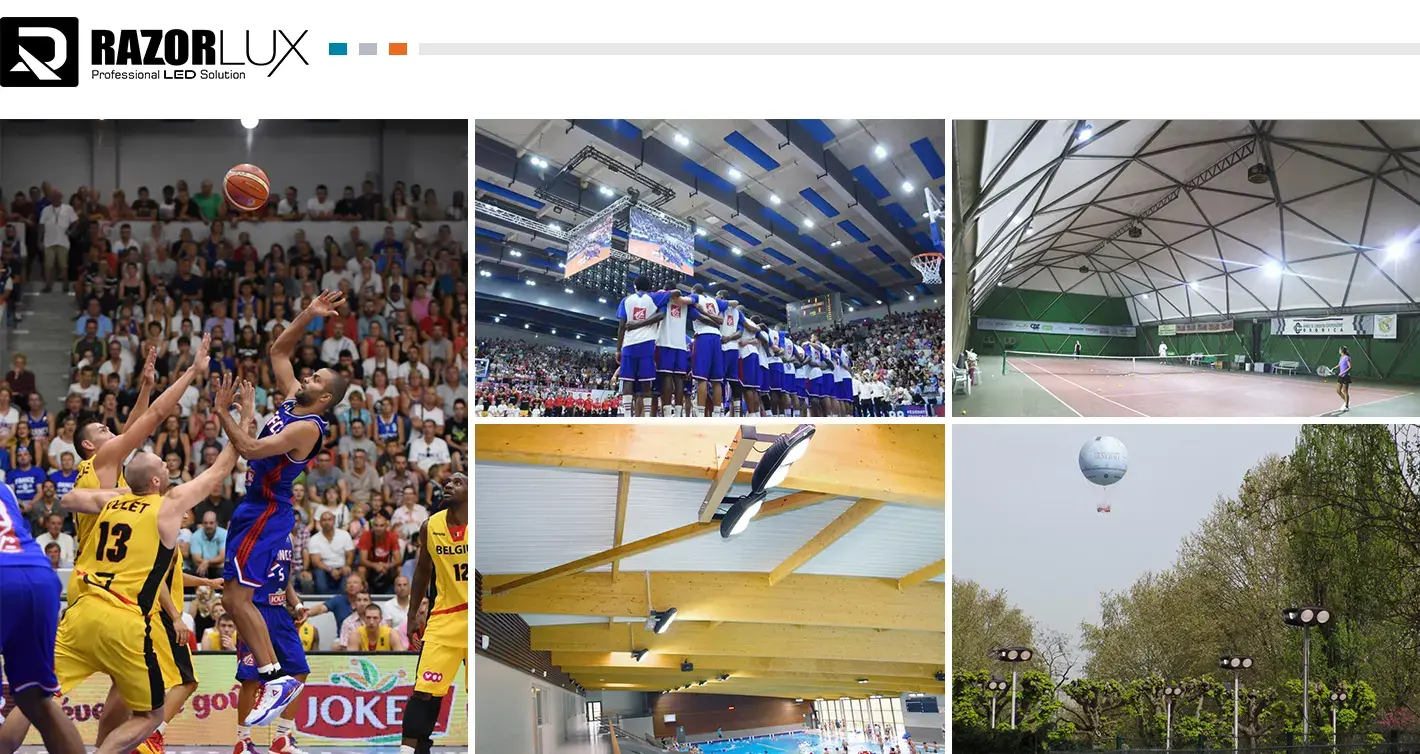

Who's Using Our Lighting?

Tournament Venues

· Shanghai International Badminton Center— 16 courts

· Malaysia National Sports Complex— Olympic training facility

Multi-Purpose Sports Halls

· ActiveLife Sports Club Chain— 45 locations across Europe

· University Recreation Centers— 120+ installations

Outdoor Courts

· Dubai Sports Authority— 24 courts in extreme heat

· Norway Community Centers— Withstanding harsh winters

product-1-1

Flexible Solutions for Every Budget

Standard Package

400W LED floodlights

Stainless steel mounting brackets

5-year manufacturer warranty

Installation guide & technical support

Premium Package (Most Popular)

Everything in Standard, plus:

0-10V dimming control

Free lighting design & calculations

On-site installation support (selected regions)

7-year extended warranty

Custom Solutions

· DALI smart dimming systems

· Emergency backup integration

· Color temperature adjustment

· Glare shields for TV broadcasting

product-1-1

About Razorlux Optoelectronic

For over 20 years, we've specialized inindustrial-grade LED lightingfor demanding environments. Our team of 15 engineers holds 40+ patents in LED technology.

Our mission:Help facility managers reduce costs while improving player experience.

Our promise:Every product ships with a 5-year warranty and lifetime technical support.

Location:Xi'an, China — Serving customers in 60+ countries
