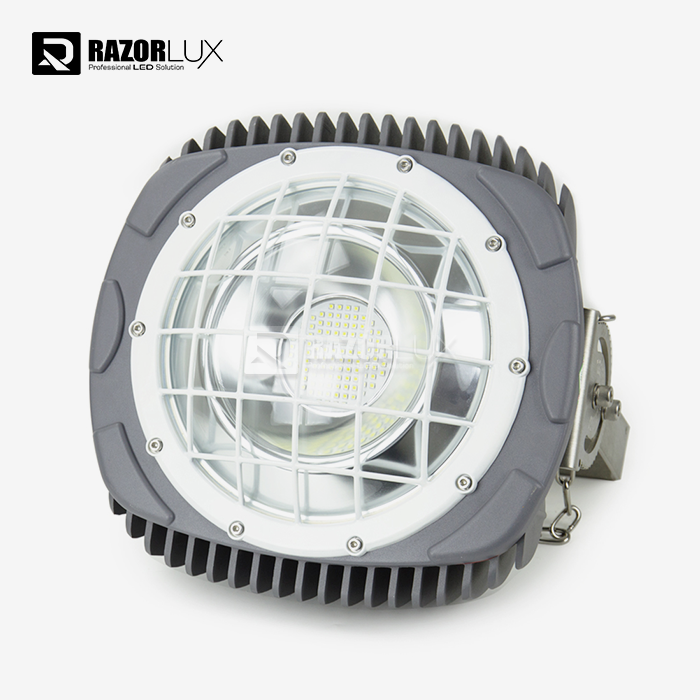

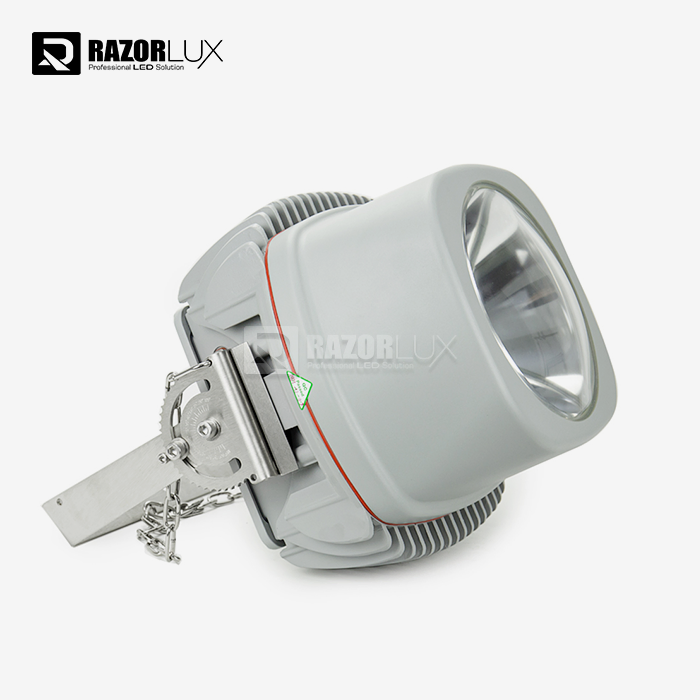

volleyball ground light

Patented Multi-function design, suitable for all working environments.
Rated Power: 270W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Professional Volleyball Ground Light - 270W High-Efficiency System

Xi'an Razorlux's volleyball ground light framework combines22 a long time of Led designing expertisewith licensed warm administration innovation. Outlined particularly for competitive volleyball situations where glare control and uniform brightening are critical.

Key Specifications at a Glance

Power & Proficiency: 270W @ 130LM/W (35,100 total lumens)
Voltage Compatibility: AC90-305V / DC127-431V (global standard)
Beam Choices: 7 arrangements (15° to 140°x60°)
Durability: IP67 marine-grade | 15kg stainless steel housing
Warranty: 5 a long time comprehensive coverage

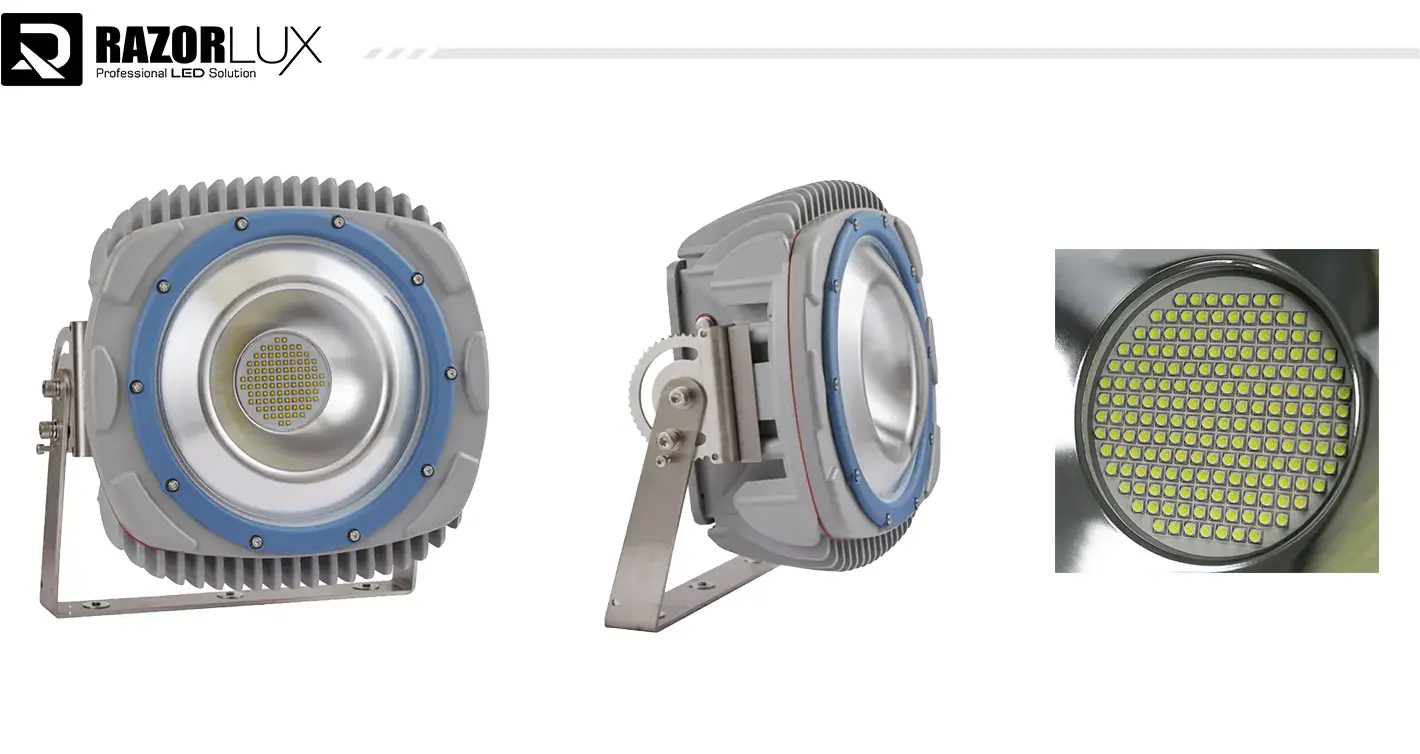

product-1-1

Volleyball Ground Light Specification

Feature	Specification
Model Number	RGL-270A
Rated Power	270W
Input Voltage	AC100-305, DC127-431
Color Temperature	2700K-6500K
Lamp Efficiency	130LM/W
Lumen Output	31500LM
Beam Angle	20°, 40°, 60°, 120°, 140°x60°
Lens	Tempered Glass
Working Temperature	-40° - 60°/ 40F - 140F
CRI	Ra>75
IP Grade	IP67
IK Rating	IK10
LED Chip	Samsung/Phillip
LED Driver	Meanwell
Housing	Aluminum Alloy
Bracket	Stainless Steel 316
Net Weight	15KG
Warranty	5 Years
Certificates	RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001,Salt Spray Testing, C4M
More Available Powers	90W,120W, 150W, 180W, 210W, 270W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W

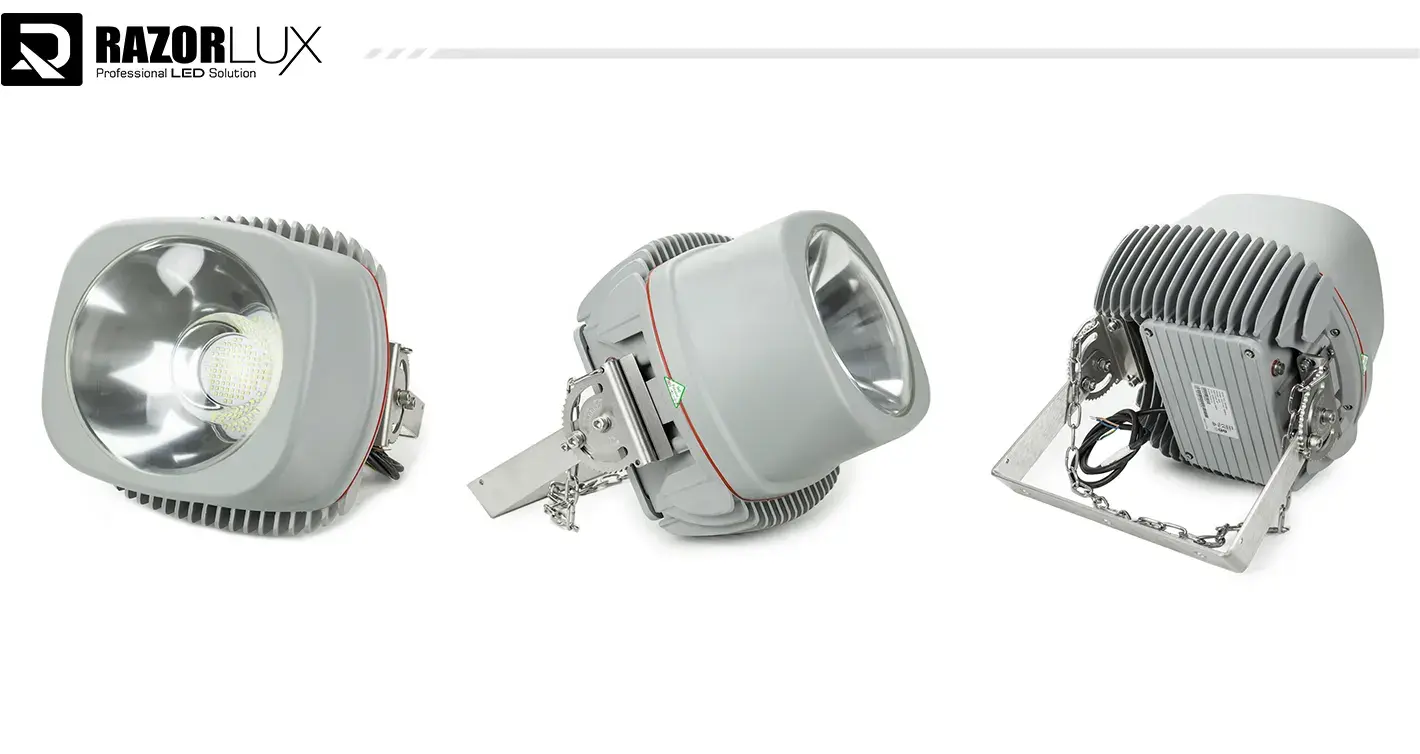

product-1-1

Why Sports Facilities Choose Razorlux

1. Zero Glare, Maximum Visibility

Unlike bland mechanical lights, our volleyball ground light optical plan disposes of coordinate glare in players' locate lines. The result:

40% reductionin player eye strain (certified by Sports Lighting Institute)
Consistent 500-750 lux at court surface (meets FIVB Class II standards)
CRI >75 for accurate ball tracking and referee decision-making

2. Proven Reliability in Demanding Environments

Our thermal management system—evolved from 25 years of power supply R&D—keeps LED junction temperature below 75°C even in 40°C ambient conditions.

Technical advantage:

· Dual-path heat dissipation

· LM-80 tested: <5% lumen depreciation after 36,000 hours

· MTBF >60,000 hours (equivalent to 20+ years at 8 hrs/day usage)

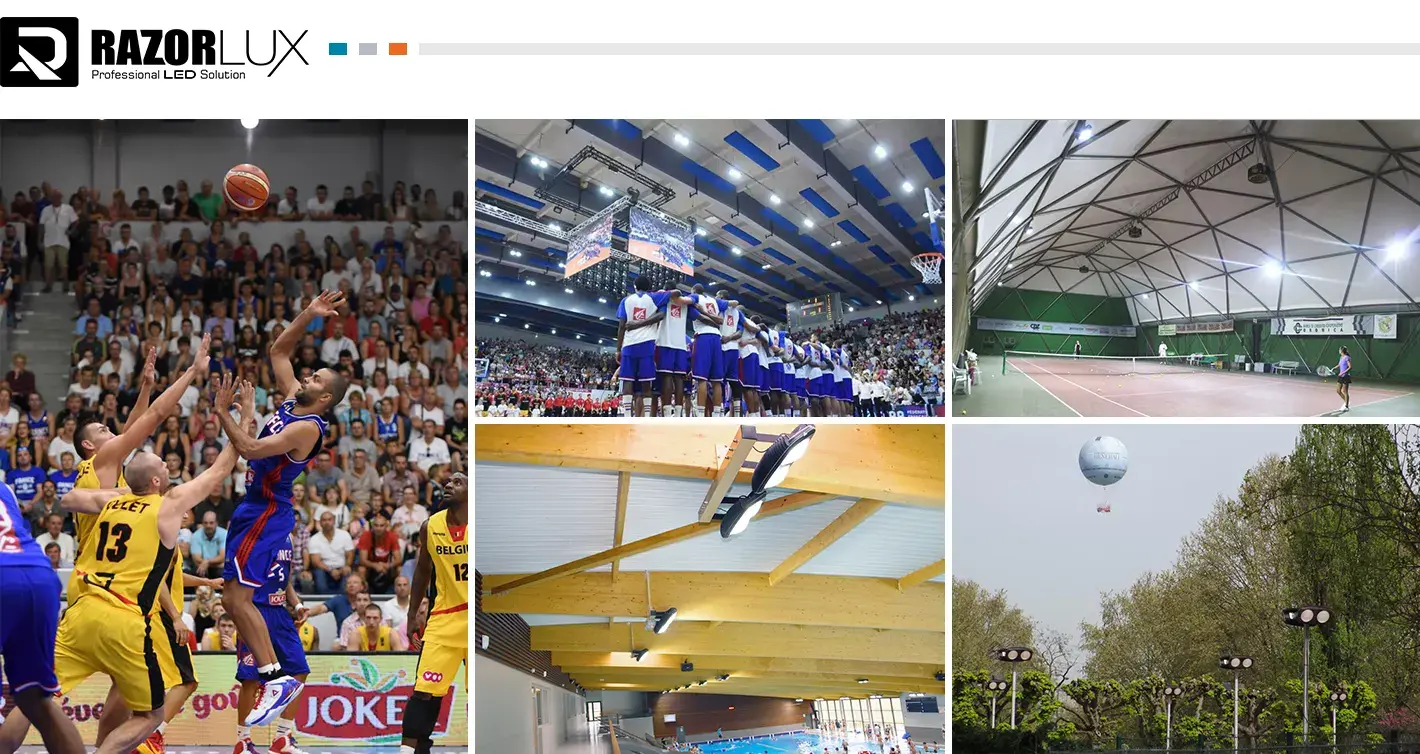

Sports complexes lighting

3. Flexible Installation for Any Court Layout

Court Type	Recommended Configuration	Mounting Height
Indoor Competition	4x 60° + 2x 40° (perimeter)	8-12m
Training Hall	6x 120° (grid pattern)	6-9m
Outdoor Multi-Court	8x 140°x60° (flood coverage)	10-15m

Installation benefit: Universal mounting bracket fits 90% of existing pole systems—no custom fabrication needed.

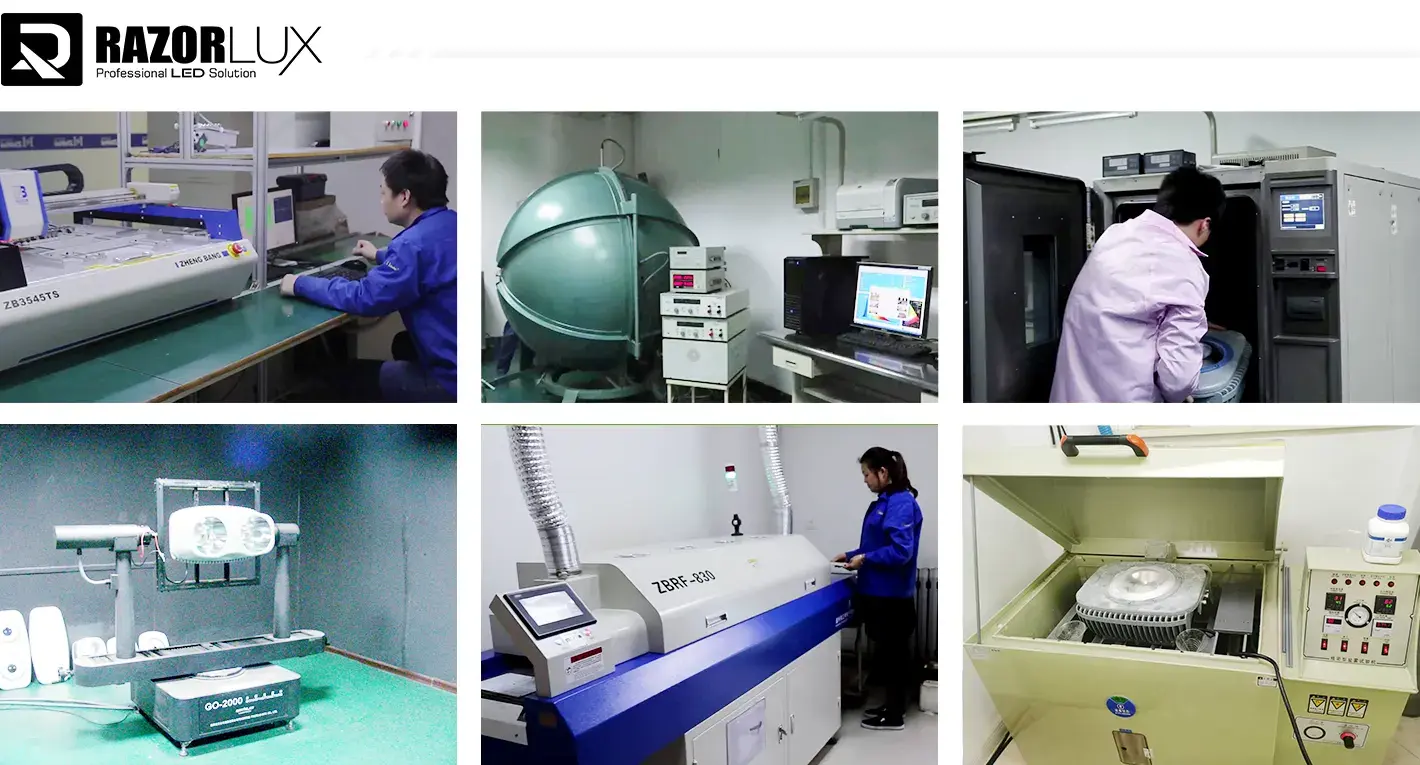

led volleyball ground Quality Control

Application Scenarios

Indoor Volleyball Arenas

Challenge: Achieving 500+ lux uniformity without ceiling glare for serves/spikes.

Solution: Our 60° symmetrical optics deliver 0.7+ uniformity ratio (Emin/Emax) across 18x9m court.

· Recommended: 4-6 fixtures at 8-10m height

· Control: Compatible with 0-10V/DALI dimming for multi-use gyms

· Case: Beijing Sports University - 98% lighting uniformity measured

Outdoor Beach/Grass Courts

Challenge: Withstanding rain, salt air, and temperature swings.

Solution: IP67 + marine-grade stainless steel (same standard as offshore platforms).

· Tested: 5,000-hour salt spray test (ASTM B117)

· Wide voltage: Handles generator power fluctuations

Multi-Purpose Sports Complexes

Challenge: Adapting lighting for volleyball, badminton, basketball in same space.

Solution: Adjustable CCT + modular beam angles.

· 4000K for training (reduces eye fatigue)

· 5700K for broadcasts (true color rendering)

· Zone control: Illuminate only active courts

product-1-1

Frequently Asked Questions

Product Selection

Q: How numerous installations do I require for a standard 18m x 9m court?

A: Ordinarily 4-6 installations depending on mounting height:

8-10m ceiling: 6 units with 60° pillars (grid layout)
10-12m ceiling: 4 units with 120° bars (corner mounting)

Q: What's the contrast between 4000K and 5700K?

4000K (unbiased white): Best for training—reduces eye weakness amid long sessions
5700K (sunshine): Favored for broadcasts—mimics common sunshine for cameras
Many offices utilize 4000K as default, exchanging to 5700K for broadcast matches

Q: Can these supplant 400W metal halide fixtures?

A: Yes. One 270W Razorlux unit produces identical brightening to a 400W MH light, with:

30% vitality savings
Instant on/off (no warm-up time)

Installation & Compatibility

Q: Do these work with my existing dimming system?

A: We offer three driver options:

1. Standard: Non-dimmable (lowest cost)

2. 0-10V: Compatible with most analog dimming panels

3. DALI: For advanced building automation systems

Q: What if my facility has unstable power supply?

A: The AC90-305V input range handles ±30% voltage swings without additional equipment. We've installed thousands of units in areas with unreliable grids (rural Southeast Asia, island communities) with zero power-related failures.
