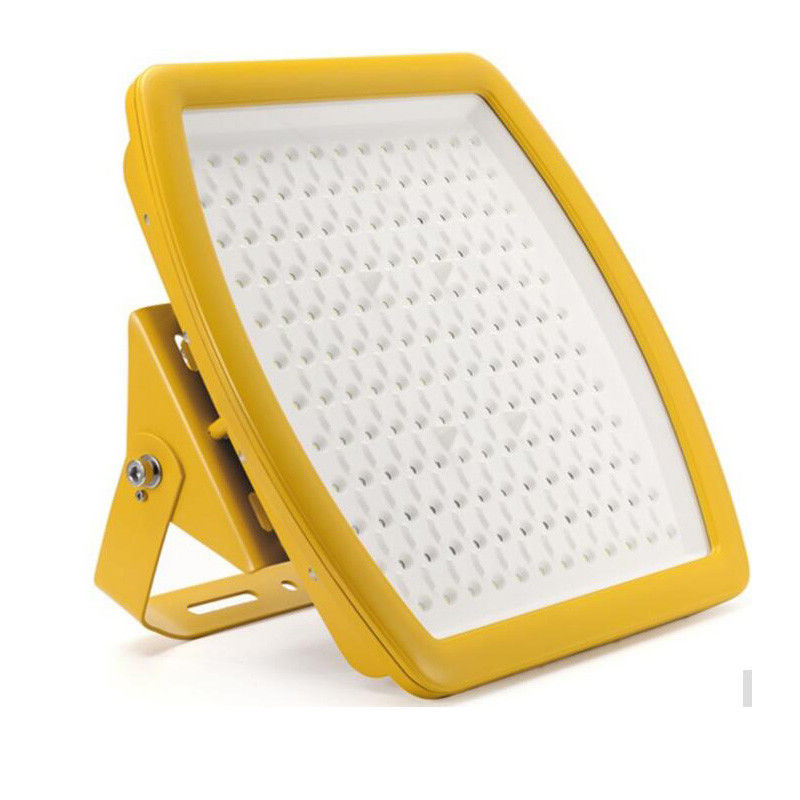

Atex 100w Led Explosion Proof Light IP68 11600lm Movable Work

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	Razorlux
Certification:	ce, C-tick, PSE, RoHS, Saa
Model Number:	R EP-J-100

Payment & Shipping Terms:

Price:	$200.00 - $255.00/Pieces
Packaging Details:	Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability:	1000 Piece/Pieces per Week

Contact Now

All Products

LED Outdoor Flood Light (33)

Marine LED Flood Light (42)

Waterproof LED Flood Light (25)

LED Industrial Flood Light (18)

Dimmable LED Flood Light (22)

LED Stadium Lights (62)

LED Outdoor Sports Lighting (19)

LED Boat Deck Light (11)

LED High Mast Light (17)

LED Crane Light (10)

LED High Bay Lights (28)

LED Explosion Proof Light (28)

Detailed Product Description

Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout	Lifespan (hours):	100,000
Working Time (hours):	100,000	CRI (Ra>):	75
Lamp Luminous Flux(lm):	11600lm	IP Rating:	IP68
Working Temperature(℃):	-30 - 50	Product Name:	Rozorlux High Quality Atex 100w Explosion Proof Movable Led Work Light
Power:	100W	Material:	Die Cast Aluminum
Port:	TIAN JIN
High Light:	Atex 100w Led Explosion Proof Light , 11600lm Led Explosion Proof Light , IP68 work movable led light

Rozorlux High Quality Atex 100w explosion proof movable led work light

FEATURES:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.

Application:

1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D

ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200200270mm	300300175mm	400400185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK

The heavy duty exterior of EPL series LED Explosion Proof Light protects against the conditions of refineries, paint spray booths, airplane hangers, and gas stations.

Improving the task lighting of tough work environments where hazardous gases or fumes are present, this fixture is sealed to prevent sparks from internal components.

Powder coated aluminum and tempered glass construction is durable for corrosion and impact resistance, yet lightweight for easy installation.

Reducing energy and maintenance costs, high powered LEDs illuminate longer, safer, and brighter than 400-watt metal halide.

Install with conduit to maintain safety certification, either direct pole mount or with included U-bracket.
