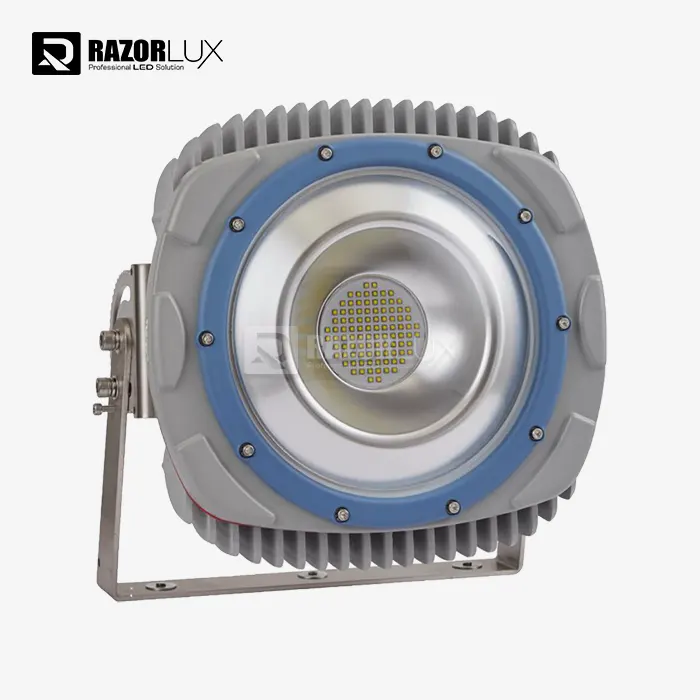

marine led deck lights
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Marine LED Deck Lights - Professional Marine Lighting Solutions
Are you looking for solid marine led deck lights that can withstand the cruel marine environment? Your ship's deck requires professional-grade lighting that conveys extraordinary execution, solidness, and security. Our lights are particularly designed for sea applications, including IP67 waterproof security and RMRS marine certification. These strong lighting installations give prevalent light for deck operations whereas guaranteeing long-term unwavering quality in challenging marine conditions.
Product Specifications
Model | RGL-180A | |
Beam Angle | 60° 120° 140°*60° | |
Stable Flux (5700K after 1 hour) | 21600 lm | |
Dimension (mm) | 360*358*306mm | |
| LEDs | 162W |
Power | Driver | 18W |
Consumption | Total | 180W |
Replace HID Lamp | 400 ~ 500W | |
Net Weight | 10kg | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |

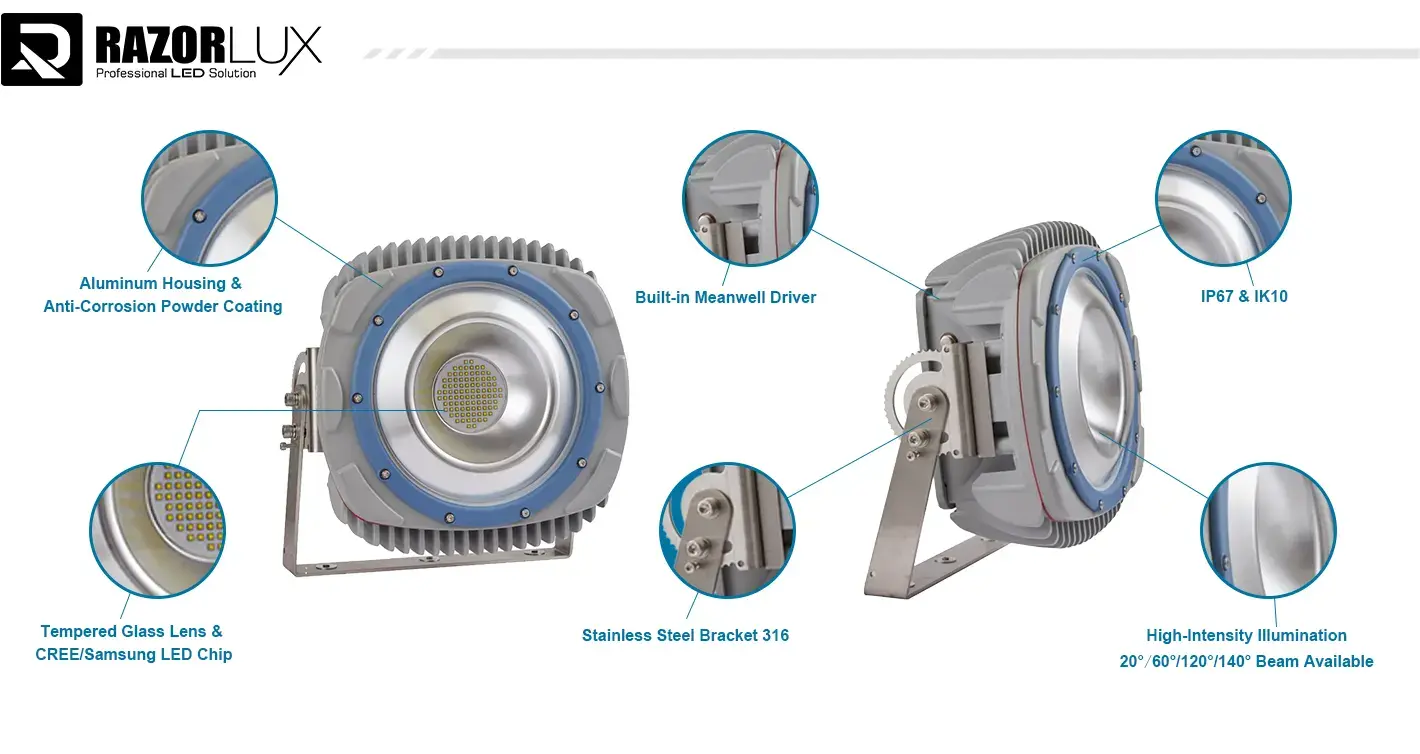

Why Choose Our Marine LED Deck Lights?
Patented Multi-Function Plan - Our imaginative protected innovation guarantees ideal execution over all marine working situations, giving you with flexible lighting solutions.
Superior Marine Certification - RMRS certification ensures compliance with universal marine benchmarks, guaranteeing your vessel meets all security requirements.
Wide Voltage Compatibility - Supporting both AC and DC control frameworks makes establishment adaptable over diverse vessel sorts and electrical configurations.
Extreme Climate Resistance - IP67 security rating guarantees total assurance against water entrance and clean, keeping up dependable operation in cruel marine conditions.
Stainless Steel Development - Corrosion-resistant materials anticipate rust and debasement from saltwater introduction, amplifying item life expectancy significantly.

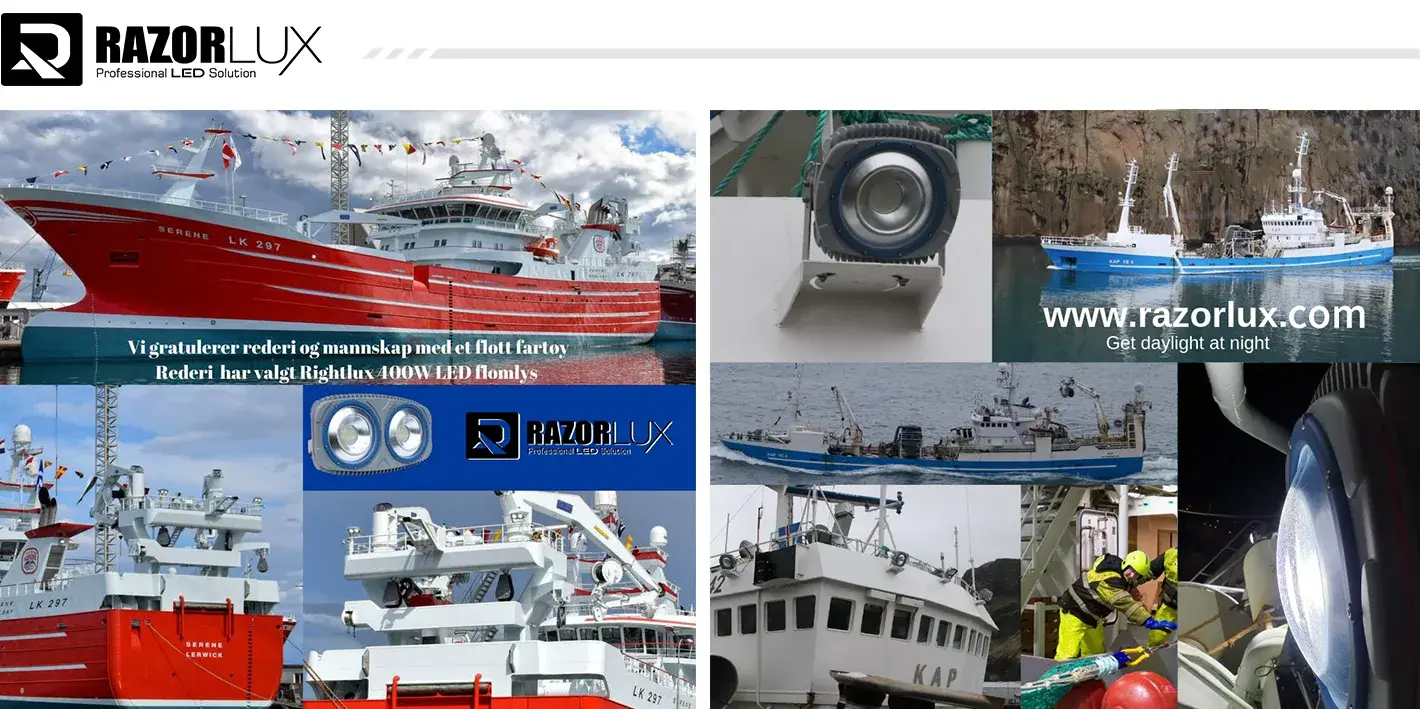

Applications
- Commercial Vessel Deck Lighting: Cargo ships, holder vessels, and bulk carriers requiring dependable deck light for stacking and emptying operations amid night shifts.
- Offshore Stage Brightening: Oil rigs and seaward establishments require strong lighting arrangements that can withstand extraordinary climate conditions and give secure working environments.
- Naval and Military Applications: Warships and maritime vessels requiring strategic lighting frameworks that meet strict military determinations and operational requirements.
- Fishing Armada Operations: Commercial angling pontoons require tried and true deck lighting for sorting catches and conducting operations amid early morning or late evening hours.
- Yacht and Extravagance Marine: High-end recreational vessels requiring exquisite however useful lighting that improves both security and stylish appeal.
- Port and Harbor Offices: Docking ranges, wharfs, and marine terminals where reliable brightening guarantees secure vessel route and cargo handling.
- Marine Development Ventures: Coasting stages and development freight ships requiring brief or lasting lighting arrangements for submerged and surface development work.
- Research Vessels: Logical ships conducting marine inquire about operations require specialized lighting for gear taking care of and information collection activities.

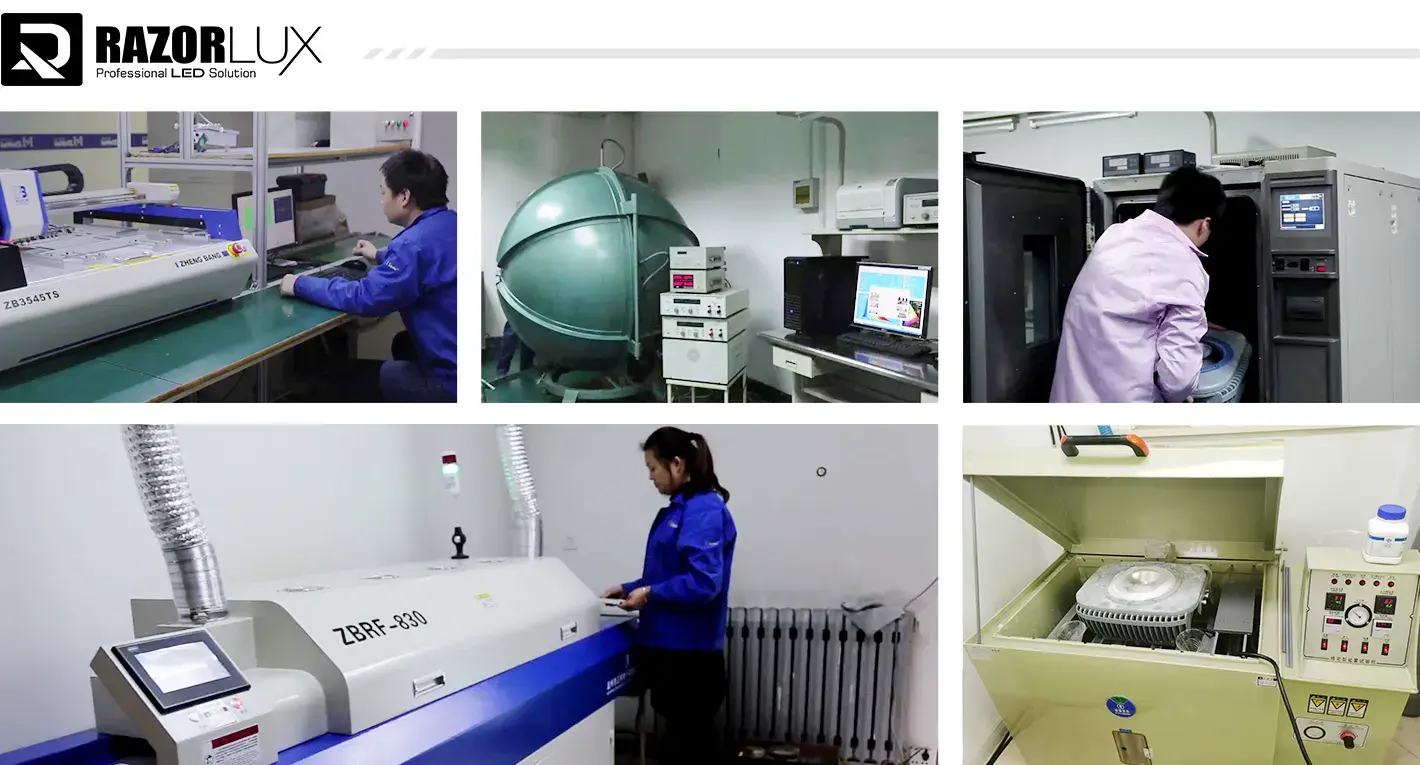

Quality Control
Our comprehensive quality administration framework guarantees each item meets the most noteworthy benchmarks. We keep up ISO9001 certification for over 22 a long time, illustrating our commitment to steady quality.
Each unit experiences thorough testing counting warm cycling, vibration resistance, and waterproof approval. Our quality control handle incorporates approaching fabric review, in-process checking, and last item testing some time recently shipment.

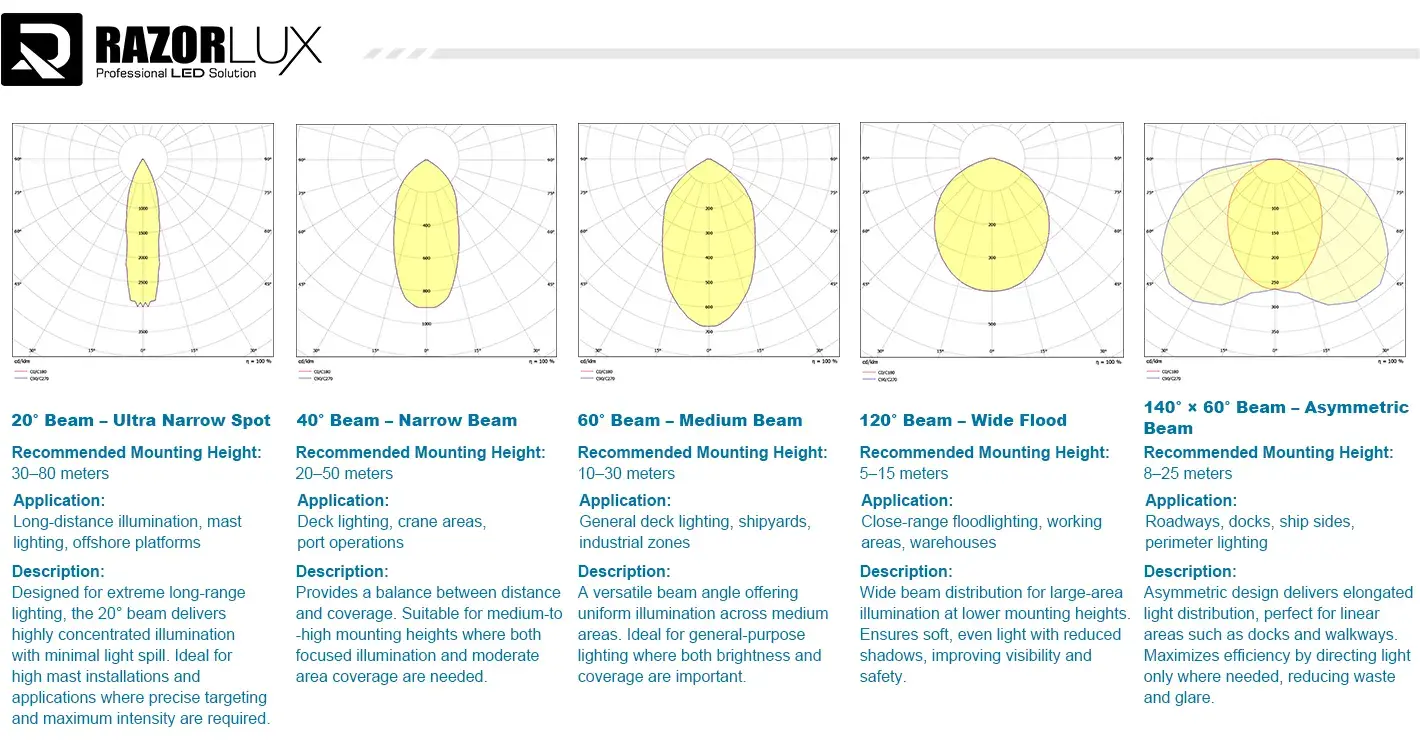

Beam Angle Options
We provide multiple beam angle options for all our models 90w-1200w, they are 20 degree, 40 degree, 60 degree, 120 degree and asymmetrical 140x60 degree. suit for different mounting height and applications.

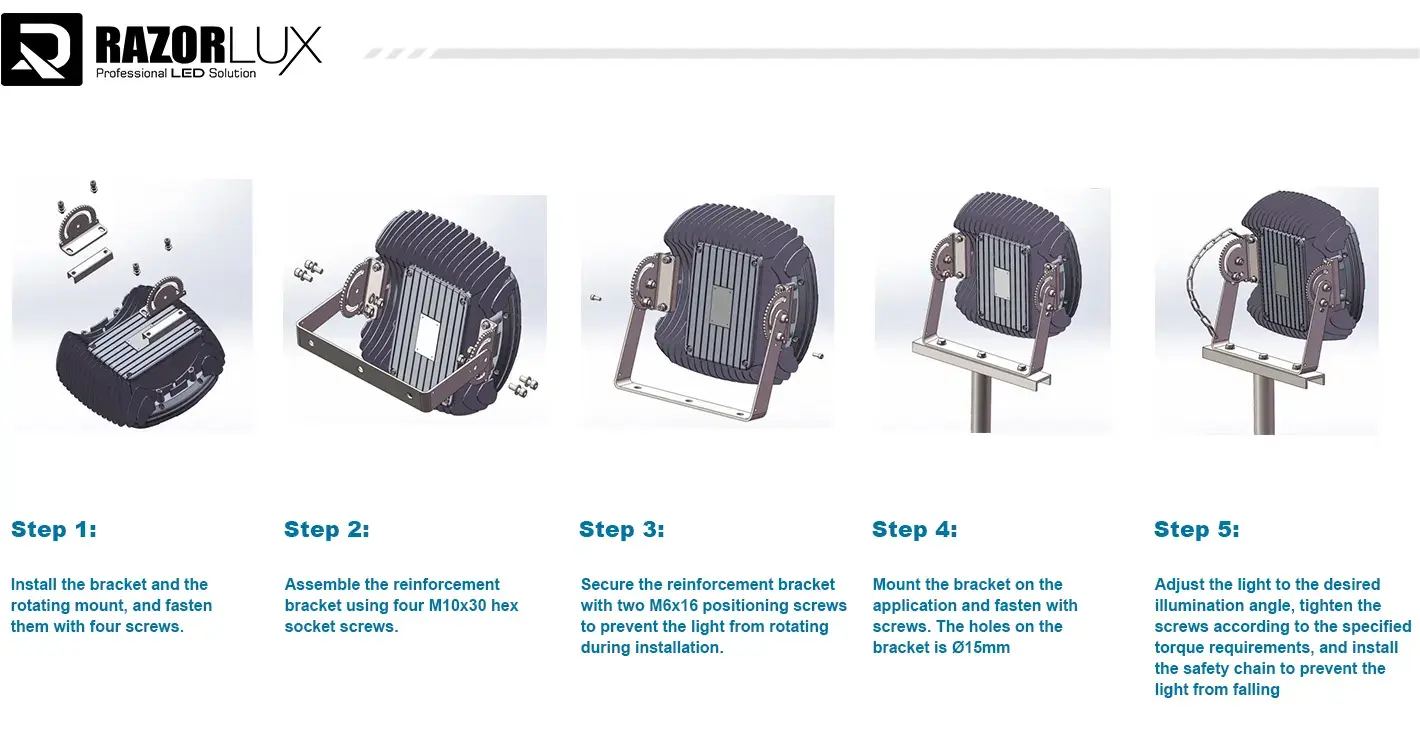

Installation Guide
Shipment Samples
We give customized tests for assessment some time recently bulk orders. Test conveyance ordinarily takes 5-7 trade days by means of express shipping. This permits you to confirm item quality, compatibility, and execution specifications.
Packaging and Transportation
Marine led deck lights are carefully bundled in defensive froth and waterproof materials. We offer different shipping choices counting discuss cargo for pressing orders, ocean cargo for cost-effective bulk shipments, and rail transport for territorial deliveries.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Your fulfillment drives our ceaseless enhancement. We welcome input on item execution, conveyance encounter, and benefit quality. This input makes a difference us upgrade our items and superior serve the marine industry.
After Sales Service
Our devoted bolster group gives specialized help, guarantee claims preparing, and substitution portion accessibility. We offer 24/7 client bolster for critical marine operations and keep up comprehensive documentation for all products.
Qualification Certification
Our items hold different universal certifications counting RMRS for marine applications, UL for North American markets, CE for European compliance, and SAA for Australian establishments. These certifications guarantee worldwide acknowledgment and administrative compliance.
FAQ
Q: What makes these product suitable for saltwater environments?
A: Our lights feature stainless steel construction and special coatings that resist corrosion from saltwater exposure, ensuring long-term reliability in marine environments.
Q: Can these lights work with both AC and DC power systems?
A: Yes, our lights support wide voltage ranges (AC90-305V, DC127-431V), making them compatible with various vessel electrical systems.
Q: How long is the warranty period?
A: We provide a comprehensive 5-year warranty covering manufacturing defects and performance issues under normal operating conditions.
Q: Are replacement parts available for maintenance?
A: Yes, we maintain inventory of replacement components and provide technical documentation for maintenance procedures and part identification.
Q: What beam angles are available for different deck applications?
A: We offer multiple beam angles from narrow 15° for focused illumination to wide 140°x60° for broad area coverage, allowing customization based on your specific requirements.
Contact Us
For inquiries about our marine LED deck lights or technical support, please reach out to us:
Email: sam@razorlux.com
Transform your vessel's lighting with our professional products - engineered for reliability, built for the demanding marine environment, and backed by decades of expertise in marine lighting solutions.
