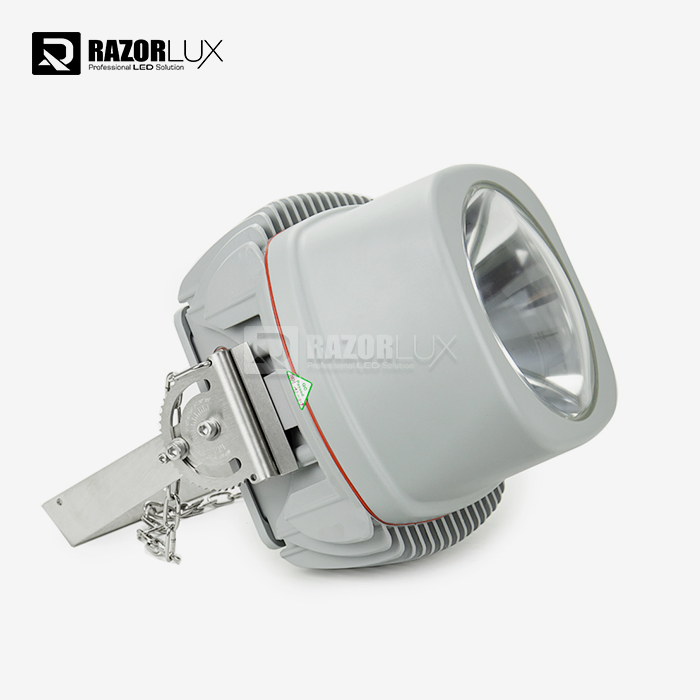

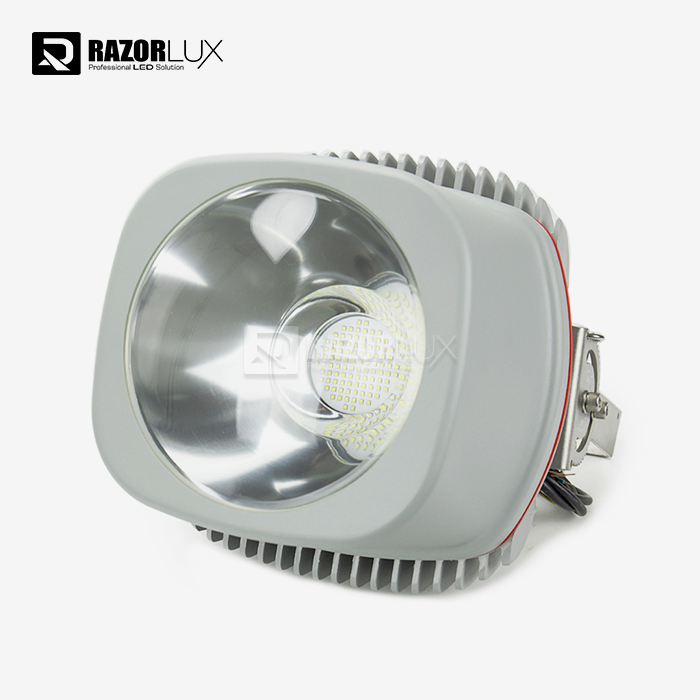

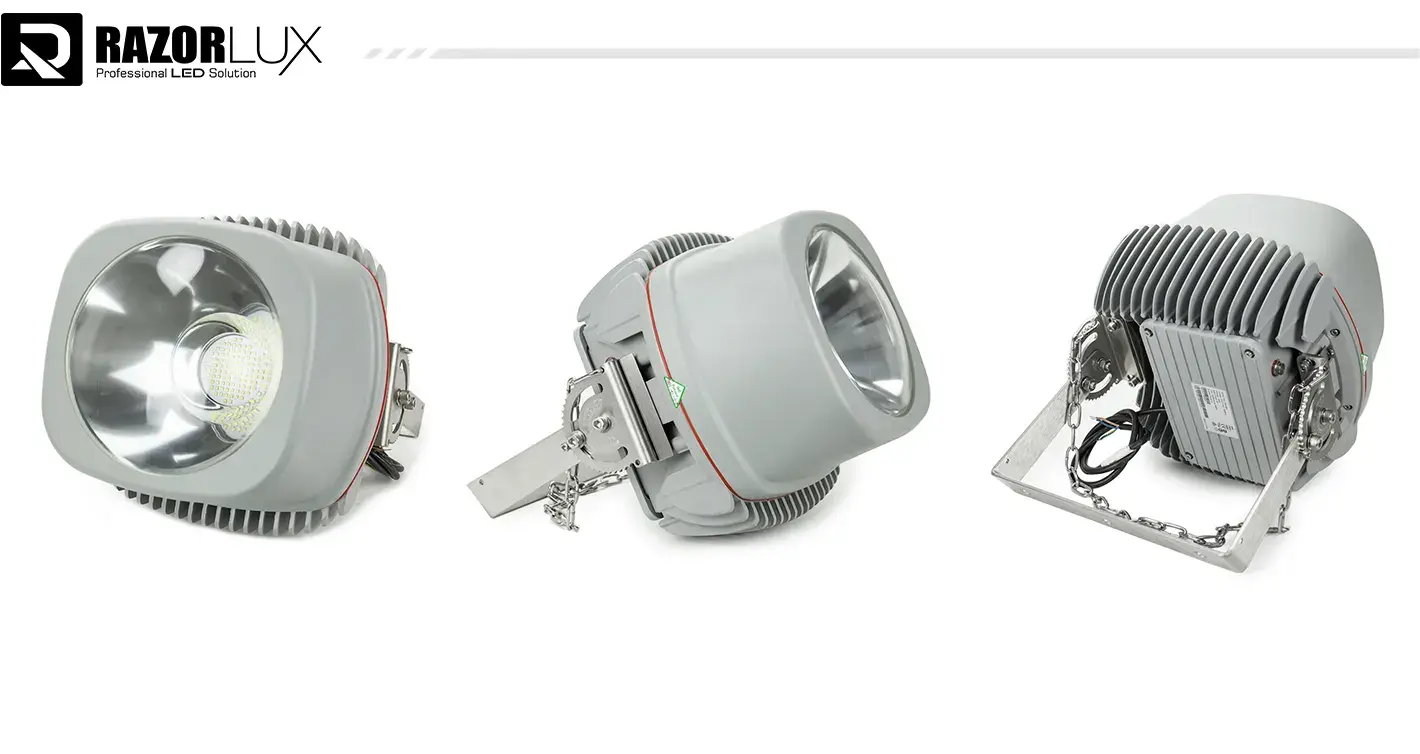

led loading lights
Rated Power: 120W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional LED Loading Lights: 25 Years Illuminating the World's Busiest Ports
Trusted by 300+ Marine Terminals Across 45 Countries
Are visit lighting disappointments disturbing your 24/7 cargo operations?
Since 1999, Razorlux has designed lighting arrangements for the world's harshest mechanical situations. Our 120W led loading lights presently work in offices from the Cold ports of Murmansk to the tropical mugginess of Singapore's holder terminals.
What Makes Our Lights Different?
Real-World Testing, Not Just Lab Specs
Our engineers went through 18 months at China's busiest ports—Shanghai Yangshan and Qingdao—documenting real disappointment focuses of standard lighting. The result? A lighting framework planned for the particular challenges you face:
· Salt splash that erodes standard installations in months → Our 316 marine-grade steel brackets stand up to erosion 5x longer
· Voltage changes from diesel generators → AC90-305V / DC127-431V resilience kills flicker
· Crane vibrations that misalign lights → Reinforced mounting keeps pillars stable
· Energy costs eating into edges → 130LM/W effectiveness cuts control utilization by 40%
Technical Specifications of LED Loading Lights
| Feature | Specification |
| Model Number | RGL-120P |
| Rated Power | 120W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 21600LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |

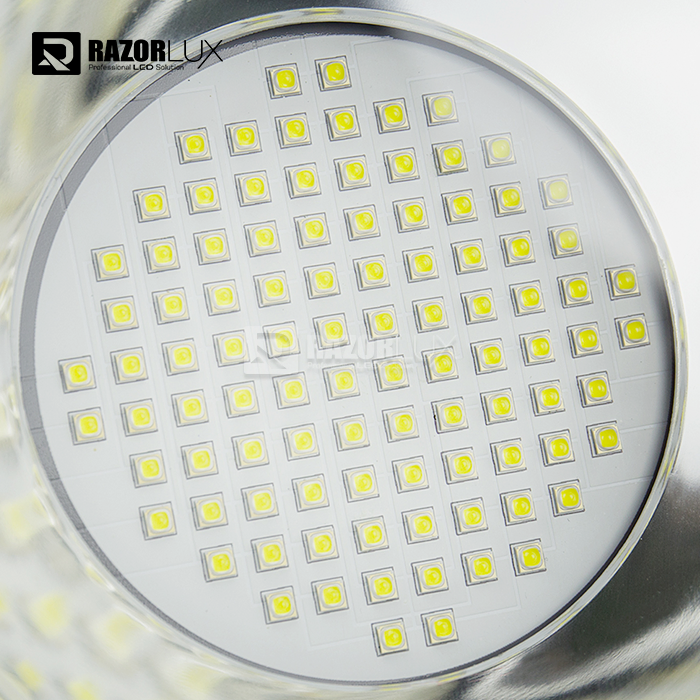

| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel |
| Net Weight | 15KG |
| Warranty | 5 Years |
| Certificates | RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |
| More Available Powers | 90W,120W, 150W, 180W, 210W, 270W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W |
Who Uses Razorlux Lights?
Ports & Container Terminals
Challenge: 24/7 crane operations require zero lighting failures
Solution: Our instant-on LED eliminates warm-up delays. 15° spot beams for crane operators, 140° floods for yard coverage.
Photo: Razorlux lights at APM Terminals, Rotterdam
Offshore Oil & Gas Platforms
Challenge: ATEX hazardous area compliance + saltwater corrosion
Solution: RMRS-certified explosion-proof housing with sacrificial anode protection.
Cold Storage Warehouses
Challenge: Standard LEDs fail at -30°C
Solution: Our thermal management system operates reliably at -40°C.
Mining & Quarry Operations
Challenge: Airborne dust clogs conventional fixtures
Solution: IP67 sealing with pressure equalization valves prevents dust ingress.
The Razorlux Manufacturing Difference
Why We Control the Entire Process
Unlike resellers, we manufacture in our ISO9001-certified Xi'an facility (certified since 2001—not recently rushed for marketing).
Our vertical integration gives you:
1. Component Selection — We use Lumileds LEDs (USA) & Meanwell drivers (Taiwan), not generic Chinese alternatives
2. Quality Control — 100% burn-in testing for 48 hours (industry standard: 4 hours)
3. Customization — Our led loading lights's engineering team can modify beam angles, voltages, mounting brackets without MOQ penalties
4. Warranty Response — Direct manufacturer support, not 3rd-party service centers
Industry-Leading 5-Year Warranty
What's Covered:
· LED module failure → Free replacement
· Driver malfunction → Free replacement
· Corrosion damage (when installed per guidelines) → Free replacement
What's Not (Be Honest About Limitations):
· Physical damage from impacts
· Modifications by unauthorized technicians
· Use beyond -40°C to +55°C range
Frequently Asked Questions
Before Purchase
Q: How do I calculate how many lights I need?
A: Use our free lighting design service. Send us:
· Facility dimensions
· Mounting height
· Required lux levels (we'll help if you don't know)
Our engineers will provide a layout plan within 48 hours.
Q: Can these replace my 400W metal halide fixtures?
A: Yes. Our 120W LED produces comparable lumens while cutting energy by 70%. Payback period averages 14 months.
Installation & Support
Q: Are installation services available?
A: We provide:
· Detailed CAD drawings & mounting templates
· Video installation guides
· Remote consultation (free)
· On-site installation (quoted separately for orders 100+ units)
Q: What if they fail during the warranty period?
A: We ship replacement units within 72 hours globally. You don't pay return shipping for defective units.
About Razorlux Optoelectronics
Xi'an Razorlux Optoelectronics Co., Ltd.
No.XXX, High-Tech Zone, Xi'an, Shaanxi, China
Established: 1999
Engineering Team: 47 professionals
Export Markets: 45 countries
Authorized Lab: National Development and Reform Commission LED Testing Center
Ready to Upgrade Your Loading Area Lighting?
Speak to an engineer about led loading lights:
