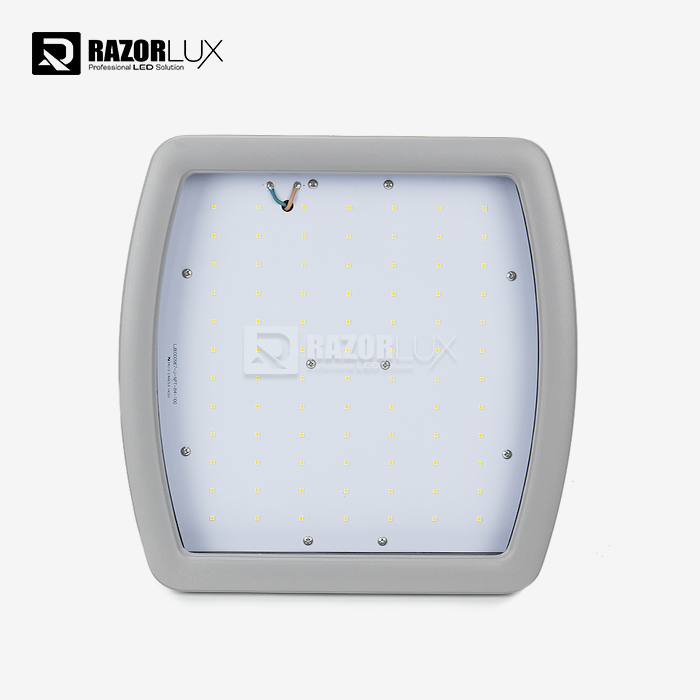

Explosion Proof Flood Lights

Why Safety-Critical Facilities Choose Explosion Proof Flood Lights

Working in Zone 1/Zone 2 dangerous areas? Our explosion proof flood lights are designed for:

Oil & Gas platforms – ATEX Group IIC certified for combustible vapor zones

Chemical plants – C5M marine-grade erosion resistance

Mining operations – IP68 dust/water security + impact-resistant design

Seaward vessels – -30°C to +50°C operation range

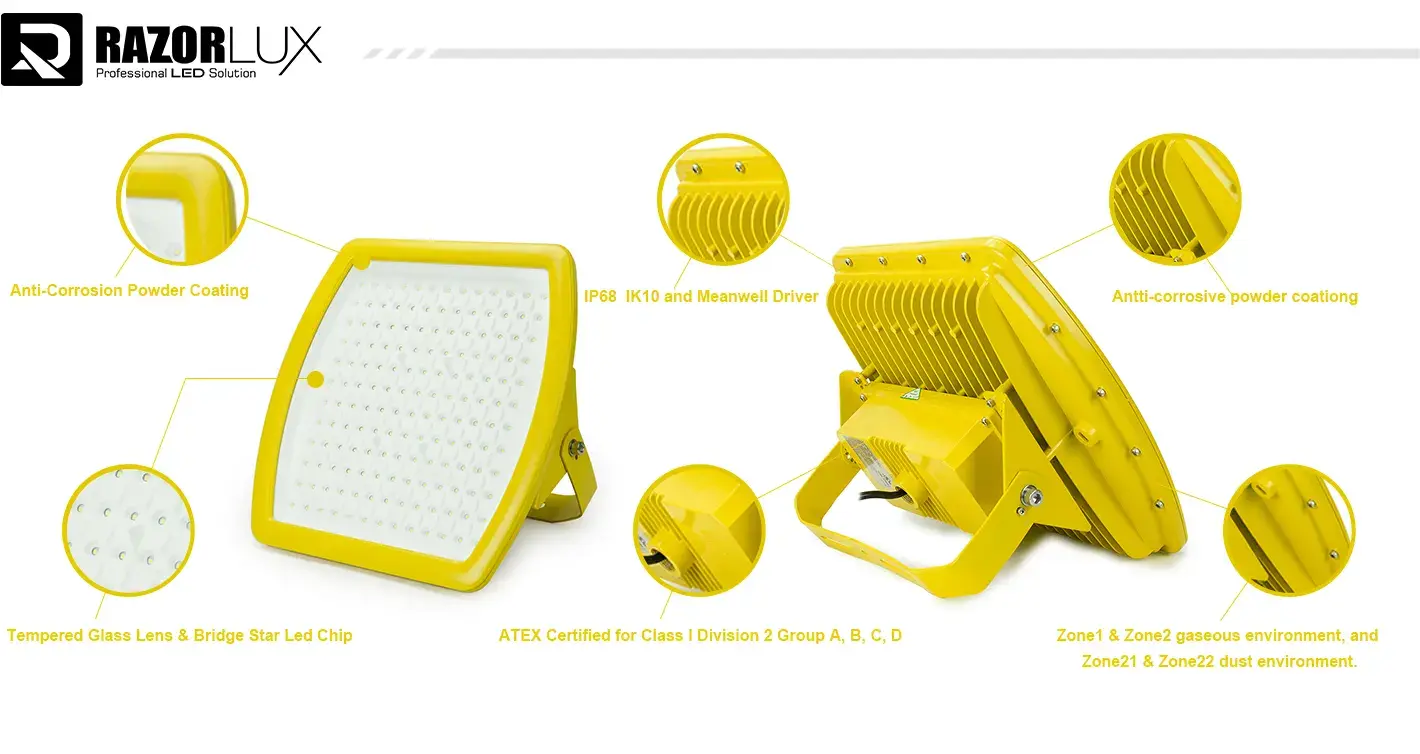

Core Technology Advantages

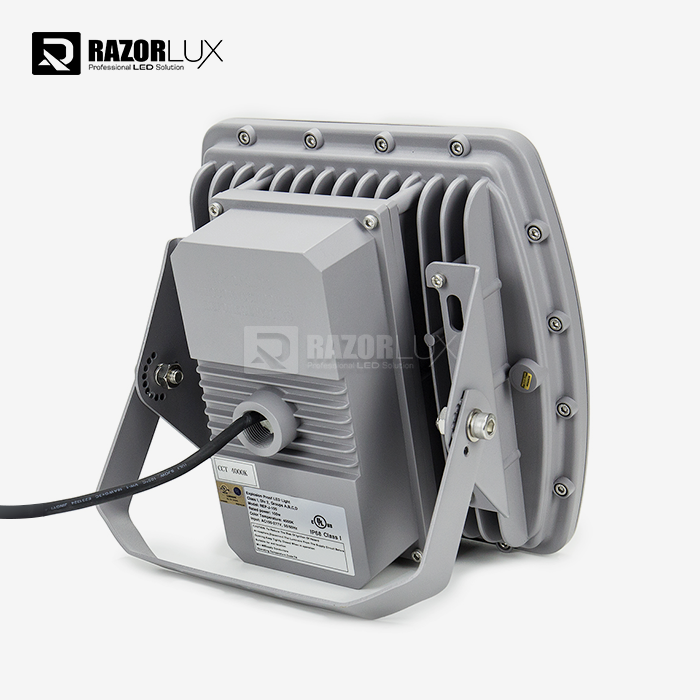

1. Proven Explosion Containment Design

Our ADC12 die-cast aluminum lodging employments precision-machined fire ways that anticipate inner start from escaping—even amid worst-case failures.

What this implies for you:

• Meets ATEX Directive 2014/34/EU for unstable atmospheres

• UL 844 certified for North American Class I, Division 1 locations

• Tested to withstand 1.5x evaluated weight without breach​​​​​​​

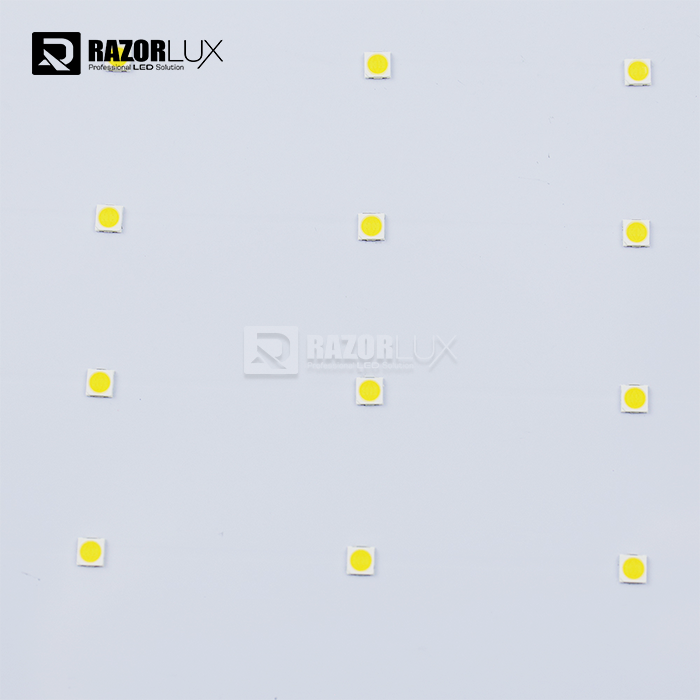

2. Long-Life LED System (L70 > 50,000 Hours)

Component Stack:

Bridgelux 3030 LED chips (700mA drive current) ↓ 2.0mm aluminum PCB (Thermal index: 2.5 W/m·K) ↓ MEANWELL HLG-series driver (Premium tier) ↓ Heat dissipation fins

Real-world performance:

· 95% lumen maintenance after 3 years continuous operation

· Driver MTBF: 125,000 hours at 40°C ambient

· Zero LED failures in 5-year offshore installation (verified by DNV-GL)

3. Optical System Built for Harsh Conditions

Explosion Proof Flood Lights Specifications

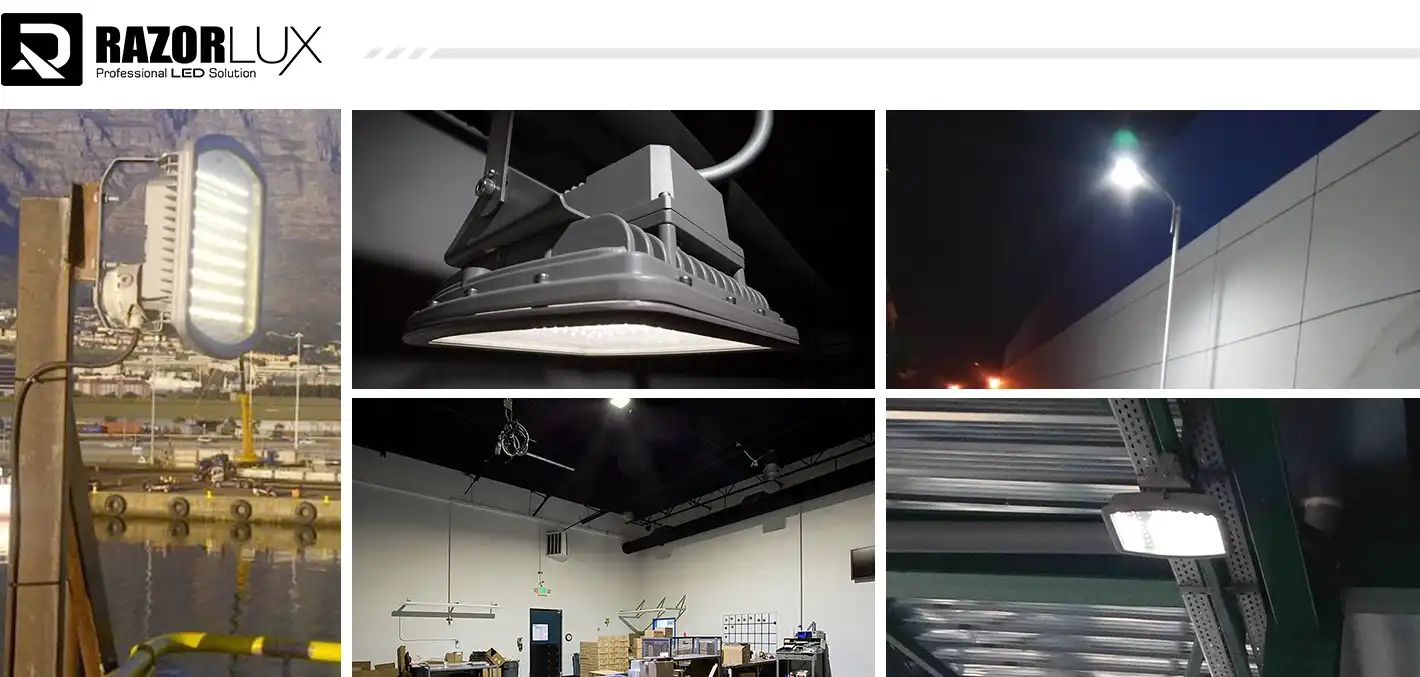

Application Guides

Oil & Gas Facilities

Challenge: Methane/propane vapor in Zone 1 areas

Solution: ATEX Group IIC rating (safe for hydrogen, most flammable gases)

Offshore & Marine Environments

Challenge: Salt spray + constant vibration + extreme temperatures

Our Approach:

1. C5M-rated powder coating (>3,000h salt spray test)

2. Vibration-dampening mounts (10-200Hz isolation)

3. Dual cable glands with IP68 seals

Performance Data:

· North Sea platform installation: 4 years, 0 maintenance interventions

· Verified by DNV-GL inspection report

Chemical Processing Plants

Corrosive Atmosphere Protection:

 Suitable for: Chlorine storage, acid pickling lines, alkali scrubbers

What Makes Us Different

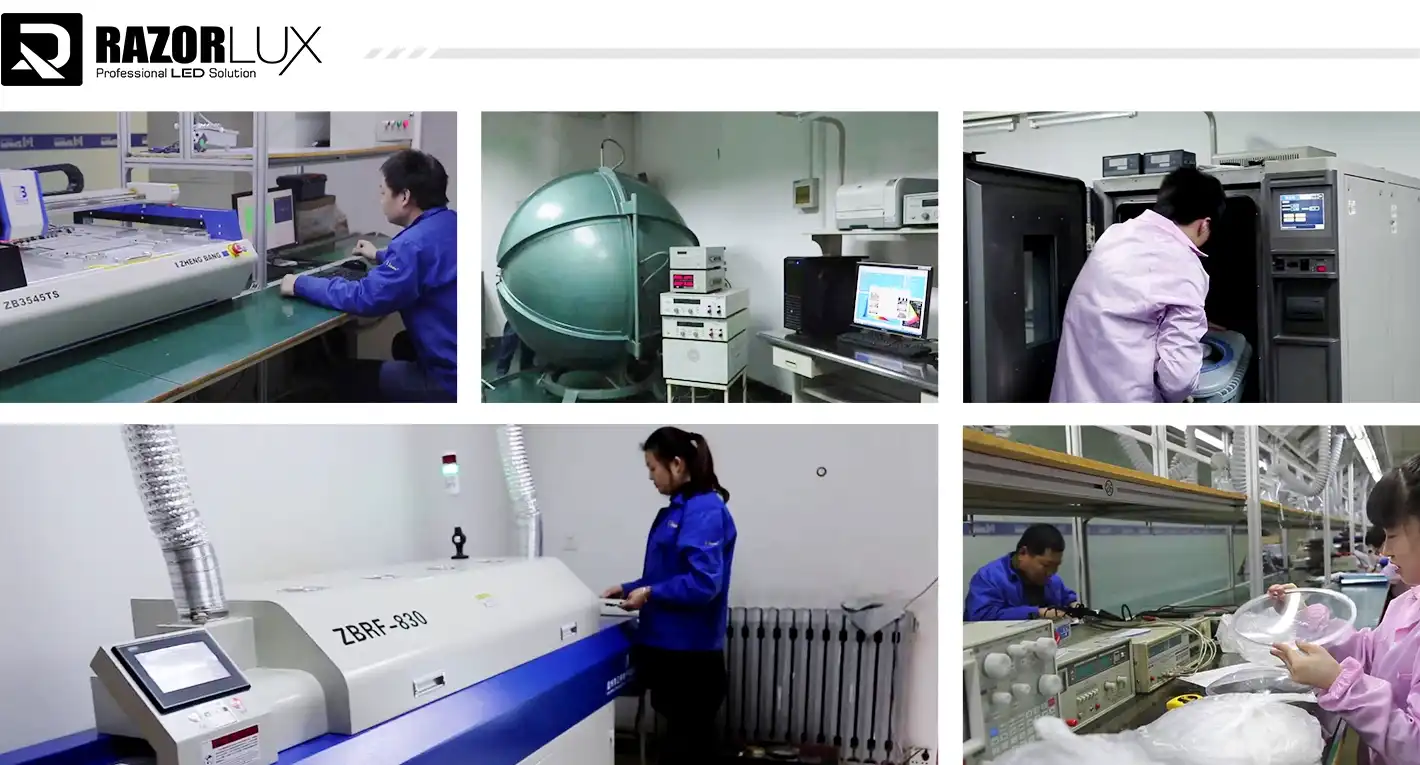

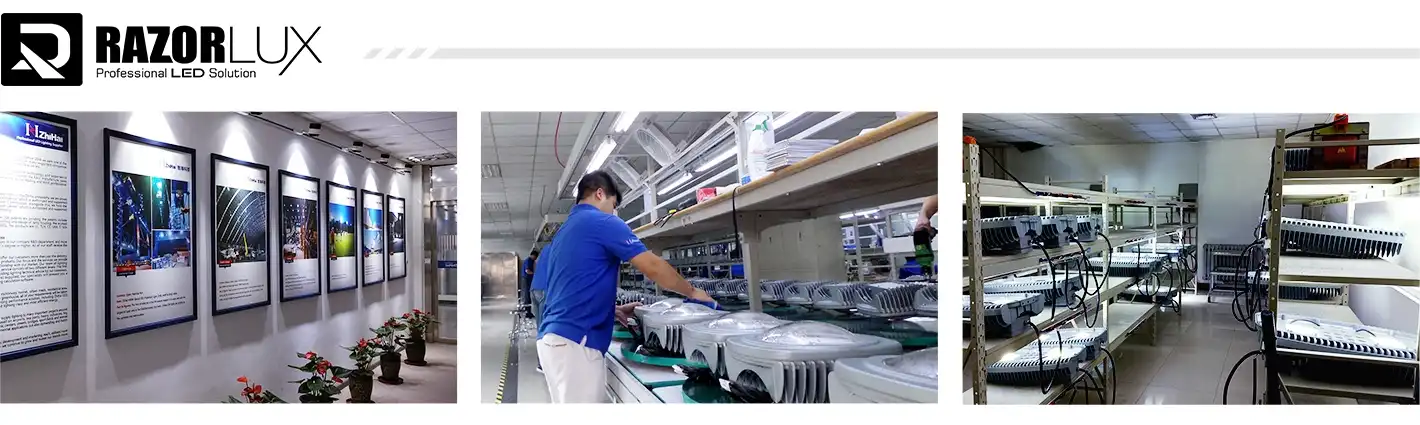

Vertically Integrated Manufacturing

Unlike trading companies, we control the entire production chain:

· LED chip binning & testing (in-house spectrophotometer)

· Driver circuit design (proprietary surge protection)

· Pressure vessel testing (certified test chamber to 10 bar)

Quality Metrics (2023):

· First-pass yield: 97.8%

· Field failure rate: 0.12% (industry avg: 2-3%)

· Warranty claim rate: 0.08%

Engineering Resources

Two National-Level Labs:

1. Xi'an LED Lighting Engineering Laboratory (NDRC certified)

2. Shaanxi LED Technology Research Center (Ministry of Science)

Our Team:

· 12 PhDs in optics/thermal engineering

· 28 years average industry experience

· 200+ active patents (18 invention patents)

Customization Options

We understand standard explosion proof flood lights don't fit every scenario.

Available Customizations:

· Dimming: 0-10V, DALI, DMX512

· Emergency backup: 90-min battery pack integration

· Mounting: Yoke, trunnion, pendant, wall-bracket

· Cable entry: Top/bottom/side entry, multiple gland sizes

· Special coatings: PTFE for extreme chemical resistance

Lead Times:

· Standard models: 7-10 days

· Custom configurations: 3-4 weeks (includes prototype approval)

Frequently Asked Questions

What's the real-world lifespan in marine environments?

Based on our North Sea installations (2018-present):

· Average lifespan: 7-9 years before first maintenance

· Failure modes: 92% cable gland aging (easily replaceable), 8% driver failures

· Maintained lux levels: 88% of original output after 5 years

The C5M coating is the key—our accelerated salt spray testing (ASTM B117) shows minimal degradation after 3,000 hours, equivalent to 15+ years real-world exposure.

Can these replace 400W metal halide fixtures?

Yes. Typical replacements:

Plus additional benefits:

· Instant-on (no warm-up time)

· Better color rendering (CRI 70+ vs 65 for MH)

· No glass bursting risk

How do I ensure compatibility with existing explosion-proof conduit systems?

All our fixtures include:

· NPT threaded cable entries (1/2", 3/4", 1" available)

· Metric thread adapters (M20, M25) upon request

· Certified Ex d cable glands with each unit

Installation requirement: Minimum 5 threads engagement per ATEX/UL standards.

What's included in the 5-year warranty?

Covered:

· LED module replacement (if <70% lumen output)

· Driver failures (including surge damage up to 10kV)

· Housing corrosion defects

· On-site technical support

Not covered:

· Physical damage from impacts/accidents

· Incorrect installation per manual

· Modifications by third parties

Claim process: 48-hour response, replacement parts shipped within 5 business days globally.
