500W Led Floodlight

500W LED Floodlight | Industrial High-Power Lighting

Product Introduction

The Razorlux 500W LED floodlight is intended for demanding industrial settings where dependability is crucial. This light replaces 1000–1500W conventional HID systems with a 70% reduction in energy expenses because to its 130LM/W efficiency and 65,000 lumens output. Constructed with IP67-rated protection and covered by a 5-year guarantee, it can withstand severe circumstances, voltage swings, and high temperatures that cause regular lights to go out.

500W Led Floodlight Specifications

Core Features

Wide Voltage Compatibility

Without stabilisers, it always works between 90V and 305V AC and 127V to 431V DC. Just right for places that are far away, have power lines that don't always work, or use generators to power their needs. Built-in surge safety of up to 20kV keeps you safe from lightning and power spikes.

Superior Thermal Management

Even when it's 50°C outside, the LED junction stays below 85°C thanks to the cold-forged ADC12 metal cooler. This keeps the brightness from going down like other goods do, so it lasts longer. By improving the flow of air, passive cooling can be done without using fans.

Flexible Beam Control

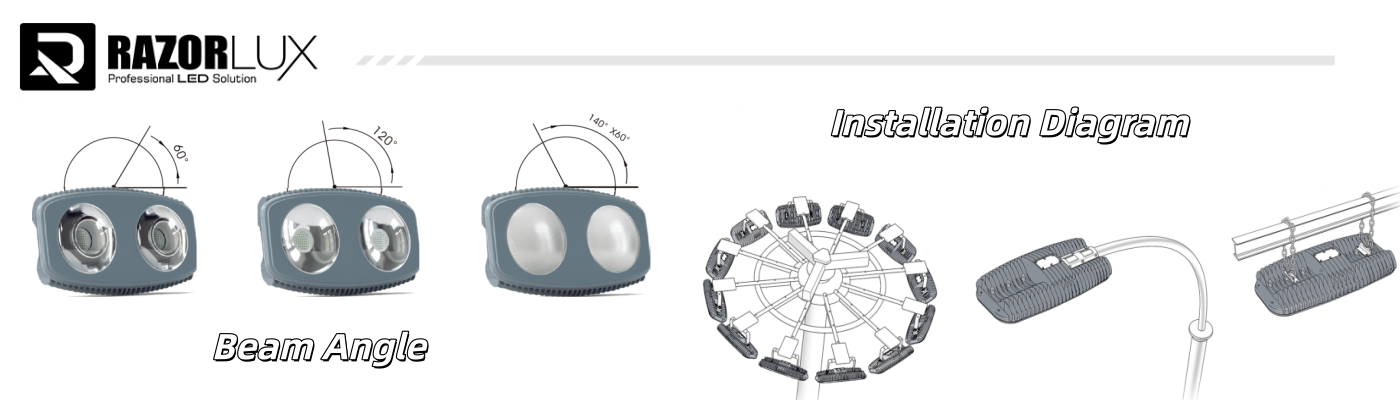

Seven beam angle options match your installation requirements:

· Narrow (15°-30°): High-mast lighting, 30-40m heights

· Medium (40°-60°): General area coverage, 15-25m heights

· Wide (120°-140°×60°): Facade, loading dock, parking areas

Tempered glass lenses maintain optical clarity and provide IK08 impact resistance.

Weatherproof Construction

Marine and chemical conditions don't rust stainless steel frames. AkzoNobel powder covering passes a test that uses salt spray for 1000 hours. Precision-molded silicone gaskets make sure that the IP67 rating is met. 3G earthquake strength grade can handle big machinery and crane activities.

Smart Dimming Options

For automated control, you can add 0-10V, PWM, or DALI dimming protocols. Save even more energy during times when not much is going on. Power factor >0.95 makes sure that the device works with the grid and cuts down on wasted electricity.

Application Scenarios

Warehouses & Manufacturing Plants

Place at 15 to 30 m heights for even high-bay lighting. Having the same level of light on all production floors makes them safer and more productive. Maintenance downtime is cut down by a lot—the L70 light lasts for 50,000 hours or more, which is 5 to 7 years instead of 6 to 12 months for metal halide lamps.

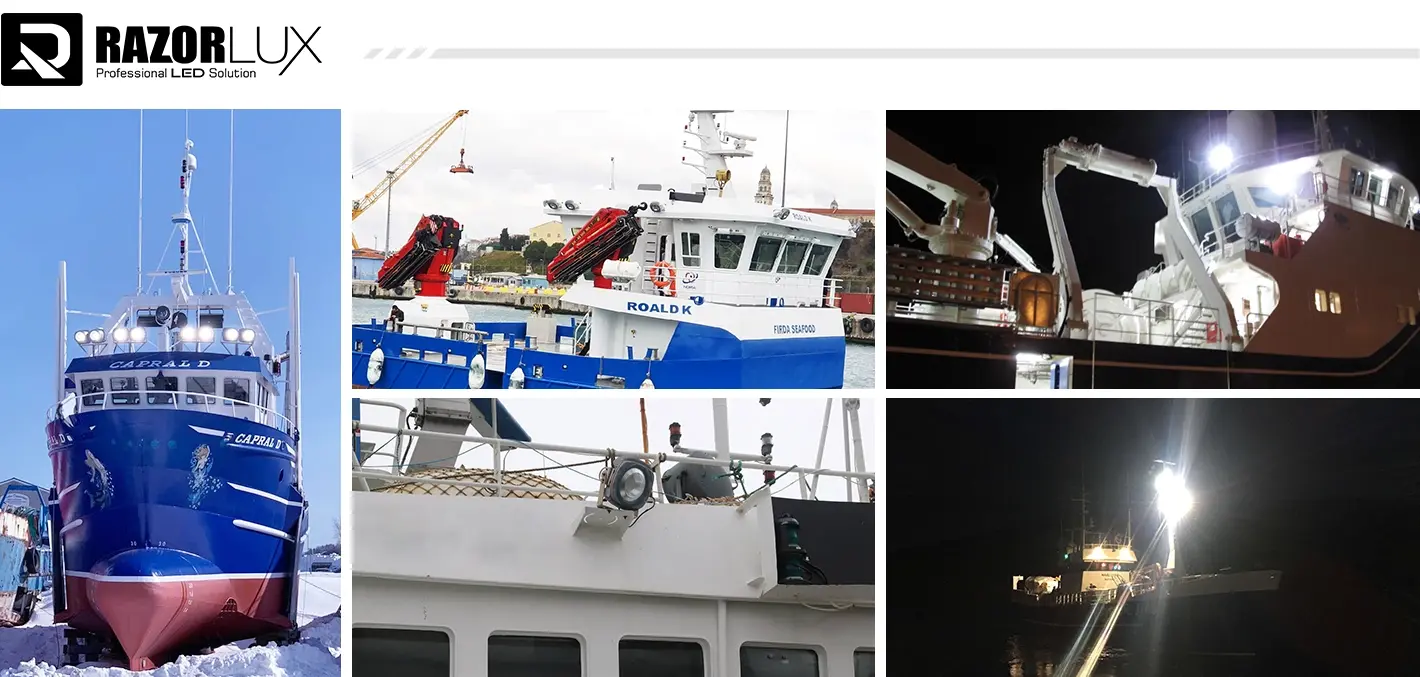

Seaports & Container Terminals

500W Led Floodlight from 30 to 40 m high poles, narrow beam angles (15° to 30°) provide good lighting. Resistance to rust and an IP67 grade make it reliable 24 hours a day, seven days a week in salty settings. Mounting that doesn't shake can handle crane movement and seaside winds.

Construction & Mining Sites

Generator power changes can be handled by the wide voltage input (AC 90–305V). Lenses with an IK10 rating don't get damaged by debris. Quick-mount clamps can be used on both temporary and permanent buildings. Makes sure that workers are safe during nite shifts.

Sports Stadiums

HDTV transmission is possible with flicker-free lighting. High CRI options (Ra>80) make sure that colours are shown correctly. Lighting guidelines set by FIFA and UEFA are met by precise beam control. A low UGR shape keeps players' eyes from getting tired.

Transportation Hubs

Reliable perimeter security lighting is good for airports, rail yards, and logistics centers. Operating costs are lower when maintenance needs are minimal. International power standards (100–277V) can be used with wide voltage flexibility.

Quality Assurance

Manufacturing Standards

· ISO 9001 Certified: Continuous certification since 2001 (22+ years)

· 100% Burn-In Testing: 48-72 hour aging test at variable voltages screens for early failures

· Photometric Verification: Integrating sphere testing confirms actual lumen output

· Thermal Imaging: Validates junction temperatures stay within safe limits

· IP Rating Validation: High-pressure water jet testing per IEC 60529

About Razorlux

Since 2006, Xi'an Razorlux Optoelectronics has been a leader in industrial LED lights. From 1998 to 2006, we made advanced power supplies, which gave us a lot of experience with driver stability and heat control, which are two things that affect how long an LED lasts in real life.

Engineering Capabilities:

· In-house LED chip Packaging optimization

· Proprietary thermal management systems

· Custom driver development for extreme environments

· Vertical integration from components to final assembly

Research Partnerships:

· Xi'an LED Lighting Engineering Laboratory (NDRC-authorized)

· Shaanxi LED Lighting Technology Research Center (Ministry of Science partnership)

· Team includes 10+ PhDs specializing in solid-state lighting

Trusted By: Major infrastructure projects including China Guodian power facilities, China Mobile telecommunications towers, and Comba Telecom installations.

Frequently Asked Questions

How long does it really last?

50,000+ hours at L70 (maintains 70% initial brightness). At 12 hours a day, this is equal to 11 years of use. In the same kind of conditions, metal halide lamps usually need to be replaced every 8 to 12 months.

Can I use this if the power isn't stable?

Yes. The wide input range (AC 90–305V) can handle changes in power without any problems. Lightning strikes are protected against by built-in surge protection (6-20kV). There's no need for additional stabilisers.

Is fading possible?

Yes. When you place your order, you can choose 0-10V, PWM, or DALI dimming, which changes how the driver is set up. 10 to 100% dimming range. Performance that is smooth and doesn't flicker, good for camera and broadcast settings.

What's included in the package?

Each fixture includes:

· Stainless steel adjustable bracket

· Mounting hardware kit

· IP67 cable gland connector

· Installation manual with wiring diagrams

You provide: Appropriate electrical connections and mounting structure.

Get Started

For technical specifications, custom quotations, or sample requests:

Contact our 500W Led Floodlight​​​​​​​'s team at:sam@razorlux.com
