Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting

Product Details:
Place of Origin:Shaanxi, China
Brand Name:Razorlux
Certification:ce, LVD, RoHS, Saa, UL
Model Number:RGL2-400A
Payment & Shipping Terms:
Price:$767.00/Pieces
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Send Inquiry Download
  • Product Description

Detailed Product Description

Color Temperature(CCT):6000K (Daylight Alert), Cool WhiteLamp Luminous Efficiency(lm/w):130, 130
Color Rendering Index(Ra):80Support Dimmer:Yes
Lighting Solutions Service:DIALux Evo Layout, Agi32 Layout, Auto CAD LayoutWorking Time (hours):50000
Product Weight（kg）:15Input Voltage(V):80~315Vac, (347Vac Available On Request)
Beam Angle(°):40° 60° 120° 140°Lamp Body Material:Aluminum Alloy
IP Rating:IP67Application:Sports Stadiums
Light Source:LEDLamp Luminous Flux(lm):52000, 52000lm
Working Temperature(℃):-40 To 60, -40 - 60Warranty(Year):5-Year
Product Name:Portable Outdoor Sports LightingIP Class:IP 65 (Upgradeable To IP 67)
Color Temperature:2700-6500K

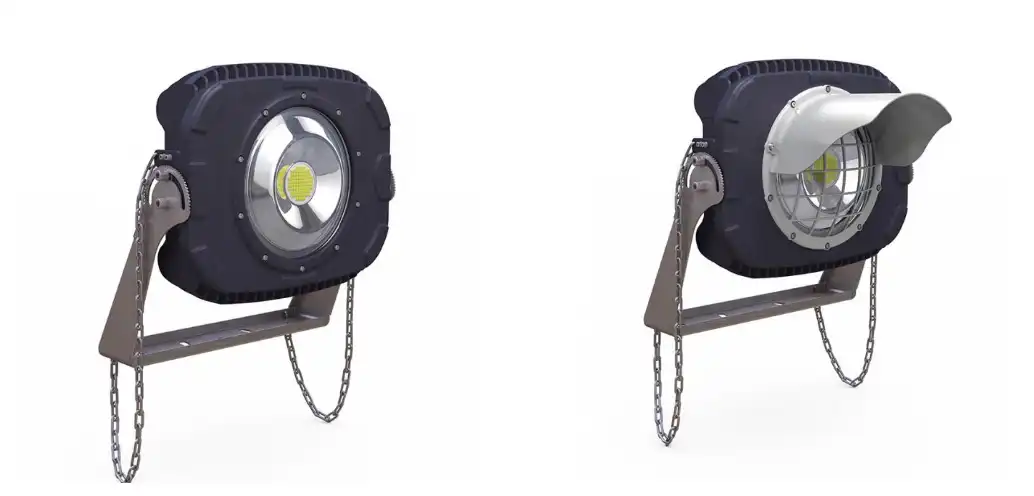

Aluminum Alloy Lamp Body Material and LED Light Source Portable Outdoor Sports Lighting​​​​​​​



Model
RGL2-400A
Beam Angle
40° 60° 120° 140°
Stable Flux(5700K after 1 hour)
52000lm
Dimension (mm)
468*388*367

LEDs
360W
Power
Driver
40W
Consumption
Total
400W
Replace HID Lamp
800~1000W
Net Weight
17.9kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year

Main Features

1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

product-1034-496

Advantages of 500 Watt LED Outdoor Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket

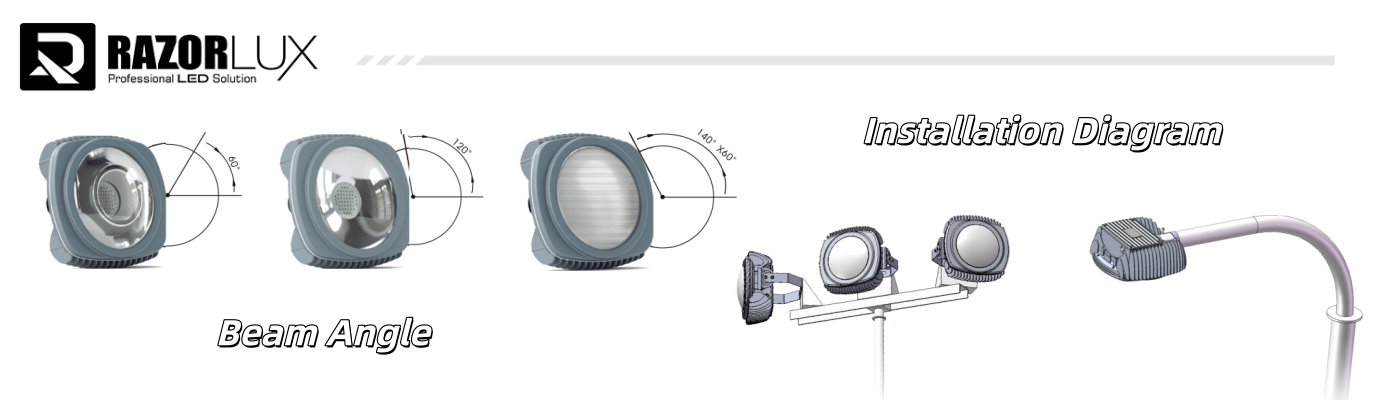

  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
