indoor tennis lighting
Rated Power: 270W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional Indoor Tennis Lighting Solutions
Change your tennis office with our cutting-edge indoor tennis lighting frameworks. Planned particularly for tennis courts, our Driven lighting arrangements provide extraordinary perceivability, ideal color rendering, and vitality productivity. Whether you're overhauling an existing office or arranging a modern tennis center, our lighting gives the culminate adjust of execution and unwavering quality. With progressed glare control innovation and uniform light dissemination, players can appreciate upgraded amusement execution whereas office proprietors advantage from diminished vitality costs and negligible support requirements.
Product Specifications
Model | RGL-270A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 32400 lm | |
Dimension (mm) | 360*358*187 | |
| LEDs | 243W |
Power | Driver | 27W |
Consumption | Total | 270W |
Replace HID Lamp | 600~1000W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |

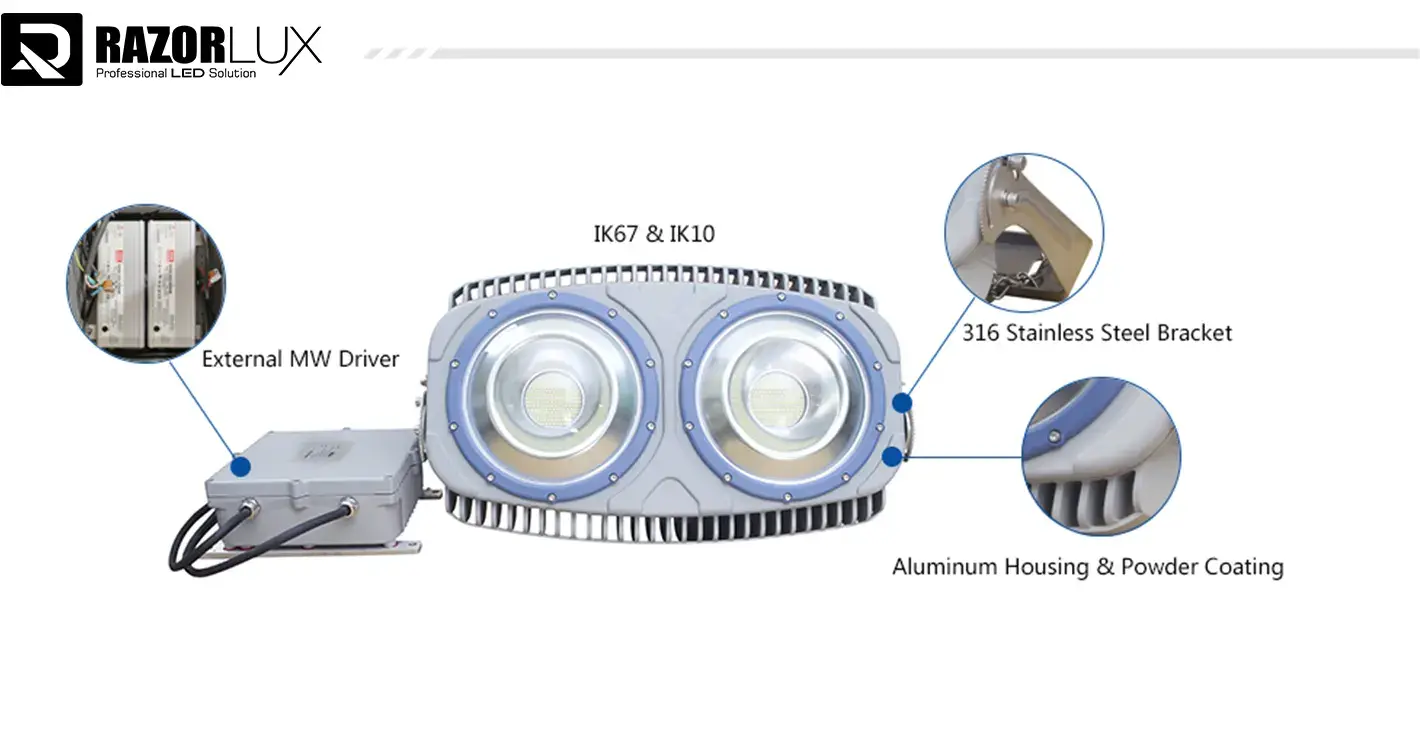

Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Indoor Tennis Lighting?
Our licensed multi-function plan sets us separated from conventional lighting arrangements. You'll involvement instant-on capability without warm-up time, not at all like metal halide choices. The progressed Driven innovation conveys prevalent color rendering, making ball following more exact amid fast-paced games.
Energy proficiency is built into each installation. With 130LM/W proficiency, you'll see noteworthy decreases in working costs. The strong IP67 rating guarantees dependable operation in different indoor situations, whereas the stainless steel bracket gives long-lasting durability.

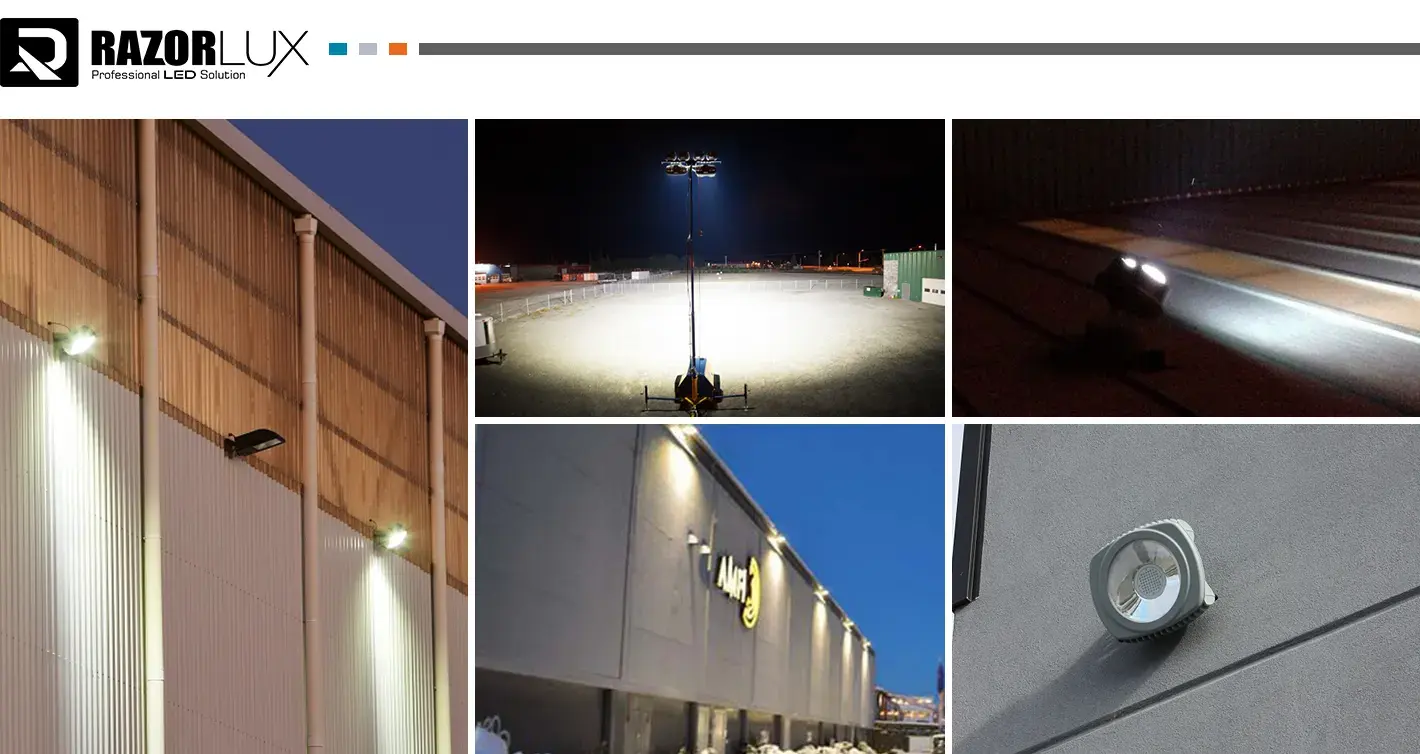

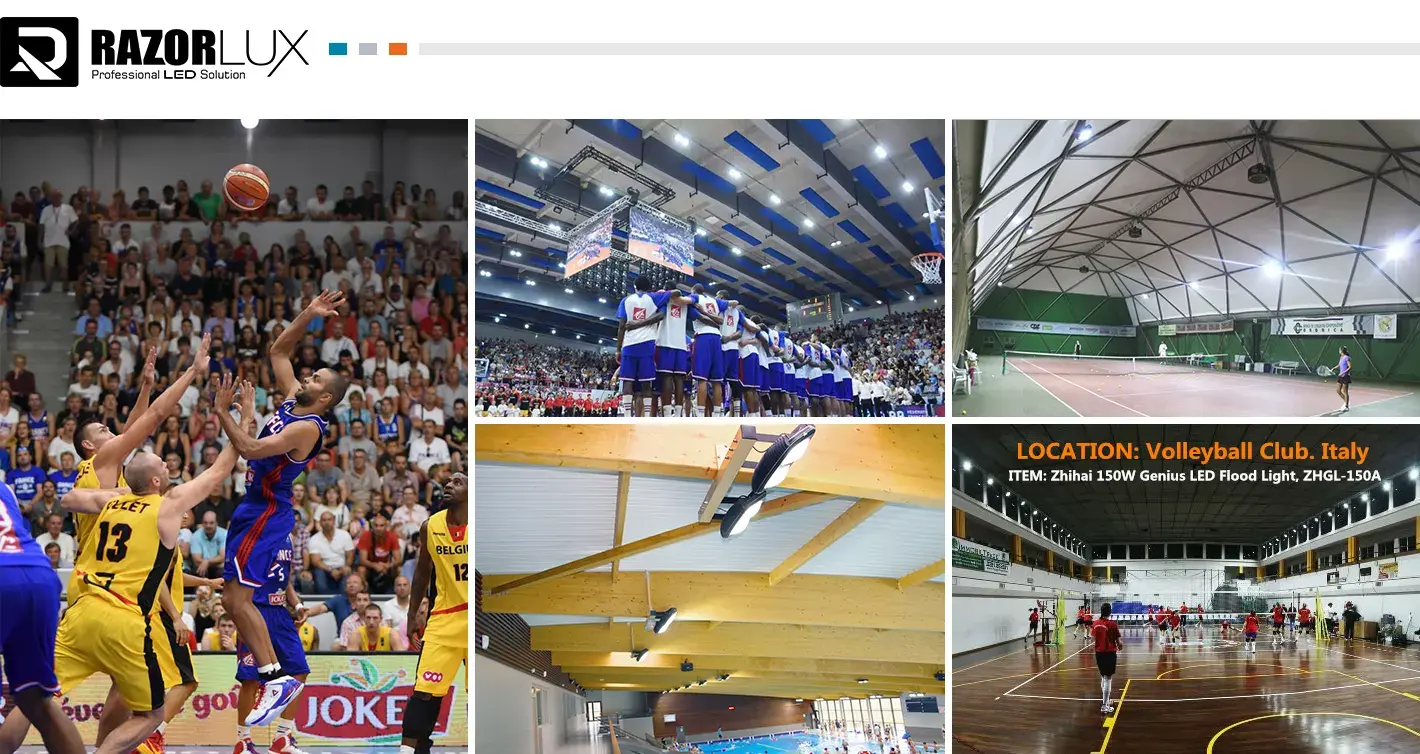

Applications
- Professional Tennis Clubs: Tournament-grade lighting meets ITF measures for competitive play
- Recreation Centers: Flexible lighting culminate for community tennis offices and multi-purpose courts
- Private Tennis Courts: Premium lighting arrangements for private indoor tennis facilities
- School Sports Offices: Tough lighting frameworks planned for instructive institution tennis courts
- Training Foundations: Professional-grade light supporting seriously preparing programs
- Country Clubs: Rich lighting arrangements that upgrade part involvement and office aesthetics
- Hotel Sports Centers: Solid lighting for neighborliness scene tennis courts requiring negligible maintenance
- Corporate Entertainment Offices: Energy-efficient lighting for company wellness centers and worker recreational areas
The adaptable pillar point choices (15° to 140°x60°) permit customized light dissemination for diverse court setups. Whether you require centered light for standard zones or wide scope for pairs courts, our indoor tennis lighting adjusts to your particular requirements.
Quality Control
We keep up ISO9001 certification for 22 continuous a long time, guaranteeing reliable quality benchmarks. Each installation experiences thorough testing counting warm cycling, vibration resistance, and photometric confirmation. Our quality control prepare incorporates approaching fabric assessment, in-process observing, and last item validation.
Each lighting installation gets person testing for electrical security, light yield consistency, and natural security rating confirmation. We utilize DFMEA disappointment mode investigation frameworks to distinguish potential issues some time recently production.
Shipment Samples
Sample orders are accessible for assessment some time recently bulk buys. We give customized tests with your favored details counting pillar point, color temperature, and mounting alternatives. Standard test lead time is 7-10 trade days with express shipping choices available.
Packaging and Transportation
Products are safely bundled in shock-resistant froth with defensive corner watches. Each installation incorporates mounting equipment, establishment guides, and guarantee documentation. We offer discuss, rail, and ocean shipping alternatives to meet your timeline requirements.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Quality Feedback
Customer fulfillment drives our ceaseless change handle. We effectively collect input on establishment involvement, item execution, and long-term unwavering quality. Normal follow-up guarantees your indoor tennis lighting proceeds assembly expectations.
After Sales Service
Our comprehensive after-sales back incorporates specialized help, guarantee benefit, and substitution portion accessibility. Inaccessible investigating back makes a difference resolve issues rapidly. We keep up benefit associations all inclusive to give neighborhood bolster when needed.
Qualification Certification
Our items hold numerous universal certifications counting UL (North America), CE (Europe), SAA (Australia), and RMRS (Marine). These certifications illustrate compliance with territorial security guidelines and execution necessities.
FAQ
Q: How do these LED fixtures compare to metal halide lighting for tennis courts?
A: Our LED fixtures provide instant-on capability, 50% energy savings, and 3x longer lifespan compared to metal halide systems. You'll also get better color rendering and reduced glare.
Q: What beam angle should I choose for my tennis court?
A: For standard indoor tennis courts, we recommend 60° beam angles for general court lighting with 30° options for baseline emphasis. Our team can provide detailed lighting calculations for your specific facility.
Q: Can these lights be dimmed for different activities?
A: Yes, our fixtures are compatible with 0-10V and DALI dimming systems, allowing you to adjust lighting levels for training, matches, or maintenance periods.
Q: What's the expected lifespan of these LED fixtures?
A: Our fixtures are rated for 100,000+ operating hours, which typically translates to 15-20 years of normal tennis facility use with minimal maintenance required.
Q: Do you provide lighting design services?
A: Absolutely! We offer comprehensive lighting design including photometric calculations, layout planning, and 3D visualization to ensure optimal court illumination before installation.
