outdoor badminton court lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Outdoor Badminton Court Lighting - Professional LED Solutions

Looking for solid outdoor badminton court lighting arrangements? You've come to the right put. Our proficient Driven lighting frameworks give remarkable light for your badminton courts, guaranteeing ideal perceivability and execution for both recreational and competitive play. With progressed Driven innovation particularly planned for sports applications, our open air badminton court lighting conveys uniform brightness, negligible glare, and energy-efficient operation. Whether you're arranging a modern court establishment or updating existing offices, our lighting arrangements meet universal measures whereas giving a long time of tried and true service.

product-1-1

Product Introduction

Our open air badminton court lighting highlights licensed multi-function plan appropriate for all open air situations. Built to withstand unforgiving climate conditions whereas conveying reliable performance.

Specification

Model		RGL2-400A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		52000lm
	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		15kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Why Choose Our Outdoor Badminton Court Lighting?

Superior Light Quality: Our Driven installations give 750-2000 lux brightening levels culminate for competitive play. The tall CRI rating guarantees precise color rendering of the shuttlecock against different backgrounds.

Weather-Resistant Plan: Built with IP67 security and stainless steel brackets, these lights withstand rain, wind, and extraordinary temperatures. Your speculation remains ensured year-round.

Energy Proficiency: Spare up to 60% on power costs compared to conventional metal halide lights. Our 130LM/W effectiveness decreases operational costs significantly.

Glare-Free Innovation: Progressed optical plan minimizes glare underneath GR30 rating, ensuring player vision and improving court security amid strongly matches.

Long Life expectancy: With 50,000+ hour operation life, you'll appreciate negligible upkeep costs and decreased substitution frequency.

product-1-1

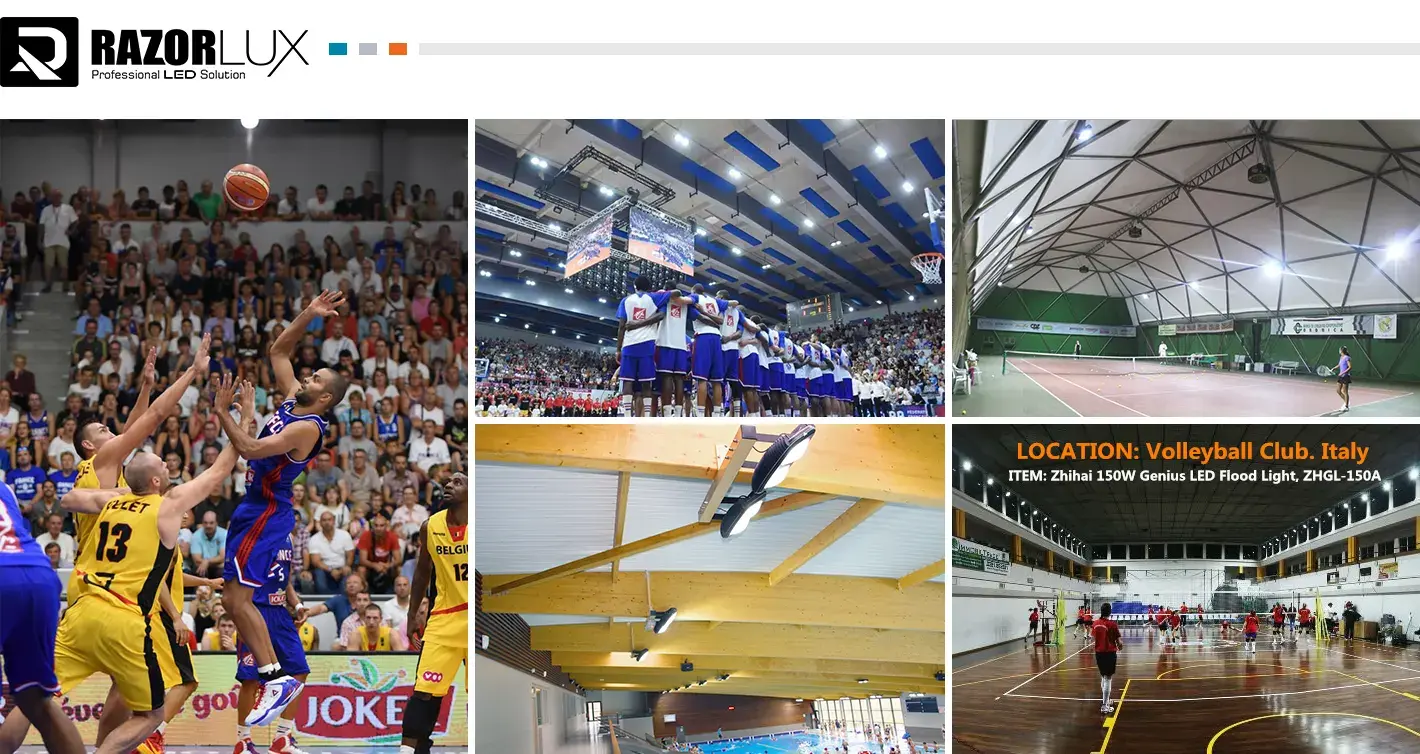

Applications

Professional Competition Settings: Championship-level courts requiring 1000-2000 lux illumination
Community Sports Centers: Multi-court offices serving recreational players daily
School Athletic Programs: Instructive educate with open air sports complexes
Private Sports Clubs: Select badminton offices for part enjoyment
Municipal Amusement Regions: Open parks and community centers advertising court access
Training Institutes: Specialized coaching offices requiring steady lighting quality
Corporate Amusement Centers: Company-sponsored representative wellness facilities
Resort and Lodging Complexes: Visitor excitement scenes with open air court activities
Residential Communities: Mortgage holder affiliation recreational facilities
Sports Hardware Testing Offices: Producer settings requiring exact lighting control

product-1-1

Each application benefits from customizable pillar points and mounting alternatives to optimize light dispersion over distinctive court arrangements and utilization patterns.

Quality Control

Our quality control framework takes after ISO9001 guidelines kept up for over 22 a long time. Each installation experiences thorough testing counting warm cycling, vibration resistance, and photometric confirmation. We execute DFMEA disappointment investigation conventions borrowed from car businesses to guarantee reliability.

product-1-1

Shipment Samples

We give customized tests and models some time recently bulk orders. Test conveyance ordinarily takes 7-10 trade days through express shipping. This permits you to assess light quality, bar designs, and mounting compatibility with your particular court requirements.

Packaging and Transportation

Each installation is separately stuffed in shock-resistant froth bundling inside durable cartons. We offer numerous shipping choices counting discuss cargo for pressing ventures, rail transport for cost-effective conveyance, and ocean cargo for huge establishments. All bundles incorporate point by point establishment documentation and specialized drawings.

product-1-1

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

Our streamlined arrange preparing guarantees straightforward communication all through your venture. You'll get normal overhauls on generation advance, quality review reports, and shipping following data. We keep up nitty gritty extend documentation for future reference and guarantee service.

After Sales Service

We stand behind each establishment with comprehensive back. Our specialized group gives farther investigating help, substitution portion coordination, and upkeep direction. Expanded guarantee alternatives are accessible for basic establishments requiring upgraded coverage.

Qualification Certification

Our outdoor badminton court lighting items hold different worldwide certifications counting RMRS for marine situations, UL posting for North American markets, TÜV endorsement for European compliance, and SAA certification for Australian establishments. All certifications are kept up through customary reviewing and testing conventions.

product-1-1

FAQ

Q: What illumination levels does your product provide?

A: Our fixtures deliver 750-2000 lux suitable for both recreational and competitive play, meeting BWF recommendations for professional tournaments.

Q: How do these lights perform in extreme weather conditions?

A: With IP67 protection rating and stainless steel construction, our lights operate reliably in rain, snow, high winds, and temperature ranges from -40°C to +60°C.

Q: What's the expected energy savings compared to traditional lighting?

A: You can expect 50-60% reduction in energy consumption compared to metal halide systems, with our 130LM/W efficiency rating significantly lowering operational costs.

Q: How long do these LED fixtures typically last?

A: Our product provides 50,000+ operating hours with minimal maintenance requirements, typically lasting 15-20 years under normal usage.

Q: Can the beam angles be customized for different court layouts?

A: Yes, we offer beam angles from 15° to 140°x60° and can customize mounting solutions to optimize light distribution for your specific court configuration.

Q: What warranty coverage is included with purchase?

A: All fixtures include a comprehensive 5-year warranty covering both components and performance, with extended coverage options available for critical installations.

Contact Us

Ready to upgrade your outdoor badminton courts with professional LED lighting? Our lighting engineers are ready to help design the perfect solution for your facility.

Email: sam@razorlux.com

Get your customized lighting design and quote today. We provide detailed photometric calculations and layout recommendations to ensure optimal performance for your outdoor badminton court lighting project.
