outdoor tennis lights
Rated Power: 500W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional Outdoor Tennis Lights for Superior Court Illumination
Looking for dependable outdoor tennis lights to change your court into a professional-grade playing office? Our progressed Driven tennis lighting frameworks convey uncommon brightness and uniform light for recreational and competitive play. These open air tennis lights highlight licensed multi-function plan with 500W appraised control, guaranteeing ideal perceivability and security for players and onlookers alike amid evening matches.

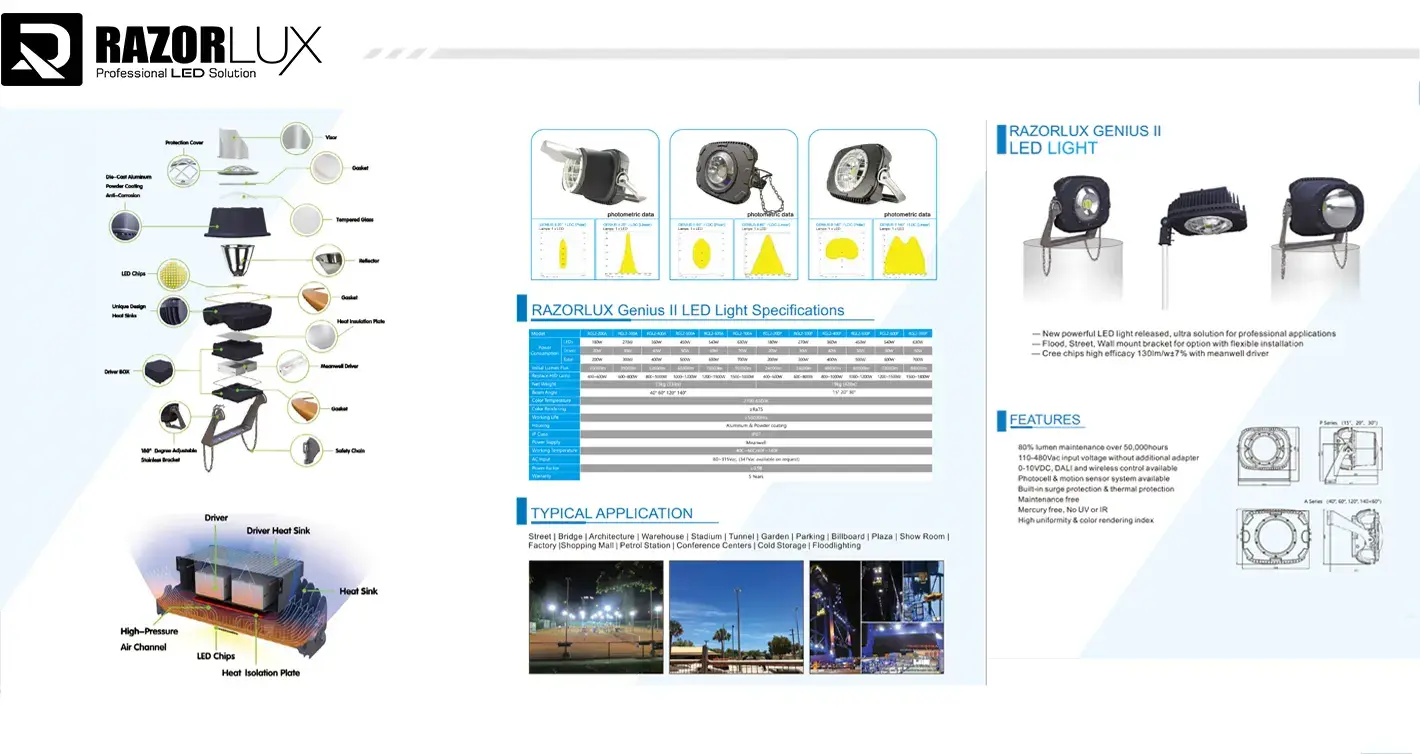

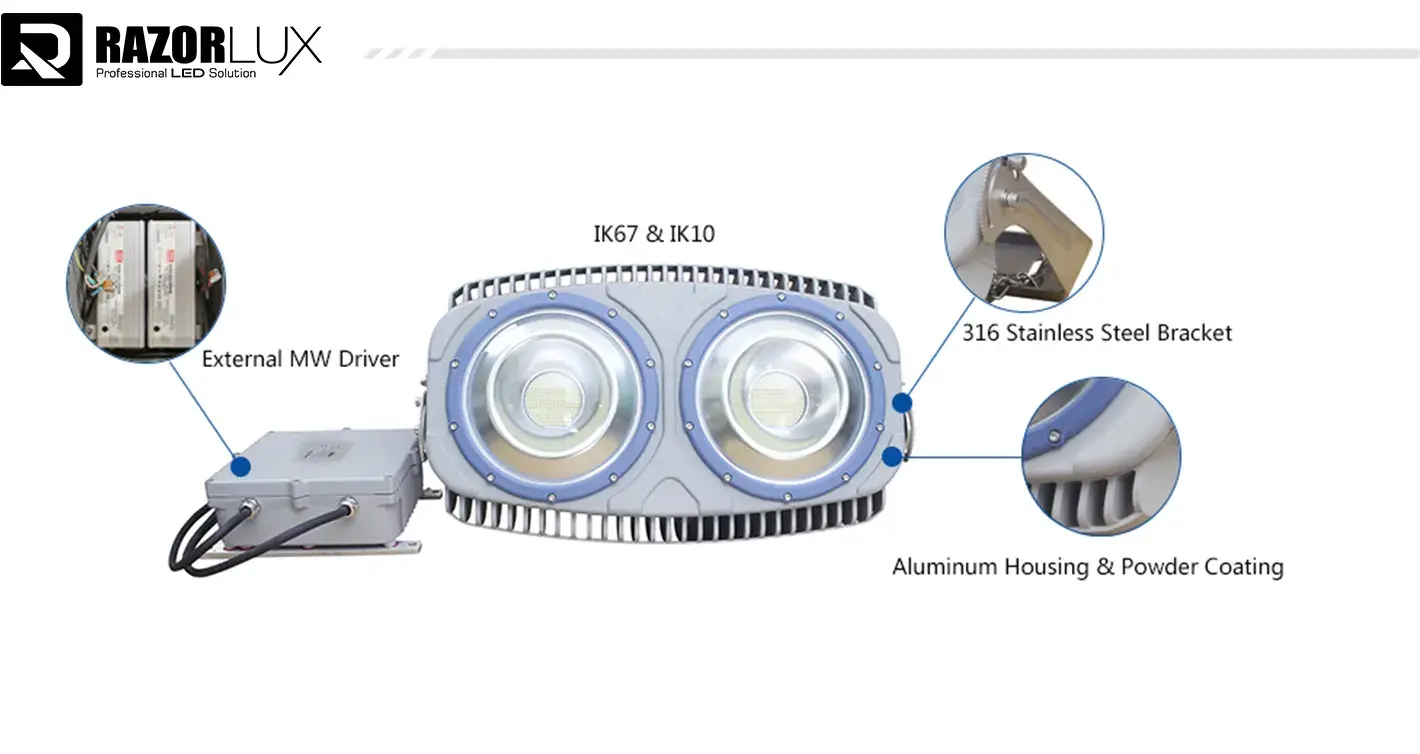

Product Specifications
Model | RGL2-500P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 60000lm | |
| LEDs | 450W |
Power | Driver | 50W |
Consumption | Total | 500W |
Replace HID Lamp | 1000~1200W | |
Net Weight | 19kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Outdoor Tennis Lights?
Superior Technology & Patents
Our lighting frameworks coordinated 25+ a long time of Driven advancement with over 200 licenses covering chip bundling, control control, and auxiliary plan. You get cutting-edge innovation sponsored by demonstrated expertise.
Professional-Grade Illumination
Delivering 500-1500 lux brightness levels appropriate for competitive play, these lights meet worldwide tennis lighting guidelines. The tall CRI guarantees precise color rendering for ball following and court line visibility.
Extreme Durability
Built with military-grade quality measures and IP67 assurance, our installations withstand cruel climate conditions. The stainless steel brackets stand up to erosion whereas keeping up auxiliary integrity.
Energy Efficiency
Save 50-70% on power costs compared to conventional lighting. Our 130LM/W effectiveness rating diminishes operational costs whereas giving prevalent light quality.

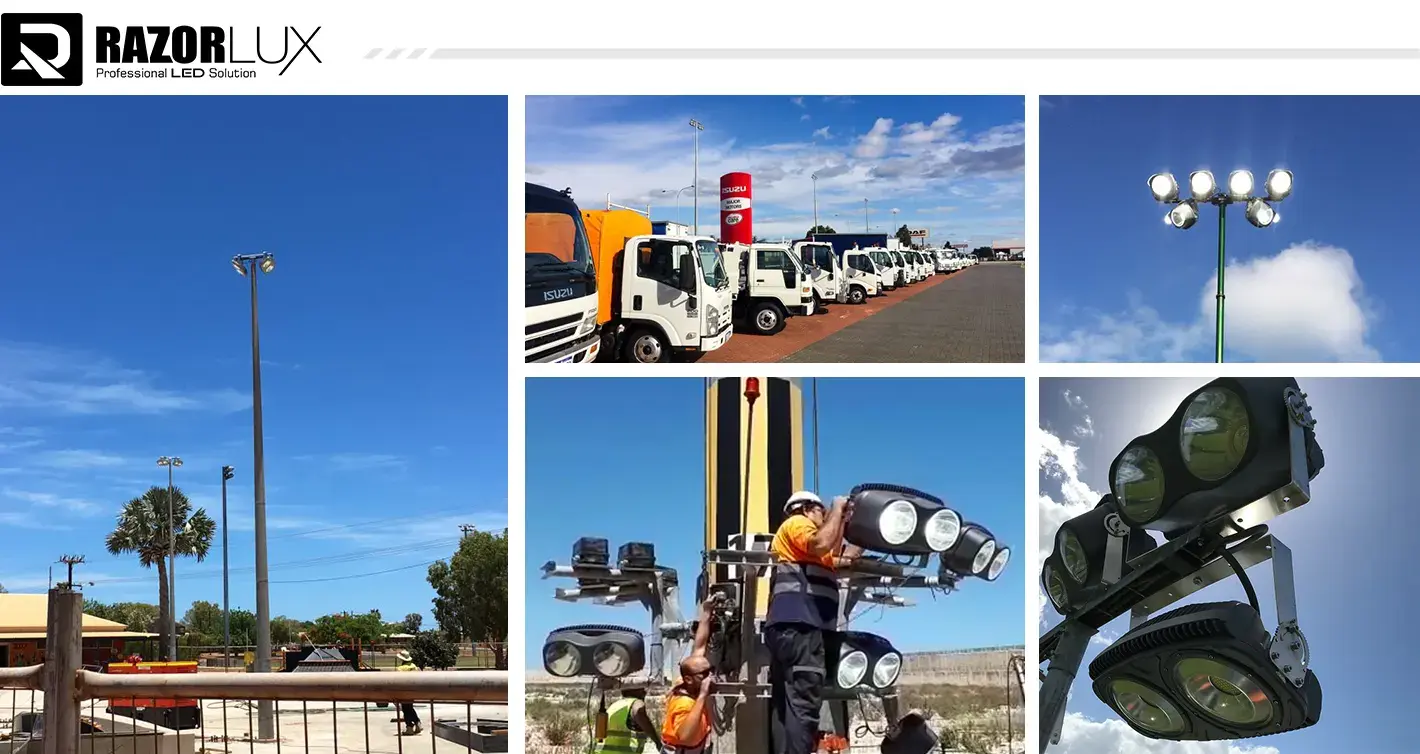

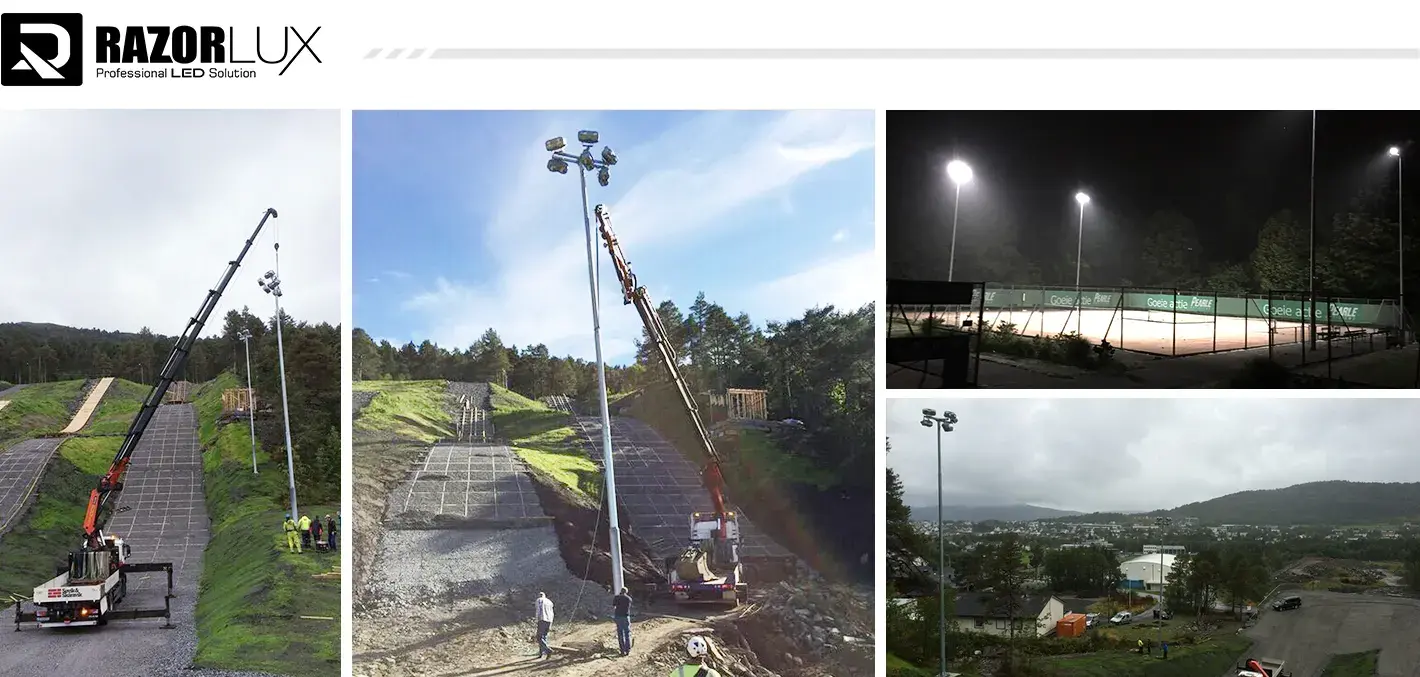

Applications
Tennis Clubs & Diversion Centers: Culminate for part courts requiring solid evening play capabilities
Professional Tennis Offices: Meet tournament-grade lighting measures for competitive matches and broadcasts
School & College Courts: Give secure, shinning brightening for understudy sports and community programs
Residential Tennis Courts: Change private courts into professional-quality playing surfaces
Public Parks & Metropolitan Courts: Amplify court utilization hours for community amusement programs
Tennis Preparing Foundations: Back seriously preparing plans with steady, high-quality lighting
Sports Complexes: Coordinated with multi-sport offices requiring flexible lighting solutions
Country Clubs: Upgrade part involvement with premium court lighting for social and competitive play
Quality Control
We keep up ISO-9001 certification for 22 sequential a long time, guaranteeing steady item greatness. Each installation experiences comprehensive testing counting warm administration assessment, electrical security confirmation, and photometric investigation. Our Xi'an Driven Lighting Building Research facility conducts thorough quality evaluations some time recently shipment.
Shipment Samples
We give customized tests and models for assessment some time recently bulk orders. This permits you to test brightness levels, pillar designs, and mounting compatibility with your particular court format requirements.

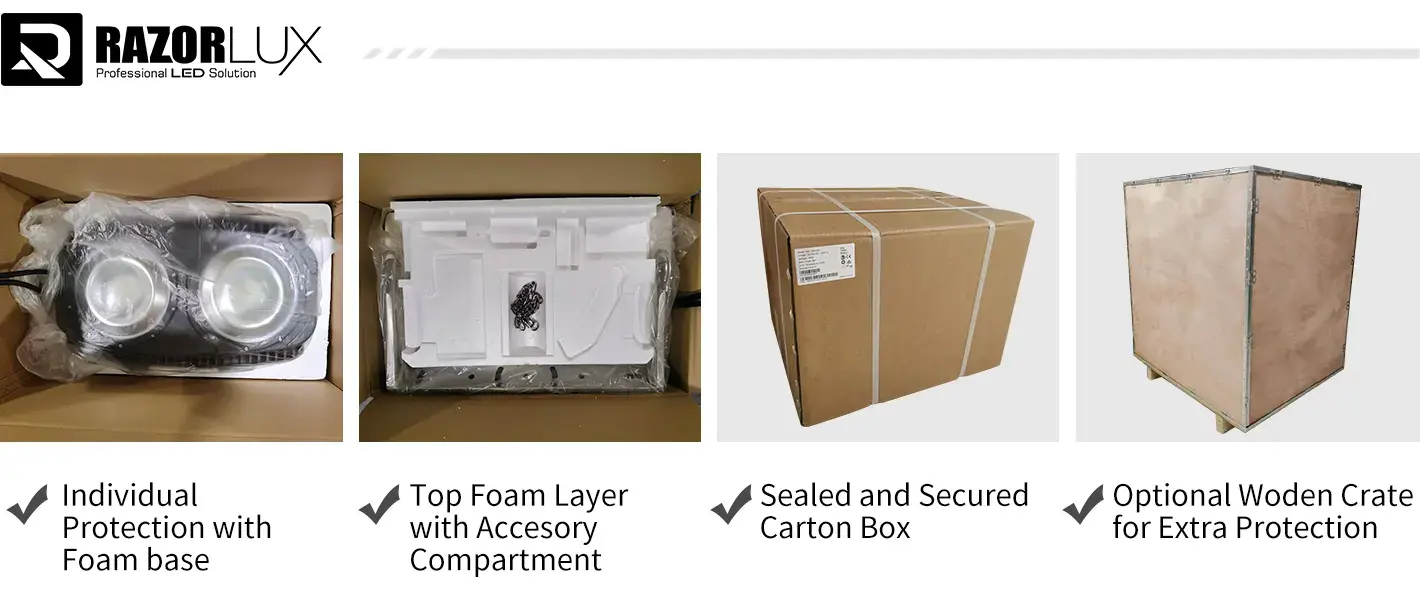

Packaging and Transportation
Each light installation is carefully bundled in shock-resistant materials with froth assurance. We offer adaptable shipping choices counting discuss cargo for critical ventures and ocean transport for cost-effective bulk orders. All shipments incorporate point by point establishment guides and specialized documentation.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Our clients reliably laud the sensational enhancement in court perceivability and diminished vitality costs. Tennis offices report amplified playing hours and expanded part fulfillment after introducing our lighting systems.
After Sales Service
We stand behind each outdoor tennis lights establishment with comprehensive support:
- 5-year guarantee scope on all components
- Technical help for establishment and maintenance
- Replacement parts accessibility all through item lifecycle
- Expert discussion for lighting optimization
Qualification Certification
Our items hold worldwide certifications counting RMRS for marine applications, UL for North American markets, TÜV for European compliance, and SAA for Australian measures. All installations meet RoHS natural necessities.
FAQ
Q: What lux level do your products provide?
A: Our 500W fixtures deliver 500-1500 lux, suitable for both recreational and competitive tennis play according to international lighting standards.
Q: How many lights do I need for a standard tennis court?
A: Typically 6-8 fixtures are required for proper illumination, depending on mounting height and court layout. We provide free lighting calculations for your specific project.
Q: Are these lights suitable for all weather conditions?
A: Yes, with IP67 protection rating, these fixtures are designed for extreme outdoor environments including rain, snow, and high humidity conditions.
Q: What's the expected lifespan of these LED lights?
A: Our LED chips are rated for 50,000+ hours of operation, equivalent to 15-20 years of typical tennis court usage with minimal maintenance required.
Q: Can the lights be dimmed for different playing levels?
A: Yes, we offer dimming options including 0-10V and DALI systems to adjust brightness levels for training versus competitive play requirements.
