led arena lights
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W

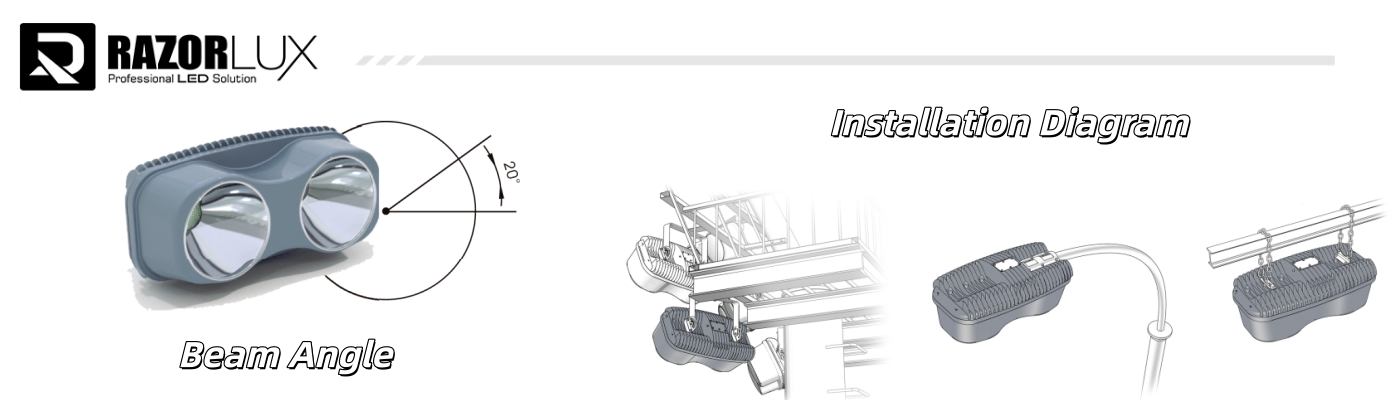

Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 29KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

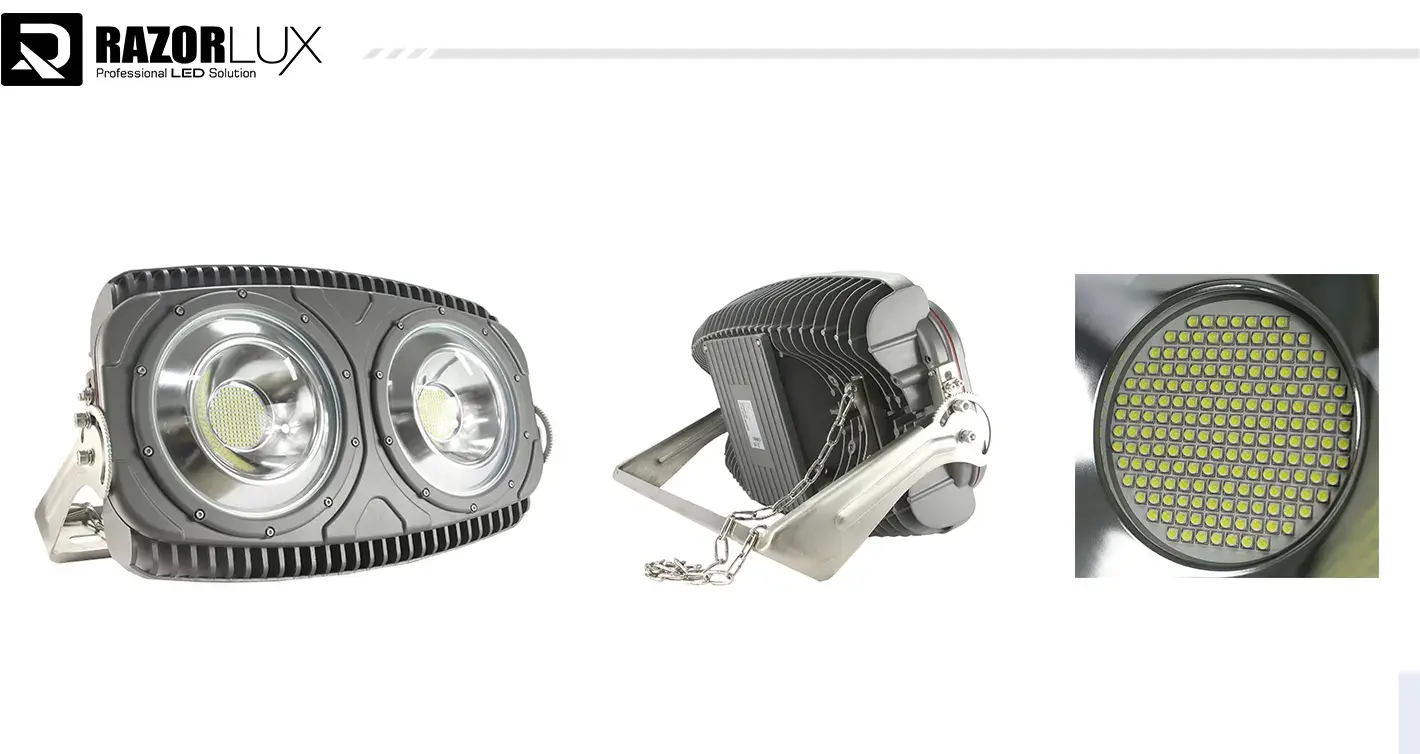

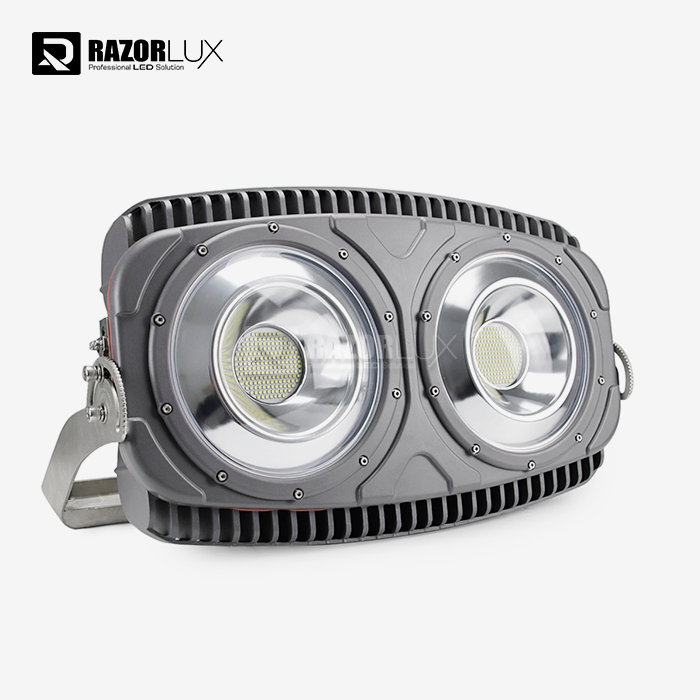

LED Arena Lights - Professional Sports Lighting Solutions
Product Introduction
When you require dependable, high-performance lighting for your sports office, our led arena lights convey uncommon light that changes your setting. Planned particularly for large-scale sports fields and stadiums, these cutting-edge installations give uniform brightness over whole playing surfaces. Our building group has created these lights to meet the requesting prerequisites of proficient sports broadcasting and competitive occasions. You get predominant light quality that improves player execution and onlooker involvement whereas decreasing vitality costs significantly
Technical Specifications
Model | RGL-1000A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 130000lm | |
Dimension (mm) | 671*405*379 | |
| LEDs | 900W |
| Driver | 100W |
| Total | 1000W |
Replace HID Lamp | 2000~3000W | |
Net Weight | 29kg (66lbs) | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 65 (Upgradeable to IP 67) | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80~305Vac | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our LED Arena Lights?
Our stadium lighting arrangements stand out since of our licensed multi-function plan that adjusts to all working situations. You advantage from our 25+ a long time of encounter in Driven innovation and control supply manufacturing.
The progressed warm administration framework guarantees reliable execution indeed amid expanded operation periods. Our brilliantly control frameworks back 0-10V and DALI darkening alternatives, giving you total control over lighting concentrated and vitality consumption.
With over 200 licenses covering Driven chip bundling, control supply control, and light lodging plan, you get genuinely imaginative innovation. Our double base camp structure guarantees worldwide bolster whereas keeping up competitive estimating from our progressed fabricating facilities.
Applications
- Professional Sports Stadiums: Football, soccer, baseball stadiums requiring broadcast-quality illumination
- Indoor Fields: Ball courts, volleyball courts, tennis offices, ice hockey rinks
- Training Offices: Hone areas, sports institutes, college athletic complexes
- Multi-Purpose Scenes: Tradition centers facilitating wearing occasions, presentation halls
- Outdoor Sports Complexes: Track and field offices, swimming complexes, open air courts
- Recreational Centers: Community sports centers, wellness offices, recreational leagues
- Broadcasting Scenes: Tv generation requiring flicker-free lighting for cameras
- Competition Offices: Competition scenes requiring exact light control and uniformity
- Large-Scale Occasions: Brief donning occasions, open air celebrations, major competitions
The flexibility of our driven field lights makes them appropriate for both changeless establishments and transitory setups. These installations exceed expectations in situations where reliable, high-quality lighting specifically impacts execution and safety.
Quality Control
Our military-grade quality control framework keeps up ISO9001 certification for 22 successive a long time. Each installation experiences thorough testing counting warm cycling, vibration resistance, and photometric analysis.
We utilize DFMEA disappointment mode examination frameworks borrowed from car industry guidelines. Our testing research facility reenacts extraordinary conditions to guarantee your lights perform dependably in unforgiving environments.
Shipment Samples
We give customized tests some time recently bulk orders to confirm execution and compatibility with your particular prerequisites. Test testing incorporates photometric reports and establishment guidance.
Packaging and Transportation
Each installation ships in shock-resistant bundling planned for worldwide transport. We offer discuss, rail, and ocean shipping alternatives to meet your venture timelines and budget requirements.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Our streamlined arrange prepare keeps you educated at each arrange. You get generation overhauls, quality test reports, and following data for total transparency.
After Sales Service
Our comprehensive guarantee program covers 5 a long time of solid operation. Our specialized back group gives establishment direction, investigating help, and upkeep recommendations.
We keep up save parts stock to guarantee speedy determination of any benefit needs. Our worldwide benefit organize gives neighborhood bolster wherever your ventures are located.
Qualification Certification
Our led arena lights hold certifications from major worldwide testing organizations counting RMRS for marine applications, UL for North American markets, TÜV for European compliance, and SAA for Australian standards.
All installations comply with RoHS natural mandates and accomplish IP67 assurance evaluations. Our fabricating offices keep up ISO9001 quality administration certification.
FAQ
Q: What beam angles work best for different sports?
A: Basketball and volleyball typically use 60° beams, while soccer and football benefit from 30°-40° angles. We provide lighting design consultation to optimize your specific layout.
Q: Can these lights handle extreme weather conditions?
A: Yes, our IP67 rating protects against dust and water ingress. The fixtures operate reliably in temperatures from -40°C to +50°C.
Q: How do these compare to traditional metal halide fixtures?
A: Our lights provide 70% energy savings, instant on/off capability, and 50,000+ hour lifespan versus 15,000 hours for metal halide.
Q: What dimming options are available?
A: We support 0-10V analog dimming and DALI digital control systems. Both provide smooth dimming from 100% down to 1% output.
Q: How long does installation typically take?
A: Installation time varies by venue size, but most arena projects complete within 2-4 weeks including testing and commissioning.
Contact Us
Ready to upgrade your sports facility with professional led arena lights? Our technical team is standing by to discuss your specific requirements and provide customized lighting solutions.
Email: sam@razorlux.com
Let us help you create the perfect lighting environment for your arena or stadium. contact us today for detailed specifications, pricing, and project consultation.
