Sports Venue 120000lm Led Sports Light 347 Vac Basketball Court Lights

Product Details:
Place of Origin:Shaanxi, China
Brand Name:Razorlux
Certification:ce, LVD, RoHS, Saa, UL
Model Number:RGL2-1000P

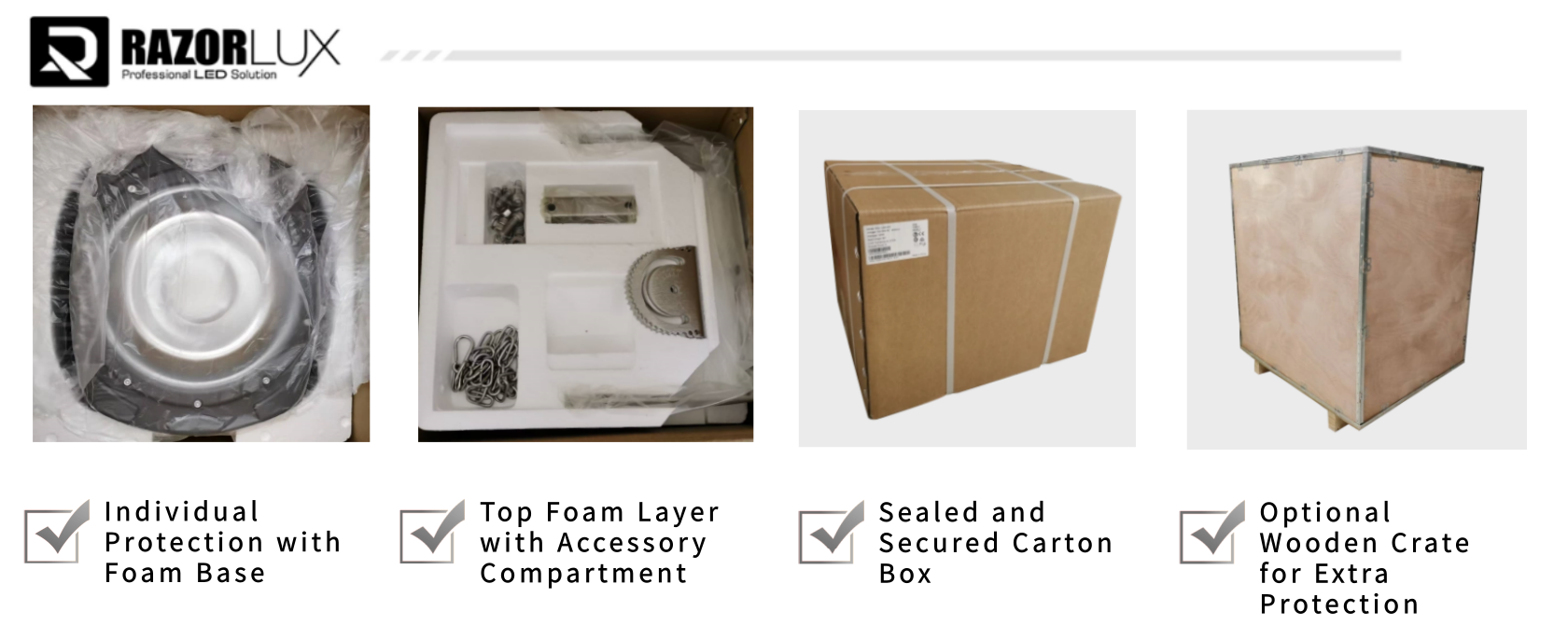

Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units

Send Inquiry Download

Product Description

Sports Venue 120000lm LED Sports Light 347 VAC Basketball Court Lights

Product Overview

The RGL2-1000P delivers 120,000 lumens with 140-160 lm/W efficacy for professional basketball courts and sports complexes. This Sports Venue 120000lm Led Sports Light 347 Vac Basketball Court Lights features IP66 waterproof protection, 10kV-20kV surge protection, and maintains LED junction temperatures below 75°C through advanced thermal management. Certified with UL, CE, SAA, and RoHS standards.

Parameters of Sports Venue 120000lm Led Sports Light 347 Vac Basketball Court Lights

Model		RGL2-1000P

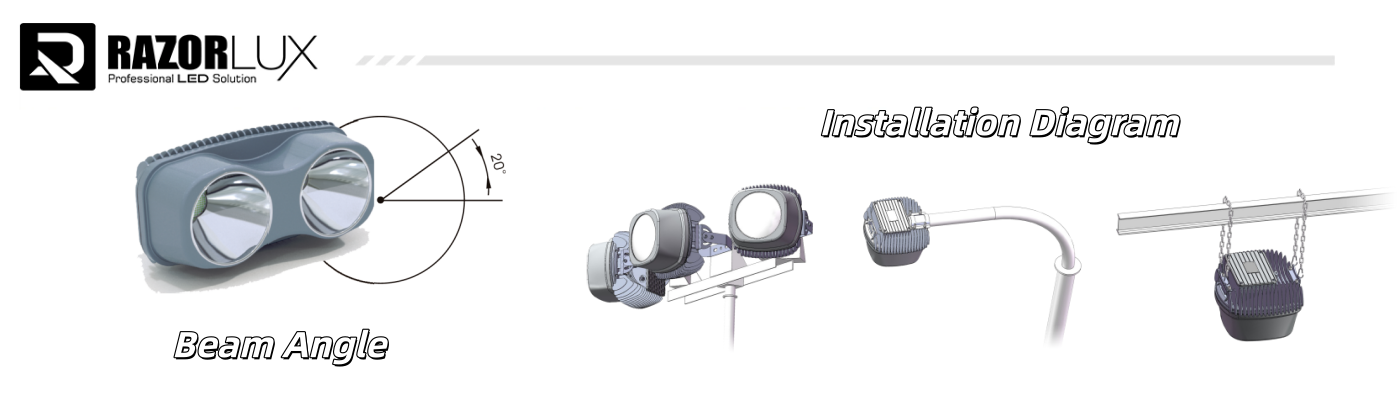

Beam Angle		15° 20° 30°
Stable Flux (5700K after 1 hour)		120000lm
Dimension (mm)		474388982
	LEDs	900W
Power	Driver	100W
Consumption	Total	800W
Replace HID Lamp		2200~2500W
Net Weight		38kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65 (Upgradeable to IP 67)
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Key Features

Thermal Management System

The fin-style heat sink design maintains LED junction temperatures below 75 degrees C throughout long periods of operation. IESNA LM-80 testing validated the L70 performance to be more than 50,000 hours of continuous operation.

347 VAC Compatibility

It is designed for commercial high voltage installations and lowers voltage loss over lengthy wire lines. The driver has built-in 10kV-20kV surge protection and can tolerate harmonic distortion and voltage variations from 277V to 480V.

Competition-Grade Optics

Polycarbonate lenses provide uniformity ratios above 0.7 with UGR <19 glare control. Beam angles available (30°/60°/90°) comply with NCAA and FIBA illumination specifications for broadcast quality lighting.

Weatherproof Construction

IP66 certification prevents water intrusion, IK08-IK10 impact resistance withstands ball hits. The ADC12 die-cast aluminium housing is corrosion resistant for coastal locations.

Applications

Indoor Basketball Arenas

Mount at 12-18 meter heights in university field houses or professional venues. The 30° beam angle provides vertical lux levels required for high-speed camera capture.

Outdoor Sports Complexes

Install on high-mast poles up to 25 meters for municipal basketball courts. The Sports Venue 120000lm Led Sports Light 347 Vac Basketball Court Lights' 347V design minimizes cable costs through efficient power distribution.

Multi-Purpose Event Centers

Optional DALI or 0-10V dimming switches between full 120,000lm competition mode and ambient lighting for maintenance or secondary events.

Industrial High-Bay Applications

Suitable for aircraft hangars and manufacturing facilities requiring high-ceiling illumination with CRI >80 for detail-oriented work.

Quality Assurance

Testing Standards

Each unit undergoes IESNA LM-79 photometric testing and 24-48 hour high-voltage aging cycles. In-situ temperature measurement (ISTMT) verifies safe operating limits under peak loads.

Impact & Vibration Testing

ISO-compliant wind load resistance testing simulates ball impacts and pole vibration to confirm housing structural integrity.

Certifications

· CE & LVD: European electrical safety

· UL Listed: North American safety standards

· SAA & C-tick: Australian regulatory approval

· RoHS: Hazardous substances compliance

· C5M: Marine-grade corrosion resistance

· ISO9001: Quality management certification

All certifications are available for verification.

Frequently Asked Questions

Q: What are the advantages of 347 VAC over standard voltages?

A: The 347 VAC system allows longer cable runs with reduced voltage drop, lowering installation costs in large facilities. It's standard in Canadian commercial buildings and increasingly adopted in US industrial complexes.

Q: How does the fixture control glare for athletes?

A: Precision optics maintain UGR <19 through lens patterns that eliminate hot spots while delivering uniform illumination across the court surface.

Q: Can the light withstand basketball impacts?

A: Yes. The IK08-IK10 impact rating means the housing endures direct ball strikes. The tempered glass lens provides additional protection.

Q: Does the fixture flicker during high-speed recording?

A: No. The driver design eliminates flicker at all frame rates with THD <15%, ensuring clean power delivery for broadcast-standard slow-motion capture.

Q: How many fixtures are needed for a regulation court?

A: Requirements depend on court size and mounting height. Contact our team for photometric analysis and layout design recommendations.

Contact Us

For The Sports Venue 120000lm Led Sports Light 347 Vac Basketball Court Lights inquiries and project consultation, contact us at sam@razorlux.com.
