Aluminum Alloy 120000lm Sports Light Fixture 1000w Led Stadium Lights 5000K

Aluminum Alloy 120000lm Sports Light Fixture 1000w Led Stadium Lights 5000K
Professional LED Stadium Lighting by Razorlux

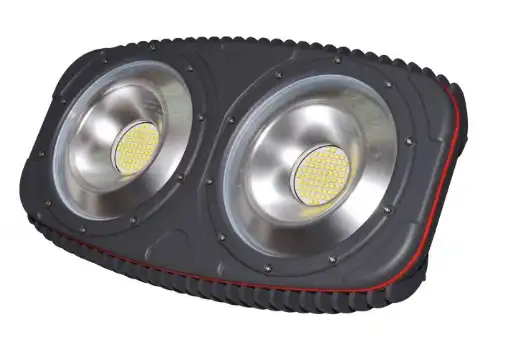

Aluminum Alloy 120000lm Sports Light Fixture 1000w LED Stadium Lights 5000K 120000lm 1000W 60% energy savings compared to normal 2500W metal halide system.This fixture is constructed from an aviation grade aluminium alloy housing and is waterproofed to IP67. It is intended to provide broadcast quality lighting in professional stadiums, ports and industrial environments. CE, UL, DLC, SAA CertifiedInnovating with LED for over 25 years, from 1998.

Parameters of Aluminum Alloy 120000lm Sports Light Fixture 1000w Led Stadium Lights 5000K

Why Aluminum Alloy Matters for Stadium Lighting

Superior Heat Management

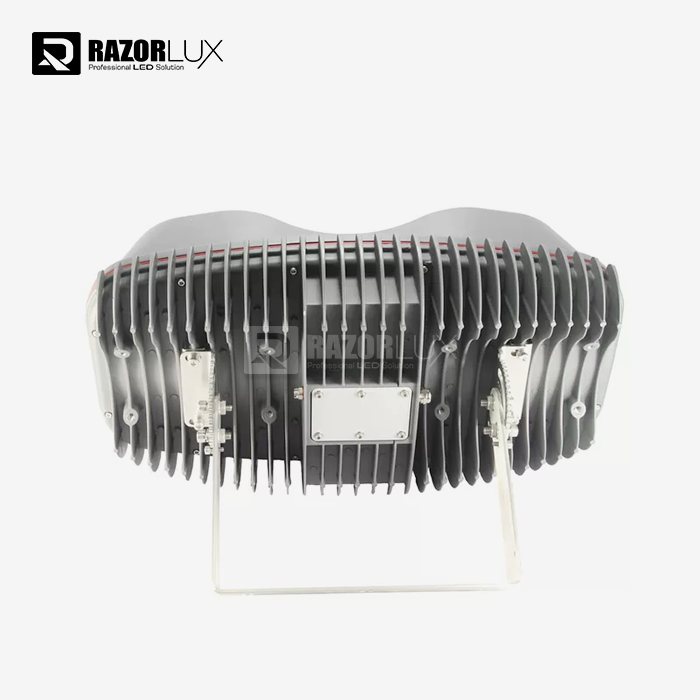

The LED systems with high wattage generate a lot of heat. Our ADC12 aluminium alloy shell dissipates heat 4 times faster than the steel ones and keeps the LED junction temperature at less than 85 degrees Celsius. Prevents lumen depreciation and lifetime of 50,000+ hours.

Corrosion-Resistant Construction

The electrophoresis-coated aluminum passes ISO 9227 salt spray tests, ideal for:

· Coastal stadiums exposed to saline air

· Chlorinated indoor pool environments

· Humid tropical climates

At 60% lighter than steel, aluminum simplifies high-mast installation (30-50m heights) while maintaining structural integrity in high-wind conditions.

​​​​​​​

Optical Performance for Broadcast Standards

Precision Light Distribution

· Luminous Output: 120,000lm at 120lm/W efficacy

· Color Temperature: 5000K daylight (neutral white for 4K cameras)

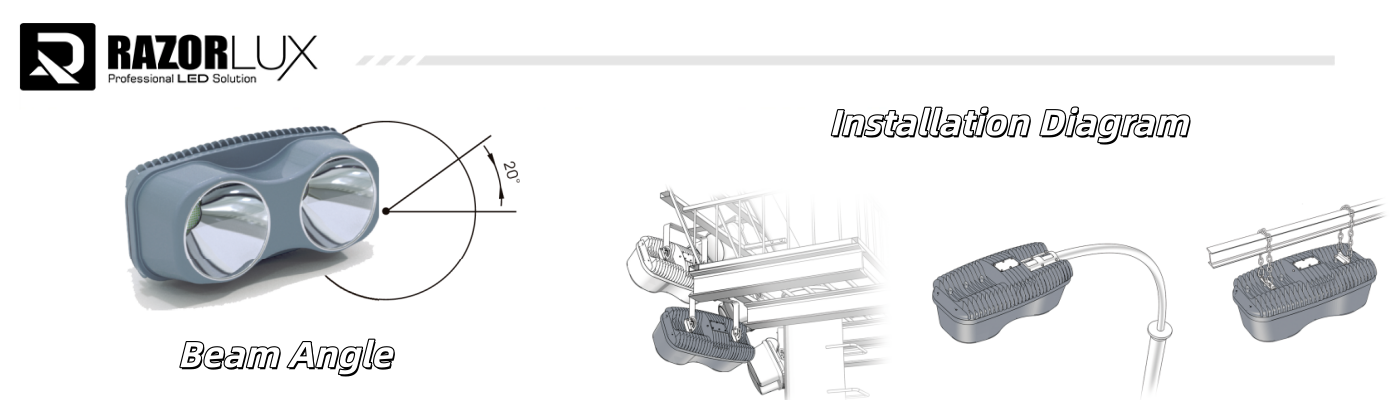

· Beam Angles: 15°/30°/60°/90° (customizable for venue layout)

· Glare Control: UGR <25 with anti-glare PC/PMMA lenses

Broadcast-Quality Illumination

The 5000K spectrum eliminates yellow tint and flicker issues of metal halide lamps. High CRI (>80) ensures accurate color rendering for:

· HD/4K sports broadcasting

· Slow-motion replay systems

· Sponsor board visibility

Professional photometric simulations available upon request to meet FIFA, Olympic, or NFHS lighting standards.

Electrical Reliability for 24/7 Operation

Industrial-Grade Components

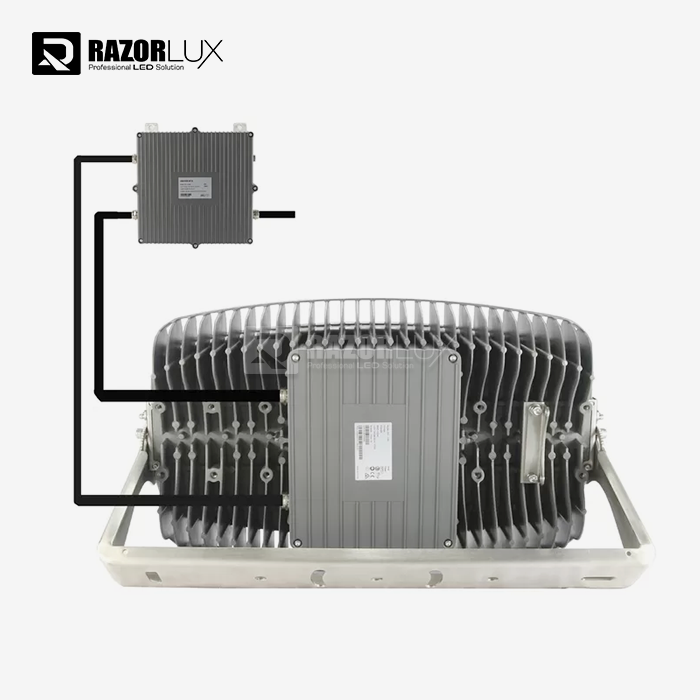

· Driver: Meanwell/Inventronics with 10kV surge protection

· Power Factor: >0.95 (utility compliant)

· THD: <15% (minimal grid interference)

· Operating Range: -40°C to +55°C

Weather-Sealed Durability

IP67 rating provides complete protection against:

· Dust ingress

· High-pressure water jets

· Temporary submersion

Tested for coastal ports, airport aprons, and open-pit mining sites where standard fixtures fail within 2-3 years.

Application Scenarios

We recommend upgrading the lighting system to Aluminum Alloy 120000lm Sports Light Fixture 1000w Led Stadium Lights 5000K.

Football Stadiums & Athletic Tracks

Mount at heights of 30-50m to provide 500+ lux on playing areas. This 30°/60° beam combination removes dark patches and doesn’t cause glare for athletes. Suitable for stadiums that meet FIFA, NCAA and Olympic standards.

Ports & Airport Tarmacs

200+ meters of illuminated container yards and runways. Its 1000W output punches through fog and rain and its aluminium housing prevents salt water damage. Supports 24/7 security camera operation.

Indoor Arenas (Pools/Ice Rinks)

Aluminium is inherently resistant to the humid, chlorinated environment that corrodes steel fittings. The 5000K temperature recreates natural sunshine conditions for swimming facilities and ice hockey grounds.

Mining & Industrial Sites

Precision optics decrease operator glare for crane operators and forklift drivers. Its 120,000lm output keeps visibilities within OSHA-compliant levels throughout logistical hubs and excavation sites.

Engineering Support & Custom Solutions

Complimentary Services:

· Photometric simulation (DIALux/AGi32)

· Site-specific lighting layouts

· Glare analysis (UGR calculations)

· Energy ROI projections

OEM/ODM Capabilities:

· Custom wattage (500W-1200W)

· Color temperature tuning (3000K-6500K)

· Smart control integration (0-10V, DALI, DMX)

· Private labeling (MOQ applies)

Request a free lighting design consultation for projects requiring 50+ fixtures.

Frequently Asked Questions

How does it compare to 2000W metal halide lamps?

The output of 120,000lm is more than 2000W-2500W MH systems and uses 60% less energy. You eliminate warm-up delays, flicker and bulb changes (MH lamps need replacing every 6,000 hours vs 50,000+ for LED).

What is the beam angle for a regular football pitch?

30-40m installation height: 30° beams on perimeter towers and 60° at corners. This provides consistent lighting of over 500 lux fulfilling FIFA Class II criteria. We provide free photometric simulations.

Why is 5000K important for broadcasting?

5000K matches natural daylight, requiring zero color correction for HD/4K cameras. It delivers high CRI (>80) for accurate team uniform colors and sponsor logos—critical for slow-motion replays.

What's the lifespan in coastal environments?

The aluminum alloy housing with electrophoresis coating resists saline corrosion. Expect 15+ years in coastal installations vs. 3-5 years for painted steel fixtures. IP67 sealing prevents moisture ingress.

Can I dim these fixtures?

Yes. Drivers support 0-10V, DALI, and DMX protocols. Dimming preserves energy during training sessions or multi-use venue configurations. Smart control integration available for Building Management Systems.

Ready to Upgrade Your Stadium Lighting?

Get a Free Photometric Analysis:

Our Aluminum Alloy 120000lm Sports Light Fixture 1000w Led Stadium Lights 5000K's team will create a custom lighting simulation for your venue, including:

· Lux level calculations

· Uniformity ratios (Emin/Emax)

· Glare analysis (UGR values)

· Energy cost comparison vs. existing system

contact us:sam@razorlux.com​​​​​​​
