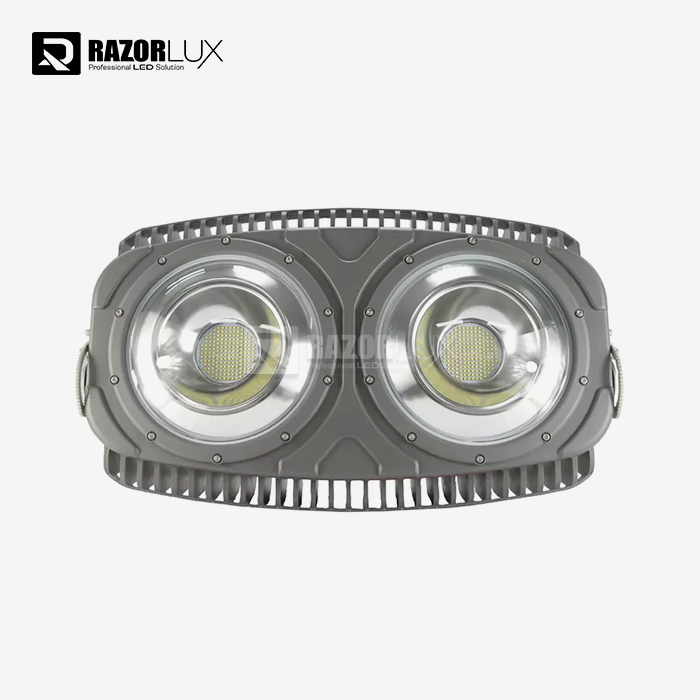

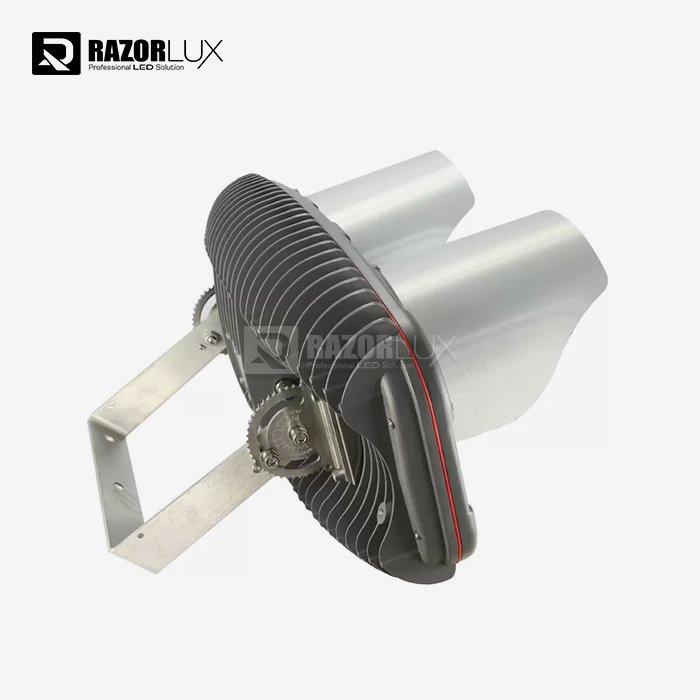

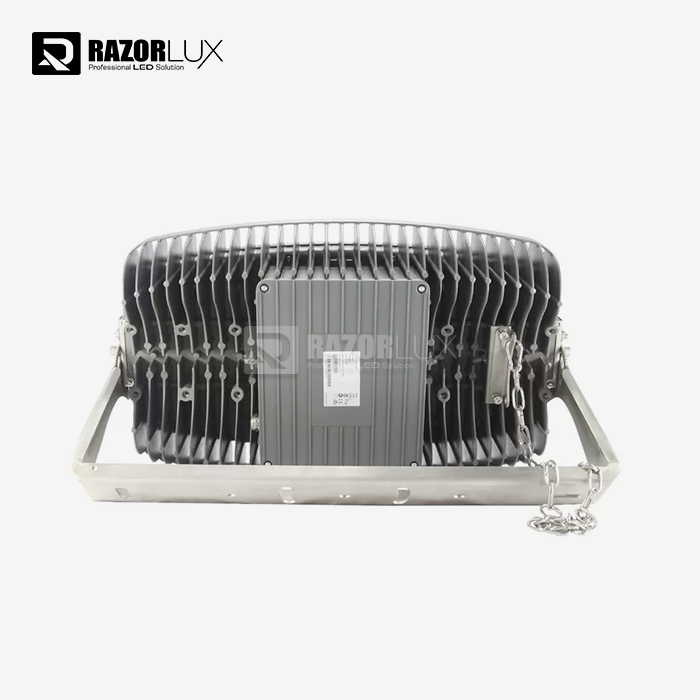

Die Cast Waterproof Led Flood Light Outdoor 6000K Saa Aluminum Alloy

Die Cast Waterproof Led Flood Light Outdoor 6000K Saa Aluminum Alloy

Industrial-Grade Outdoor Lighting for Demanding Environments

The Razorlux RGL2-1000A offers dependable operation in demanding applications. This Die Cast Waterproof LED Flood Light Outdoor 6000K Saa Aluminium Alloy is made with die cast ADC12 aluminium alloy and is certified IP67 waterproof. It fulfils SAA, UL and CE safety requirements. Specifically designed for mining sites, ports, warehouses and high security perimeters where equipment failure is not an option.  ​​​​​​​​​​​​​​

Parameters of Die Cast Waterproof Led Flood Light Outdoor 6000K Saa Aluminum Alloy

Key Features

Die-Cast Aluminum Construction

The single-piece ADC12 aluminium enclosure with integrated cooling fins offers excellent heat dissipation. LED junction temperatures are maintained below 85°C with a thermal conductivity of 96 W/m·K, eliminating the early failure common to sheet metal alternatives.

Result: Lifespan extended beyond 50,000 hours with low lumen decay.

IP67 Waterproof Protection

Seals are vacuum tested. Gaskets are marine-grade silicone to prevent water intrusion and corrosion. Units are salt spray tested for 1000 hours to ensure durability in coastal areas.

The powder coating is marine quality and resists oxidation in high humidity.

6000K Daylight Spectrum

Crisp white light (6000K) provides superior contrast for:

· Security camera footage clarity

· Worker visibility in 24-hour operations

· Hazard identification around machinery

Where This Fixture Excels

Mining & Heavy Industry

Complies with Western Australian and Queensland safety regulations for 24-hour operation. The Die Cast Waterproof Led Flood Light Outdoor 6000K Saa Aluminum Alloy spectrum alleviates worker strain while increasing danger visibility in the vicinity of heavy equipment.

Ports & Container Terminals

The corrosion-resistant structure resists salt spray in beachfront settings. High intensity lighting for security surveillance and safe handling of containers in any conditions.

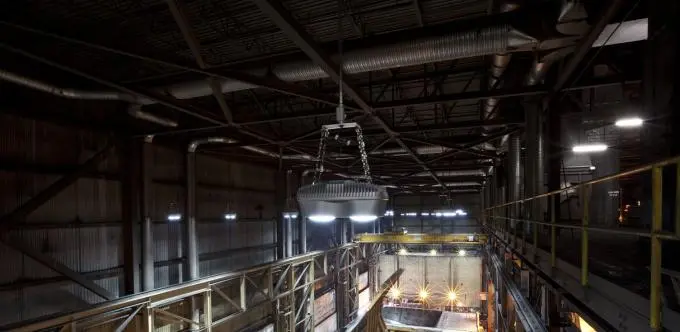

Warehouses & Distribution Centers

Robust design is insensitive to loading dock vibration. Multi-shift operations show decreased eye strain for workers reading labels under uniform 6000K illumination.

Sports Facilities

Impact resistant (IK10) against ball impact. For fast-moving sports like as tennis and cricket, the clear view this spectrum affords is vital for both the players and the fans.

High-Security Perimeters

Continuous operation in correctional institutions and data centers with tamper-resistant aluminium casing. CCTV systems are more effective in face identification in high contrast light.

Common Questions

Is SAA certification mandatory for installation in Australia?

Yes. AS/NZS 60598 compliance is legally required. Non-certified fixtures may void insurance coverage and violate electrical safety regulations.

Why choose 6000K over warmer color temperatures?

The 6000K spectrum provides higher contrast that improves visibility for security cameras and reduces perceived darkness in outdoor areas. This makes it preferable for safety-critical applications.

How does die-cast aluminum compare to sheet metal housings?

Die-casting produces integral cooling fins in a single piece. This structure transfers heat away from LEDs more efficiently than assembled sheet metal, directly extending component lifespan.

Can this fixture handle coastal salt exposure?

Yes, when specified with marine-grade coating. Units passing 1000-hour salt spray testing are suitable for oceanfront installations. Confirm coating specification for extreme proximity to water.

What component typically requires replacement first?

The LED driver experiences the highest failure rate due to electrical fluctuations and heat. Our design allows driver replacement without LED board removal, reducing maintenance costs.

Does the fixture support dimming controls?

Yes. We offer 0-10V and DALI dimming options. Dimming capability reduces energy consumption during low-activity periods and extends LED lifespan by lowering thermal stress.

Packaging & Logistics

· Carton dimensions: 550×450×415mm with EPS foam protection

· Container capacity: 250 units per 20' container

· Lead time: Contact for current production schedule

About Razorlux

Since 1998, Razorlux has specialized in power supply and LED lighting technology. Our dual-headquarters structure combines American market expertise with Chinese manufacturing capabilities in Xi'an and Zhuhai.

We provide lighting layout design and photometric calculations to optimize project outcomes. R&D partnerships with institutions like Xi'an Jiaotong University keep our solutions aligned with industry advancements.

Brand registrations in USA, China, Europe, and Hong Kong demonstrate our commitment to long-term market presence.
