Crane Light Fixture Buying Checklist for Industrial Buyers

Every industrial facility manager knows the frustration of equipment downtime caused by inadequate crane lighting. When operators struggle with poor visibility during critical lifting operations, safety risks multiply, productivity drops, and maintenance costs spiral out of control. Selecting the right Crane Light Fixture isn't just about illumination—it's about protecting workers, optimizing operations, and ensuring regulatory compliance. This comprehensive buying checklist provides industrial buyers with essential criteria for evaluating and selecting crane lighting systems that deliver reliable performance in demanding environments.

Essential Technical Specifications for Crane Light Fixtures

• Power Rating and Energy Efficiency Standards

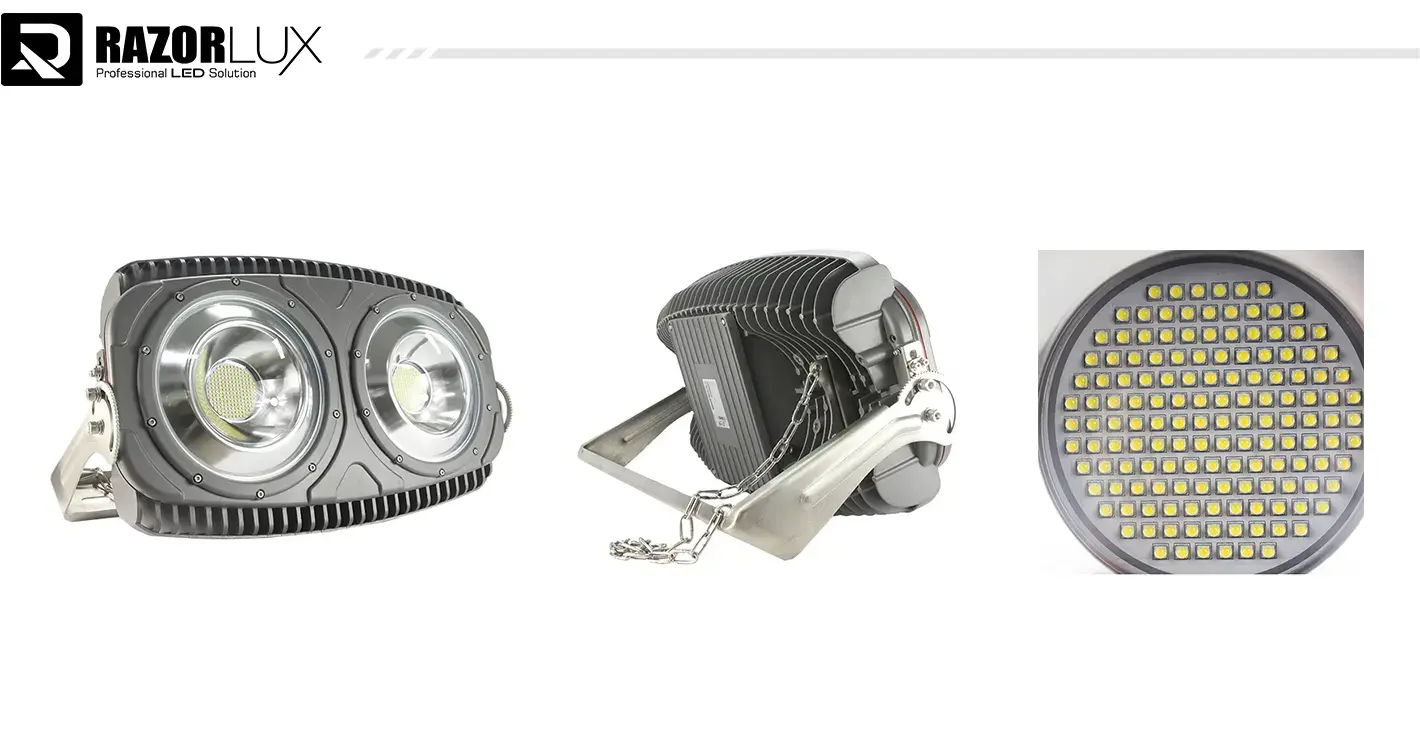

When evaluating Crane Light Fixture options for industrial applications, power rating represents a critical specification that directly impacts operational costs and lighting performance. Modern LED Crane Lights typically range from 100W to 400W, with 150W configurations offering an optimal balance between illumination output and energy consumption for most overhead crane applications. The lamp efficiency metric, measured in lumens per watt, determines how effectively a Crane Light Fixture converts electrical power into usable light. Industry-leading fixtures achieve 130LM/W or higher, significantly outperforming traditional metal halide and high-pressure sodium lamps that struggle to reach 80LM/W. For a typical industrial facility operating cranes 16 hours daily, upgrading to high-efficiency LED Crane Light Fixtures can reduce lighting energy costs by 60-70% while delivering superior illumination quality. Input voltage flexibility also matters tremendously, particularly in facilities with variable power supply conditions. Premium Crane Light Fixture models accommodate wide voltage ranges such as AC80-315Vac or DC80-400Vdc without requiring additional adapters, ensuring consistent performance across different electrical systems and protecting against voltage fluctuations that commonly occur during crane regenerative braking operations.

• IP Rating and Environmental Protection Requirements

Industrial environments subject Crane Light Fixtures to extreme conditions including moisture, dust, chemical exposure, vibration, and temperature fluctuations that would quickly destroy standard lighting equipment. The Ingress Protection (IP) rating system provides standardized measurement of a fixture's resistance to solid particles and liquids. For crane applications, IP65 represents the minimum acceptable rating, offering protection against dust ingress and water jets from any direction. However, facilities with washdown requirements, marine environments, or outdoor exposure should specify IP67-rated Crane Light Fixtures that can withstand temporary immersion up to one meter depth. The housing construction materials significantly influence durability and corrosion resistance. Marine-grade aluminum alloys with specialized powder coating or anodized finishes provide excellent corrosion resistance for shipyard and port applications. Stainless steel brackets and mounting hardware prevent rust-induced failures in high-humidity environments. The mechanical impact rating, designated by IK codes, indicates resistance to physical impact. IK10-rated Crane Light Fixtures withstand 20 joules of impact energy, equivalent to a 5kg mass dropped from 40cm, providing protection against accidental collisions with loads, tools, or crane components. Temperature performance specifications ensure reliable operation across seasonal variations and different geographic locations, with industrial-grade fixtures functioning reliably from -40°C to +60°C.

• Beam Angle and Light Distribution Patterns

Selecting appropriate beam angles for Crane Light Fixtures requires careful analysis of mounting height, coverage area requirements, and operational tasks performed under crane coverage. Narrow beam angles between 15° and 30° concentrate light into focused patterns ideal for high-mounting positions above 15 meters, ensuring adequate illumination intensity reaches ground level work areas. These concentrated beams penetrate through dust and atmospheric conditions more effectively than wider distributions. Medium beam angles ranging from 40° to 60° provide balanced coverage for standard overhead crane installations at heights between 8 and 15 meters, illuminating work zones without excessive spill light that could create glare for adjacent operations. Wide beam patterns from 90° to 120° suit lower mounting heights and applications requiring broad area coverage. Advanced Crane Light Fixture designs incorporate asymmetric optics that direct light preferentially forward along the crane's direction of travel, maximizing useful illumination while minimizing wasted light projected outside operational areas. Photometric testing data, typically presented in candela distribution curves and isolux diagrams, enables precise prediction of lighting performance before installation. When evaluating Crane Light Fixtures, request IES photometric files that allow lighting simulation software to model actual illumination levels, uniformity ratios, and potential glare conditions for your specific facility layout and crane configurations.

Performance Features and Safety Compliance Standards

• Vibration Resistance and Structural Durability Testing

Industrial cranes generate substantial vibration during operation from motor starts, load movements, sudden braking, and structural resonance, creating punishing conditions for mounted Crane Light Fixtures. Without adequate vibration resistance, fixtures experience premature LED driver failures, optical component misalignment, mounting bracket loosening, and compromised weatherproof seals that allow moisture ingress. The ANSI C136.31 standard establishes testing protocols for evaluating lighting fixture vibration endurance under controlled laboratory conditions. Quality Crane Light Fixtures undergo 3G vibration testing, subjecting assemblies to acceleration forces three times gravitational acceleration through 100,000 cycles across frequency ranges encountered in real-world crane operations. Some premium fixtures achieve 4G or 5G certification for extreme-vibration applications like mobile cranes and heavy-duty gantry systems. Beyond standardized testing, structural design features contribute significantly to vibration performance. Rigid die-cast aluminum housings with reinforced mounting points resist flexing that causes fatigue failures. Vibration-dampening mounting pads made from specialized elastomeric compounds absorb shock loads before transmission to fixture components. Internal component mounting techniques including silicone potting for LED drivers and mechanically secured optical assemblies prevent component migration and connection failures. The quality of electrical connections determines reliability under vibration conditions. Premium Crane Light Fixtures utilize industrial-grade connectors with positive locking mechanisms and strain relief systems that prevent cable fatigue at termination points.

• Certification Compliance and International Standards

Regulatory compliance represents a non-negotiable requirement for Crane Light Fixtures installed in commercial and industrial facilities, with specific certification requirements varying by geographic region, industry sector, and application environment. UL (Underwriters Laboratories) certification demonstrates compliance with rigorous North American safety standards covering electrical construction, fire resistance, and hazardous location classifications. CE marking indicates conformity with European Union directives covering electromagnetic compatibility, electrical safety, and environmental considerations. Additional regional certifications including SAA for Australia, C-Tick for telecommunications compliance, and RoHS for hazardous substance restrictions ensure global market acceptability. For specialized applications, industry-specific certifications become mandatory. Marine environments require RMRS (Russian Maritime Register of Shipping) or similar classification society approvals verifying suitability for shipboard installation. DLC (DesignLights Consortium) qualification enables eligibility for utility rebate programs that offset initial investment costs for energy-efficient Crane Light Fixtures. The certification documentation should include detailed test reports, not merely certificates of compliance, enabling verification of testing scope and performance characteristics. ISO 9001 certification of the manufacturing facility provides assurance of consistent quality management systems and production controls. When evaluating Crane Light Fixture suppliers, request copies of actual certification documents and verify listing status through independent certification body databases to confirm authenticity and currency of approvals.

• Warranty Coverage and Service Life Expectations

The warranty structure offered with Crane Light Fixtures provides critical insight into manufacturer confidence in product reliability and reveals potential long-term cost implications beyond initial purchase price. Comprehensive warranties should separately address LED modules, electronic drivers, and housing components, as these elements experience different failure modes and service life characteristics. LED light sources themselves typically offer exceptional longevity, with quality modules maintaining 70% of initial light output (L70 rating) after 50,000 hours of continuous operation. However, the electronic driver components that regulate power delivery to LEDs represent the primary failure point in most fixtures, particularly when subjected to voltage fluctuations, temperature extremes, and vibration stresses. Premium Crane Light Fixture manufacturers provide 5-year warranties covering LED modules and drivers, demonstrating commitment to component quality and manufacturing excellence. Some suppliers extend housing warranties to 10 years, reflecting confidence in corrosion-resistant construction and weatherproof seal integrity. Beyond standard warranty duration, examine coverage terms including labor cost reimbursement for fixture replacement, advance replacement policies that minimize downtime, and geographic scope of warranty support. Calculate total cost of ownership by comparing initial purchase price, expected service life, maintenance requirements, and warranty coverage. A higher-priced Crane Light Fixture with 5-year comprehensive warranty may deliver superior value compared to budget alternatives requiring replacement every 2-3 years when accounting for purchase costs, installation labor, and operational disruption.

Customization Options and Supplier Capabilities

• Color Temperature and Rendering Specifications

Color temperature selection significantly influences operator visual comfort, task accuracy, and overall workplace ambiance in industrial crane operations. Measured in Kelvin (K), color temperature describes the perceived warmth or coolness of white light emitted by Crane Light Fixtures. Warm white options between 2700K and 3500K create comfortable, yellowish illumination resembling traditional incandescent lighting, reducing eye strain during extended work periods and minimizing insect attraction in outdoor applications. Neutral white temperatures from 4000K to 4500K provide balanced lighting suitable for general industrial use, offering good color discrimination without the harsh appearance of cooler options. Cool white Crane Light Fixtures rated 5000K to 6500K produce crisp, bluish-white illumination that enhances alertness and provides excellent color rendering for inspection tasks, though some workers find extended exposure to cool white lighting fatiguing. The Color Rendering Index (CRI) quantifies how accurately a light source reveals object colors compared to natural daylight, with higher values indicating superior color fidelity. Standard industrial Crane Light Fixtures achieve CRI ratings of Ra75 or higher, adequate for general material handling operations. Precision applications involving color-coded components, quality inspection, or detailed assembly work benefit from Ra80 or Ra90 options that reveal subtle color variations invisible under lower-CRI illumination. Leading manufacturers offer customizable color temperature options within standard product lines, enabling facilities to match existing lighting installations or optimize illumination characteristics for specific operational requirements without requiring completely custom fixture designs.

• Control Systems and Dimming Integration Capabilities

Modern Crane Light Fixtures increasingly incorporate sophisticated control capabilities that enable dynamic lighting management, energy optimization, and integration with broader facility automation systems. Basic on-off switching represents the minimum control requirement, typically implemented through crane electrical system integration that automatically energizes lighting when crane power activates. More advanced installations benefit from dimming functionality that adjusts light output based on ambient conditions, operational requirements, or energy management objectives. The 0-10V analog dimming protocol provides simple, cost-effective dimming control through low-voltage signal wires running parallel to power conductors, enabling smooth light level adjustment from 100% to 10% output. This system works well for retrofit applications and small-scale installations. DALI (Digital Addressable Lighting Interface) protocol offers superior functionality for complex installations, enabling individual fixture addressing, bi-directional communication for status monitoring, programmable lighting scenes, and integration with building management systems. When specifying Crane Light Fixtures with dimming capabilities, verify compatible driver options, minimum dimming levels without flicker or instability, and dimming curve characteristics that align with control system requirements. Occupancy sensors and daylight harvesting systems can automatically reduce or extinguish crane lighting when areas are unoccupied or sufficient natural light is available, generating substantial energy savings in facilities with intermittent crane operations. Emergency backup power functionality represents another valuable feature for critical operations, with battery backup systems maintaining reduced-output illumination for 2 hours during power failures, ensuring safe crane parking and personnel evacuation.

• OEM/ODM Services and Product Customization Flexibility

Industrial crane applications frequently demand specialized lighting configurations that standard catalog products cannot adequately address, making manufacturer customization capabilities an important supplier selection criterion. Original Equipment Manufacturer (OEM) services enable integration of Crane Light Fixtures into crane systems under the crane manufacturer's brand identity, with custom labeling, Packaging, and documentation. This approach benefits crane OEMs seeking to offer comprehensive turnkey systems with consistent branding across all components. Original Design Manufacturer (ODM) services provide deeper collaboration, with lighting manufacturers developing custom Crane Light Fixture designs based on specific performance requirements, mounting constraints, or aesthetic preferences. ODM partnerships suit applications with unique technical requirements such as specialized beam patterns for unusual mounting geometries, integration with proprietary control systems, or compliance with industry-specific regulations not addressed by standard products. When evaluating supplier customization capabilities, assess engineering resources available for custom development, including optical design expertise, thermal modeling capabilities, and structural analysis tools. Minimum order quantities for custom configurations vary considerably among manufacturers, ranging from hundreds of units for simple modifications like custom powder coat colors to thousands for completely new fixture designs involving tooling investment. Prototype and sampling services enable validation of custom designs before production commitment, with leading suppliers providing functional prototypes within 2-4 weeks of design finalization. Technical documentation support including custom installation guides, photometric data for specific configurations, and integration specifications facilitates seamless incorporation of Crane Light Fixtures into broader crane systems.

Procurement Logistics and After-Sales Support

• Supplier Manufacturing Capabilities and Quality Assurance

The manufacturing capabilities and quality control processes employed by Crane Light Fixture suppliers directly determine product reliability, consistency, and long-term performance in demanding industrial applications. Facilities holding ISO 9001 certification demonstrate implementation of comprehensive quality management systems covering design control, supplier management, production processes, inspection procedures, and corrective action protocols. During supplier evaluation, request facility tours or detailed documentation of manufacturing processes, examining fixture assembly procedures, testing protocols, and quality verification checkpoints. Premium manufacturers conduct 100% functional testing of completed Crane Light Fixtures before shipment, including photometric measurement in integrating sphere systems that precisely quantify light output, color temperature, and beam pattern characteristics. Accelerated aging tests subject sample units to extended operation at elevated temperatures and electrical stress levels, identifying potential early failures before products reach customers. Vibration testing validates mounting integrity and component security under simulated operational conditions. Environmental chamber testing verifies performance across specified temperature and humidity ranges. The supply chain for critical components significantly impacts product quality and long-term supportability. Crane Light Fixtures incorporating drivers from premium suppliers like Meanwell or Philips benefit from superior reliability, consistent performance specifications, and long-term component availability compared to fixtures using generic drivers from unknown manufacturers. Similarly, LED chips from Tier 1 suppliers including Cree, Nichia, or Samsung provide superior light quality, efficacy, and lumen maintenance compared to budget alternatives. Patent portfolios exceeding 200 patents covering LED packaging, power control, and structural design innovations demonstrate substantial intellectual property investment and technical sophistication that translates to competitive product advantages.

• Global Logistics and Shipping Solutions

Efficient logistics management ensures Crane Light Fixtures arrive on-site undamaged, on schedule, and at reasonable transportation cost, with shipping strategy selection depending on order quantity, project timeline, and budget constraints. International express services through carriers like DHL, FedEx, or UPS provide 3-7 day delivery for urgent requirements or sample shipments, optimal for weights between 0.5kg and 300kg where contracted express rates offer competitive pricing compared to alternative methods. Air freight services deliver within 5-10 days for shipments exceeding 300kg, providing significant cost advantages over express services while maintaining relatively short transit times through airport-to-door delivery options. Rail freight via China-Europe Railway Express offers 18-22 day transit for shipments exceeding 2 cubic meters or 500kg, presenting economical alternatives to air freight while avoiding extended ocean transit times. Sea freight represents the most cost-effective transportation method for non-urgent bulk orders, with 15-50 day transit times depending on destination port and routing. Both Full Container Load (FCL) and Less than Container Load (LCL) options accommodate varying order quantities. Proper packaging protects Crane Light Fixtures during multi-modal transportation handling. Individual fixtures wrapped in protective plastic bags rest in custom-cut foam inserts within corrugated cartons, preventing movement and impact damage. Top foam layers incorporate dedicated compartments securing mounting brackets, fasteners, and accessories. Cartons sealed with reinforced packing tape and plastic strapping withstand handling rigors. Optional wooden crate protection suits bulk shipments or long-distance transport requiring maximum protection. Consider delivered duty paid (DDP) versus free on board (FOB) pricing structures when comparing supplier quotations, as these Incoterms significantly affect total landed costs through different allocation of transportation, insurance, customs clearance, and import duty responsibilities.

• Technical Support and After-Sales Service Infrastructure

Comprehensive after-sales support distinguishes premium Crane Light Fixture suppliers from commodity vendors, providing critical assistance during installation, operation, and maintenance phases throughout fixture service life. Pre-sales technical consultation helps identify optimal fixture specifications for specific applications, with experienced application engineers analyzing mounting heights, coverage requirements, environmental conditions, and regulatory constraints to recommend appropriate configurations. Technical drawing and documentation support includes detailed dimension drawings, photometric data files, installation instructions, and electrical connection diagrams facilitating accurate project planning and field installation. Responsive post-installation technical support addresses operational questions, troubleshooting guidance, and performance optimization recommendations through multiple channels including phone support, email correspondence, and online resources. Warranty claim processing efficiency minimizes operational disruption when defective units require replacement, with advanced replacement programs shipping substitute fixtures before receiving failed units. Spare parts availability ensures continued operation of older installations as fixtures approach end-of-service life or require component replacement following damage. Leading suppliers maintain inventory of critical components including LED modules, driver assemblies, lenses, and mounting hardware for current products and recent discontinued models. Training resources help maintenance personnel understand fixture operation, proper cleaning procedures, and basic troubleshooting techniques through documentation, video tutorials, or on-site training sessions. When evaluating supplier after-sales capabilities, request references from existing customers in similar industries and applications, verifying responsiveness, technical competence, and support quality through direct conversations with facility managers who have long-term experience with the supplier's products and services.

Conclusion

Selecting the optimal Crane Light Fixture requires balancing technical performance, regulatory compliance, customization flexibility, and supplier capabilities. This comprehensive checklist equips industrial buyers with evaluation criteria ensuring reliable illumination, enhanced safety, and long-term value. Partner with Xi'an Razorlux Optoelectronic Technology Co., Ltd., a trusted China Crane Light Fixture manufacturer and China Crane Light Fixture supplier since 1998. Our China Crane Light Fixture factory delivers premium Crane Light Fixtures for sale with competitive Crane Light Fixture prices backed by comprehensive China Crane Light Fixture wholesale programs. We offer 5-year warranty coverage, customized sampling, rapid prototyping, and global shipping options including express, air, rail, and sea freight to meet your project timeline. Our mature R&D team, GMP-certified facilities, complete international certifications (UL, CE, RoHS, SAA, DLC), and professional sales support ensure you receive the perfect lighting solution for your industrial application. Contact our technical specialists today at sam@razorlux.com to discuss your crane lighting requirements, request detailed specifications, or schedule a customized product demonstration. Bookmark this guide for future reference when planning your next lighting upgrade project.

References

1. "Industrial Lighting Design and Specification Guide for Manufacturing Facilities" by Illuminating Engineering Society (IES), Technical Committee on Industrial Lighting Applications

2. "Overhead Crane Safety Standards and Best Practices for Material Handling Operations" by Crane Manufacturers Association of America (CMAA), Engineering Division

3. "LED Lighting Systems for Harsh Industrial Environments: Performance Requirements and Testing Standards" by International Electrotechnical Commission (IEC), Technical Committee 34

4. "Marine and Port Infrastructure Lighting Guidelines: Specifications for Corrosion Resistance and Environmental Durability" by International Association of Ports and Harbors (IAPH), Technical Committee on Terminal Operations
