High Mast Light Wattage

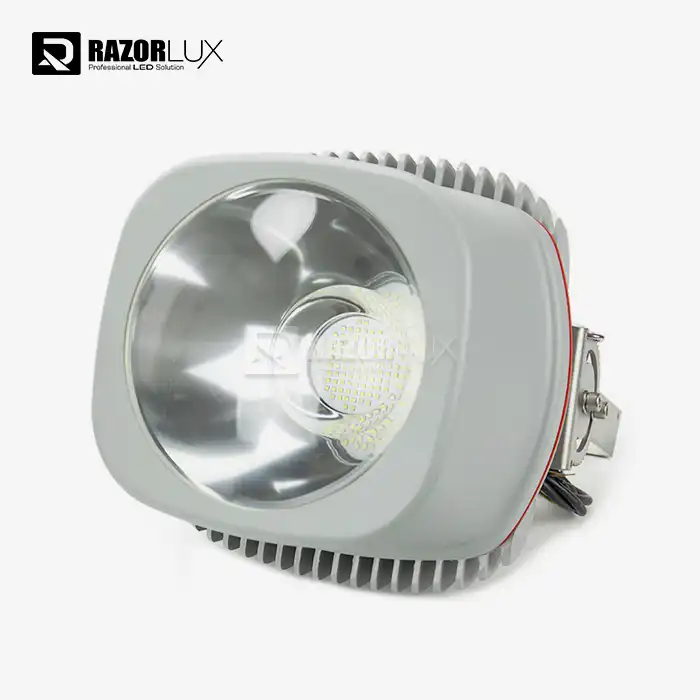

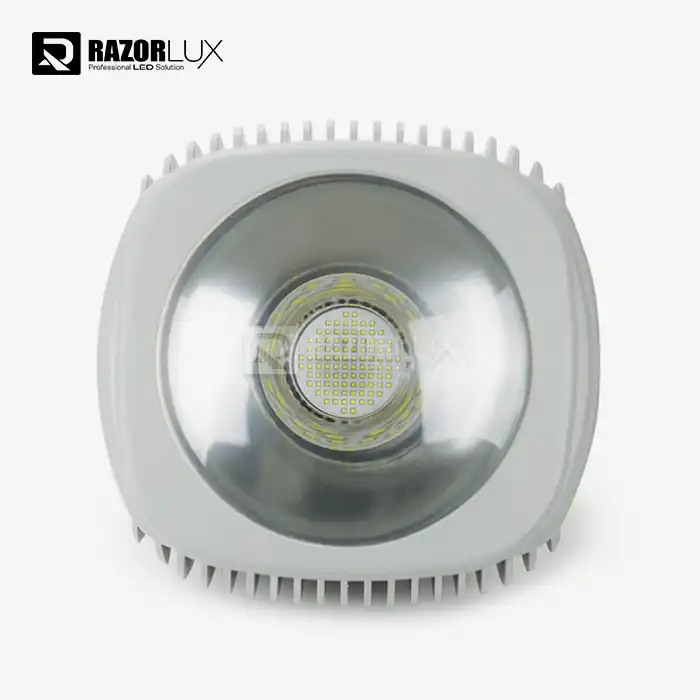

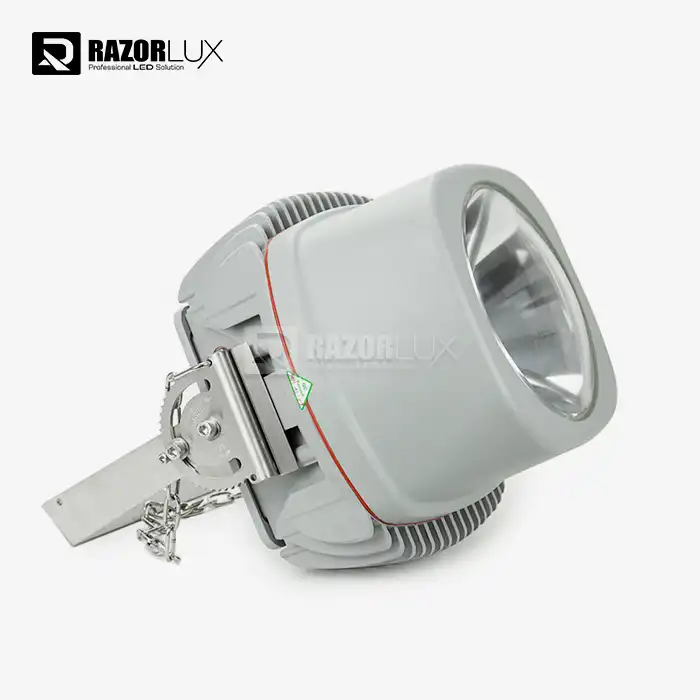

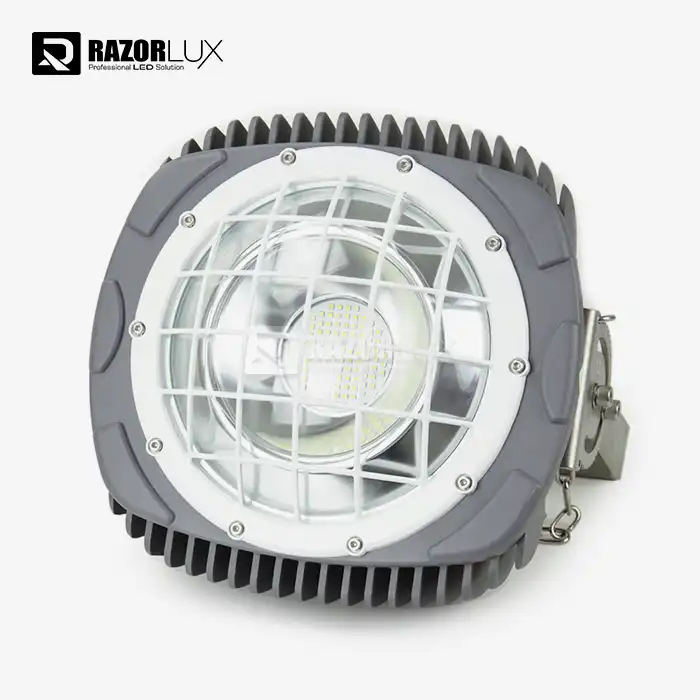

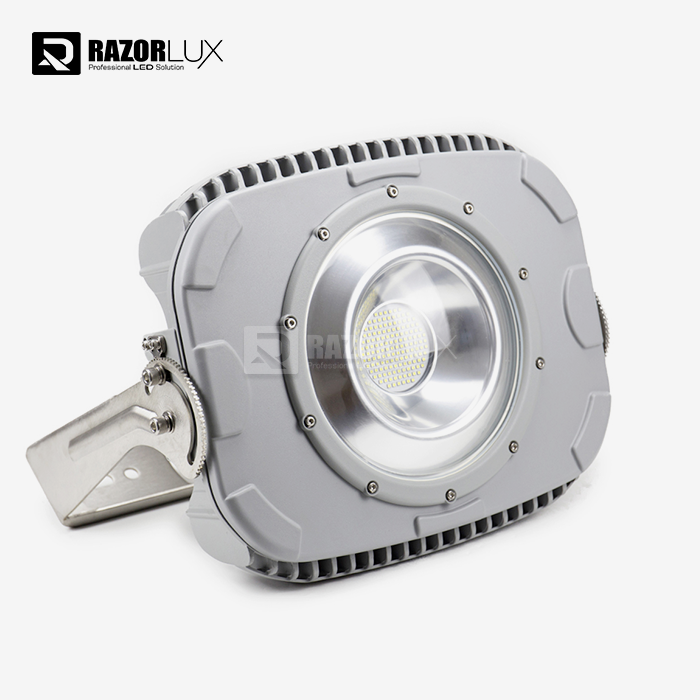

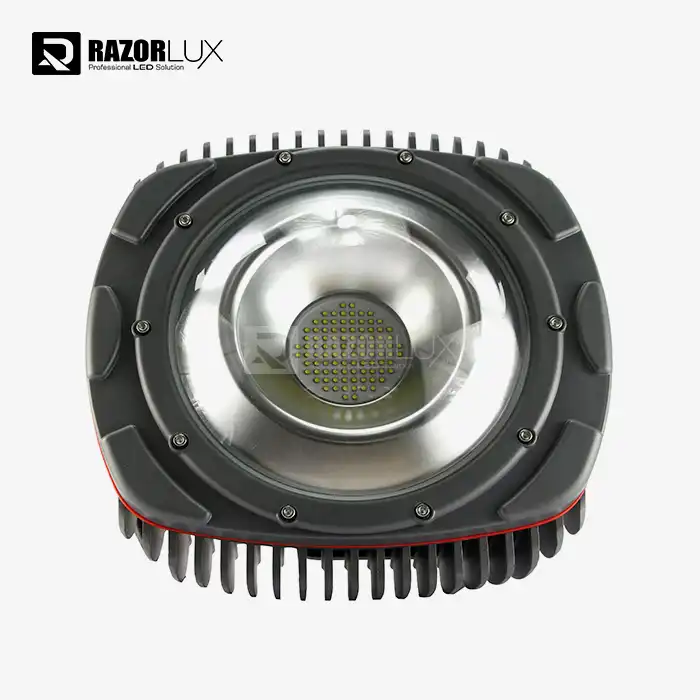

1000W High Mast LED Lights – Industrial-Grade Lighting for Extreme Environments

Tired of constantly changing bulbs and high energy costs with old high mast lights?  Xi’an Razorlux 1000W LED solution achieves 130LM/W efficiency – lowering energy expenses by 60% and lasting 5× longer than standard Metal Halide systems. Our high mast lights wattage are designed for ports, roads and industrial locations and are resistant to severe temperatures (-40°C to +50°C) and hard environments with IP67 protection.

High Mast LED Lights Specifications

​​​​​​​

Why Facilities Choose Razorlux High Mast LEDs

Reduce Operating Costs by 60-70%

Replace 2000W Metal Halide fixtures with our 1000W LED system—same brightness, half the energy.

Real-World Performance: Our patented thermal management extends LED lifespan beyond 50,000 hours (12+ years at 12hr/day operation). That means fewer crane rentals, less downtime, and lower labor costs for bulb changes.

The wide voltage range (AC90-305V) eliminates flickering and premature failures caused by unstable power—critical for remote industrial sites with inconsistent grid quality.

Precision Optics for Uniform Coverage

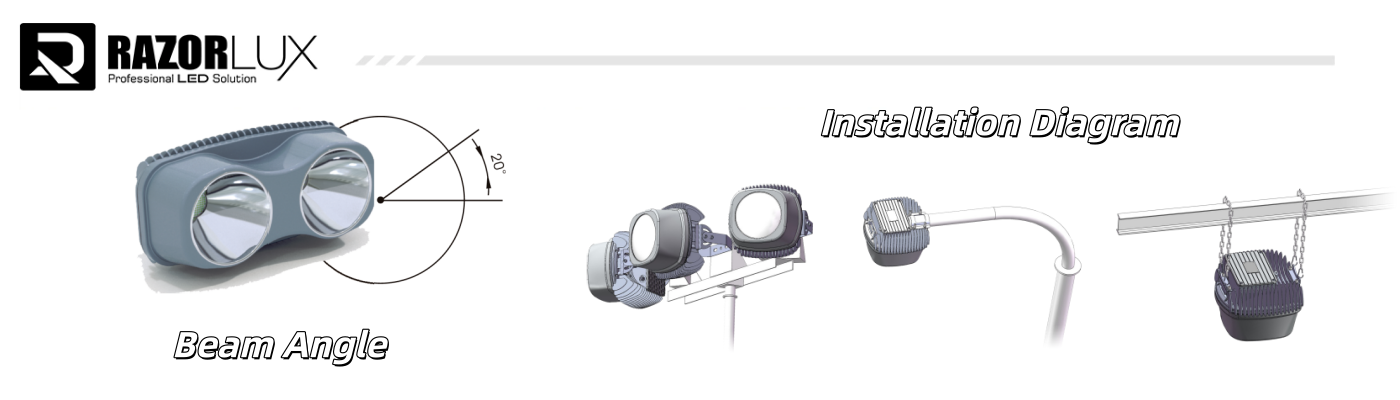

Dark spots and glare create safety hazards. Our customizable beam angles (15° to 140°) deliver uniformity ratios exceeding 0.4 across container yards, highways, and airfields.

Application-Specific Design: Choose narrow 15° beams for 40-meter pole heights, or wide 120° floods for loading docks. Our high mast light wattage's engineers provide complimentary DIALux simulations to optimize your layout before installation.

Directional LED optics reduce light pollution by 80% versus older fixtures—meeting stringent environmental regulations while keeping every watt focused where you need it.

Built for Harshest Environments

C5M Marine-Grade Certified: The highest corrosion resistance rating for saltwater exposure. Stainless steel brackets and IP67-sealed housings protect against:

· Salt spray in ports and coastal facilities

· Chemical exposure in refineries

· Dust and vibration in mining operations

· Temperature extremes from -40°C to +50°C

Integrated 20kV surge protection guards against lightning strikes—essential when your fixtures become the tallest structures in open areas.

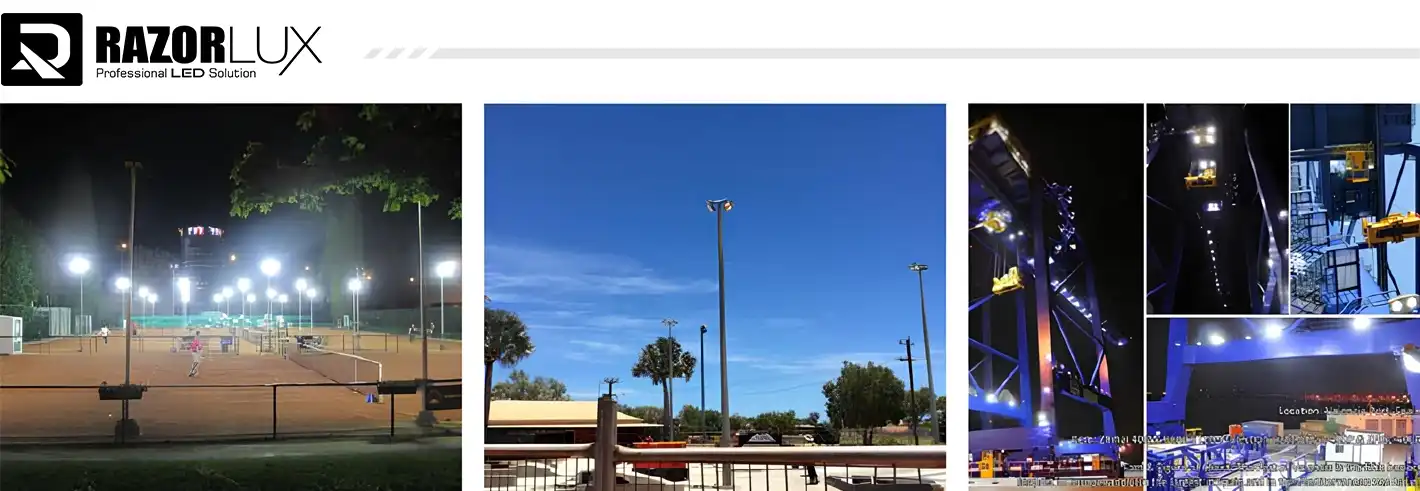

Where Our 1000W High Mast LEDs Excel

Ports & Container Terminals

Crane operators depend on consistent visibility during 24/7 operations. Our fixtures maintain uniform illumination across sprawling yards while surviving corrosive marine environments. The 5-year warranty minimizes unplanned maintenance—critical when repairs require halting operations.

Highway Interchanges & Toll Plazas

Safely illuminate complex road geometries with selectable beam patterns. The AC90-305V input range handles varying infrastructure power supplies, while instant-on capability eliminates dangerous warm-up delays during power restoration.

​​​​​​​

Mining & Heavy Industry

Meet MSHA and OSHA illumination standards in hazardous locations. Robust construction withstands vibration and dust while supporting 0-10V/DALI dimming for energy optimization during shift changes.

Airports & Airfields

Achieve broadcast-quality color rendering (Ra>75) for accurate visual tasks around aircraft. Flicker-free output supports high-speed security cameras, and 20kV surge protection guards against electrical anomalies in complex power grids.

Rail Yards & Logistics Hubs

Shadow-free illumination maximizes productivity during night loading operations. At just 15KG, our fixtures reduce structural requirements on existing poles—no costly reinforcement needed.

Common Questions

What wattage do I need for 30-meter poles?

Our 1000W LED typically replaces 2000W Metal Halide systems at this height. The answer depends on your target lux levels and pole spacing. contact us for a free photometric simulation using your site dimensions.

Does higher wattage guarantee better visibility?

No. A well-designed 1000W fixture with precision optics outperforms poorly engineered 1500W alternatives. Our 130LM/W efficacy and customized beam angles eliminate dark spots while reducing glare—delivering usable light, not wasted watts.

Can I dim these fixtures to save energy?

Yes. Built-in 0-10V and DALI compatibility allows 50% dimming during off-peak hours. This extends LED lifespan while cutting costs further. Color temperature remains stable across the entire dimming range.

What about lightning protection?

Integrated surge protection handles 20kV transients—essential for high mast applications where fixtures become lightning targets. This protects sensitive electronics from costly storm damage.

How does wide voltage input help my facility?

AC90-305V and DC127-431V compatibility prevents flickering and failure from voltage drops on long cable runs. You won't experience premature burnouts due to poor power quality in remote locations.

Will the thermal management prevent early failure?

Copper heat pipes and oversized aluminum fins actively dissipate heat from LED chips and drivers. Junction temperatures stay below critical thresholds, ensuring 50,000+ hour L70 lifespan even under continuous operation.

Is 15KG too heavy for older poles?

Our LED fixture weighs less than equivalent HID systems (including ballasts). However, verify your pole's EPA (Effective Projected Area) rating for wind load safety. We provide structural assessment support upon request.

Contact Us

Ready to cut energy costs while improving safety and visibility?

Email our high mast lights wattage's engineers at sam@razorlux.com for technical consultation, photometric analysis, and project quotations.
