500W Crane Light Fixture - Industrial LED Lighting for Heavy-Duty Operations

Built to Survive What Standard Lights Can't

Crane vibration destroys ordinary LED fixtures within months. Our crane light fixture solves this with reinforced engineering designed specifically for moving equipment in ports, steel mills, and mining operations.

Crane Light Fixture Specifications

​​​​​​​

Why Standard Lights Fail on Cranes

Every time your crane starts or stops, it generates mechanical shock. Standard high-bay lights weren't built for this:

· Solder joints crack under constant vibration

· Driver circuits fail from voltage spikes during motor switching

· Housings corrode in outdoor or coastal environments

· Lenses detach from repeated impact

Our solution addresses each failure point:

1. Vibration-Resistant Construction

We designed this fixture to withstand 3G to 5G vibration levels (equivalent to continuous earthquake conditions). Solid-state LED drivers have no moving parts. Reinforced internal soldering keeps connections intact through thousands of movement cycles.

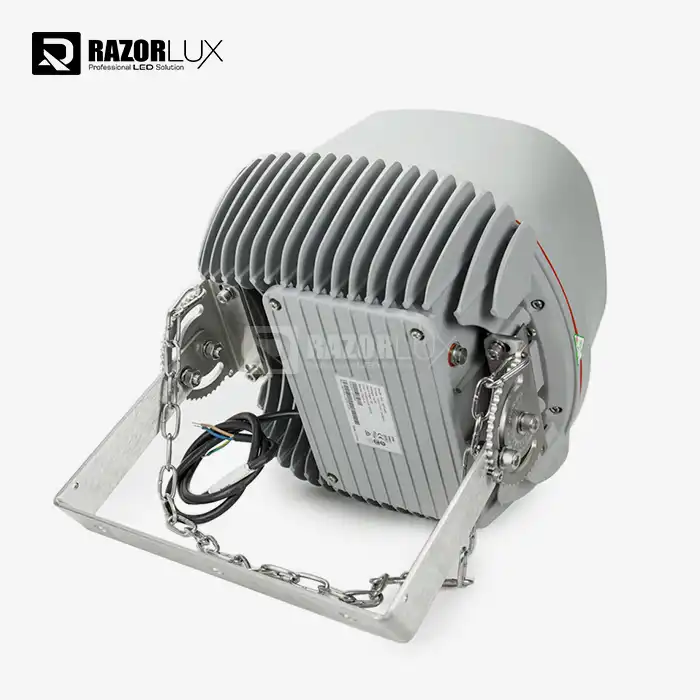

The die-cast ADC12 aluminum housing with integrated heat sinks maintains stable junction temperatures even when mounted near heat-stratified ceilings.

2. Electrical Protection for Industrial Grids

Crane motor switching creates voltage spikes that damage conventional lighting electronics. Our built-in surge protection handles transients from 6kV to 10kV.

The wide input voltage range (AC 90-305V, DC 127-431V) means stable operation regardless of your facility's power conditions—no flickering during motor starts.

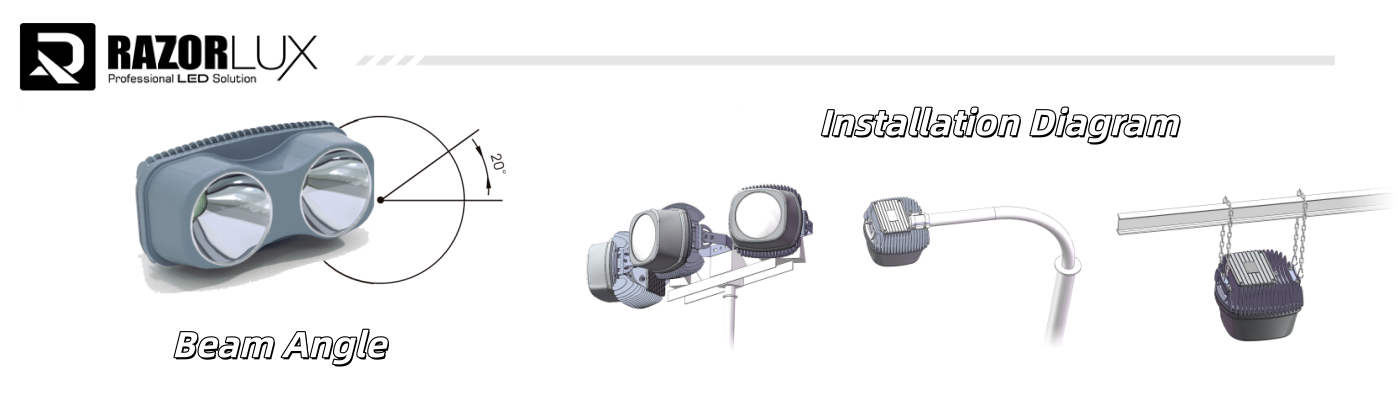

3. Precision Optical Control

Different crane heights need different beam strategies:

· High mounting (15+ meters): Narrow beams (15°-30°) concentrate light at the hook point

· Medium height (8-15 meters): Mid-range angles (40°-60°) balance coverage and intensity

· Low mounting (<8 meters): Wide beams (120° or 140°×60°) minimize shadows without glare

We provide free lighting simulations to calculate exact requirements for your facility.

4. Marine-Grade Durability

316 stainless steel brackets resist corrosion in coastal and chemical environments. IP67 rating keeps dust and water out. Salt spray tested to ASTM B117 standards for marine applications.

This crane light fixture operates reliably in conditions that corrode standard equipment within months.

Where This Fixture Works Best

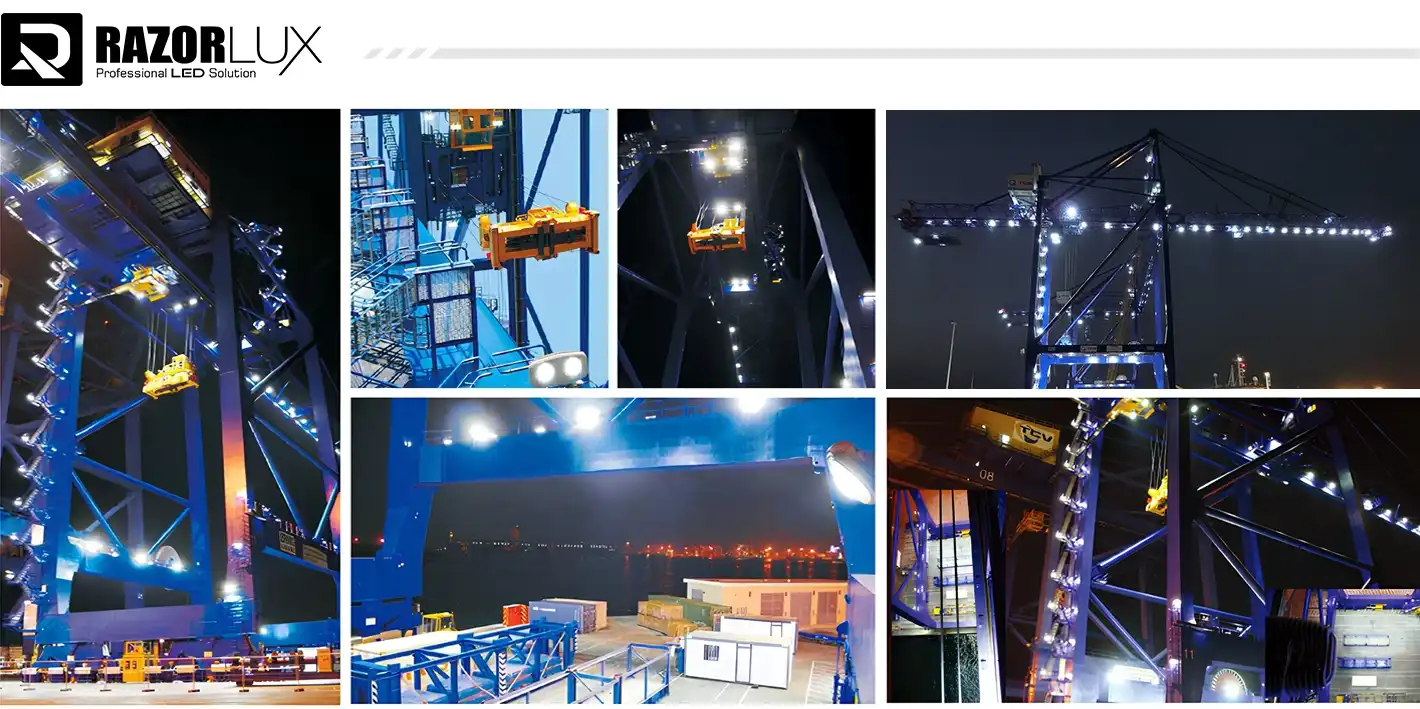

Port Container Terminals

Gantry cranes need 300-500 lux at ground level for operators to see container corners and twist locks during night shifts. Our 500W fixture delivers this intensity while surviving salt spray and vibration from container handling.

Steel Mills and Foundries

Bridge cranes in steel plants face extreme heat, metal dust, and vibration. Our thermal management maintains performance even near furnaces. IP67 sealing protects electronics from coolant spray and grinding dust.

​​​​​​​

Mining Operations

Underground and surface mining cranes demand lights that survive constant movement and impact. The reinforced construction handles mechanical stress while delivering consistent illumination through dust and moisture.

Wide input voltage range works with mine site generators and variable power systems. Five-year warranty reduces maintenance burdens in remote locations.

Shipyards

Indoor and outdoor shipbuilding cranes benefit from corrosion-resistant materials and sealed construction. The fixture performs equally well in precision assembly halls and harsh outdoor dry docks.

Color temperature options (2700K for welding inspection, 5000K-6500K for general work) support different tasks without changing fixtures.

Heavy Manufacturing

Assembly cranes moving large machinery components require shadow-free illumination. Our optical design eliminates dark zones created by crane bridges and hoist mechanisms, reducing operator eye fatigue during repetitive precision tasks.

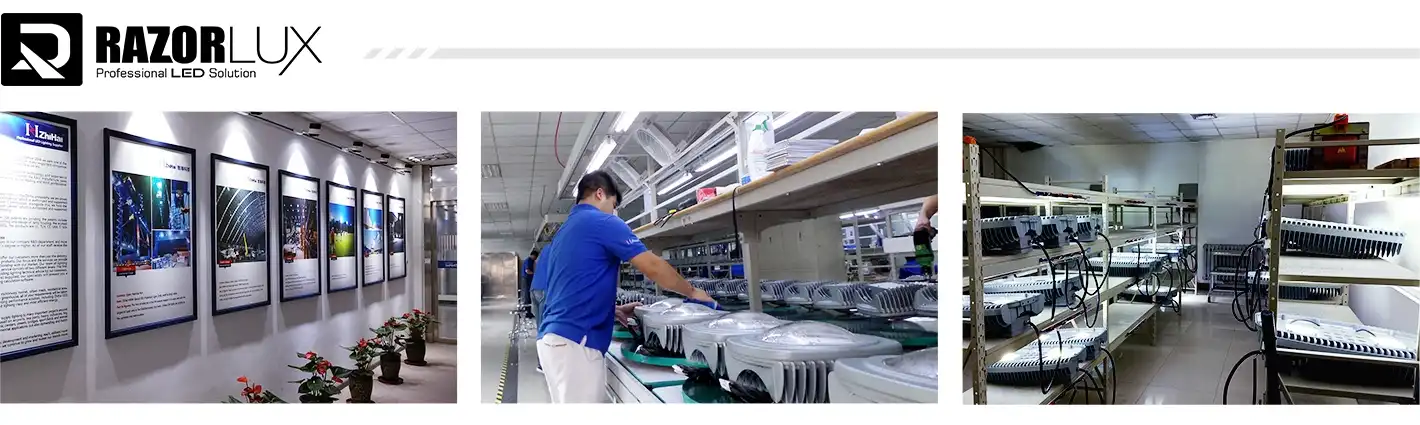

About Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. has specialized in industrial LED solutions since 2006. We hold over 200 patents in LED thermal management, power supply design, and optical control.

Our engineering team includes 10+ PhDs supported by the Xi'an LED Lighting Engineering Laboratory. We've installed lighting systems in ports, mines, and steel mills across 47 countries.

Manufacturing background in power supplies (since 1998) gives us unique expertise in handling electrical challenges in industrial environments.

Common Questions

What maintenance is required?

Annual lens cleaning and mounting bolt torque checks. No bulb changes. Sealed construction protects internal electronics from contamination.

Can I retrofit existing crane light mounting points?

Yes. The fixture adapts to standard mounting patterns. We provide engineering drawings and can customize bracket configurations for unusual installations.

How do I determine the right beam angle?

Send us your mounting height and work area dimensions. We'll provide a free DIALux simulation showing light distribution and recommended configuration.

Will this handle outdoor cranes in coastal areas?

Absolutely. IP67 sealing and 316 stainless steel brackets are specifically designed for salt spray environments. Successfully deployed in dozens of coastal ports and offshore facilities.
