Portable 400w 347V Led Crane Light Badminton Court Cool White

Portable 400w 347V Led Crane Light Badminton Court Cool White

Product Overview

The Portable 400w 347V LED Crane Light Badminton Court Cool White is intended for use with 347V industrial power systems. This fixture has high brightness output of 60,000+ lumens and efficiency of 140-160 lm/W, which is suitable for dual use of crane mounted industrial lighting and professional badminton court lighting. 10KV surge protection & IP67 waterproof certification for consistent operation in harsh settings. ​​​​​​​​​​​​​​​​​​​​​

Portable 400w 347V Led Crane Light Badminton Court Cool White Description

Core Applications

We recommend upgrading the lighting system to Portable 400w 347V Led Crane Light Badminton Court Cool White.

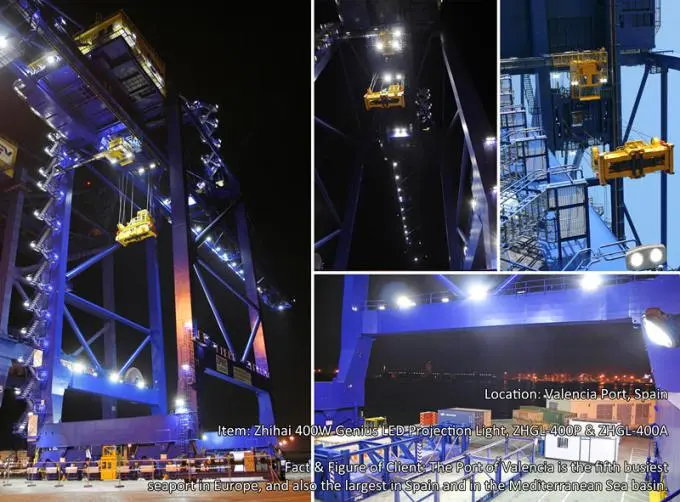

Industrial Crane Lighting

Direct-mount solution for overhead cranes in manufacturing, shipyards, and warehouses. The 347V compatibility eliminates transformer requirements in facilities with high-voltage delta power distribution. Vibration-resistant design maintains stable illumination during crane movement.

Key Benefits:

· Withstands industrial vibration and shock

· 10KV surge protection for electrical noise immunity

· -40°C cold-start capability for unheated facilities

Professional Badminton Courts

Meets BWF lighting standards with UGR<19 glare control and flicker-free operation. Portable mounting allows flexible court layout configuration. Cool white output (5000-6500K) provides optimal shuttlecock visibility.

Key Benefits:

· >750 lux output for tournament play

· Uniform light distribution (>0.7 uniformity ratio)

· Quick repositioning for multi-use facilities

Temporary Construction Sites

High-mast tower lighting for sites with 347V power infrastructure. IP67 rating handles rain, dust, and extreme weather. Delivers wide-area coverage for night-shift operations.

Sports Dome Facilities

Adaptable lighting for air-supported structures with reconfigurable court layouts. Multiple beam angles accommodate various ceiling heights and sport requirements.

Robust Construction

Die-cast aluminum housing with enhanced heat dissipation. Maintains consistent output in ambient temperatures from -40°C to +55°C. IK08-IK10 impact rating protects against physical damage.

Optical Performance

· CRI >80 for accurate color rendering

· UGR<19 anti-glare technology

· Available beam angles: 60°/90°/120°

Long Operational Life

Rated for 50,000+ hours with <30% lumen depreciation (L70 standard). Reduces maintenance frequency and lamp replacement costs in high-ceiling installations.

Installation Guidance

Badminton Court Applications:

· Recommended mounting height: 9-12 meters

· Spacing calculated based on court dimensions and lux requirements

· contact us for complimentary lighting layout design

Crane Mounting:

· Includes adjustable mounting brackets for boom attachment

· Secure locking mechanism prevents displacement during operation

· Suitable for both overhead and gantry crane configurations

High-Mast Applications:

· Compatible with standard tower light mounting systems

· Adjustable tilt angles for optimized ground coverage

Frequently Asked Questions

What does 347V mean, and is it compatible with standard voltage?

347V is the line-to-neutral voltage in 600V three-phase systems common in Canadian and some U.S. industrial facilities. This fixture requires 347V input and cannot operate on 120V, 240V, or 277V circuits. Contact us if you need models for different voltages.

Can this light be dimmed?

Standard models are non-dimmable. We offer custom versions with 0-10V or DALI dimming upon request. Minimum order quantities may apply for custom configurations.

What is the actual light color?

Cool white ranges from 5000-6500K, similar to daylight. This provides crisp, high-contrast illumination suitable for sports and precision industrial work.

How does the portable design work?

"Portable" refers to repositionable mounting capability, not handheld operation. The fixture includes adjustable brackets for semi-permanent installation that can be relocated as needed.

What are the shipping dimensions and weight?

Each unit ships individually boxed. Contact us for detailed Packaging specifications and shipping cost estimates to your location.

About Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. specializes in industrial and commercial LED lighting solutions. Our production facility maintains ISO9001 quality management certification and produces 5,000+ units monthly.

With engineering expertise in thermal management and power electronics, we design lighting systems for demanding applications where reliability is critical. Our product line serves industrial, sports, marine, and infrastructure markets globally.
