sport court flood lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 800W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
Send Inquiry Download
  • Product Description

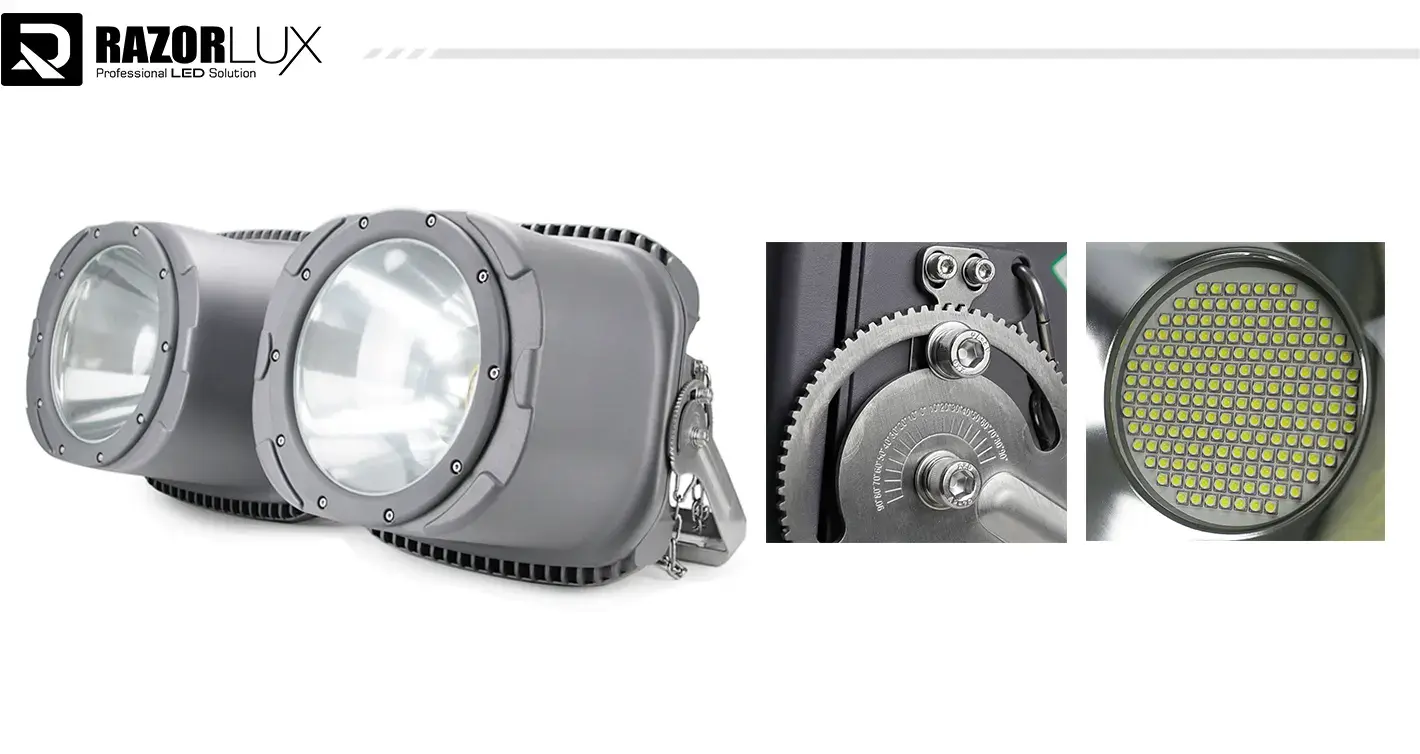

Professional Sport Court Flood Lights | 800W High-Performance Lighting

Having issues with dark spots, bright glare, or high energy costs on your sports court?

The Razorlux RZ-800 sport court flood lights is a high-quality lighting system used by NCAA facilities, city parks, and top sports training centers.

This 800W LED system saves you 65% on energy bills and provides bright, flicker-free light that keeps players safe and comfortable.

product-1-1

Sport Court Flood Lights Specifications

Model

RGL2-800P-L20

Beam Angle

20°

Stable Flux (5700K after 1 hour)

88000lm

Dimension (mm)

671*405*322


Power Consumption

LEDs

720W



Driver

80W



Total

800W

Replace HID Lamp

1500~2500W

Net Weight

32kg

Color Temperature

2700-6500K

Color Rendering

Ra75 (Ra80, Ra90 available on request)

Working Life

50000Hrs

Housing Material

Aluminum & Powder coating

Power Supply

Meanwell

IP Class

IP 65,IP 67

IK Class

IK 10

Insulation Class

Class I

Working Temperature

-40C ~ 60C / -40F ~ 140F

Working Humidity

10% ~ 95%

AC Input

80~305Vac

DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc

THD

<10%

Power Factor

≥0.98



    Warranty

LED Module

5 years



Driver

5 years



Housing

10 years

product-1-1

What Makes This Different?

The different of sport court flood lights:

✓ Long-lasting: It can last over 100,000 hours—meaning you can install it once and not worry about fixing it for more than 10 years

✓ Instant On/Off: No long waits like with old lights

✓ Friendly to Neighbors: The lights are directed properly, so they don’t spill over (meets Dark Sky standards)

✓ Built to Last: It has an IP67 rating, so it works well in rain, snow, and even coastal areas

✓ 5-Year Warranty: If something goes wrong, you get a full replacement, no questions asked

product-1-1

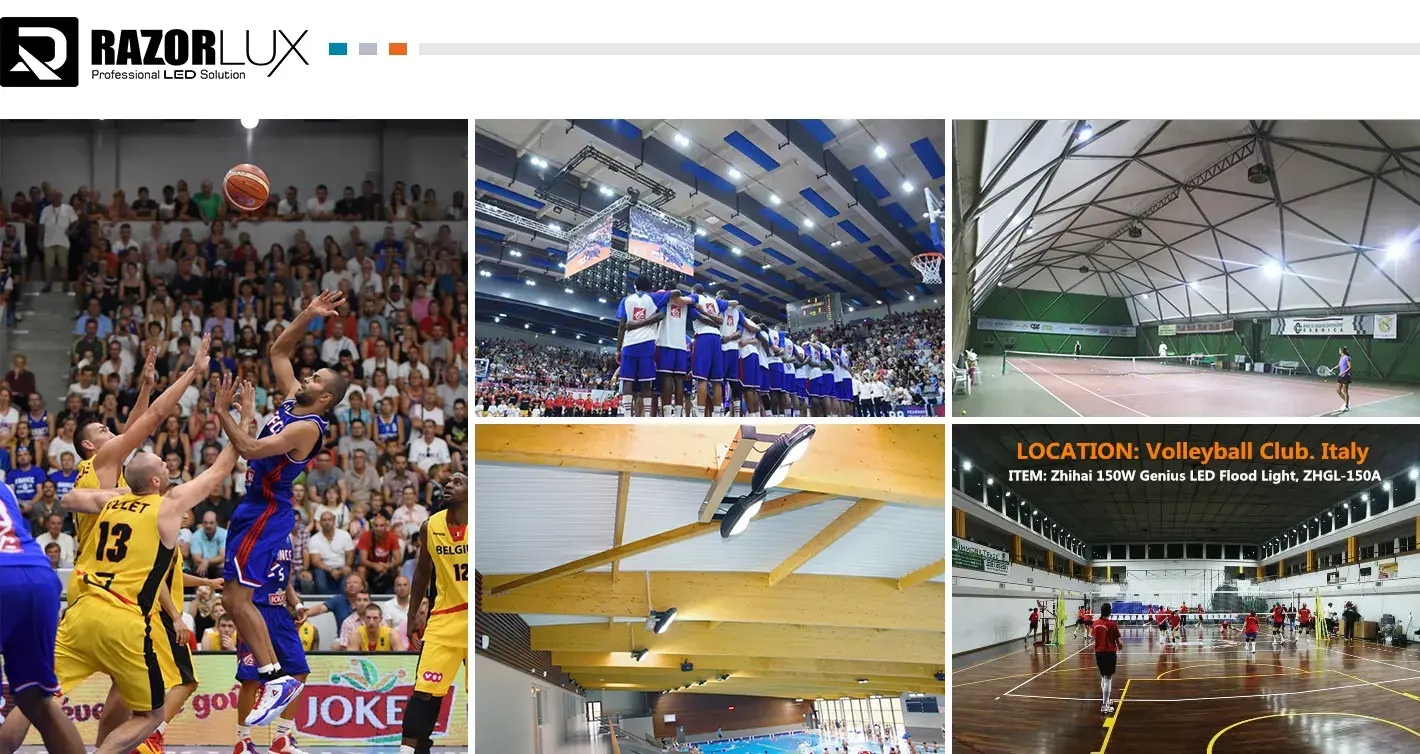

Built for Every Court Type

Tennis & Pickleball Courts

Meet USTA lighting standards (30-75 fc). High CRI (>75) ensures accurate ball tracking. Typical setup: 4-6 fixtures for regulation singles court.

Basketball Courts

Uniform coverage eliminates shadows under the hoop. FIBA-compliant brightness levels. Typical setup: 6-8 fixtures for full court.

Multi-Sport Fields

Adjustable beam angles adapt to soccer, volleyball, or training areas. Wireless dimming for practice vs. game modes.

product-1-1

Residential Backyard Courts

Low-glare optics keep neighbors happy. Dimmable for family play or serious training. Mounts on standard 15-20' poles.

product-1-1

Why Choose Razorlux?

22 Years of LED Innovation

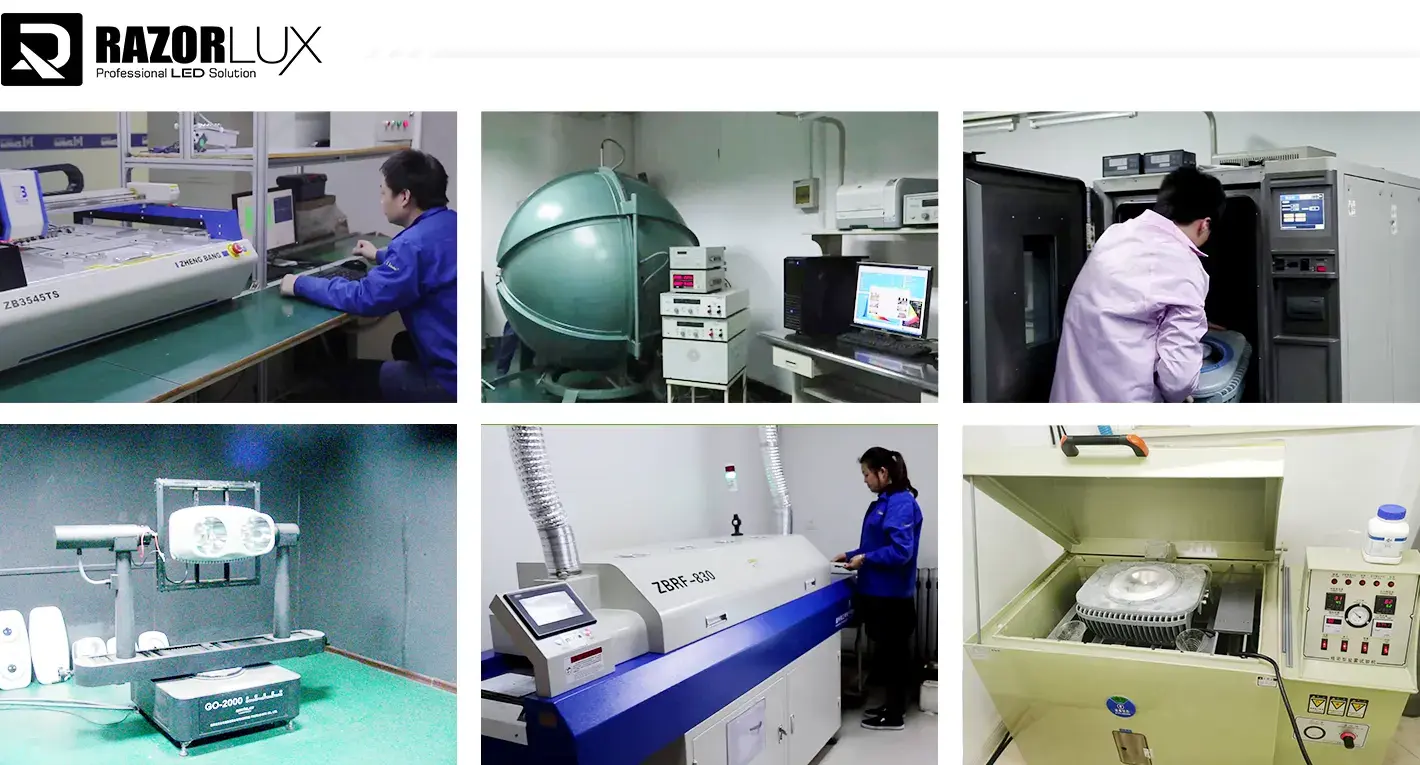

Since 2001, we've engineered lighting for the world's toughest environments—from offshore oil rigs to Olympic venues. Our Xi'an manufacturing facility holds ISO:9001 certification and maintains partnerships with leading universities for continuous R&D.

Our Commitments to You:

1. Free Lighting Design Service— Our engineers calculate exact fixture count, placement, and brightness levels for your court

2. Hassle-Free Warranty— If anything fails in 5 years, we ship a replacement immediately. No need to diagnose or troubleshoot.

3. Energy Rebate Assistance— DLC-listed fixtures qualify for utility rebates. We handle the paperwork.

4. Local Support— North American headquarters provides same-day technical support via phone/email.

product-1-1

Common Questions Answered

How many lights do I need?

Standard tennis court (78'×36'): 4-6 fixtures

Full basketball court (94'×50'): 6-8 fixtures

We provide free layouts customized to your court dimensions and pole heights.

How do I install these lights?

The standard mounting bracket works with existing poles that are 3-6 inches in diameter.

Most electricians can install four fixtures on a court in 4 to 6 hours.We include wiring diagrams and offer phone support during the installation.

Can these lights be dimmed for practice sessions?

Yes, they work with 0-10V and DALI controls.

Dimming helps the lights last longer and saves money when used casually.

product-1-1

Get Your Custom Lighting Plan (Free)

Step 1: Share your court size and pictures

Step 2: Get a professional lighting plan within 48 hours

Step 3: Check the number of lights, brightness levels, and how much energy you’ll save

Step 4: Order with confidence
