Flood Light High Mast

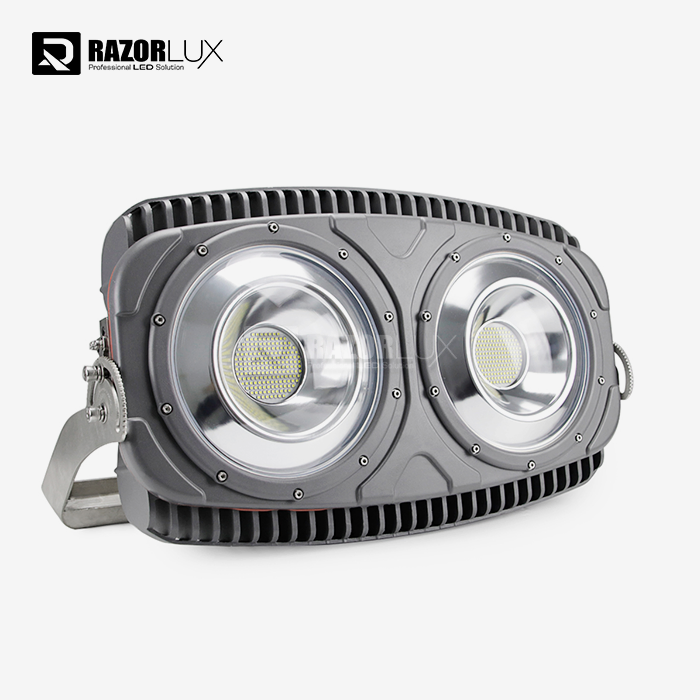

High Mast Flood Light 600W - Industrial LED Lighting System

Razorlux's 600W Flood Light High Mast is made for large infrastructure that needs reliable lighting. This system works with a wide range of voltages (AC90-305V/DC127-431V) and is efficient at 130LM/W. It is used in ports, arenas, and industrial places. Beam angles that can be changed and IP67 protection make sure that the device works well in harsh conditions. With a 5-year guarantee and foreign certifications to back it up.

Flood Light High Mast Specifications

Key Features

Wide Voltage Compatibility

Flood Light High Mast works steadily in both AC 90-305V and DC 127-431V bands, so it can handle power changes that happen in industry areas and rural areas.

Precision Optics

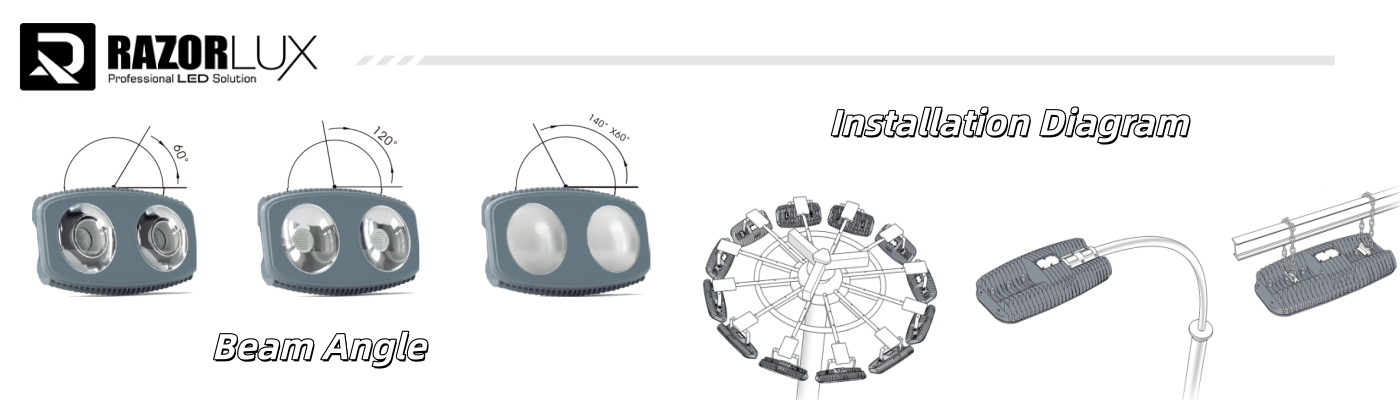

Seven beam angle choices (15° to 140°×60°) let you change how the light is spread based on the pole height (18–35m) and the area that needs to be covered.

Coastal-Grade Durability

The IP67 sealing and C5M anti-corrosion coating can handle dust, heavy rain, and salt spray. RMRS standards say it can be used for marine terminals and offshore installations.

Thermal Management

The advanced heat absorption design keeps the temperature of the LED joint within safe limits, allowing it to work for more than 100,000 hours (L70).

Maintenance Accessibility

Service at the component level is possible with modular driver architecture. If you choose to place the driver at ground level, you won't have to do as much work up high.

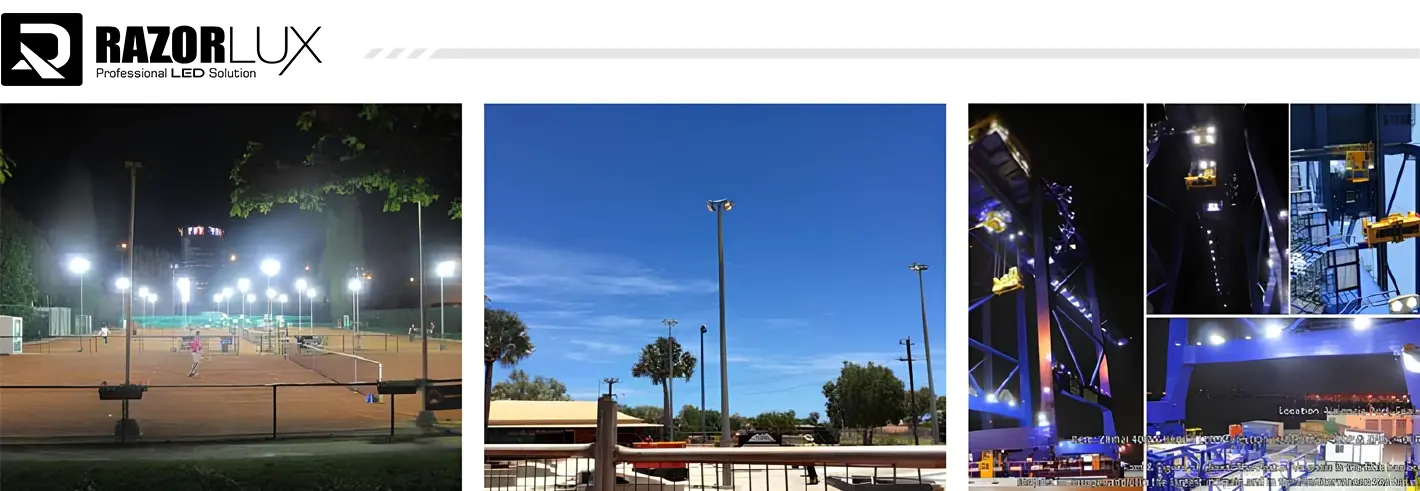

Application Scenarios

Seaports & Terminals

Provides 50–100 lux of uniform lighting across container yards. Corrosion-resistant building materials make things last longer than 15 years in seaside areas.

Sports Facilities

High CRI (>75) and output that doesn't flicker meet the needs of HDTV transmission. Instant-on ability gets rid of the need for warm-up times.

Airport Tarmacs

Controlled beam distribution meets ICAO glare regulations while illuminating apron operations. Fuel vapor and de-icing chemical resistant.

Mining Operations

IK08/IK10 impact resistance withstands vibration and accidental contact. Wide temperature range (-40°C to +55°C) suits underground and desert sites.

Logistics Yards

High output reduces pole count by approximately 40% versus traditional HPS systems, lowering installation and maintenance costs.

​​​​​​​

Frequently Asked Questions

Q: What pole height is recommended for 600W models?

A: Optimal mounting height ranges from 18-35 meters depending on required lux levels and area dimensions. We provide free photometric calculations for your specific site layout.

Q: Can these retrofit existing high mast poles?

A: Yes. Standard adapter brackets fit most pole top configurations. We review structural drawings to confirm load capacity compatibility.

Q: How is lightning protection handled?

A: Integrated 10-20kV surge protection devices shield LED drivers. High mast poles should include proper grounding systems per local electrical codes.

Q: What dimming options are available?

A: Standard models support 0-10V analog dimming. DALI and DMX512 protocols available for projects requiring addressable lighting control.

Q: Do you support ground-level driver installation?

A: Yes. Select models allow remote driver placement at pole base, reducing maintenance lift requirements. Consult technical team for model availability.

Order Information

For project-specific quotations including photometric analysis and shipping estimates:

Contact our Flood Light High Mast's team: sam@razorlux.com
