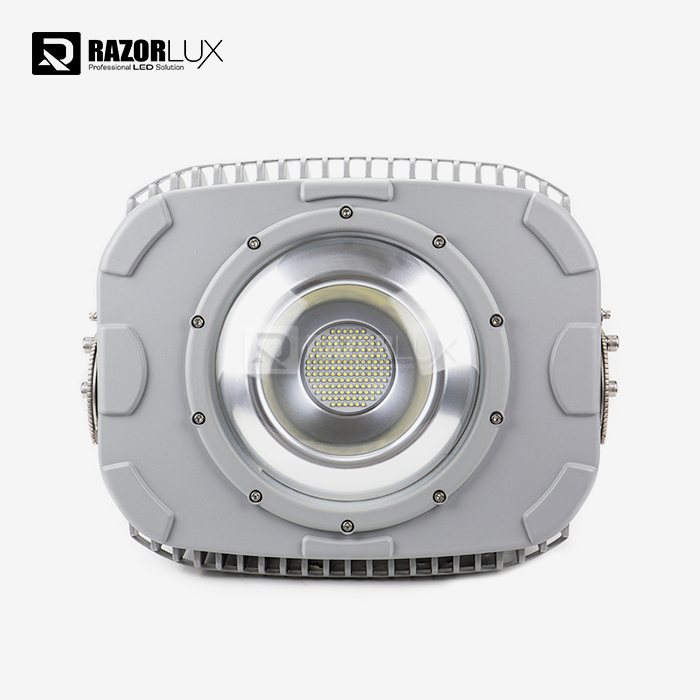

400W Led High Mast Light

400W LED High Mast Light – Industrial-Grade Lighting for Demanding Environments

Large-scale facilities require dependable, high-output lighting that can function in harsh environments. Designed especially for ports, stadiums, airports, and highway interchanges, Razorlux's 400W LED High Mast Light produces 52,000 lumens with an efficiency of 130LM/W. Compared to conventional 1000W metal halide systems, this fixture uses 60% less energy while withstanding the hardest industrial conditions thanks to its IP67 waterproofing, C5M marine-grade corrosion resistance, and operating capabilities from -40°C to +55°C.

400W LED High Mast Light Specifications

​​​​​​​

Key Performance Advantages

Superior Thermal Management

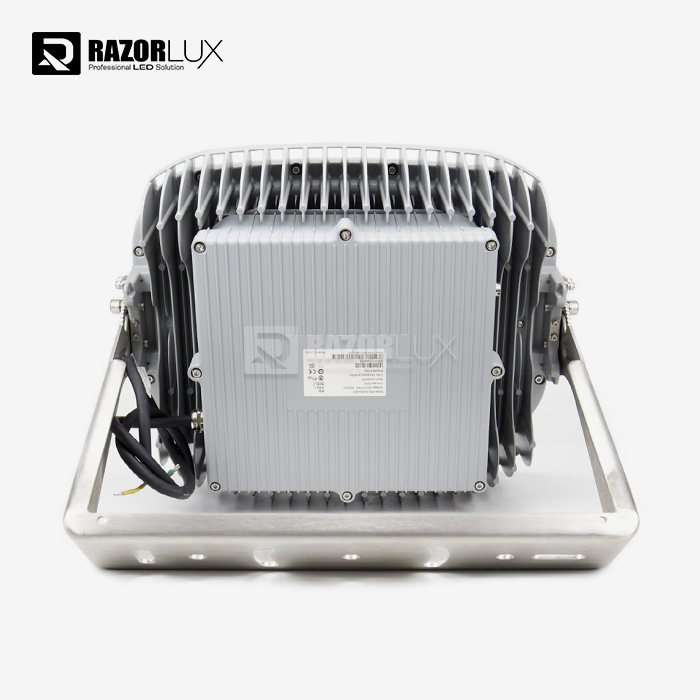

The LED junction temperature is kept below 85°C thanks to a sophisticated finned heat sink design and cold-forged aluminum casing. By preventing lumen deterioration, this heat management increases operating life beyond 50,000 hours, or almost 11 years of constant, round-the-clock use.

Built-In Lightning Protection

An integrated 10kV surge protection device (SPD) protects high mast installations from electrical attacks. Facilities in areas vulnerable to lightning gain from lower replacement costs and less downtime.

Proven Reliability Since 1998

With permission from China's National Development and Reform Commission, Razorlux runs the Xi'an LED Lighting Engineering Laboratory and has been continuously certified ISO9001 since 2001. With lighting solutions supported by more than 200 LED technology patents, our production experience helps Asia's top industrial operations.

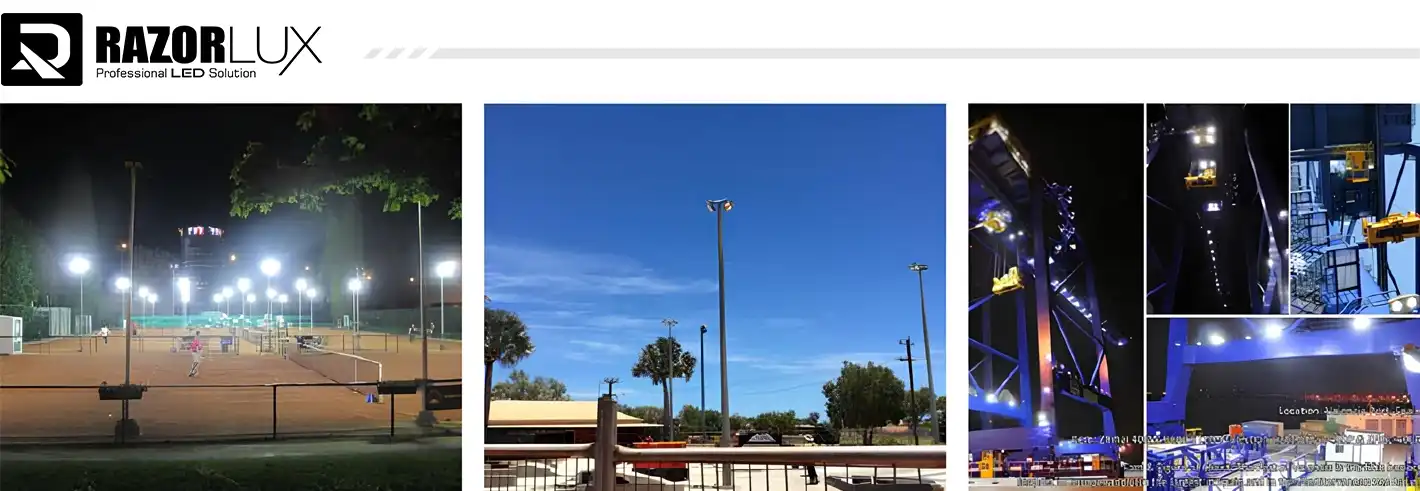

Application Scenarios

Seaports & Container Terminals

The challenge is operating around the clock in situations with severe vibration from heavy gear and corrosive salt spray.

Solution: 5G vibration resistance and C5M anti-corrosion coating (certified in accordance with ISO 9227 requirements) guarantee reliable functioning. Without early failure due to environmental stress, the fixture offers dependable light for cargo handling and crane operations.

Professional Sports Stadiums

Challenge: Flicker-free performance is necessary for slow-motion replay and consistent coverage under broadcast-quality illumination.

Solution: Accurate field lighting is provided by asymmetric optics with adjustable beam angles (15° to 140°x60°). While preserving consistent lux levels across playing grounds, low UGR ratings reduce glare for players and spectators.

Airport Aprons & Logistics Hubs

Challenge: Safe aircraft taxiing and ground support equipment depend on shadow-free illumination.

Solution: Compared to standard HID bulbs that need to warm up for 15 to 20 minutes, instant-on capability offers immediate full brightness during power outages—a crucial safety advantage. Despite variations in infrastructure power, a wide voltage range (AC90-305V) guarantees steady functioning.

Highway Interchanges

High-speed traffic at highway interchanges need constant lighting that does not have any dark areas or excessive glare.

Solution: Customized light distribution patterns are possible with several beam angle setups. While reducing glare that compromises safety, drivers are given sufficient visibility.

​​​​​​​Installation & Maintenance Benefits

Reduced Structural Requirements

Minimized Effective Projected Area (EPA) lowers wind load stress on mounting poles, reducing installation costs.

Field-Adjustable Optics

Modular lens design allows beam pattern optimization after installation without fixture replacement.

Simplified Maintenance

Tool-free angle adjustment via corrosion-resistant stainless steel bracket. 50,000-hour lifespan eliminates frequent high-altitude servicing and costly lift truck rentals.

Energy Efficiency & Cost Savings

60% Energy Reduction

Compared to 1000W metal halide fixtures while maintaining equivalent light output. Over 400W led high mast light's lifespan, this translates to substantial operational savings.

Utility Rebate Eligible

DLC Premium listing qualifies projects for energy efficiency incentive programs, offsetting initial purchase costs.

Instant Restrike Capability

Eliminates productivity loss from 15-20 minute HID lamp warm-up periods during power cycling events.

Customization Options

Color Temperature Selection

2700K (warm) to 6500K (cool) to match existing lighting or meet specific visual requirements.

Beam Angle Configurations

Seven options including asymmetric patterns for challenging layouts requiring precise light control.

Smart Controls Integration

0-10V and DALI dimming protocols compatible with building management systems for centralized control and additional energy savings.

Project-Specific Engineering

Custom mounting brackets and photometric simulations tailored to your facility layout. Our engineering team provides detailed brightness calculations before purchase.

Frequently Asked Questions

Q: Can this fixture handle extreme temperature fluctuations?

Yes. Operating range from -40°C to +55°C with automatic thermal management adjustment ensures optimal LED junction temperatures regardless of ambient conditions.

Q: Is the fixture compatible with existing high mast lowering systems?

Absolutely. Standardized mounting interface works with most commercial lowering devices. We provide installation drawings to verify compatibility with your specific system before ordering.

Q: How does C5M certification apply to offshore installations?

C5M represents the highest anti-corrosion classification for continuous salt spray exposure. The coating system withstands the harsh conditions typical of offshore marine platforms.

Q: Can different beam angles be mixed on the same pole?

Yes. Combining narrower beams for distant areas with wider angles for zones directly below optimizes coverage. We provide photometric analysis to design the optimal configuration for your site.

Q: What surge protection is recommended for high-lightning areas?

The integrated SPD provides 10kV protection. For installations in severe lightning zones, we recommend supplemental external SPD devices rated at 20kV.

Q: How quickly can samples be delivered for testing?

Sample units customized to your specifications (beam angle, color temperature, mounting) typically ship within 5-7 business days.
