1000W Stadium Light – Professional LED Floodlight for Large-Scale Applications

Razorlux 1000W Stadium Light gives off 130,000 lumens of light at 130LM/W, which is the same amount of light as traditional 2000–2500W HID systems but uses up to 60% less energy. This fixture was made to work in tough outdoor conditions. It has IP67 waterproofing and a beam angle range of 15° to 140°, so it can be used to precisely control the lighting in stadiums, factories, and ports.

1000W Stadium Light Specifications

Key Technical Features

Adaptive Power System

A large voltage input range (AC 90–305V, DC 127–431V) makes sure stable operation in places where the power source changes. Built-in surge protection up to 10kV protects against voltage spikes that happen a lot in industrial and remote areas.

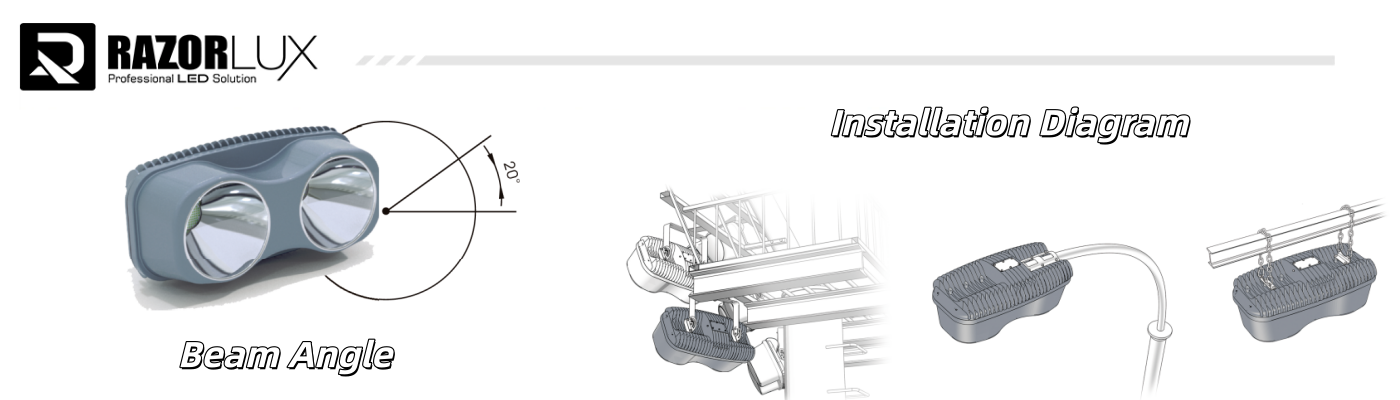

Precision Optical Control

Seven beam angle configurations let you change how the light is spread:

· Narrow beams (15° to 30°): illuminating long distances for 25–50 m tall mast applications

· Medium beams (40° to 60°): general lighting for stadiums and buildings

· With wide beams (120° to 140°), you can cover a low-level area and wash walls.

Marine-Grade Construction

· The housing is made of die-cast aluminium and has a powder-coated finish.

· Bracket: made of 316 stainless steel that is rated C5M for resistance to rust

· Sealing: silicone gaskets that are IP67-rated to keep out dust and water

· Lens: tempered glass that can withstand a blow of IK08

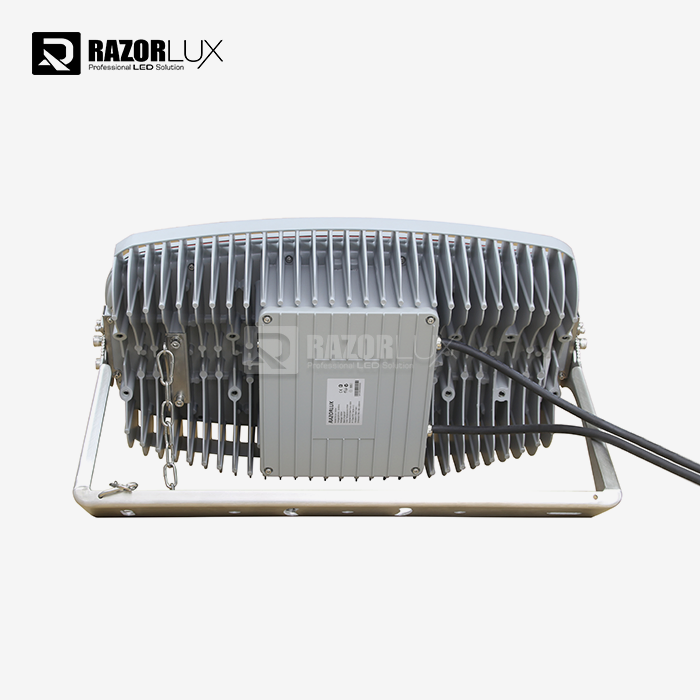

Thermal Management

Aluminium heat sinks that are carefully machined to work with a passive convection cooling system. Temperature range for use: -40°C to +50°C. Since there are no moving parts, there is no need for maintenance or failure points.

Application Scenarios

Sports Facilities

There are tennis courts, football venues, cricket grounds, and running tracks. 1000W Stadium Light uniform lighting meets the needs of training and broadcasting according to worldwide guidelines set by FIFA, ICC, and ITF. Strobing effects can't happen in slow-motion playback if the frequency is above 3000Hz and doesn't flicker.

Industrial & Logistics

Factory warehouses, container yards, loading docks, and warehouses. High colour rendering (Ra >75) makes it easier to see things clearly, which is good for safety and quality control. With instant-on, there are no more wait times for warming up.

Infrastructure Projects

Places like ports, airports, mines, and train yards. Corrosion resistance rated C5M can handle salt spray and chemical exposure. Wide voltage compatibility works well for temporary sites driven by generators.

Commercial Spaces

Places like shopping malls, art galleries, parking garages, and the fronts of buildings. Colour temperature that can be changed sets the right mood. Dimming (with possible 0-10V or DALI control) lets you save energy when demand is low.

Frequently Asked Questions

Can this replace my 2000W metal halide lights?

Yes. The 1000W LED produces comparable lux levels due to superior optical efficiency and directional beam control, while consuming 50% less energy.

What maintenance is required?

Virtually maintenance-free. No lamp replacements for rated lifespan (50,000+ hours). Clean lens surface annually in dusty environments to maintain light output.

How do I choose the correct beam angle?

Beam selection depends on mounting height and area dimensions. Contact our technical team with your project details for a customized lighting layout calculation.

Is dimming available?

Yes. We offer 0-10V, DALI-2, and DMX512 dimming protocols as optional configurations. Minimum dimming level: 10% of full output.

What wind loads can the fixture handle?

Certified for wind speeds up to 60 m/s (216 km/h) when properly installed with recommended mounting hardware. Structural engineering specifications available upon request.

How is glare controlled for spectator areas?

Asymmetric optics and optional glare shields (visors) cut off upward light above 90°. We provide photometric simulations to ensure compliance with local light trespass regulations.

Customization Options

We accommodate specific project requirements:

· Custom wattages: 800W-1200W configurations available

· Special beam angles: Asymmetric distributions for unique applications

· Control systems: Integration with BMS, SCADA, or lighting management platforms

· Mounting solutions: Yoke brackets, trunnion mounts, or custom pole adapters

· Color tuning: RGBW or tunable white systems for dynamic lighting effects

Minimum order quantities apply for custom specifications. Lead time: 4-6 weeks for OEM orders.

About Razorlux

Established in 2006, Razorlux specializes in high-power LED lighting systems for demanding commercial and industrial applications. Our manufacturing facilities in Xi'an and Zhuhai, China, combine advanced LED Packaging technology with precision power supply engineering.

We hold over 200 patents covering thermal management, optical design, and control systems. Our products serve clients including Guodian Group, China Mobile, and infrastructure projects across 50+ countries.

Quality certifications: ISO 9001 (maintained since 2001), ISO 14001 environmental management, and OHSAS 18001 occupational safety standards.
