Sports Field Flood Lights

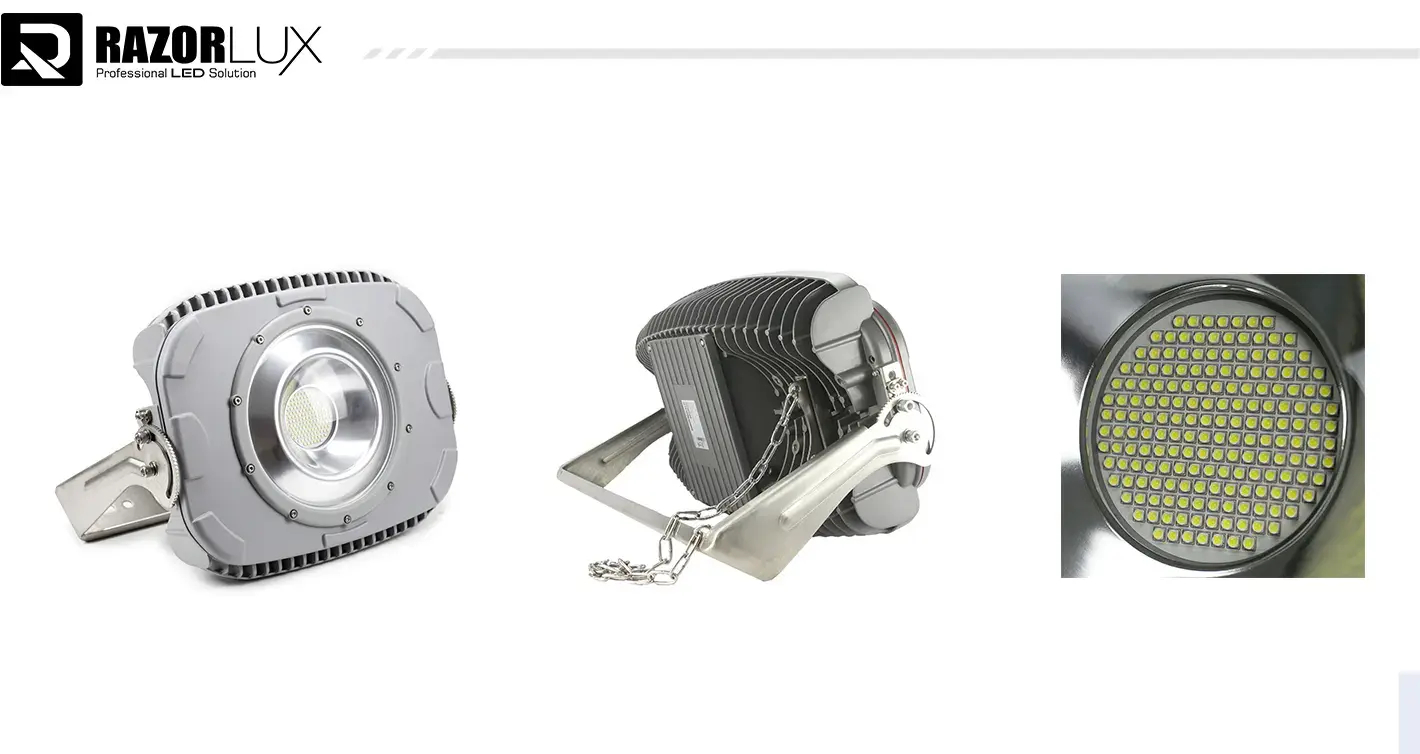

1000W Sports Field Flood Lights for Professional Stadiums

Sports Field Flood Lights' bright enough for big sports arenas with Razorlux 1000W LED flood lights, which put out 130,000 lumens. These fixtures can work with voltages from AC90V to 305V, and their seven beam angles (15° to 140°x60°) let you mount them at different heights. It can be used outside without worry because the body is waterproof up to IP67 and the frames are made of stainless steel.

Sports Field Flood Lights Specifications

Key Features

Wide Voltage Compatibility

AC90-305V input range works with power grids in different countries. DC127-431V option available for solar or battery systems.

Adjustable Color Temperature

You can pick between 2700K (warm white) and 6500K (daylight). For broadcast-quality sports lights, 5000K to 6500K is suggested.

Seven Different Beam Angles
· Narrow beams 15° to 30°: For setups 25 meters or higher

· Medium beams 40° to 60°: For standard poles (15 to 20 m)

·Wide 120° and 140°x60° beams: for low-mounting outside lighting

Flicker-Free for HD Cameras

The driver of Sports Field Flood Light keeps the ripple current below 3%. For slow-motion playback, it works with high-speed cameras up to 1000fps.

Marine-Grade Construction

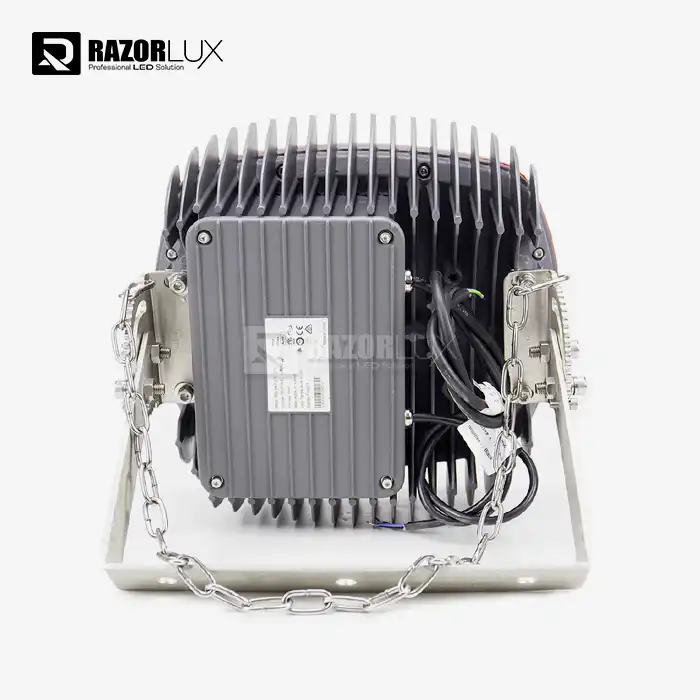

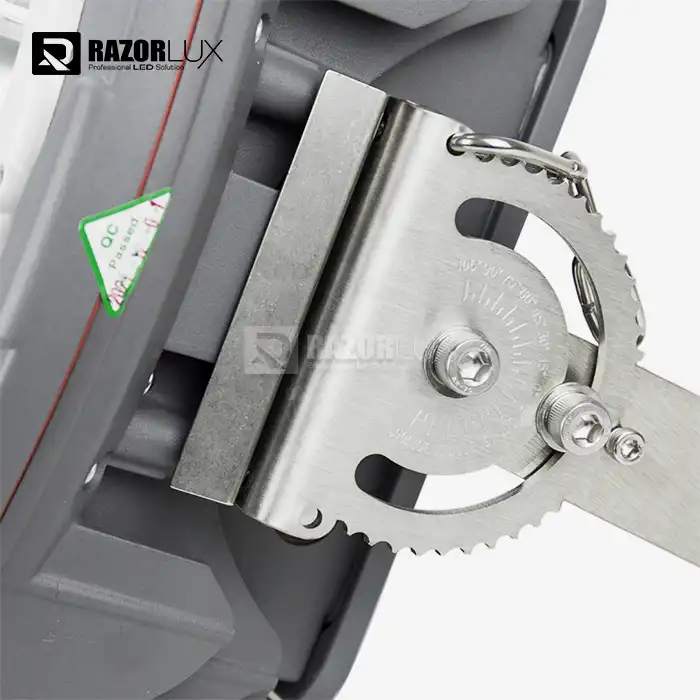

C5M-resistant stainless steel bracket that won't rust. Suitable for venues near the coast that get a lot of salt air.

Common Applications

Soccer & Football Stadiums

Main pitch illumination requires 500-750 lux horizontal. Use 15°-30° beams for center field, 60° beams for perimeter.

Baseball & Cricket Fields

Asymmetric 140°x60° beam reduces glare for outfielders. Mount on four-corner pole layout for uniform coverage.

Track & Field Complexes

200-300 lux sufficient for training. Wide beam angles minimize pole count for large areas.

Multi-Sport Facilities

Adjustable color temperature accommodates different sports requirements. 4000K-5000K works for most applications.

Installation Considerations

Mounting Height

· 15-20m poles: Use 40°-60° beams

· 25-30m high masts: Use 15°-30° narrow beams

· Spacing between poles: 1.5-2x mounting height

Electrical Requirements

Check existing transformer capacity. Each 1000W fixture draws 4.5A at 220V. Include 20% safety margin in calculations.

Maintenance Access

Remote driver option allows ground-level servicing. Reduces need for lift equipment during repairs.

​​​​​​​

Frequently Asked Questions

What beam angle should I choose?

Depends on mounting height. High masts (25m+) need narrow beams (15°-30°). Standard poles (15-20m) use medium beams (40°-60°). contact us for free lighting layout design.

Can these replace 2000W metal halide lamps?

Yes. 1000W LED equals approximately 2000W metal halide in light output, with 50% energy savings.

How long do these fixtures last?

L70 rated lifespan exceeds 50,000 hours. At 10 hours daily operation, expect 10+ years before noticeable brightness decline.

Do you provide photometric files?

IES files available for all beam angles. Compatible with DIALux and AGi32 lighting design software.

Get a Custom Lighting Design

Our Sports Field Flood Lights' team provides complimentary lighting simulations for your stadium project. Send us your site dimensions and mounting requirements.

Contact: sam@razorlux.com
