Baseball Field Lights

Baseball Field Lights: LED Solutions That Keep Your Diamond Game-Ready

Every baseball field has a moment. The crack of the bat beneath the Friday night lights, the shout of the fans as the fly ball soars out to the outfield. But such moments rely on one thing most fans don’t consider: reliable lighting. Razorlux has been designing LED baseball field lights for over 20 years, delivering professional-grade lighting while cutting energy expenditures by 70%. Our technologies light up diamonds from Little League fields to broadcast-ready stadiums.

Baseball Field Lights Specifications

Why Upgrade to LED Baseball Lighting?

The Hidden Costs of Old Technology

Still running metal halide fixtures? You're likely facing:

· 15-minute warm-up delays that frustrate players and waste practice time

· Inconsistent brightness that fades 30% within the first year

· Flickering issues that ruin video recordings and live streams

What Modern LED Systems Deliver

Our baseball field lights solve these problems with proven technology:

Instant Full Brightness: Flip the switch and get 100% illumination immediately—no warm-up wait.

Decade-Long Performance: Engineered to maintain 90%+ brightness for 50,000+ hours. Based on typical 6-hour nightly use, that's 10+ years without touching a fixture.

Broadcast-Quality Light: High-frequency drivers eliminate flicker for clean 4K video and slow-motion replay at 1000+ FPS. Several collegiate programs using our systems have confirmed zero camera interference during ESPN broadcasts.

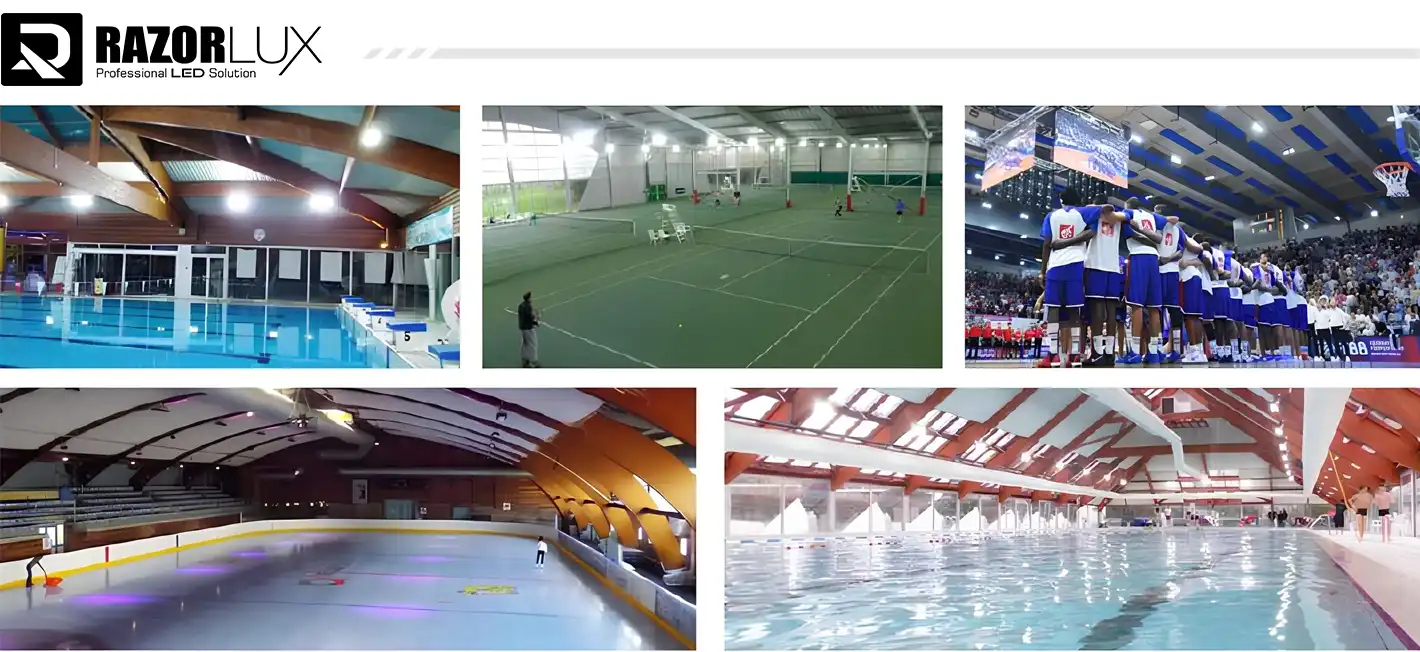

Application: Which Fields Benefit Most?

Youth & High School Programs

Budget-conscious athletic departments see the fastest ROI. One Texas high school district retrofitted six fields in 2021.

Tournament & Travel Ball Complexes

Multi-field facilities need consistent lighting across diamonds. Our modular design maintains uniform light levels whether you're installing four fields or fourteen, with centralized controls for easy management.

College & Semi-Pro Stadiums

Broadcasting requirements demand flicker-free output and precise color rendering (CRI 80+). Our systems meet NCAA and NFHS standards while supporting high-speed camera work for recruiting videos and live streams.

Municipal Recreation Fields

Extending play hours serves more teams while managing taxpayer costs. LED efficiency means you can add lighting to previously dark fields without stressing electrical infrastructure.
​​​​​​​

Solving Baseball's Unique Lighting Challenges

Glare Control for Hitters & Fielders

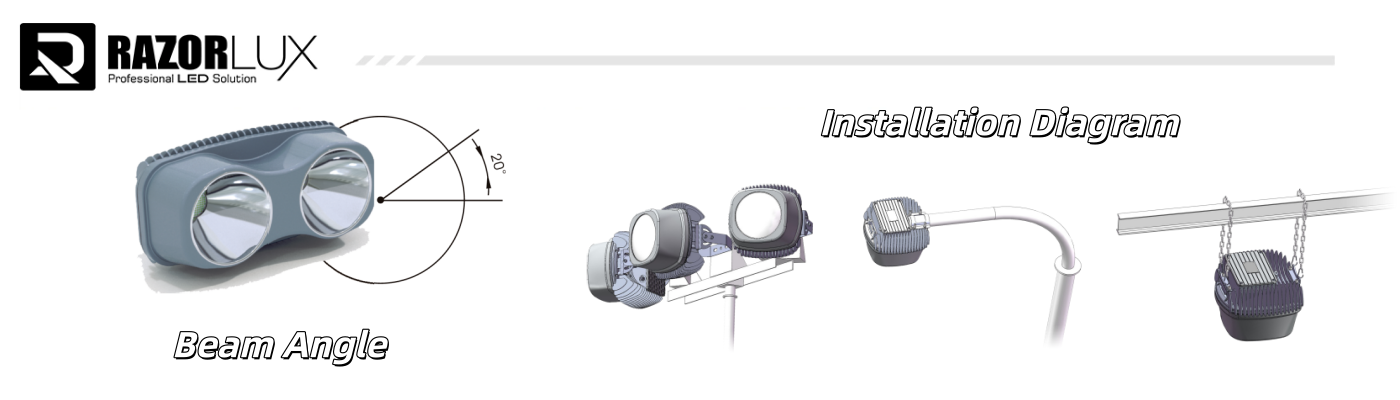

Poor lighting placement blinds batters or leaves outfielders tracking fly balls into direct glare. Our asymmetric beam optics combined with precision aiming create sharp cutoffs—light stays on the field, not in players' eyes.

We provide detailed photometric plans showing exact fixture positioning based on pole height, field orientation, and surrounding property lines. Installations typically maintain under 0.5 foot-candles of spill light at property boundaries.

Durability That Survives the Elements

Coastal & Humid Climates: Salt spray testing per ASTM B117 confirms corrosion resistance. Fixtures in Florida have operated 6+ years with zero degradation.

Lightning Protection: Surge protection circuits rated to 10kV-20kV protect against electrical strikes. One Oklahoma facility survived a direct pole strike—only the surge protector needed replacement, fixtures continued operating.

Temperature Extremes: Operating range from -40°F to +131°F covers everything from North Dakota winters to Arizona summers.

Retrofit-Friendly Installation

Existing pole infrastructure usually works for LED upgrades:

· Weight reduction: 1500W metal halide + fixture = ~55 lbs. Our 600W LED equivalent = ~28 lbs

· Wind load decrease: Sleeker profile reduces EPA (Effective Projected Area) by 40%+

· Electrical savings: Lower wattage often allows multiple fixtures per circuit, reducing wire runs

Most retrofits take 2-3 days per field with work scheduled during off-hours to avoid disrupting play.

Your Questions Answered

How long until we see ROI on LED conversion?

Most fields operating 4-6 hours nightly break even in 18-30 months when factoring energy savings plus eliminated maintenance costs. High-use tournament facilities often hit ROI under 18 months.

Can we dim the lights for practice vs. games?

Yes. Our 0-10V dimming systems let you run 50% brightness for casual practice, saving additional energy while extending fixture lifespan.

What happens if a fixture fails during warranty?

We ship replacement units within 48 hours at no cost. Our failure rate runs under 0.3% annually based on 15,000+ installed fixtures.

Do we need new poles?

Rarely. We provide structural load calculations for your existing poles. In 90%+ of retrofits, current infrastructure handles LED fixtures without modification.

How do these perform compared to 1500W metal halide?

Our 600W LED delivers equivalent foot-candle levels with better uniformity (ratios typically improve from 3:1 to 2:1 or better). The higher CRI also improves visibility—players report the field "feels brighter" even at matched light meter readings.

Get Your Custom Lighting Plan

Every field has unique requirements based on dimensions, pole configuration, surrounding development, and league standards. We provide:

· Photometric analysis showing predicted light levels across your diamond

· Pole loading calculations to verify structural adequacy

· Energy savings projections with 10-year cost comparisons

· Product recommendations matched to your budget and performance needs

Ready to upgrade your baseball field lighting?

Contact our baseball field lights specialists: sam@razorlux.com
