500W Led Sports Light

500W LED Sports Light – Professional Stadium Lighting for Competitive Sports

Engineered for Performance-Critical Lighting Applications

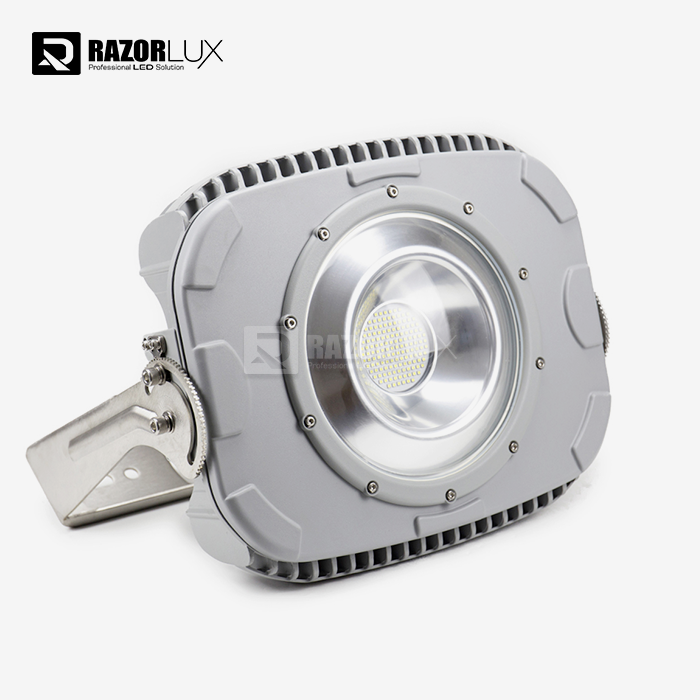

The Razorlux 500W LED Sports Light can be used instead of 1500W metal halide systems and uses 60% less energy. This fixture meets the needs of professional stadiums for broadcast-quality lighting with its 65,000 lumens output and 130LM/W efficiency. It works reliably in all kinds of weather because it is certified to IP67 and has more than 200 patents in heat management.

Key Advantages:

· Wide voltage compatibility (AC90-305V / DC127-431V)

· Seven beam angle options for precise light distribution

· 50,000+ hour lifespan with <10% lumen depreciation

· Marine-grade construction for coastal installations

500W Led Sports Light Specifications

Core Technical Features

Advanced Thermal Architecture

25 years of work in power supply engineering led to the creation of an integrated heat control system. JEDEC thermal testing methods have shown that the proprietary fin design keeps the LED junction temperature below 85°C even when it is running all the time.

Broadcast-Compatible Performance

500W Led Sports Light flicker rate <1% at all levels of fading. For slow-motion playback, it works with high-speed cameras that shoot at 1000fps or higher. It meets the requirements set by NEMA 77 for reducing temporal light artefacts.

Corrosion-Resistant Construction

The C5M-rated covering system can survive being exposed to salt spray for 3000 hours or more (ASTM B117). Fits installations up to 200 meters from the coast or in industrial settings with corrosive particles.

Modular Optical System

Field-replaceable lens arrays with precision-molded polycarbonate optics. Each beam angle configuration undergoes LM-79 photometric validation. Asymmetric distributions available for minimizing spill light in residential-adjacent facilities.

Application Scenarios

Professional Sports Stadiums

Designed for Class II/III venues requiring TV broadcast-grade illumination. Typical installations use 30°-40° beam angles on 18-25m masts to achieve FIFA/UEFA vertical illuminance standards (≥1400 lux). The flicker-free operation eliminates rolling shutter artifacts in 4K video capture.

Indoor Multi-Sport Arenas

Ideal for basketball, volleyball, and badminton facilities where ceiling heights range 8-15m. The 60° beam option provides uniform floor illumination while reducing glare for athletes tracking airborne objects. CRI>75 ensures accurate color perception for line judging.

Port Terminals & Industrial Yards

The wide input voltage range (AC90-305V) maintains stable operation in areas with unreliable grid power. Reinforced mounting brackets meet IEC 61167 vibration standards for high-mast applications in logistics hubs and container yards.

Outdoor Racquet Sports Courts

USTA-compliant lighting for tennis and pickleball. The 140°×60° asymmetric distribution focuses light on court surfaces while minimizing uplight that causes glare during overhead shots. Horizontal uniformity ≥0.7 across playing area.

​​​​​​​

Frequently Asked Questions

Which beam angle suits a standard football field?

A combination of 30° (for long-throw coverage) and 40° (for mid-field uniformity) works for most installations. Mounting height and pole configuration determine optimal distribution—contact us for complimentary Dialux simulation.

How does the wide voltage range improve reliability?

The AC90-305V input tolerance prevents damage from grid fluctuations common in rural areas or during peak demand periods. The optional DC input (127-431V) supports solar+battery installations.

What maintenance is required?

Clean lens covers annually with mild detergent to maintain light transmission. No bulb replacements needed—the 50,000-hour lifespan eliminates the recurring maintenance cycles of traditional lamps.

Is it suitable for coastal installations?

The C5M-rated coating system exceeds ISO 12944 Category C5 requirements for high-corrosivity environments. Stadiums in coastal cities rely on this specification to prevent premature fixture degradation.

Do you provide photometric analysis?

Yes—submit your site dimensions and mounting heights to receive IES files and illuminance calculations. We assist with utility rebate applications requiring DLC documentation.

About Razorlux Lighting

Since 2006, Razorlux has specialized in high-power LED systems for demanding environments. Our engineering team holds 200+ patents in LED driver design, thermal management, and optical engineering. Manufacturing facilities maintain ISO9001 certification with in-house testing laboratories accredited by China's National Development and Reform Commission.

We serve professional sports venues, municipal governments, and industrial operators across 40+ countries. Projects include installations for telecommunications infrastructure (China Mobile), power generation facilities (Guodian Group), and transportation hubs requiring mission-critical lighting reliability.

Production Capabilities:

· 12,000 sq ft manufacturing facility

· Automated SMT assembly lines

· Environmental testing chambers (-40°C to +85°C)

· Integrating sphere photometry lab

Request Technical Documentation

For project-specific recommendations, photometric simulations, or product samples:

Email our 500W Led Sports Light's team at: sam@razorlux.com
