Led Sport Court Lights

600W LED Sport Court Lights – Professional Stadium Lighting Solution

Product Overview

Our 600W LED Sport Court Lights have a versatile 90-305V AC input and 130LM/W efficiency, making them ideal for professional sports venues. The IP67-rated fixture has a 5-year guarantee, complete CE, UL, and DLC certifications, and adjustable beam angles (15°–140°). It may be used in conditions ranging from -40°C to +50°C.

Led Sport Court Lights Specification

Key Features

High-Efficiency Performance

When compared to conventional 1000W metal halide systems, the 130LM/W output lowers energy usage by 40–60%. Warm-up delays are eliminated via instant-on operation.

Weather-Resistant Construction

Die-cast aluminum casing with an IP67 rating is resistant to dust, submersion in water, and high heat. Longevity in coastal conditions is ensured by marine-grade (C5M) corrosion resistance.

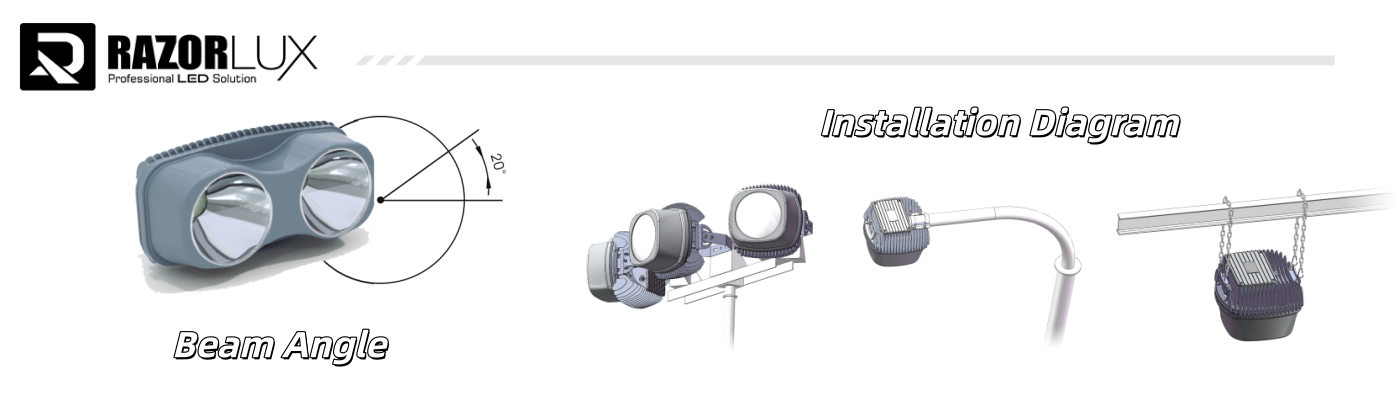

Flexible Light Distribution

Seven beam angle options allow for precise light placement for different mounting heights and court configurations. Custom installations are available for specific venue requirements.

Reliable Operation

A wide input voltage range (90-305V) is suitable for unstable power systems. Integrated temperature control and 10kV surge protection systems prevent premature failure.

Application Scenarios

Outdoor Sports Courts

Multipurpose fields, basketball courts, and tennis courts need consistent lighting with less glare. Asymmetric beam angles satisfy Dark Sky compliance requirements while guaranteeing uniform coverage.

Stadium & Arena Lighting

Broadcast-quality lighting is produced by high CRI (Ra>75) and modifiable color temperatures. Select broad angles for lower mounting or narrow beams (15°–30°) for high-mast installations.

Community Recreation Centers

A lifetime of more than 50,000 hours reduces maintenance expenses. For establishments replacing HID systems, energy efficiency yields a ROI of 18–24 months.

Industrial & Training Facilities

Operates dependably in challenging conditions with severe temperatures and erratic electricity. Ideal for distant areas, military installations, and industrial facilities.

Why Choose This Solution?

Proven Manufacturing Credentials

Xi'an Razorlux Optoelectronic Technology has state-accredited testing facilities and has been ISO9001 certified for 22 years running. One of our facilities is the Xi'an LED Lighting Engineering Laboratory, which has been approved by the National Development and Reform Commission of China.

Comprehensive Testing Standards

Every fixture undergoes salt spray testing (>1000 hours), vibration testing, and photometric validation. Third-party certifications verify performance claims across North American, European, and Australian markets.

Technical Support Services

Our Led Sport Court Lights's team provides complimentary lighting layout design and lumen calculation for project-specific installations. Responsive warranty support ensures operational continuity.

Frequently Asked Questions

Q: What beam angle suits a standard tennis court?

A: For 8-10m mounting height, 60° or 120° beams provide optimal uniformity. Higher poles (12m+) require 30°-40° narrow beams. contact us for free layout calculations.

Q: Can these operate in extreme weather?

A: Yes. IP67 rating ensures dust and water resistance. Operational range of -40°C to +50°C with marine-grade corrosion protection (C5M certified).

Q: Is dimming available?

A: 0-10V and DALI dimming options available. Adjust light levels for different activities to maximize energy savings.
