LED softball field lighting high mast flood light systems

Product Details:
Place of Origin:Shaanxi, China
Brand Name: Razorlux
Certification:ce, LVD, RoHS, Saa
Model Number:RGL-250A
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Delivery Time: 5-8 work days
Supply Ability: 5000 Piece/Pieces per Month

Send Inquiry Download

Product Description

LED softball field lighting high mast flood light systems

Upgrade to Professional-Grade Illumination

Transform your softball facility with RazorlUX RGL-250A LED High Mast Lighting—engineered for broadcast-quality performance and 70% energy savings. Our LED softball field lighting high mast flood light systems deliver 150-170 lm/W efficiency with flicker-free operation, perfect for 4K slow-motion capture and night games. Backed by 25+ years of LED innovation and 200+ patents, we provide certified solutions (CE, RoHS, SAA) that last 100,000+ hours. Get custom lighting design support from our engineers.

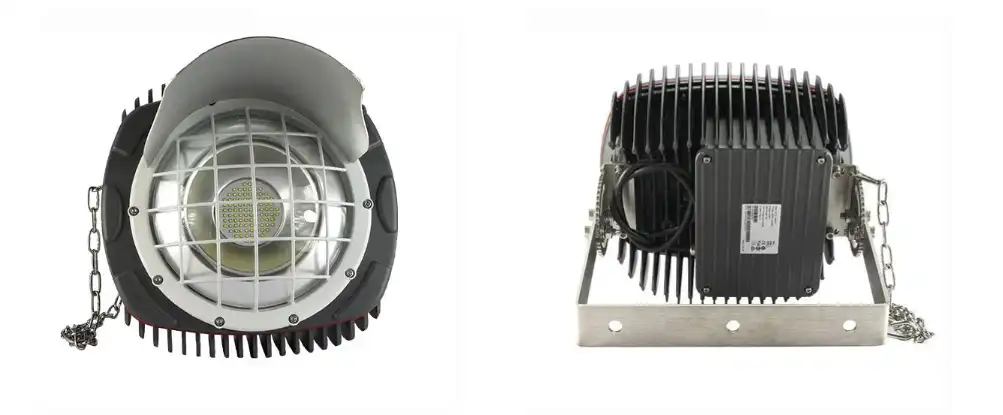

LED softball field lighting high mast flood light systems

LED softball field lighting high mast flood light systems Specifications

Model		250P-L15	250P-L20	250A-L60	250A-L120	250A-L140
Beam Angle		15°	20°	60°	120°	140°x60°
Stable Flux (5700K after 1 hour)		28,750 lm	30,000 lm	33,750 lm	35,000 lm	35,000 lm
Dimension (mm)		671x405x374mm 671x405x322mm 671x405x204mm
Power Consumption	LEDs	240W
	Driver	10W
	Total	250W
Replace HID Lamp		600 ~ 800W
Net Weight		12kg (26lbs) with stainless steel floodlight bracket
Color Temperature		5700K (2700 ~ 6500K available on request)
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum Alloy
Coating		Powder Coating
IP Class		IP 65 (Upgradeable to IP 67)
Insulation Class		Class I
Working Temperature		-40 ~ 60C / -40 ~ 140F
Working Humidity		10% ~ 95%
AC Input		100~ 306Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Where Our Lighting Excels

LED softball field lighting high mast flood light systems is suitable for a wide range of applications.

Professional & College Stadiums

4K game broadcasting? Our flicker-free technology (<1% ripple current) is compatible with high-speed cameras up to 240 frames per second. Under constant 5000K daylight-quality lighting, players, umpires, and spectators see actual ball rotation and movement.

The main advantage is that it doesn't need costly lighting retrofits to meet NCAA and professional broadcasting requirements.

Municipal Sports Complexes

Taking care of many nearby fields? By eliminating light leakage between diamonds, our asymmetric beam design complies with Dark Sky regulations. Compared to antiquated metal halide systems, you may save energy expenditures by up to 70% while maintaining the satisfaction of your neighbors.

The main advantage is that there are no 10-minute warm-up periods and you only pay for light when fields are in use thanks to instant on/off management.

Coastal & Marine Environments

Are your fixtures being destroyed by saltwater corrosion? According to ANSI C136.31 standards, our SUS316 stainless fasteners and marine-grade coating (C5M-rated) can endure hurricane-force winds. Even during tropical hurricanes, moisture is blocked by IP67 sealing.

The key advantage is that it can operate without maintenance for five to ten years even in the most severe coastal conditions.

Why RazorlUX Outperforms Traditional Lighting

Energy Efficiency That Pays for Itself

· Zero ballast replacements at dangerous heights

· Smart dimming ready (0-10V and DALI protocols)

· Instant on/off for flexible scheduling

Advanced Thermal Management

Our graphene-enhanced heatsinks use 4D heat dissipation to keep LED junction temps below 75°C—even in 40°C+ ambient heat. This prevents the premature dimming and color shift common in cheaper fixtures.

Result: Consistent brightness for 100,000+ hours (11+ years of nightly use).

Optical Precision for Uniform Coverage

Our UV-stabilized polycarbonate lenses maintain clarity for decades (no yellowing). Achieve >0.7 uniformity ratio across infields and outfields—eliminating dark spots where balls "disappear" mid-flight.

Customizable beam angles (NEMA 2-6) adapt to your field dimensions, whether standard 300' fences or tournament 400'+ layouts.

Common Questions Answered

Q: Will these work with our existing 80' high mast poles?

A: Yes. Our low EPA (Effective Projected Area) design minimizes wind load, and the ruggedized housing passes ANSI C136.31 vibration tests (3G/5G rating). Safe for poles up to 100'+.

Q: Can we use these for broadcast games?

A: Absolutely. The <1% ripple current eliminates flicker on high-speed cameras (tested up to 240fps). CRI >90 option ensures accurate color reproduction for TV.

Q: How long until we see ROI on energy savings?

A: Most facilities recoup costs in 2-3 years through reduced electricity (70% savings) and eliminated maintenance (no bulb/ballast changes).

Q: What if our field layout is non-standard?

A: Our engineering team provides free photometric analysis. We'll map custom beam angles to your exact dimensions—including irregular outfield fences.

Q: How do you prevent light pollution complaints?

A: Precision backlight shields and targeted NEMA patterns confine light to playing surfaces. Meets Dark Sky standards and local ordinances.

Q: What about saltwater/coastal installations?

A: Marine-grade AkzoNobel powder coating + SUS316 fasteners provide C5M corrosion resistance. IP67 rating blocks moisture ingress.
