500W Led Stadium Light

Patented Multi-function design, suitable for all working environments.
Rated Power: 500W
Input Voltage: AC110-480Vac, DC100 ~ 400Vdc, 500Vdc ~ 800Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

500W LED Stadium Light - Industrial-Grade High-Power Lighting

Our 500W led sadium light reduces energy expenses by 60% while delivering 130LM/W efficiency. With IP67 protection and a five-year guarantee, it is designed for harsh environments.

500W Led Stadium Light

Product Specifications

Beam Angle & Installation Diagram

Model		RGL2-500A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		65000lm
Dimension (mm)		468388367
	LEDs	450W
Power	Driver	50W
Consumption	Total	500W
Replace HID Lamp		1000~1200W
Net Weight		15kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Applications

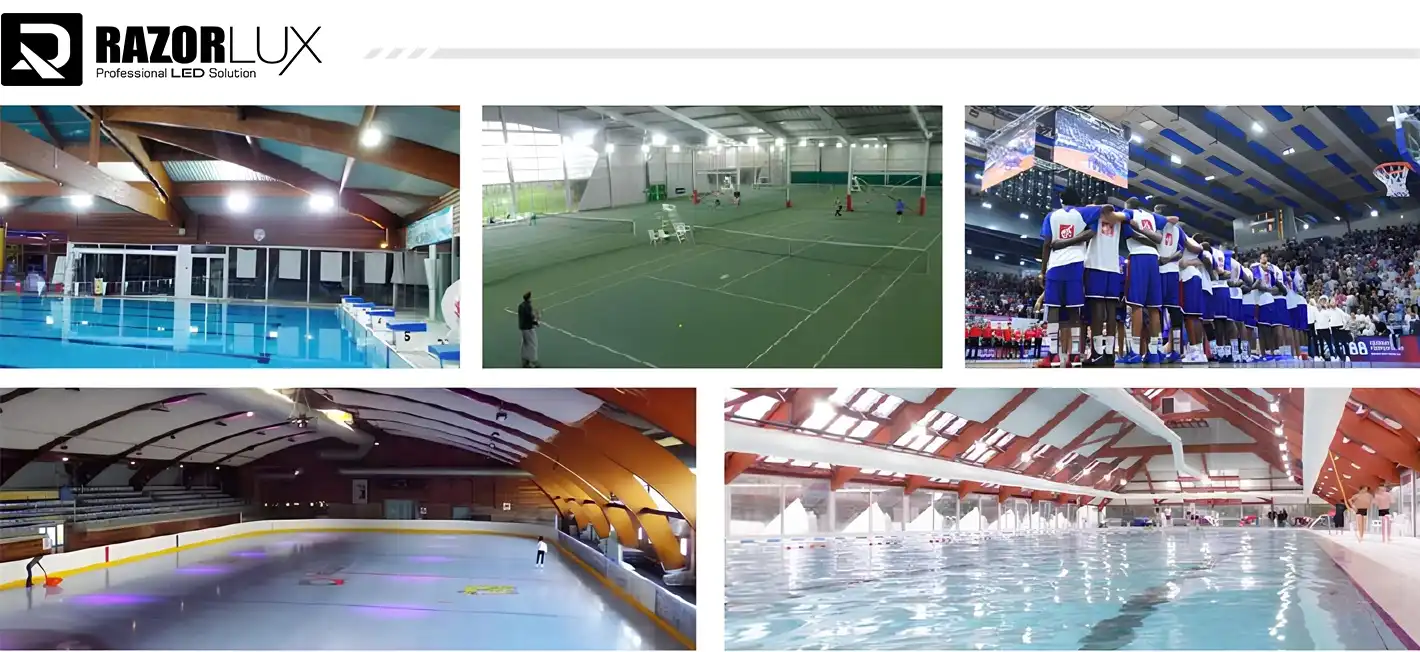

Application Scenarios

Sports Facilities

Football stadiums | Basketball courts | Tennis venues | Training centers

Key requirements met:

· Uniform illumination for HD broadcasting

· Flicker-free operation for high-speed cameras

· CRI >75 for accurate color reproduction

Industrial & Infrastructure

Ports | Rail yards | Mining sites | Construction zones

Benefits:

· 24/7 operation capability

· Low maintenance (100,000-hour lifespan)

· Reduced wind load with streamlined housing design

500W Led Stadium Light

Municipal Projects

City plazas | Parking lots | Building facades | Security lighting

Smart features available:

· 0-10V dimming

· DALI/DMX512 integration

· Remote monitoring and scheduling

500W Led Stadium Light

Technical Advantages

Multi-Voltage Compatibility

Wide input range (AC90-305V) eliminates the need for voltage stabilizers in regions with unstable power supply.

Modular Design

Serviceable components extend fixture life:

· Replaceable LED modules

· Independent driver units

· Tool-free lens access

Surge Protection

Built-in 10kV/20kV SPD (Surge Protection Device) safeguards against lightning damage in outdoor installations.

Quality Assurance

Manufacturing Standards

· ISO9001 certified since 2001 (22 consecutive years)

· Xi'an LED Lighting Engineering Laboratory (nationally recognized)

· 200+ patents in LED technology

Testing Protocols

Every unit undergoes:

· 48-hour burn-in testing

· IP rating verification

· Photometric measurement

· Surge protection validation

Marine & Corrosive Environment Rating

C5M certification confirms suitability for offshore platforms and chemical plants.

Customization Options

We adapt 500W led sadium light to your exact requirements:

Optical: Custom beam angles and lens coatings

Control: Specialized dimming protocols

Mounting: Application-specific brackets

Housing: Color and material variations

Voltage: Non-standard input specifications

Service & Support

Pre-Purchase

· Free lighting design consultation

· Photometric simulation reports

· Sample units available for testing

Delivery

· Flexible shipping (air/sea/rail)

· Protective Packaging for long-distance transport

· Typical lead time: 15-25 days

Post-Installation

· Technical support via email

· Warranty claims processed within 48 hours

· Replacement parts inventory maintained

About Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. was founded in 1998 and specializes in high-power LED lighting for demanding applications. More than 200 patents pertaining to chip packing, power supply design, and thermal management are held by our R&D team.

Global reach: production plants in Xi'an and Zhuhai, China | US sales office

Industry collaborations: Working together on national LED research initiatives with Xi'an Jiaotong University

Qualification Certification

Frequently Asked Questions

Q:What is the true brightness difference between metal halide and 500W LED?

A: Thanks to directing optics, one 500W LED generates almost the same ground-level lux as a 1200W metal halide. Thirty to forty percent of the light produced by conventional bulbs is wasted in undesired directions.

Q:Is it possible for these fixtures to work with the current control systems?

A: Yes. 0–10V dimming is one of the standard settings. Additionally, we support DMX512, Zigbee, LoRaWAN, and DALI protocols for smart stadium management.

Q:How challenging is the installation process?

A: Adjustable stainless steel brackets that work with conventional pole mounting are part of the fixtures. Each device takes 15 to 20 minutes to install on average.

Q:Are photometric reports (IES files) available?

A: Yes. We provide IES files, dialux simulations, and lighting designs that are tailored to the size of your space.
