600W LED Softball Field Lights – Professional Stadium Lighting Solution

Razorlux 600W LED softball field lights are 130LM/W highly efficient and built to last for professional-level use in both leisure and competitive play. Our IP67-rated lights provide even lighting from 30 to 100 foot-candles, which meets the needs of both local clubs and events held by broadcasters. With a guarantee that lasts 5 years and a lifespan of 50,000 hours or more, these lights are safe for outdoor sports sites.

Led Softball Field Lights Specifications

Key Features

Precision Beam Control

With seven beam angle choices (15° to 140°±60°), the light can be spread out in any way you want. Achieve equality ratios of more than 2.0:1 in both the infield and the outfield, and keep light spill to a minimum in the nearby areas.

Flicker-Free Performance

<1% flicker index supports recording videos quickly and makes long plays easier on the eyes. Perfect for places that need lighting that is good enough for broadcasting or for professional training spaces.

All-Weather Durability

Housing with an IP67 rating can handle water jets, dust, and impacts. The corrosion-resistant finish and stainless steel fastening clamps make sure that it will work for a long time in seaside or industrial settings.

Wide Voltage Compatibility

Power ranges from 90V to 305V AC and 127V to 431V DC. Compatible with most of the electricity systems in cities without the need for extra voltage control gear.

Instant Operation

No need for a warm-up. Full light at turn-on lets you make your own schedule and cuts down on energy use when you're not playing games.

Application Guide

Recreational Softball Fields

Standard illumination: 30 FC infield, 20 FC outfield. Suitable for community leagues and practice sessions. Typical installation uses 6-8 fixtures on 50-70 foot poles.

Competitive Sports Complexes

Enhanced illumination: 50-75 FC for tournament play. Recommended for high school and collegiate-level facilities requiring better visibility for fast-paced gameplay.

Broadcast Facilities

Professional illumination: 100+ FC with 5000K-5700K color temperature. Supports HD video capture with consistent color rendering across the entire field.

Multi-Use Athletic Fields

Led Softball Field Lights adjustable beam angles accommodate softball, baseball, and soccer configurations. Single lighting system serves multiple sports programs.

Installation Considerations

Pole Requirements

Verify existing poles support 15 KG fixture weight plus wind load. Standard mounting height: 50-80 feet depending on field size and desired uniformity.

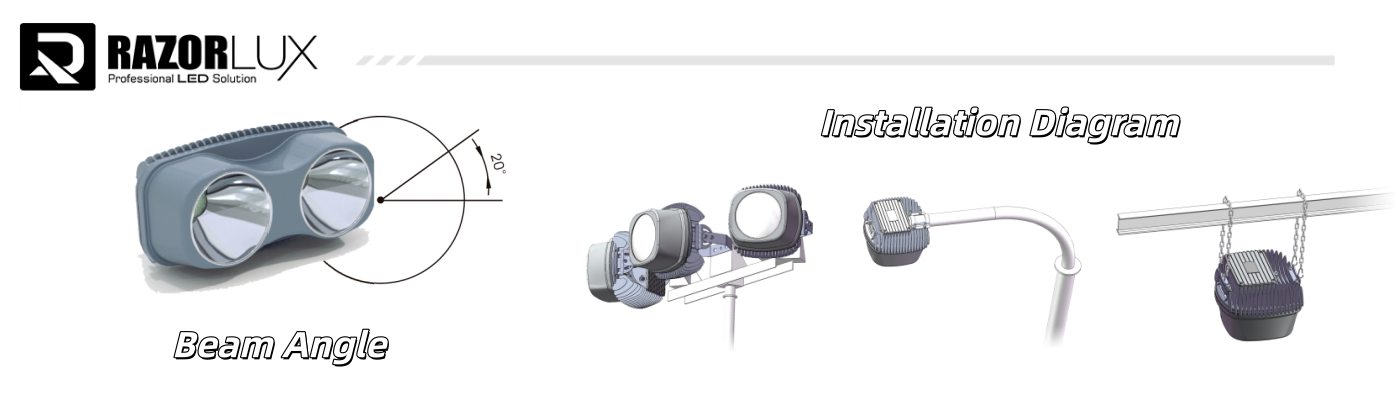

Beam Angle Selection

Narrow beams (15°-30°) for long-throw applications on high poles. Wide beams (60°-140°) for shorter poles or perimeter lighting. Consult photometric plans for optimal configuration.

Glare Control

Internal optics and external visors limit upward light emission above 90°. Reduces glare when players track fly balls or pop-ups.

Energy Savings

130 LM/W efficiency typically reduces energy consumption 50-70% compared to 1500W metal halide systems. Most facilities achieve 2-4 year payback through utility savings.

Frequently Asked Questions

What illumination level do I need for my softball field?

Recreational play: 30 FC infield/20 FC outfield. High school competition: 50 FC. College/professional: 75-100+ FC. Broadcast requirements may specify higher levels.

How many fixtures will my field require?

Typical installations use 6-8 fixtures for recreational fields, 8-12 for competitive play. Exact quantity depends on pole height, placement, and illumination targets. Request a photometric analysis for your specific layout.

Do you offer dimming capability?

Standard models operate at full output. Dimming drivers are available for facilities requiring adjustable light levels for practice versus game play.

What is the expected lifespan?

50,000+ hours under normal operating conditions. At 4 hours/day usage, this equals 30+ years before significant lumen depreciation.

About Razorlux

Since 2006, Razorlux has manufactured LED lighting solutions for sports facilities, industrial sites, and commercial applications. Our Xi'an production facility holds ISO 9001 certification and operates an LED engineering laboratory authorized by China's National Development and Reform Commission.

We maintain dual headquarters in the USA (Razorlux Technology Inc.) and China, with manufacturing capabilities in Xi'an and Zhuhai. Products are exported to over 60 countries with regional certifications for North America, Europe, Australia, and Asia-Pacific markets.
