Are Led Mine Lights Explosion-Proof?

When mining operations face the constant threat of combustible gases and coal dust, one question dominates safety discussions: are Led Mine lights truly explosion-proof? The answer is yes—modern LED mine lighting systems are engineered with specialized explosion-proof certifications, including Class I Division 1 and Division 2 ratings, designed to prevent ignition in hazardous underground environments. These advanced Led Mine solutions incorporate sealed housings, flame-path technology, and rigorous testing protocols to ensure they can safely operate in atmospheres containing methane gas and combustible particles, making them essential for protecting workers and maintaining productivity in coal mines, metal ore extraction sites, and other high-risk mining operations worldwide.

Understanding Explosion-Proof Led Mine Lighting Standards

What Makes Led Mine Lights Explosion-Proof？

Explosion-proof Led Mine lights are specifically engineered to contain any internal sparks or heat within their sealed housings, preventing ignition of surrounding explosive gases. The fundamental principle behind explosion-proof lighting involves creating a robust enclosure that can withstand an internal explosion and prevent the flame or hot gases from escaping to ignite the external atmosphere. These Led Mine fixtures utilize thick-walled aluminum or stainless steel housings with precisely machined flame paths that cool escaping gases below ignition temperature. The construction includes tempered glass lenses secured with multiple bolts and gaskets rated for extreme pressure differentials. Modern Led Mine technology from manufacturers like Xi'an Razorlux incorporates IP67 protection ratings alongside explosion-proof certifications, ensuring complete dust ingress prevention and water resistance even under high-pressure washing conditions. The integration of advanced thermal management systems in Led Mine units prevents excessive heat buildup that could compromise safety, while maintaining optimal LED performance throughout 50,000+ hour operational lifespans.

Class I Division Certifications for Led Mine Applications

Led Mine installations in hazardous locations must comply with stringent classification systems defined by the National Electrical Code (NEC) Article 500. Class I locations contain flammable gases or vapors in sufficient quantities to produce explosive mixtures, with Division 1 designating areas where hazardous concentrations exist continuously or periodically during normal operations. Division 2 covers locations where volatile substances are normally confined within closed systems but may escape during accidental rupture or equipment malfunction. Led Mine lights certified for Class I Division 1 applications undergo rigorous testing to verify they can operate safely in coal mines where methane concentrations reach dangerous levels, particularly in working faces, active drilling zones, and poorly ventilated tunnels. Division 2 certified Led Mine fixtures are suitable for areas like equipment rooms, tunnel entrances, and maintenance bays where explosive atmospheres are less likely but still possible. Xi'an Razorlux's RGL-1000A Led Mine model features comprehensive certifications including UL, DLC, CE, and RoHS compliance, with specialized explosion-proof variants available for both Division 1 and Division 2 installations. The distinction between these classifications is critical because Division 1 equipment undergoes more extensive testing protocols and incorporates additional safety features such as redundant sealing mechanisms and enhanced temperature monitoring systems.

ATEX and IECEx Certifications for Global Led Mine Markets

International Led Mine deployments require compliance with region-specific explosion-proof standards, with ATEX certification mandatory for European mining operations and IECEx providing harmonized global certification accepted across Australia, Asia, South America, and other international markets. ATEX-certified Led Mine lights must satisfy two core directives: equipment must prevent explosions through proper design (Equipment Group classification) and operate safely within specified temperature ranges (T-ratings from T1 at 450°C maximum surface temperature down to T6 at 85°C). The IECEx certification system mirrors these requirements while providing mutual recognition agreements between participating countries, streamlining the approval process for Led Mine manufacturers like Razorlux who distribute globally. Gas Group classifications (IIA, IIB, IIC) determine which explosive atmospheres the Led Mine fixture can safely operate within, with Group IIC providing the highest protection level suitable for hydrogen and acetylene environments. Mining-specific certifications under Equipment Group I focus on methane and coal dust ignition prevention, requiring Led Mine units to incorporate additional safety features beyond standard industrial explosion-proof ratings. The comprehensive certification portfolio of Razorlux's Led Mine products, including CE, SAA, C-Tick, UL, DLC, CB, and ISO:9001, demonstrates the company's commitment to meeting diverse international safety requirements while maintaining consistent quality standards across all manufacturing facilities.

Led Mine Lighting Technology and Safety Features

Advanced LED Technology in Explosion-Proof Led Mine Fixtures

Modern Led Mine lighting represents a revolutionary advancement over traditional high-intensity discharge (HID) and incandescent technologies that dominated mining illumination for decades. Contemporary Led Mine systems utilize high-efficacy LED chips achieving 130 lumens per watt or higher, delivering superior illumination while consuming 60-70% less energy than equivalent HID fixtures. The Razorlux RGL-1000A Led Mine light exemplifies this efficiency, providing 120,000 lumens from just 1000W total power consumption (900W LEDs plus 100W driver), effectively replacing 2000-3000W metal halide fixtures. This dramatic energy reduction translates into substantial operational cost savings for mining operations running hundreds of fixtures continuously. Led Mine technology offers instant-on capability without warm-up delays, critical for emergency situations and areas where lights cycle frequently, unlike HID lamps requiring 10-15 minutes to reach full brightness. The solid-state nature of Led Mine components provides exceptional vibration and impact resistance, rated IK10 for protection against 20-joule impacts equivalent to a 5kg mass dropped from 40cm height. Thermal management in explosion-proof Led Mine housings presents unique challenges since sealed enclosures limit convective cooling; Razorlux addresses this through precision-engineered aluminum heat sinks with optimized fin geometries and high-performance thermal interface materials maintaining junction temperatures within safe limits even in 60°C ambient conditions. Color rendering index (CRI) values exceeding Ra75 ensure accurate color perception critical for identifying hazards, reading instrumentation, and performing precision tasks in underground environments where natural light is absent.

IP Rating Protection in Led Mine Installations

The Ingress Protection (IP) rating system defines how effectively Led Mine enclosures seal against solid particle and liquid ingress, with IP65 providing the minimum acceptable protection for most mining applications and IP67 offering enhanced security for extremely harsh conditions. IP65-rated Led Mine fixtures incorporate gaskets and sealing mechanisms preventing dust accumulation inside housings while resisting water jets from any direction at 12.5 liters per minute pressure, suitable for general mine atmospheres and routine washdown maintenance. Upgrading to IP67 protection, as available with Razorlux's Led Mine products, provides complete dust-tight sealing and temporary immersion protection to 1-meter depth for 30 minutes, essential for mines with significant water ingress from underground aquifers or surface runoff penetrating through fractured rock formations. The marine-grade anti-corrosion coating applied to Razorlux Led Mine housings extends beyond standard industrial finishes, utilizing specialized powder coating formulations resistant to salt spray, acidic mine drainage, and sulfurous gases that rapidly corrode conventional fixtures. Maintaining IP integrity throughout the Led Mine fixture's operational life requires careful installation following manufacturer specifications, with particular attention to cable gland selection, conduit sealing, and gasket inspection during periodic maintenance intervals. The combination of explosion-proof certifications with IP67 protection creates Led Mine solutions capable of operating safely in the most demanding scenarios, from flooded tunnel sections to coal processing plants with heavy dust concentrations, while the optional emergency power function developed by Razorlux enables Led Mine units to continue operating for two hours during power failures, maintaining critical illumination for safe evacuation procedures.

Thermal Management and Operating Temperature Ranges for Led Mine Systems

Thermal management represents the most critical engineering challenge in explosion-proof Led Mine design because sealed housings trap heat generated by high-power LED arrays and driver electronics, potentially creating internal temperatures that degrade LED performance or compromise explosion-proof integrity. The Razorlux RGL-1000A addresses this challenge through a multi-faceted thermal architecture incorporating precision-machined aluminum housings that function as massive heat sinks, with optimized fin geometries maximizing surface area for convective heat transfer to surrounding air. Internal thermal paths utilize high-conductivity materials and thermal interface compounds minimizing thermal resistance between LED modules and housing, while strategic component placement isolates heat-sensitive driver electronics from primary heat sources. Operating temperature ranges for Led Mine fixtures must accommodate extreme mining environments, from deep underground operations where geothermal gradients elevate ambient temperatures to 50-60°C, to surface mines in arctic regions experiencing -40°C winter conditions. The temperature classification (T-rating) marked on explosion-proof Led Mine fixtures indicates maximum surface temperature under worst-case conditions, with T4 rating (135°C maximum) common for high-power units, though actual operating temperatures typically run significantly cooler due to conservative design margins. Razorlux's patented multi-function Led Mine design incorporates advanced thermal monitoring systems that adjust LED drive current based on temperature feedback, maintaining optimal performance while preventing thermal runaway conditions that could compromise safety. The 5-year warranty coverage on Razorlux Led Mine modules reflects confidence in thermal management effectiveness, with expected operational life exceeding 50,000 hours even under continuous duty cycles common in 24/7 mining operations.

Selecting and Installing Led Mine Lighting Systems

Led Mine Illumination Requirements for Different Mining Environments

Underground mining operations present diverse illumination challenges requiring tailored Led Mine solutions based on specific work area characteristics, task requirements, and regulatory compliance obligations. Primary mining areas including working faces, stope extraction zones, and long-wall panels require 20-50 footcandles (fc) illumination levels for general visibility, while precision tasks like drilling, blasting preparation, and equipment maintenance demand 50-100 fc for accurate visual assessment and safety. Transportation corridors, haulage ways, and access tunnels can operate effectively with reduced illumination of 10-30 fc since these areas primarily support transit rather than detailed work activities, allowing Led Mine designers to optimize fixture quantities and power consumption. Surface mining installations including open-pit operations, crusher plants, and ore processing facilities typically specify 30-75 fc depending on task complexity and equipment density, with loading areas, stockpiles, and rail sidings requiring 30-50 fc for safe material handling operations. The Razorlux RGL-1000A Led Mine fixture with its 120,000 lumen output and selectable beam angles (60°, 120°, or 140°×60°) enables flexible lighting designs meeting these varied requirements, with narrow 60° beams providing focused illumination for high mounting positions while wide 120° distributions create uniform horizontal coverage in lower ceiling installations. Color temperature selection significantly impacts visual perception in underground Led Mine applications, with cooler 5000-6500K temperatures providing crisp, alert illumination preferred for active work areas, while warmer 3000-4000K temperatures reduce glare and create more comfortable environments for continuous occupancy zones like equipment operators' stations. The emergency power backup feature integrated into Razorlux Led Mine systems addresses critical safety regulations requiring maintained illumination during power failures, providing two hours of emergency operation enabling complete evacuation of underground personnel or restoration of primary power systems.

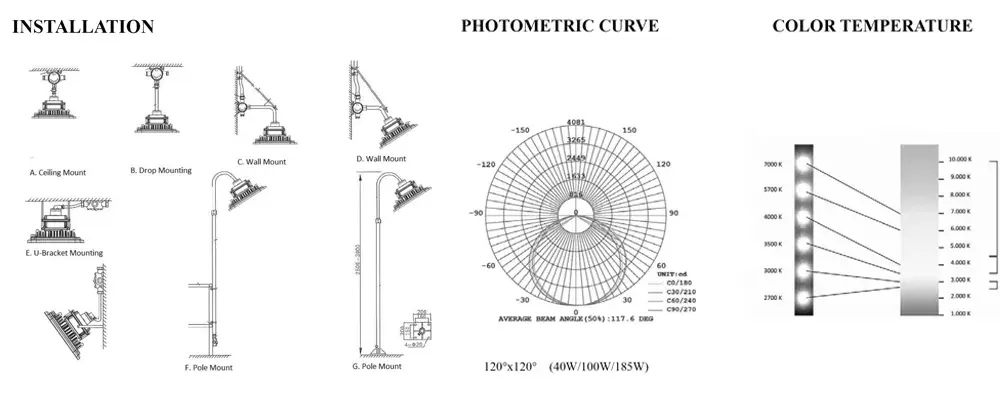

Led Mine Fixture Mounting and Electrical Installation Best Practices

Proper Led Mine installation requires careful attention to mechanical mounting, electrical connections, and explosion-proof maintenance procedures ensuring long-term safety and performance in hazardous environments. Mounting bracket selection must account for fixture weight (Razorlux RGL-1000A: 29kg), vibration levels from nearby equipment or blasting operations, and adjustment requirements for beam aiming, with stainless steel brackets recommended for corrosive atmospheres and galvanized steel acceptable for drier underground locations. Electrical installations in Class I Division 1 areas mandate explosion-proof conduit systems with threaded rigid metal conduit (RMC) or intermediate metal conduit (IMC), sealed conduit fittings at all junction points, and proper wrench-tight connections preventing gas migration through the electrical distribution system. Cable gland selection for Led Mine fixtures must match the conduit system and provide appropriate sealing, with certified explosion-proof glands incorporating multiple sealing elements and armor gripping for armored cable installations. Razorlux Led Mine products accommodate wide input voltage ranges (AC 80-360V or 400-600V, DC 100-400V or 500-800V) enabling compatibility with various mine electrical systems without requiring custom transformers or voltage regulators, while built-in power factor correction (≥0.98) and low total harmonic distortion (<10%) minimize electrical system impacts. Grounding requirements for explosion-proof Led Mine installations follow NEC Article 250 specifications with dedicated equipment grounding conductors, bonding of all metallic enclosures, and verification of ground resistance below 25 ohms to ensure fault current paths during abnormal conditions. Installation teams must complete proper commissioning procedures including verification of all gasket seals, confirmation of proper cable gland torque values, photometric testing validating illumination levels meet design specifications, and comprehensive documentation of all Led Mine fixture locations, circuits, and maintenance requirements for future reference.

Led Mine Maintenance Protocols and Safety Inspections

Maintaining explosion-proof Led Mine fixtures demands specialized procedures preserving the integrity of safety features while addressing inevitable wear and contamination from harsh mining environments. Monthly maintenance should include external visual inspections identifying physical damage to housings or lenses, removal of accumulated dust and contaminants using approved cleaning methods, and operational verification confirming all Led Mine units illuminate properly without flickering or premature failure indications. Quarterly inspections require more detailed examination of gasket conditions, checking for compression set, cracking, or contamination that could compromise sealing effectiveness, along with verification that all mounting hardware maintains proper torque values preventing vibration-induced loosening. Annual comprehensive maintenance involves complete disassembly of Led Mine fixtures following manufacturer procedures, replacing all gaskets and seals regardless of apparent condition, inspecting internal components including LED modules and driver electronics for signs of moisture ingress, thermal stress, or component degradation. The Razorlux 5-year warranty on Led Mine modules and drivers reflects the manufacturer's confidence in component longevity, though proper maintenance extends actual service life well beyond warranty periods with many installations achieving 50,000+ operational hours before requiring LED module replacement. Critical safety considerations for Led Mine maintenance include de-energizing circuits before opening any explosion-proof enclosure, waiting appropriate cool-down periods allowing internal temperatures to decrease, verifying atmosphere monitoring confirms no explosive gases present before hot work or welding repairs near fixtures, and completing proper re-assembly procedures including gasket lubrication with approved compounds and torque verification for all threaded connections. Detailed maintenance documentation satisfies regulatory audit requirements while providing historical performance data enabling predictive maintenance strategies, identifying problem fixtures before catastrophic failures occur, and optimizing replacement component inventory based on actual wear patterns specific to each mine's unique environmental conditions and operational intensity.

Why Choose Xi'an Razorlux for Your Led Mine Lighting Needs？

Xi'an Razorlux Optoelectronic Technology Co., Ltd. stands as a premier China Led Mine manufacturer with over 25 years of specialized experience delivering high-performance explosion-proof lighting solutions to global mining operations. As a leading China Led Mine supplier, Razorlux operates state-of-the-art manufacturing facilities headquartered in Xi'an with international subsidiaries in the USA and Hong Kong, supported by a portfolio of over 200 patents covering LED Packaging technology, advanced power control systems, and innovative structural designs. The company's position as a trusted China Led Mine factory stems from rigorous quality control protocols implementing comprehensive testing at every production stage, including assembly line inspections, photometric evaluation using calibrated integrating spheres, and extensive aging tests verifying long-term reliability under simulated operating conditions. Razorlux's competitive Led Mine price structure reflects efficient end-to-end manufacturing capabilities while maintaining uncompromising quality standards, with Led Mine for sale options including standard catalog products and fully customized solutions tailored to specific mining application requirements. The China Led Mine wholesale programs offered by Razorlux provide attractive volume pricing for large-scale mine lighting upgrades, supported by flexible logistics including international express (3-7 days), air freight (5-10 days), rail transport via China-Europe Railway Express (18-22 days), and economical sea shipping (15-50 days) accommodating various project timelines and budget constraints. Technical support services distinguish Razorlux among China Led Mine supplier options, with pre-sales consultation helping customers select optimal lighting specifications, custom sampling and prototyping validating designs before full production commitment, detailed technical drawings and documentation supporting engineering integration, and comprehensive after-sales support including warranty administration and maintenance guidance throughout the fixture lifecycle.

Conclusion

Led Mine lights equipped with proper explosion-proof certifications provide essential safety protection in hazardous mining environments while delivering superior energy efficiency and operational reliability. Modern explosion-proof Led Mine systems from manufacturers like Xi'an Razorlux incorporate advanced thermal management, robust IP67-rated construction, and comprehensive international certifications ensuring safe operation in the most demanding underground and surface mining applications worldwide.

Ready to upgrade your mining operation with industry-leading explosion-proof Led Mine lighting? Xi'an Razorlux Optoelectronic Technology Co., Ltd. offers comprehensive solutions backed by 25+ years of expertise, over 200 patents, and global certifications including UL, CE, ATEX, and DLC. Our China Led Mine factory delivers exceptional quality with 5-year warranty coverage, while our China Led Mine supplier network ensures reliable logistics worldwide. Whether you need standard Led Mine for sale or custom China Led Mine wholesale solutions, our team provides expert guidance from initial consultation through installation and beyond. Competitive Led Mine price options and flexible shipping make upgrading affordable. Visit our website to explore the RGL-1000A and other professional-grade fixtures, or contact our team directly at sam@razorlux.com to discuss your specific requirements—bookmark this resource for future reference as your trusted guide to explosion-proof mining illumination. As a leading China Led Mine manufacturer, we're committed to illuminating safer, more productive mining operations globally.

References

1. National Fire Protection Association. NFPA 70: National Electrical Code - Article 500: Hazardous (Classified) Locations, Classes I, II, and III, Divisions 1 and 2. National Fire Protection Association Standards Council.

2. International Electrotechnical Commission. IEC 60079 Series: Explosive Atmospheres - Part 0: Equipment - General Requirements. IEC Technical Committee 31.

3. Mine Safety and Health Administration. MSHA Code of Federal Regulations 30 CFR Part 18: Electric Motor-Driven Mine Equipment and Accessories. United States Department of Labor.

4. European Committee for Standardization. ATEX Directive 2014/34/EU: Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres. Official Journal of the European Union.

5. Illuminating Engineering Society. IES RP-12: Recommended Practice for Industrial Lighting Including Mining and Other Underground Facilities. Illuminating Engineering Society Technical Committee.
