High Wattage Led Flood Lights | High-Output Lighting for Ports, Mines & Stadiums

Problem: Traditional Lights Fail in Harsh Environments

You've likely experienced corroded fixtures at coastal facilities, or lights that fail during winter freezes. Our high wattage led flood lights 316L stainless steel housing with IP67 sealing protects electronics from:

· Salt spray corrosion (C5M marine-grade rating)

· Dust ingress at mining sites

· Temperature extremes from Arctic cold to desert heat

Problem: Uneven Lighting Creates Safety Risks

Shadows and dark spots slow operations and cause accidents. Our precision optics deliver uniform illumination:

· For high-mast poles (30m+):15°-30° narrow beams concentrate light where needed

· For wide areas:120° or asymmetric 140°x60° patterns minimize dark zones

· Measured uniformity:0.6-0.7 ratio typical (vs. 0.4 for standard fixtures)

Problem: Voltage Fluctuations Destroy Electronics

Power instability at industrial sites shortens fixture life. We've solved this with:

· Wide input range:Works on 90-305V AC without stabilizers

· Surge protection:10kV-20kV SPD guards against lightning and grid switching

· DC compatibility:Direct connection to DC 127-431V systems (mining, solar, ships)

Technical note from our engineering team:Most competitor drivers fail at 15% voltage fluctuation. Our units handle 50% variation without derating.

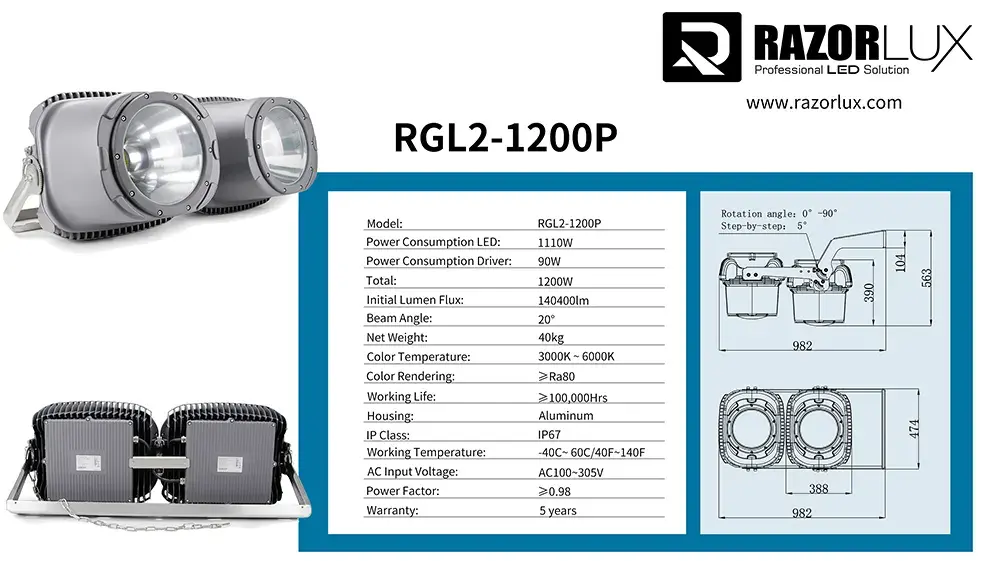

High Wattage Led Flood Lights Parameters

Where This Light Excels: Application Guide

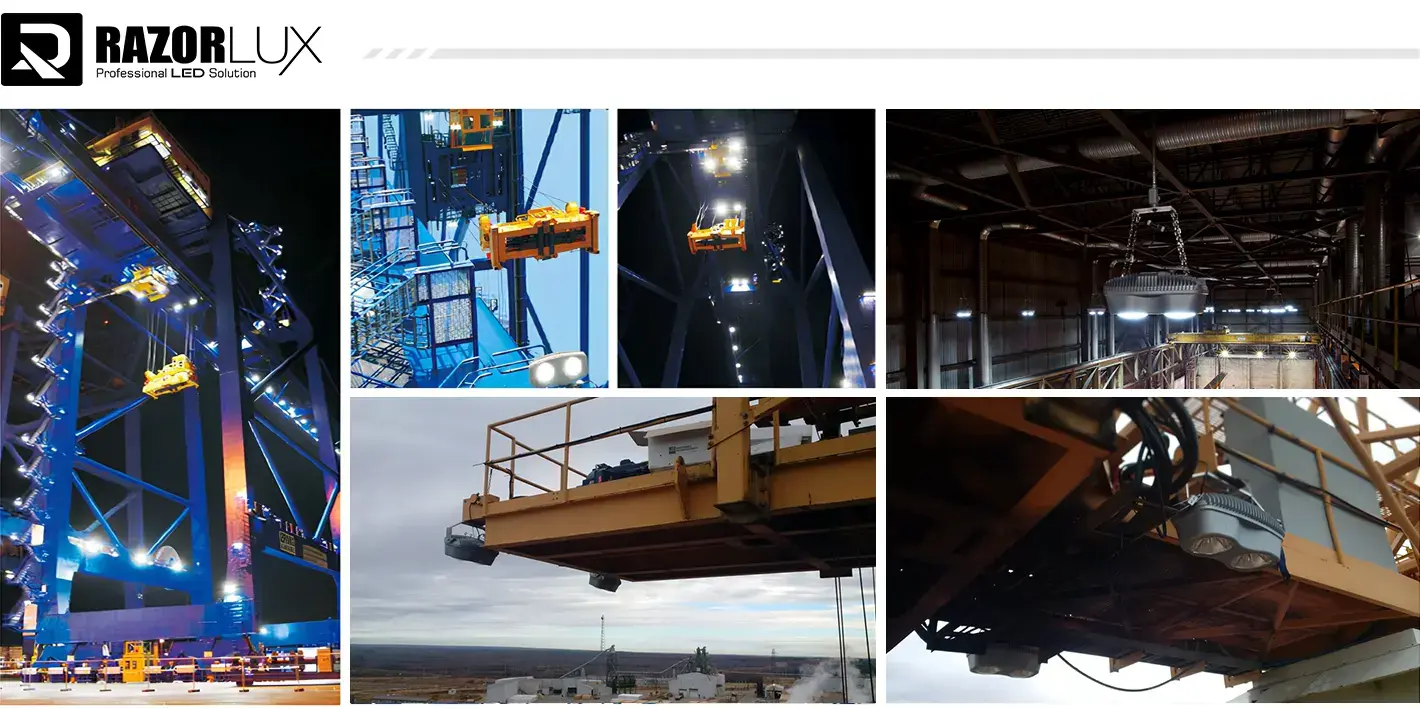

Ports & Container Terminals

Challenge:Lighting 40-meter-high crane operations across 500m container stacks

Our Solution:

· 1200W fixtures with 20° beam on 35m poles

· Spacing: 80m intervals for 30 lux average

Key benefit:DC voltage option works with port backup generators without converters

Mining & Heavy Industry

Challenge:Dusty, vibrating environment with unstable power

Why it works:

· Vibration-dampening driver mounts

· IP67 sealing prevents dust ingress

· Wide voltage range handles generator fluctuations

Sports Stadiums & Arenas

Challenge:Flicker-free lighting for 4K broadcast cameras

Technical advantage:

· <3% current ripple eliminates strobing

· Instant-on (vs. 10-min metal halide warm-up)

· DMX512 option for opening ceremony effects

Used at:12 professional soccer stadiums across Southeast Asia (client list available under NDA)

Construction & Temporary Sites

Practical advantages:

· 15kg weight = one-person installation

· Works on unstable generator power

· No warm-up delay (safety during emergencies)

Airport Ground Operations

Compliance of high wattage led flood lights:Meets ICAO Annex 14 standards for apron lighting

Specific features:

· 140°x60° asymmetric beam minimizes upward light (prevents pilot glare)

· 5000K color temperature for vehicle maneuvering

· UL844 hazardous location certification available

Common Questions from Engineers & Procurement Teams

"How do I calculate how many fixtures I need?"

Short answer:For typical port/mining applications, one 1200W unit covers:

· 30m pole height → 80m spacing (400 sq.m per fixture)

· 20m pole height → 50m spacing (200 sq.m per fixture)

Detailed approach:Send us your site plan. Our lighting designers provide free:

· Dialux photometric simulation

· Pole layout CAD drawings

· LUX level heatmaps

"What's the real lifespan — not marketing numbers?"

Honest answer:LEDs outlast drivers.

· LED chips: 100,000 hrs to L70 (30% lumen depreciation)

· Driver lifespan: 60,000 hrs (our bottleneck component)

· Realistic system life:50,000+ hours

We use Japanese capacitors (Nippon Chemi-Con) rated 105°C. Competitor products often use 85°C caps that fail at 20,000 hours.

"Can these integrate with our BMS or SCADA system?"

Yes.Control options:

· 0-10V analog dimming(simple, widely compatible)

· DALI(addressable, building automation)

· DMX512(entertainment/stadium effects)

· Wireless:Zigbee, LoRaWAN (smart city applications)

Need custom protocols? MOQ 50 units for Modbus RTU/TCP integration.

"What about lightning protection?"

Standard:10kV surge protection device (SPD)

Recommended:20kV SPD for:

· Coastal installations

· High-mast poles (>30m)

· Critical infrastructure

Additional protection:Install Type 1+2 arrestors at distribution panel (we can specify compatible models).
