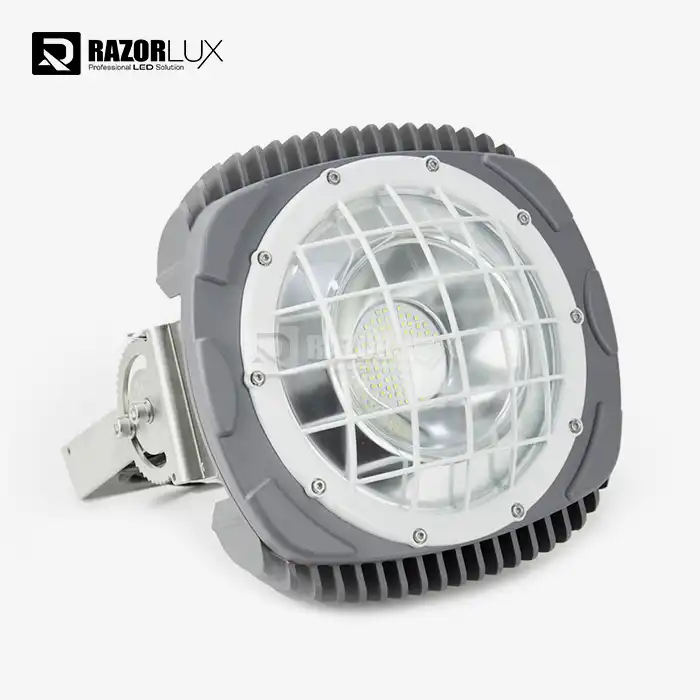

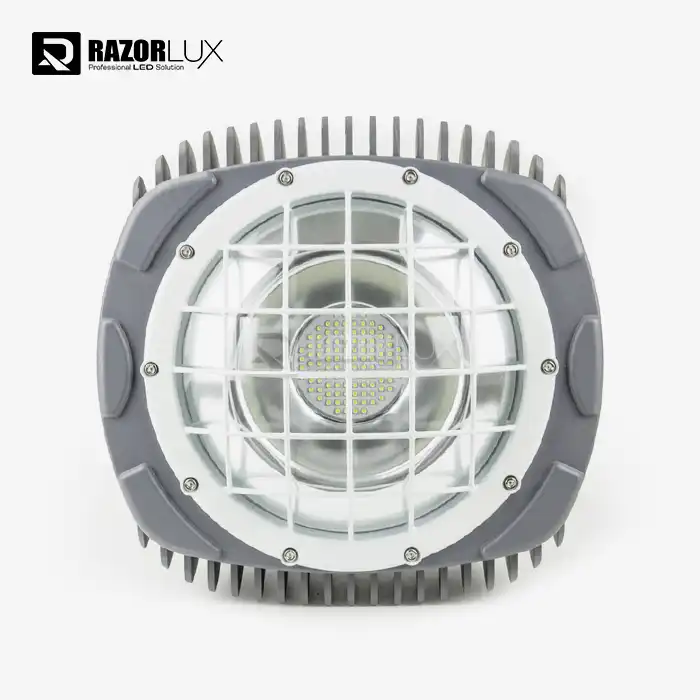

400W High Mast LED Lighting – Industrial-Grade Solution for Large-Scale Projects

Product Overview

Razorlux 400W high mast LED is for professional lighting of ports, roads and industrial areas needing 20-50 metre pole heights. This fixture replaces standard 1000W HID systems and cuts energy usage about 60%, with confirmed installations in 30+ countries since 2006. With IP67 protection and broad voltage tolerance (AC90-305V), it can work successfully in severe temperature (-40°C to +60°C).

Key Performance Highlights:

· Output Power 400W | Efficiency 130LM/W | 52,000 Lumens

• 100,000 Hour Life Span | Shortens maintenance cycles to 10+ years

· 7 beam angle selections | 15° to 140° for customised light dispersion

· 5 Year Warranty | CE, UL, DLC, RoHS Certified

Why Choose This Solution?

60% Energy Savings With Immediate ROI

1000W Metal Halide Systems Replaced By 400W LED Technology The majority of facilities make back their investment in 18-24 months due to lower power bills and no light replacement costs.

Wide voltage tolerance (90-305V AC) works directly with uncertain grid circumstances – no extra regulators required for rural sites or emerging countries.

Maintenance-Free Operation for 10+ Years

Traditional HID bulbs burn out every 12-18 months. That means at heights of 30-50 metres you’ve got the expense of renting lift equipment, plus work licenses and safety issues.

Our LED system has a 100,000 hour rated life (L70) with 10+ year servicing intervals. The modular design enables for replacing the ground level component without removing the whole fixture.

Materials resistant to corrosion:

· Marine Grade (C5M) Stainless Steel Brackets

· Housing IP67 rated (submersion resistant)

· Powder coat aluminium heat sink

Precision Optics for Every Application

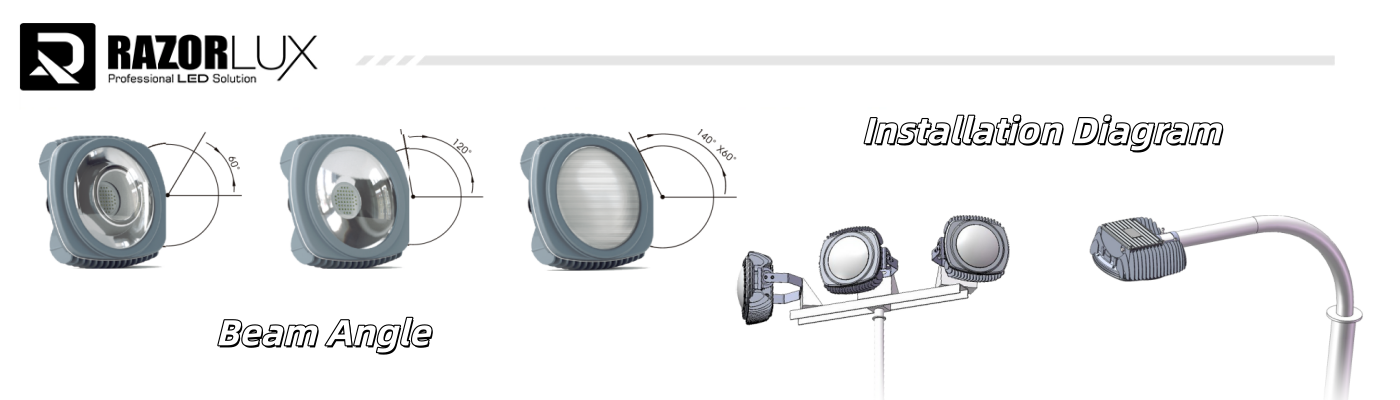

Seven beam angle possibilities for customised light distribution:

· Narrow (15°-30°): Concentrated beams for container terminals, loading docks

· Medium (40°-60°): Moderate coverage for interchanges on highways

· Wide (120°-140°): Uniform lighting for sports grounds, parking lots

The full cut-off design sends 100% of the light below the horizontal plane, meeting dark-sky requirements and removing glare for vehicles and inhabitants.

Mast Led Specifications

Applications

Our Mast Led fixtures are ideal for:

• Marine Ports and Harbors
• Shipyards and Dry Docks
• Oil and Gas Platforms
• Mining Operations
• Sports Stadiums and Arenas
• Industrial Warehouses
• Outdoor Storage Yards
• Large-scale Construction Sites

Application Scenarios

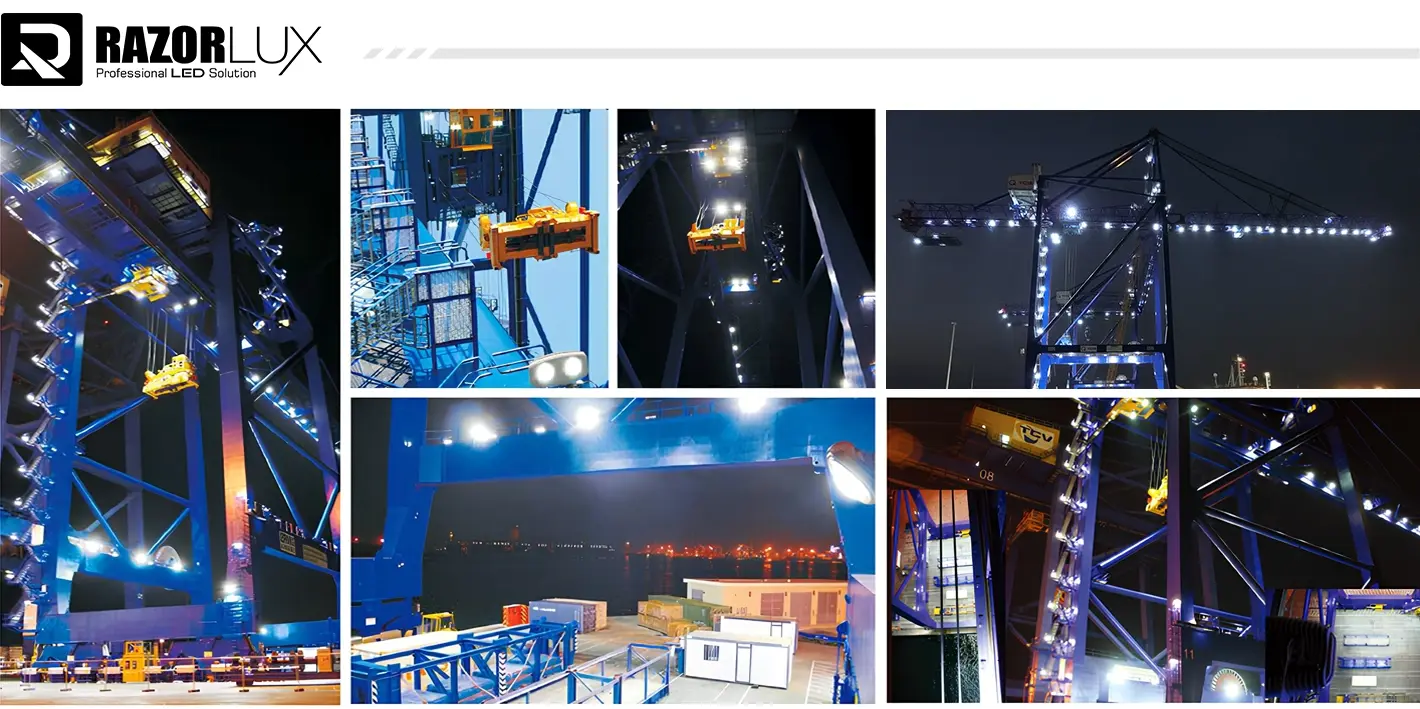

Port & Container Terminals

Illuminate 5,000+ square meter cargo yards from single poles. High CRI (>75) ensures accurate color identification for shipping container markings and safety signage.

Marine environment features:

· IP67 saltwater resistance

· Typhoon-rated wind load design

· 24/7 operational reliability

Highway Interchanges & Toll Plazas

Reduce accident rates with uniform illumination across complex interchange geometry. Compatible with smart city dimming systems (0-10V/DALI) for 20-30% additional energy savings during off-peak hours.

Mining & Heavy Industry

Sealed construction withstands dust, chemical exposure, and mechanical impact. AC/DC dual-voltage capability integrates with existing industrial power infrastructure.

Operates in extreme conditions:

· Open-pit mines (-40°C winters)

· Steel mills (+60°C ambient heat)

· Offshore platforms (saltwater corrosion)

Sports Stadiums

Flicker-free operation for HDTV broadcast and high-speed cameras. Instant-on capability (no 15-minute warm-up like metal halide). Multiple beam angles combine for uniform field illumination with minimal residential spill light.

Airport Service Areas

Wide operating temperature range (-40°C to +60°C) ensures consistent performance in Arctic and desert climates. Certifications (UL, CE, CB) streamline approval across international jurisdictions.

​​​​​​​

Frequently Asked Questions

Q: Can this retrofit existing high mast poles?

A: Yes. Universal mounting brackets fit most standard pole tops. We provide technical drawings and wind load calculations for structural assessment.

Q: How does wide voltage input benefit my project?

A: Eliminates voltage regulators in unstable grids (common in remote/developing areas), reducing installation costs and failure points.

Q: Is dimming available for energy management systems?

A: Yes. Supports 0-10V analog and DALI digital protocols for centralized smart city control.

Q: What's the lead time for custom beam angle configurations?

A: Standard configurations ship within 2 weeks. Custom optics require 4-6 weeks for tooling and testing.
