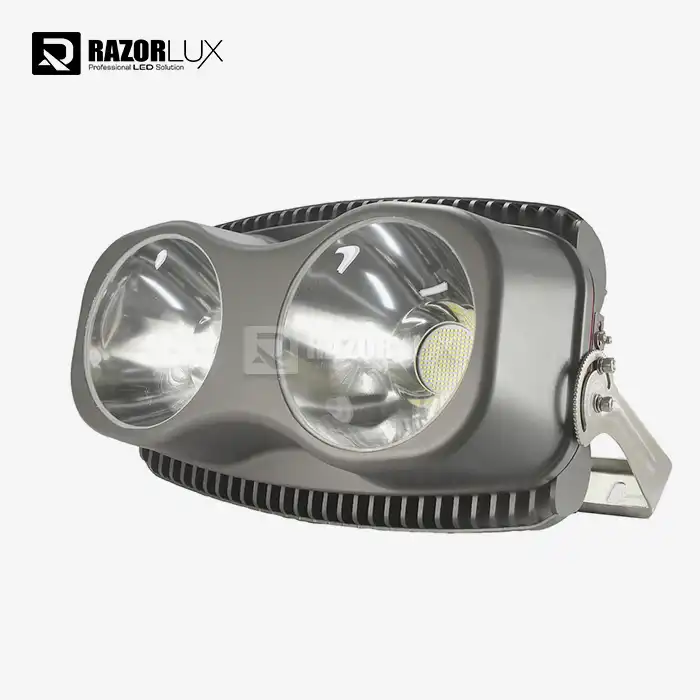

1000 Watt Led Stadium Lights

1000 Watt LED Stadium Lights | Industrial High-Power Lighting Solution

Xi'an Razorlux 1000 watt LED Stadium Lights. 130LM/W lumens efficiency, multi-voltage compatibility (AC80-305V / DC100-800V), suitable for demanding applications. Designed for sporting facilities, airports and industrial locations that must operate 24/7 in harsh temperatures (-40°C to +55°C). IP67 Rated housing, 50,000+ hour lifetime, 5 year warranty Certifications: CE, UL, DLC, RoHS, ISO 9001.

1000 Watt LED Stadium Lights Specifications

​​​​​​​

Application Scenarios

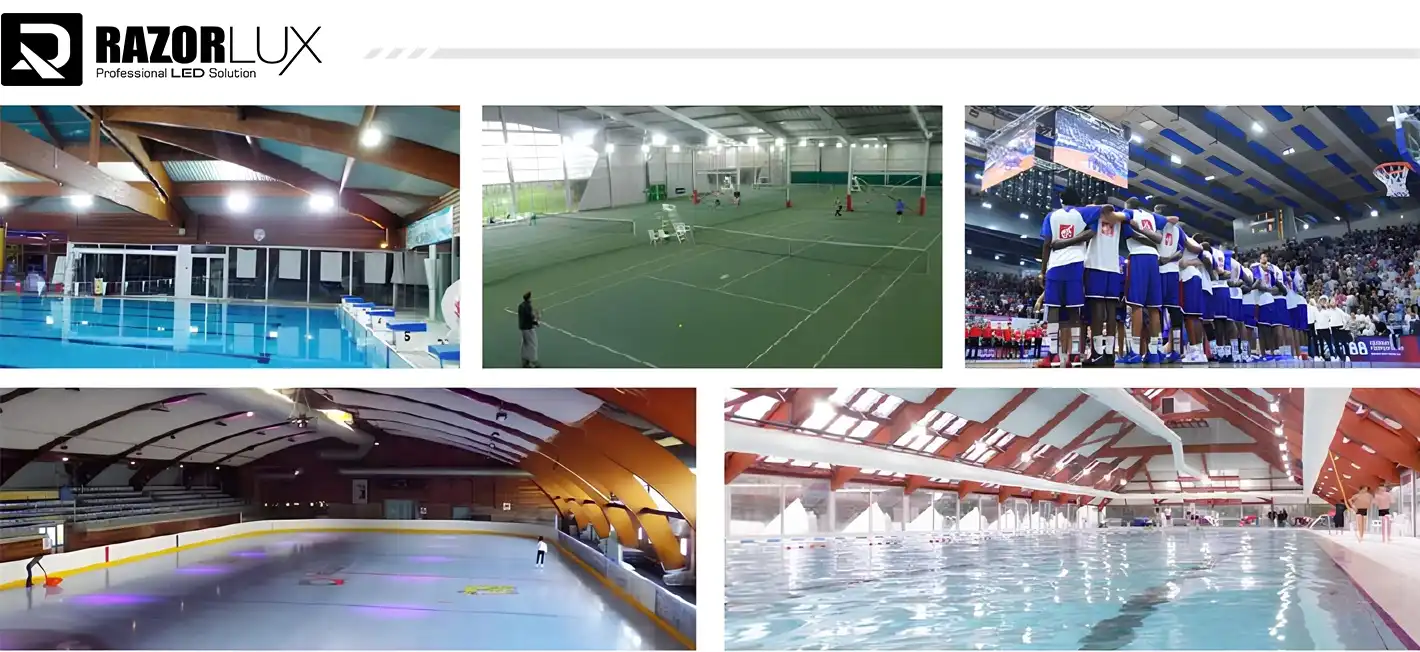

Professional Sports Facilities

1000 watt led stadium lights meets FIFA Class I lighting regulations for stadiums. Flicker free performance (<1% at 4000Hz) facilitates slow motion replay and broadcast creation. Uniform light dispersion across fields of 100m+.

Typical deployment 60-120 units per typical football field based on lux needs and mounting height.

High-Mast Industrial Lighting

Container ports, train yards and logistical hubs working through the night. Wide voltage tolerance to cope with generator power and grid variations often seen in port situations.

The big plus: HID systems take 10 to 15 minutes to warm up after power disruptions, but LED systems come back on instantly.

Aviation Ground Support

Airport apron and taxiways regions needing FAA / ICAO illumination requirements. It is designed to resist vibration, and can endure jet blast and ground equipment hits.

Maintenance benefit: The 5-year warranty lowers unexpected repair calls in 24/7 operations.

Mining & Heavy Construction

Open pit mining and big scale building projects need portable or permanent high mast solutions. Works dependably in dusty, corrosive and high vibration settings.

* Safety feature: Adjustable CCT (2700K-6500K) enhances visibility for operating equipment and spotting hazards.

Technical Advantages

Multi-Voltage Power System

Three input ranges accommodate diverse electrical infrastructure:

· AC 80-305V: Grid-connected installations with voltage sag tolerance

· DC 100-400V: Solar/battery systems and marine vessels

· DC 500-800V: High-voltage DC industrial networks

Internal power regulation maintains consistent lumen output across the voltage range.

Thermal Management

Proprietary heat sink design dissipates 1000W load while maintaining junction temperature <85°C. Extended surface area and airflow channels enable fanless operation for dust-prone environments.

Thermal testing per LM-80 standard validates L70 lifespan projections.​​​​​​​

Optical Precision

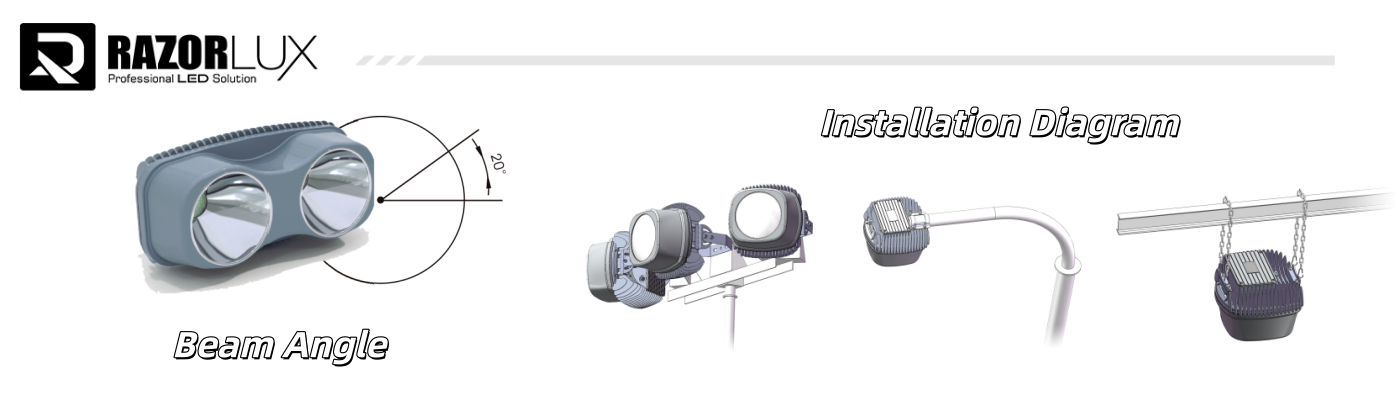

20° beam angle with total internal reflection (TIR) lens system. Computer-optimized light distribution achieves:

· Uniformity ratio (Emin/Emax) >0.7 for sports applications

· Reduced sky glow compared to 40°+ traditional fixtures

· Minimal glare (UGR <25) for residential boundary compliance

​​​​​​​Frequently Asked Questions

What beam angles are available besides 20°?

Custom optics available in 10°, 30°, 40°, 60°, and asymmetric distributions. Consult our lighting design team for application-specific recommendations.

How does the product perform in sub-zero temperatures?

Tested to -40°C per IEC 60598. Cold-weather startup circuitry prevents LED degradation during thermal cycling. Used in Scandinavian ports and Canadian mining operations.

Can these integrate with building management systems?

Standard models include 0-10V dimming. Optional: DALI-2, DMX512, or wireless mesh control for synchronized dimming and monitoring.

Do you provide photometric design services?

Yes. Our application engineering team offers:

· AGi32/Dialux simulation reports

· Mounting height and spacing recommendations

· Illuminance uniformity calculations

· Glare analysis for sensitive areas

Ordering Information

Technical Support: Contatc our 1000 watt led stadium lights' team sam@razorlux.com
