Led Indoor Arena Lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 120W
Input Voltage: AC80-315Vac
Output Voltage: DC80 ~ 400
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 20°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 10KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
Send Inquiry Download
  • Product Description

LED Indoor Arena Lights - High-Performance Sports Lighting for Professional Venues

Transform Your Sports Facility with Professional LED Arena Lighting

Struggling with high energy bills and frequent bulb replacements? Razorlux led indoor arena lights cut energy costs by up to 70% compared to traditional metal halide systems. Our 180W fixtures deliver instant-on brightness with zero warm-up time, perfect for busy multi-purpose facilities that need reliable, broadcast-quality lighting.

Key Benefits at a Glance:

· 130LM/W efficiency with 5-year warranty

· Flicker-free performance for 4K broadcasting

· 100,000+ hour lifespan (11+ years continuous use)

· Universal voltage: AC90-305V / DC127-431V

· IP65/IP67 waterproof rating

Led Indoor Arena Lights

LED Indoor Arena Lights Specifications

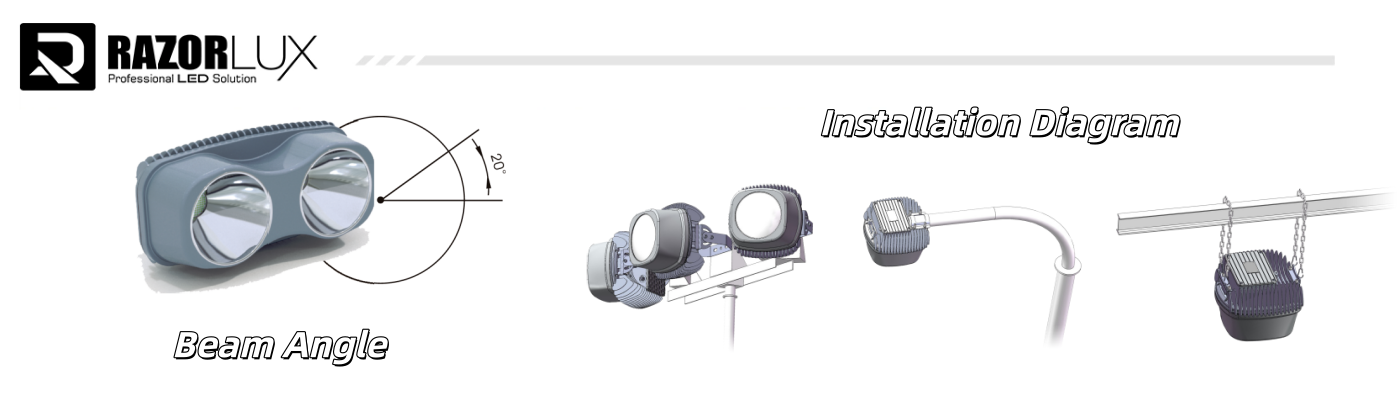

Beam Angle & Installation Diagram

Model

RGL-120P

Beam Angle

20°

Stable Flux

(5700K after 1 hour)

13200lm

Dimension (mm)

360*358*306



LEDs

108W

Power

Driver

12W

Consumption

Total

120W

Replace HID Lamp

250~300W

Net Weight

10kg

Color Temperature

2000-6000K

Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)

Working Life

≥50000Hrs

Housing Material

Aluminum & Powder coating

Power Supply

Meanwell

IP Class

IP 67

IK Class

IK 10

Insulation Class

Class I

Working Temperature

-40C ~ 60C / -40F ~ 140F

Working Humidity

10% ~ 95%

AC Input

80-315Vac input voltage without additional adapter

DC Input

80 ~ 400Vdc

THD

<10%

Power Factor

≥0.98

Warranty

LED Module

5 year

Driver

5 year

Housing

10 year

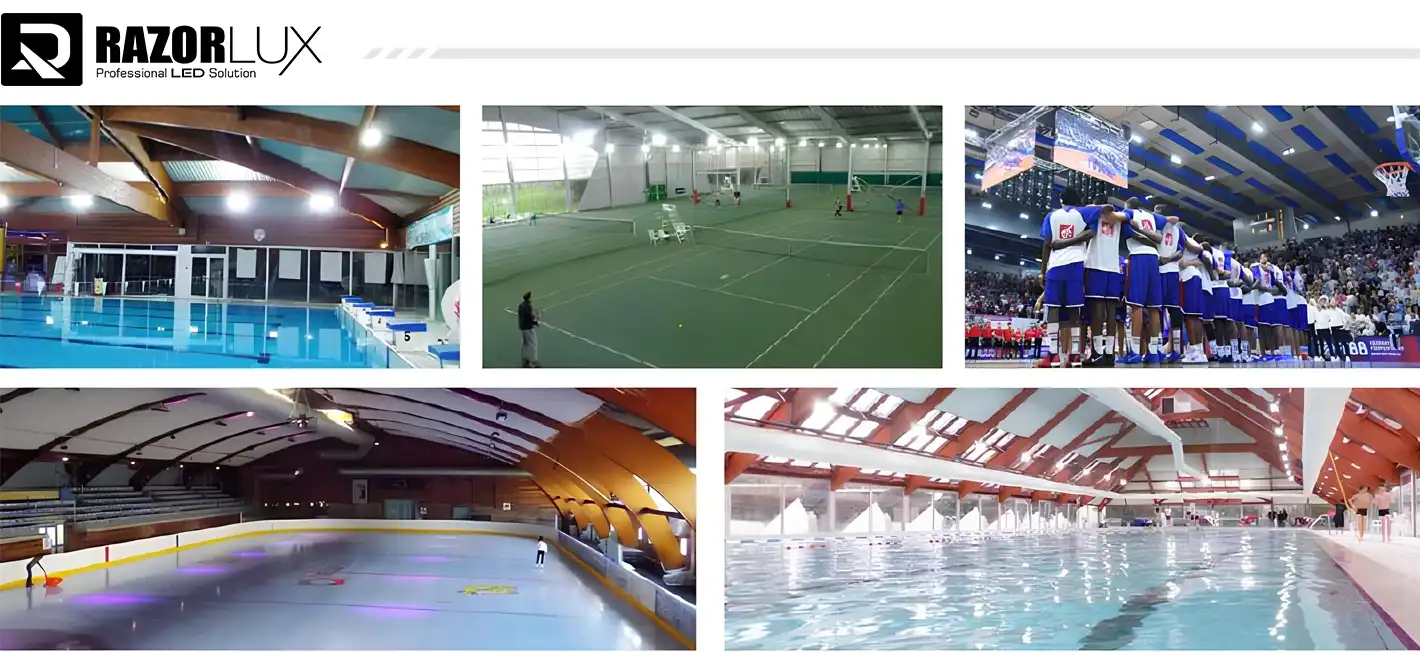

Applications

Why Sports Facilities Choose Razorlux

Instant-On, Zero Delay

Traditional metal halide lights take 15-20 minutes to warm up. Our led indoor arena lights reach full brightness instantly, allowing you to switch between activities without waiting.

Flicker-Free for Broadcasting

High-frequency drivers eliminate flicker that causes banding in video footage. Ideal for facilities hosting televised events or live-streaming competitions.

Led Indoor Arena Lights

Minimal Maintenance

With over 100,000 hours of recommended life, these fixtures save maintenance expenses dramatically. There are no more ceiling ceiling ceiling ceiling roof ceiling mounts.

Built for Impact

Direct ball hits are withstood by IK10-rated housing. Even in high-contact sporting conditions, fixtures remain secure thanks to reinforced mounting brackets.

Smart Control Ready

compatible with DALI, DMX, and 0-10V control systems. Integrate energy monitoring and planned dimming with the building's current automation system.

Led Indoor Arena Lights

Ideal Applications

Basketball & Volleyball Courts

Provides consistent lighting with a low-glare design (UGR <19) to avoid visual distraction during play, ranging from 750 lux for training to 2000+ lux for competition.

Indoor Equestrian Arenas

Shadow-free coverage is produced by wide beam angles. Horses may be startled by stroboscopic effects, which are avoided using high-frequency drivers.

School Gymnasiums

Flexible dimming maximizes energy use for various activities by allowing you to quickly switch from assembly mode (200 lux) to full sports lights (750+ lux).

Recreation Centers

Zone management minimizes energy loss by enabling separate dimming of various court parts while preserving ideal illumination where it is required.

Packaging and Transportation​​​​​​​

Packaging and Transportation

Qualification Certifications

Common Questions

Q: Will these lights?

A: No, gamers won't experience discomfort when looking up thanks to sophisticated optics and honeycomb louvers that maintain glare ratings below UGR 19.

Q:Do they work with broadcast cameras?

A: Indeed, even at slow-motion recording at 1000 frames per second, flicker-free functioning at high frequencies guarantees clear footage.

Q:How much time do they last?

A: Rated for 100,000+ hours (L70), which means nearly 11 years of continuous operation with negligible brightness deterioration.

Q:Is it possible to include them into my building automation system?

A: Definitely. The majority of control systems are directly connected to standard DMX, 0-10V, and DALI interfaces.

Q:What would happen if a ball struck the light?

A: fixture with an IK10 impact grade can sustain damage from direct blows from volleyballs and basketballs.

Get Expert Lighting Design Support

Our led indoor arena lights' team provides free photometric analysis and custom lighting layouts for your facility.
