600W LED Sports Stadium Lighting – Broadcast-Grade Floodlight for Professional Venues

Engineered for 4K/8K Broadcasting & Extreme Weather Performance

The Razorlux Sports Stadium Lighting is 130LM/W efficient and doesn't flicker, so it meets FIFA and UEFA lighting standards. Our unique thermal management system keeps things running smoothly in temperatures ranging from -40°C to +60°C. The IP67 rating for protection and the C5M marine-grade rust resistance mean that the product will last for 10 years or more in coastal or industrial areas. It has been trusted by more than 500 venues in 60 countries since 2006.

Sports Stadium Lighting Specifications

Why Razorlux Outperforms Generic Stadium Lights

1. Zero-Flicker Technology for Ultra-HD Broadcasting

Due to ripple current, standard LED fixtures make strobe effects that can be seen in slow-motion replays. Our own driver circuit keeps ripple below 1%, which stops flickering in 4K and 8K cameras. Broadcasters record smooth, professional-quality video without making any changes after the fact, which is important for sports analytics and the viewing experience.

2. Proven Durability in Harsh Climates

Our IP67-sealed housing keeps water out during pressure washing, while rivals' only offer basic IP65 ratings. Internal parts in salty seaside venues are protected by the C5M rust approval, which is the highest marine-grade standard. A 15 kg reinforced structure with stainless steel brackets can stand up to winds as strong as typhoons. This has been tested in tropical installations in Southeast Asia.

3. Grid-Independent Voltage Adaptability

Voltage stabilisers are not needed in places where the power grid is not stable because the device works across AC 90-305V. This large input range also lets DC solar integration (127–431V) happen, which makes it perfect for training facilities that aren't connected to the power grid or green venue projects.

4. Precision Optical Control for Multi-Sport Venues

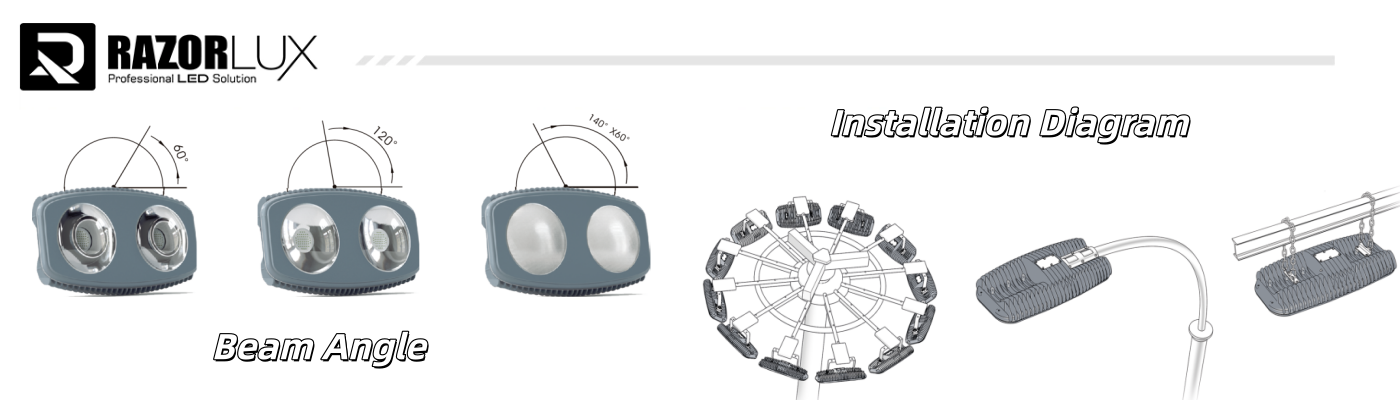

There are seven beam angle choices (15° to 140°±60°) that let you make your own lighting designs:

Long-throw lighting for 40-meter high-mast installations with 15° to 30° narrow beams

60° to 120° middle beams: courts for basketball and volleyball that need low-glare (UGR-19) regularity

140°×60° uneven beams: perimeter lighting keeps light from getting into private areas

Our photometric lab can make free IES files and light calculation results for the plan of your site.

5. 22-Year Manufacturing Heritage

As early as 1998, Razorlux has provided power systems for State Grid and China Mobile, two of China's major infrastructure projects. We now have more than 200 patents in thermal engineering and driver technology after switching to making LEDs in 2006. The LED Research Center, which is certified by the province and run by our Xi'an office, is staffed by more than 10 Ph.D. engineers.

Application Scenarios

FIFA/UEFA-Standard Football Stadiums

For television cameras to work, professional football stadiums need more than 2,000 lux of vertical illumination. Our narrow-beam lights (15°-30°) placed on 30–40 metre high masts cover the whole field evenly, without casting shadows that make it hard for players to see and for software to track the ball.

A major stadium in Southeast Asia switched from 1000W metal halide lights to our 600W LEDs. This cut energy use by 65% and increased regularity in vertical lighting from 0.6 to 0.8.

Indoor Multi-Sport Arenas

Low-glare lighting (UGR-19) is required in basketball and volleyball courts so that players don't get lost during high-angle plays. Our Sports Stadium Lighting work with DMX/DALI control systems, so you can quickly switch between "Game Mode" for high uniformity and "Event Mode" for changing lighting for events like concerts or ceremonies.

Municipal Training Facilities

Community fields have to follow strict "Dark Sky" rules to keep residential lights from shining on them. Our lights have snap-on visors and honeycomb louvres that block backlight beyond the pitch boundaries. This makes sure that the rules are followed while keeping the lighting at a training level (200–500 lux).

Coastal & Tropical Outdoor Complexes

Within two to three years, salt spray and humidity will kill most fittings. Our C5M-rated building can stand up to constant salt-fog exposure. This has been shown in installs on beaches in Thailand, the Philippines, and Australia. The IP67 rating means that parts can be washed under high pressure without breaking.

​​​​​​​

Frequently Asked Questions

Q: How does your fixture prevent flicker in high-speed camera replays?

A: Our driver circuit controls AC ripple current to below 1%, eliminating the strobe effect visible in 4K/8K slow-motion footage. This matches broadcast industry standards (IEEE 1789-2015) for flicker-free performance.

Q: Can these lights operate in areas with unstable electrical grids?

A: Yes. The AC 90-305V input range compensates for voltage fluctuations common in developing regions. No external stabilizers are required, reducing installation costs.

Q: What beam angle should I choose for a 50-meter-wide football pitch?

A: For high-mast mounting (30-40 meters), use 15°-30° narrow beams for long-throw precision. For corner zones or lower mounting, 60°-120° provides adequate spread. contact us for free photometric simulation based on your venue dimensions.

Q: How do I maintain these fixtures in outdoor installations?

A: The IP67 rating allows direct water jet cleaning. Wipe the lens semi-annually to maintain lumen output. Internal components are sealed, requiring no user maintenance. Our 5-year warranty covers manufacturing defects.

Q: Is dimming or smart control available?

A: Standard models support on/off control. Optional configurations include 0-10V analog dimming, DALI-2 protocol, or DMX512 for stage integration. Specify requirements during order.

Q: What's the realistic lifespan in 24/7 operation?

A: Rated at 50,000 hours (L70 standard), expect 5-6 years under continuous use. Typical stadium operation (12 hours/day) extends lifespan to 11+ years.
