High Mast Led Flood Light

High Mast LED Flood Light - 800W Industrial Lighting Solution

Overview

Razorlux 800W high mast led flood light is a powerful light for ports, airports, highways and industrial sites. With 130LM/W efficiency and IP67 protection, the system can work consistently in tough situations and save energy expenditure by up to 70% compared to typical HPS lights.

High Mast LED Flood Light Specifications

​​​​​​​

Key Features

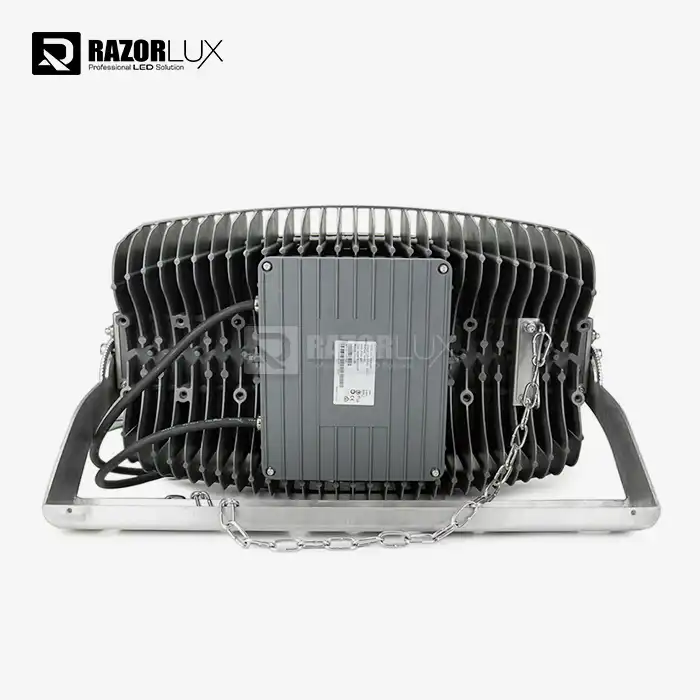

Advanced Thermal Management

Patented heat dissipation system extends operational lifespan beyond 100,000 hours. This reduces maintenance frequency and long-term ownership costs in high-mast applications.

Wide Voltage Compatibility

Operates across AC 90-305V and DC 127-431V ranges without additional regulators. Compatible with grid power, generators, and solar DC systems.

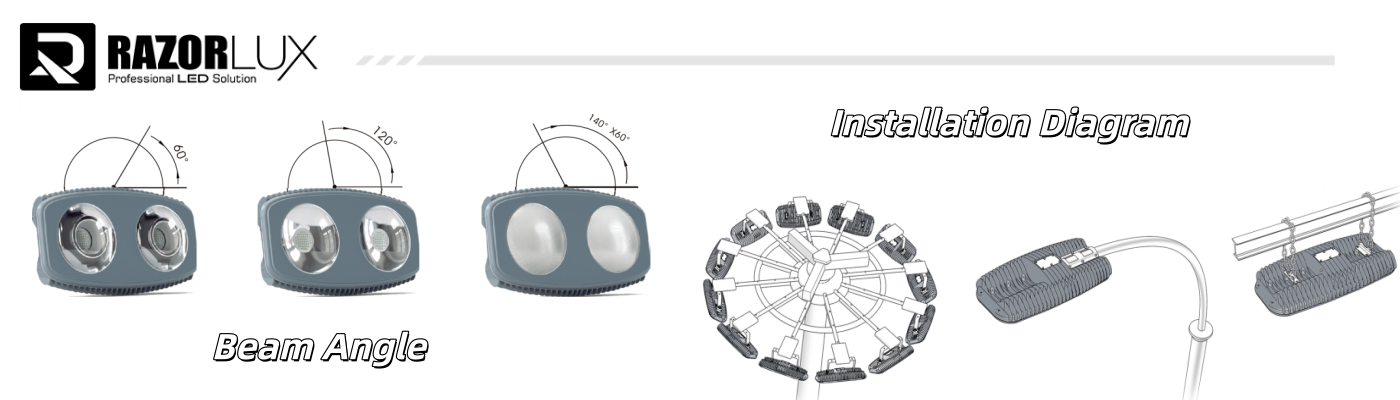

Flexible Beam Control

Seven beam angle options from narrow 15° spot projection to wide 120° area coverage. Asymmetric 140°×60° pattern available for specialized applications.

Marine-Grade Construction

Stainless steel housing with IP67 sealing withstands saltwater corrosion, dust, and extreme weather conditions. C5M certification validates performance in harsh coastal environments.

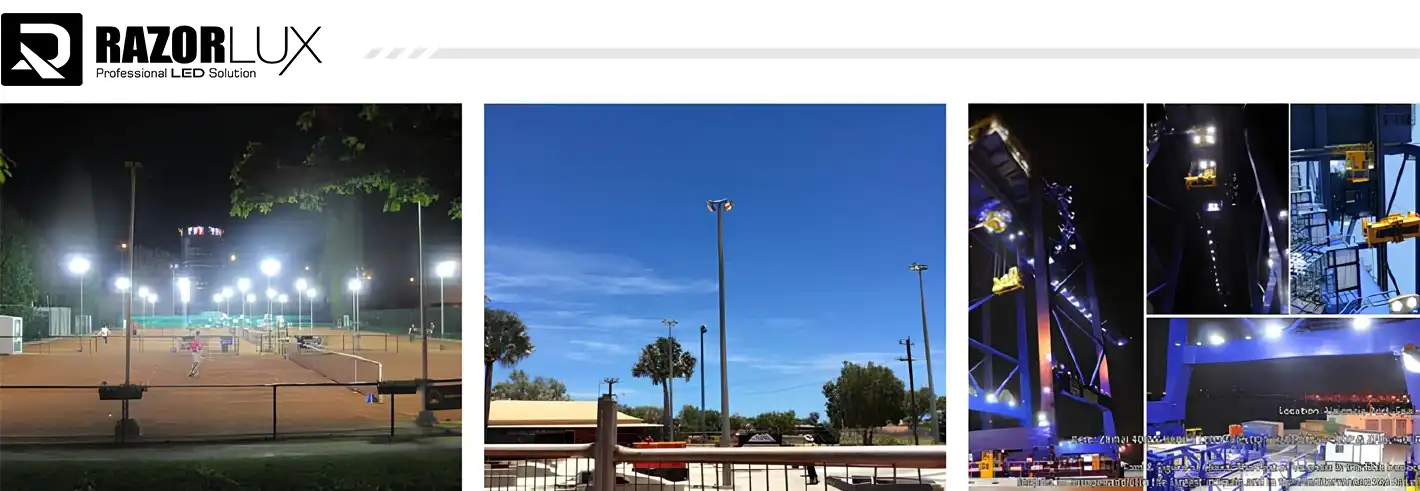

Application Areas

We recommend upgrading the lighting system to high mast led flood light.

Seaports & Container Terminals

Uniform illumination across loading zones enables safe 24/7 cargo operations. High CRI (Ra>75) improves cargo marking identification during nighttime handling.

Airport Ground Lighting

Glare-free output protects pilot vision while providing ground crews sufficient visibility for FOD detection. Instant-on LED technology eliminates warm-up delays.

Highway & Toll Infrastructure

High-output performance illuminates complex interchange patterns and multiple traffic lanes. Energy savings of 60-75% reduce operational costs across highway networks.

Industrial Yards

Consistent light levels improve worker safety and security camera effectiveness in production yards, storage areas, and logistics zones.

Large Parking Facilities

Reduces pole count requirements, lowering installation costs. Extended lifespan minimizes disruptive maintenance in high-traffic areas.

​​​​​​​Installation Guidelines

Mounting Height: Optimal performance at 15-30 meters depending on required lux levels and beam angle selection.

Electrical Connection: Wide input voltage range accommodates most power infrastructures without additional conversion equipment.

Dimming Control: Optional 0-10V and DALI dimming systems available for applications requiring variable light levels.

Maintenance Access: Modular design allows component replacement without complete fixture removal.

Frequently Asked Questions

What beam angle should I specify?

Narrow angles (15°-30°) suit focused long-distance projection. Medium angles (40°-60°) work for general area lighting. Wide angles (120°, 140°×60°) provide maximum coverage for high-mast installations.

What's the lead time for orders?

Standard configurations ship within 15 business days. Custom specifications may require additional manufacturing time.

Are replacement parts available?

Spare parts including drivers, LED modules, and optical components ship within 5-7 business days to most locations.

Can these lights operate on solar power systems?

Yes, the DC 127-431V input range accommodates most solar battery bank voltages without additional conversion hardware.

Contact Us

For technical specifications, photometric calculations, or project quotations about high mast led flood light:
