Led High Mast Flood Lights
Rated Power: 120W
Input Voltage: AC80-315Vac , DC80 ~ 400Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 8KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Led High Mast Flood Lights: Illuminate Vast Spaces with Precision
Xi'an Razorlux Optoelectronic Technology Co., Ltd. is a leading manufacturer and supplier of high-quality Led High Mast Flood Lights. With over two decades of experience in LED technology, Razorlux offers superior lighting solutions that combine energy efficiency, durability, and cutting-edge design. Our products are engineered to meet the demanding needs of large-scale outdoor illumination projects.
Why Choose Our Products?
Our high mast lighting solutions stand out for their exceptional performance and versatility. Designed to illuminate vast areas such as ports, airports, and sports complexes, these lights offer:
- Superior luminous efficacy of up to 130 lm/W
- Robust IP65/IP67 protection for harsh environments
- Flexible beam angles to suit various applications
- Long lifespan with minimal maintenance requirements
- Compliance with international standards including CE, RoHS, and UL
Experience the difference with Razorlux's innovative products, trusted by industry leaders worldwide.
Product Specifications
Model | RGL-120A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 14400 lm | |
Dimension (mm) | 360*358*187 | |
| LEDs | 108W |
Power | Driver | 12W |
Consumption | Total | 120W |
Replace HID Lamp | 250~300W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |

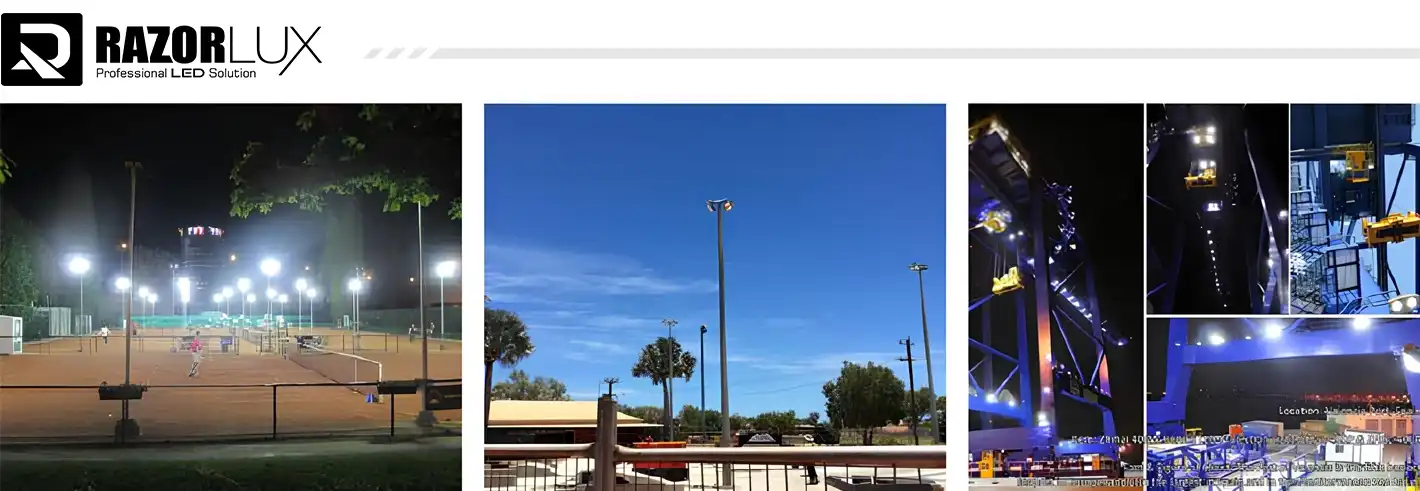

Applications
Our Led High Mast Flood Lights are ideal for a wide range of applications, including:
- Airports and seaports
- Highway intersections and toll plazas
- Large industrial facilities and warehouses
- Sports stadiums and outdoor arenas
- Parking lots and commercial complexes
- Mining sites and construction areas
- Public squares and parks
These versatile lights ensure optimal visibility and safety in expansive outdoor spaces, making them essential for infrastructure projects and industrial operations.
Quality Control
At Razorlux, quality is paramount. Our rigorous quality control process includes:
- Strict adherence to ISO 9001 standards
- Comprehensive testing at every production stage
- Use of premium components from trusted suppliers
- Regular audits and continuous improvement initiatives
Why Choose Razorlux?
- Industry pioneer with 20+ years of LED expertise
- Patented technologies in chip packaging and power supply control
- Global presence with certifications for multiple markets
- Customized solutions to meet specific project requirements
- Dedicated after-sales support and warranty service
Shipment & Samples
We offer flexible shipping options to meet your project timelines. Sample units are available upon request for testing and evaluation.
Packaging and Transportation
Our Led High Mast Flood Lights are securely packaged to ensure safe transportation. We use reinforced cartons and custom-designed protective materials to prevent damage during shipping.
Transaction Feedback
We value customer satisfaction and continuously improve based on feedback. Our clients consistently praise the performance and reliability of our products.
After-Sales Service
Razorlux provides comprehensive after-sales support, including:
- Technical consultation
- Installation guidance
- Troubleshooting assistance
- Warranty fulfillment
Qualification Certification
Our products meet international standards and hold certifications including CE, RoHS, UL, and ISO 9001, ensuring quality and compliance for global markets.
FAQ
Q: What is the lifespan of your products?
A: Our lights are designed to last over 50,000 hours with proper maintenance.
Q: Can the color temperature be customized?
A: Yes, we offer customizable color temperatures ranging from 2700K to 6500K.
Q: Are these lights suitable for coastal areas?
A: Absolutely. Our IP65/IP67 rated lights are resistant to salt spray and harsh weather conditions.
Q: What is the warranty period?
A: We offer a 5-year warranty on our products.
Q: Can you provide lighting design services?
A: Yes, our team can assist with lighting layout design and brightness calculations for your project.
Contact Us
For inquiries or to discuss your Led High Mast Flood Lights requirements, please email us at sam@razorlux.com.
