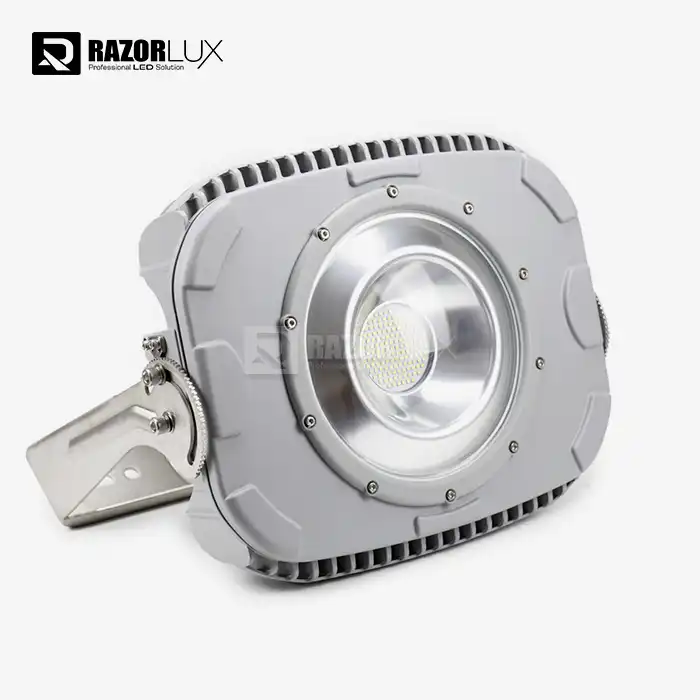

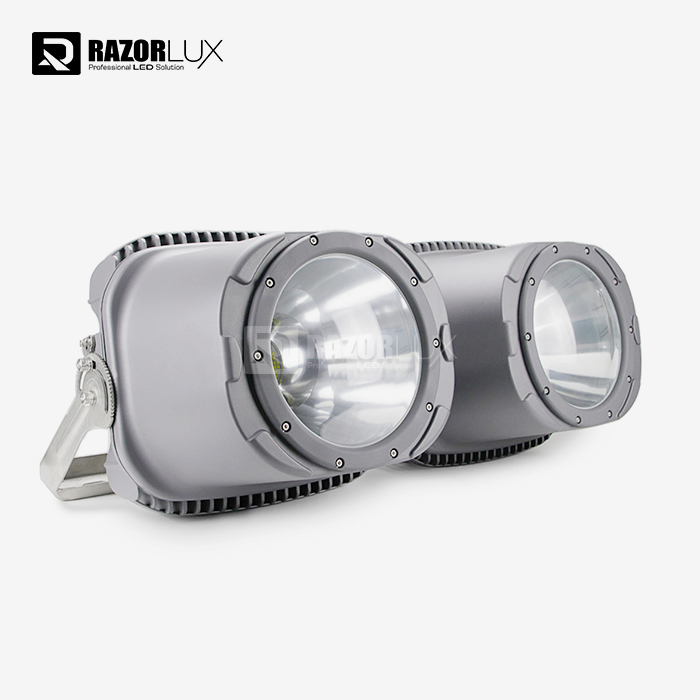

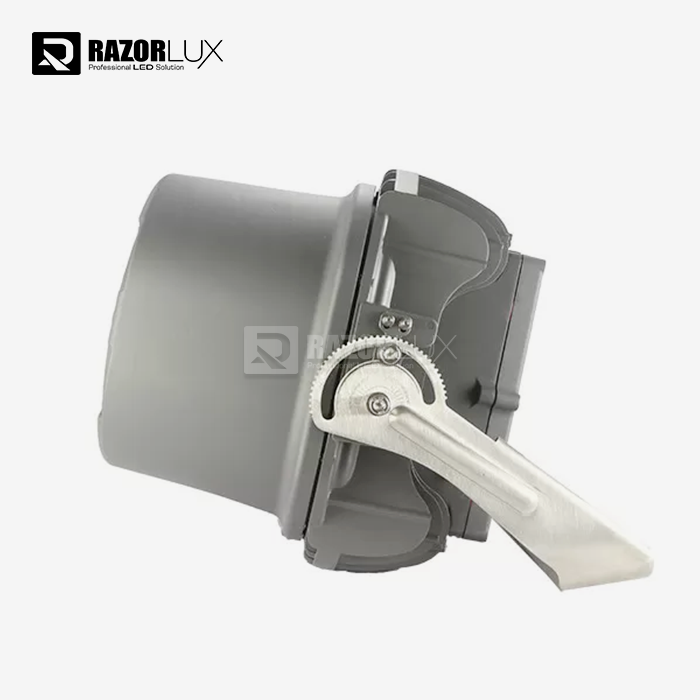

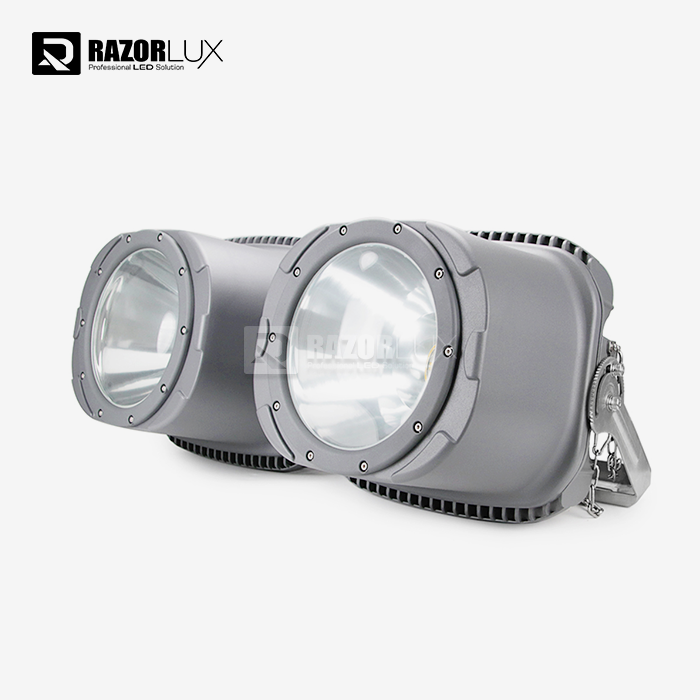

1500 Watt Stadium Lights

1500 Watt Stadium Lights - High-Power LED Lighting for Professional Applications

Our 1500 Watt Stadium Lights provide professional-grade performance for huge venues that need consistent, energy-efficient lighting. With 130LM/W effectiveness, instant-on operation, and maintenance-free, these fixtures are designed to replace 3000W-4000W typical lighting and save energy expenses by 60%.

1500 Watt Stadium Lights Specifications

Key Performance Features

Energy Efficiency

The 1500 Watt Stadium Lights system has the comparable light output of 3000-4000W Metal Halide bulbs. It is a straight replacement that has been tested against the lumen output and has been shown to lower power usage by about 60-70%.

Instant On: Lights up full brightness at the moment it is turned on , no more 15-20 minute warm up time of HID bulbs .

Thermal Management

Cold formed aluminum heat sinks keep LED junction temperature under 75°C. This thermal management enables an operating life of over 100,000 hours (as predicted by LM-80/TM-21), decreasing the frequency of maintenance and the replacement costs.

The design is reliable across the temperature range -40°C to +55°C without any loss of performance.

Optical Precision

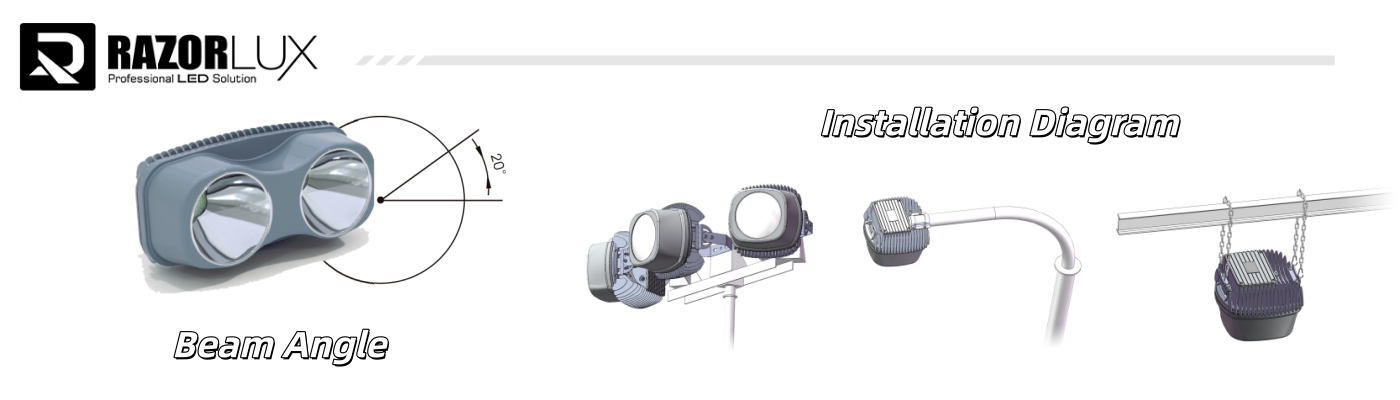

Seven beam angle configurations enable tailored light distribution:

· Narrow beams (15°-20°): Long-throw illumination for distance applications

· Medium beams (30°-60°): Balanced coverage for general stadium lighting

· Wide beams (120°-140°x60°): Broad area flood lighting

The PMMA precision lenses provide a consistent light distribution, avoiding hot spots and dark zones on the lit surface.

Flicker-Free Performance

The present ripple <1% is maintained by high performance drivers. This allows broadcast needs of up to 1000fps ultra-high-definition recording without apparent flicker during slow motion playback.

The color rendering index above Ra>75 gives true reproduction of team colors and field markings for both live and broadcast applications.

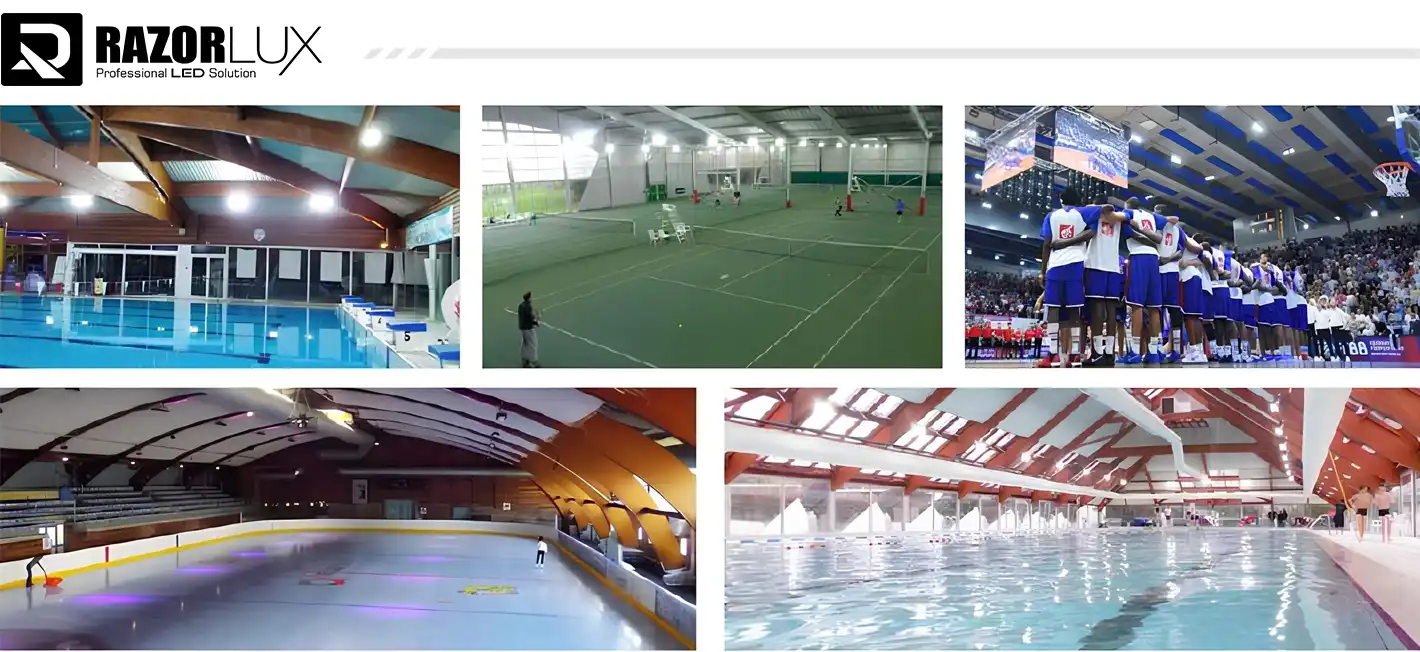

Application Environments

Sports Facilities

· Soccer stadiums and training grounds

· Baseball parks and cricket fields

· Tennis courts and multi-sport complexes

· Track and field venues

Meets international sports lighting standards (Class I-IV) for competition-level illumination.

Industrial Locations

· Manufacturing plants and assembly facilities

· Shipyards and port terminals

· Mining operations and quarries

· Logistics centers and warehouses

IP65/IP67 protection withstands dust, moisture, and high-pressure washdown environments.

Infrastructure Projects

· Airport aprons and taxiways

· Railway yards and maintenance facilities

· Highway toll plazas and rest areas

· Parking structures and perimeter security

Wide input voltage range (AC90-305V) accommodates unstable power grids and generator operation.

Commercial Venues

· Outdoor event spaces and exhibition grounds

· Architectural lighting for landmarks

· Construction sites requiring temporary high-output lighting

· Film and broadcast production locations

Customization Options

Standard configurations can be modified to project requirements:

Electrical Specifications:

· Custom wattage ratings (800W-2000W range)

· Voltage-specific models for regional grids

· Dimming integration (0-10V, DALI, DMX protocols)

Optical Configuration:

· Asymmetric beam patterns for specialized applications

· Custom color temperatures (2700K-6500K)

· Anti-glare visor configurations

Mechanical Options:

· Mounting bracket variations (adjustable yoke, fixed, trunnion)

· Extended arm mounting for pole-top installation

· Protective guards for high-risk environments

Contact our engineering team to discuss project-specific requirements.

Frequently Asked Questions

Q: How does the 1500W LED compare to the Metal Halide lights I am replacing?

A: 1500W LED system delivers same light as 3000W-4000W Metal Halide fixtures owing to better effectiveness (130LM/W vs. 60-80LM/W). “Most replacement projects use less LED fixtures and maintain or improve the light levels.

Q: What is real working life?

A: Under normal working circumstances (12 hours/day at 25°C ambient), the expected lifetime is more than 100,000 hours to L70 (70% of original output). This means 20+ years before we have to contemplate replacing it.

Q: Can these fixtures be used in coastal or corrosive environments?

A. Yes. With a C5M corrosion rating, it's suitable for maritime and industrial atmospheres. The fixtures are tested with 1000 hour salt spray and use electrophoresis coating with stainless steel 304/316 hardware.

Q: Do these lights work with existing control systems?

A: Standard models operate on simple on/off control. Optional configurations support 0-10V analog dimming, DALI digital control, or DMX protocols for integration with building management or entertainment control systems.

Q: What documentation is provided for utility rebate applications?

A: DLC Premium certification documentation, photometric test reports (IES files), and energy savings calculations are provided to support utility rebate and incentive program applications.

Next Steps

For project quotations, technical specifications, or 1500 watt stadium lights' design consultation:
