indoor tennis court lighting
Rated Power: 210W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
High-Performance Indoor Tennis Court Lighting Solutions
Product Introduction
Looking for proficient indoor tennis court lighting that conveys extraordinary perceivability and execution? Our 210W premium Driven lighting framework is particularly designed for sports offices, giving ideal brightening that improves player execution and onlooker encounter. With progressed multi-function plan and licensed innovation, this lighting arrangement guarantees uniform light dissemination over your whole tennis court. Our framework disposes of shadows and glare whereas keeping up vitality productivity. The professional-grade development withstands requesting sports situations. Whether you're overhauling an existing office or arranging a unused establishment, our lighting conveys the quality and unwavering quality you need.
Specification
Model | RGL-210A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 25200 lm | |
Dimension (mm) | 360*358*187mm | |
| LEDs | 189W |
Power | Driver | 21W |
Consumption | Total | 210W |
Replace HID Lamp | 500~600W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Indoor Tennis Court Lighting?
Superior Performance & Efficiency
Our progressed Driven innovation conveys 130LM/W productivity, altogether lessening vitality costs whereas giving brilliant light. The high-grade optical plan guarantees reliable light dispersion without hot spots or dim areas.
Versatile Beam Options
Multiple pillar point arrangements permit exact lighting control. Select from limit spot lighting (15°-30°) for centered brightening or wide surge alternatives (60°-140°) for common zone coverage.
Professional Sports Lighting Standards
Engineered particularly for sports applications, our installations meet proficient lighting necessities. The tall CRI rating (>75) guarantees precise color rendering for ideal visual performance.
Built for Durability
Constructed with marine-grade materials and IP67 assurance, these installations withstand unforgiving situations. The strong stainless steel bracket guarantees long-lasting establishment stability.
Smart Installation Design
Our protected multi-function plan rearranges establishment and support. The widespread mounting framework adjusts to different ceiling setups and heights.
Applications
- Professional Tennis Offices: Tournament-grade lighting for competitive play situations requiring exact perceivability standards
- Community Sports Centers: Solid brightening for multi-purpose courts serving recreational and preparing activities
- Private Tennis Clubs: Premium lighting arrangements that improve part encounter and office prestige
- Educational Teach: School recreation centers and college entertainment centers with indoor tennis court facilities
- Training Foundations: Specialized tennis preparing offices requiring reliable, high-quality lighting for ability development
- Multipurpose Sports Corridors: Flexible scenes facilitating tennis nearby other indoor sports activities
- Recreation Centers: Metropolitan and community centers advertising tennis programs for all expertise levels
- Corporate Offices: Company entertainment centers and representative wellness offices including tennis courts
- Rehabilitation Centers: Restorative and sports treatment offices utilizing tennis for physical restoration programs

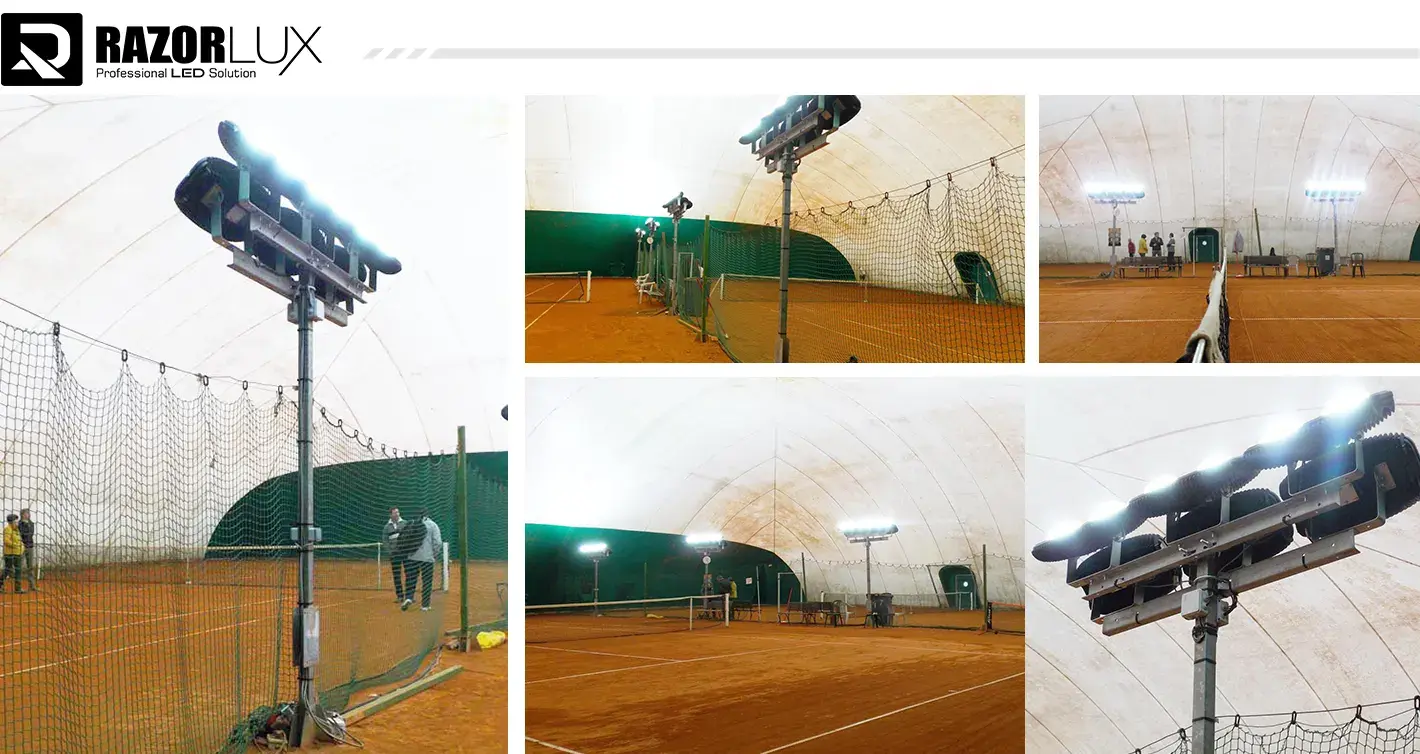

- Tennis Bubbles: Regular secured courts requiring proficient brief or lasting lighting solutions
Quality Control
At Razorlux, we keep up the most noteworthy quality guidelines through our comprehensive quality confirmation program. Our ISO9001-certified fabricating handle, kept up for over 22 a long time, guarantees each installation meets strict execution criteria.
Each lighting unit experiences thorough testing counting warm cycling, vibration resistance, and photometric approval. Our quality control group screens generation at each arrange, from component sourcing to last assembly.
We actualize DFEMA disappointment mode examination, received from car industry measures, to recognize and dispense with potential issues some time recently they reach clients. This proactive approach guarantees most extreme unwavering quality and longevity.
Shipment Samples
We give comprehensive examining administrations to guarantee our items meet your particular prerequisites. Custom tests are accessible with different pillar points and mounting configurations.
Sample orders ordinarily transport inside 3-5 trade days through express conveyance. Each test bundle incorporates point by point details, establishment guides, and photometric information sheets.
Our specialized group can customize test setups based on your facility's interesting necessities, counting particular color temperatures and pillar patterns.
Packaging and Transportation
Professional bundling guarantees secure conveyance of your lighting venture. Each installation is separately wrapped in defensive froth and housed in fortified cardboard cartons.
We offer adaptable shipping alternatives counting discuss cargo for pressing orders, rail transport for cost-effective conveyance, and ocean cargo for huge establishments. Our experienced coordinations group facilitates with worldwide carriers to guarantee opportune delivery.
All shipments incorporate comprehensive documentation, following data, and dealing with enlightening to encourage smooth traditions clearance and delivery.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Quality Control
Our quality administration framework includes each viewpoint of generation and conveyance. Progressed testing hardware approves electrical execution, optical characteristics, and mechanical durability.
Environmental testing incorporates temperature cycling, stickiness presentation, and vibration testing to recreate real-world working conditions. This guarantees dependable execution all through the fixture's operational life.
Third-party certification through recognized testing research facilities gives extra approval of security and execution benchmarks compliance.
After Sales Service
Razorlux stands behind each indoor tennis court lighting installation with comprehensive guarantee scope and responsive specialized bolster. Our 5-year guarantee secures your speculation and guarantees long-term satisfaction.
Our specialized back group gives establishment direction, investigating help, and support proposals. We keep up point by point item documentation and save parts stock for continuous support.
Remote symptomatic capabilities permit our engineers to help with framework optimization and execution tuning. This guarantees your lighting framework proceeds working at top efficiency.
Qualification Certification
Our items hold different worldwide certifications counting RMRS for marine applications, UL for North American markets, CE for European compliance, and SAA for Australian standards.
These certifications approve our commitment to security, execution, and natural obligation. Our ISO9001 quality administration certification illustrates reliable adherence to worldwide quality standards.
All items comply with RoHS natural mandates, guaranteeing mindful fabricating and end-of-life transfer hones.
FAQ
Q: What is the recommended mounting height for tennis court applications?
A: For optimal performance, mount fixtures 20-30 feet above the playing surface. Higher mounting provides better uniformity while reducing glare for players.
Q: How many fixtures do I need for a standard tennis court?
A: A typical indoor tennis court requires 6-8 fixtures depending on ceiling height and desired illumination levels. Our technical team can provide detailed layout calculations.
Q: Can the lighting be dimmed for different activities?
A: Yes, our fixtures support 0-10V and DALI dimming protocols, allowing adjustment for various activities from casual play to tournament competition.
Q: What is the expected lifespan of these LED fixtures?
A: With L70 rating of 50,000+ hours, expect 15-20 years of reliable operation under typical usage patterns. The 5-year warranty covers this operational period.
Q: Are these fixtures suitable for retrofit installations?
A: Absolutely. The versatile mounting system adapts to existing infrastructure, making upgrades from traditional lighting systems straightforward and cost-effective.
Q: How does this lighting compare to traditional metal halide systems?
A: Our LED system provides 60% energy savings, instant-on capability, better light quality, and significantly reduced maintenance compared to metal halide alternatives.
Contact Us
Ready to transform your tennis facility with professional indoor tennis court lighting? Our expert team is here to help you design the perfect lighting solution for your specific needs.
For technical specifications, pricing information, or custom quotations, contact us at: sam@razorlux.com
We look forward to partnering with you to create an exceptional tennis playing environment that enhances performance and provides years of reliable service.
