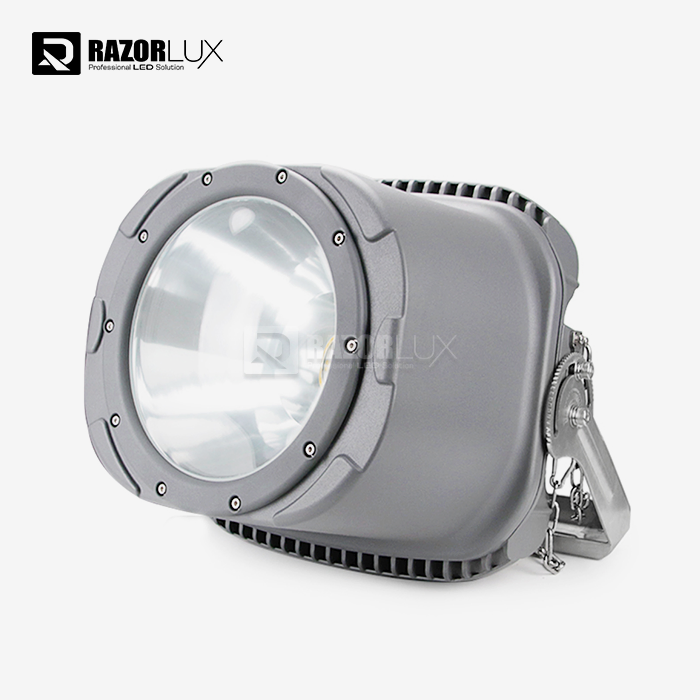

led court lights
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Transform Your Sports Facility with Tournament-Led Court Lights
Still using outdated 1000W metal halide fixtures? You're likely dealing with:
· 15-minute warm-up delays when games should start
· Bulb replacements every 8-12 months
· Uneven lighting creating "dead zones" on court
We recommend upgrading the lighting system to led court lights.
Led Court Lights Specifications
Model | RGL2-400P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 48000lm | |
Dimension (mm) | 466*388*487 | |

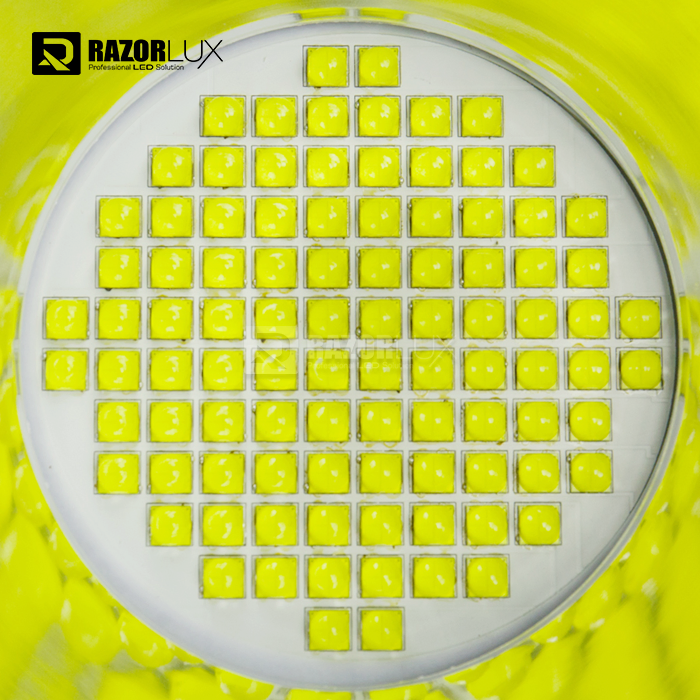

| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 22kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |

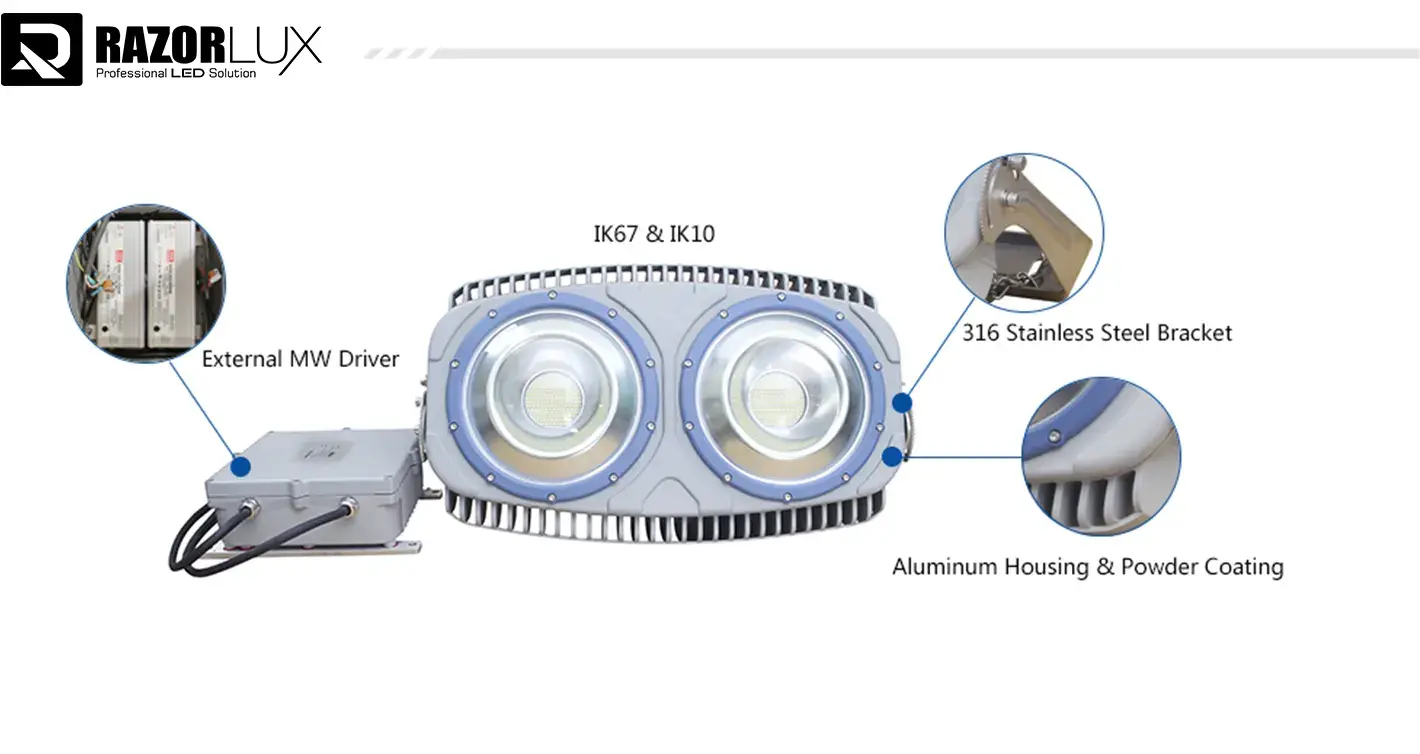

Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Application Showcase
Tennis Courts
Challenge:Overhead glare during serves
Solution:20° narrow beam fixtures at 8m height
Result:Meets ITF Class II standards (500 lux avg)
Basketball Arenas
Challenge:Fast ball tracking + broadcast quality
Solution:60° wide beam + 95 CRI option
Result:Flicker-free for 4K cameras, 750 lux vertical illuminance
Multi-Sport Facilities
One venue, multiple sports? Our led court lights' modular system adapts:
· Badminton:40° beam, 300 lux
· Volleyball:60° beam, 500 lux
· Pickle ball:Customizable zones
Why Facility Managers Choose Razorlux
Built for Extreme Conditions
Tested to Destruction (So Yours Won't Be):
· IP67: Submersion test passed (1m water, 30 min)
· IK08: Impact resistance (5kg steel ball, 2m drop)
· Thermal: -40°C to +55°C operation
· Surge: 20kV lightning protection
· Salt spray: 1000-hour C5M rating
Instant-On Performance
No more waiting:
· Traditional HID: 10-15 minutes to full brightness
· Razorlux LED:< 0.5 secondsto 100% output
Smart Controls Ready:
· 0-10V / DALI dimming
· Zigbee / Bluetooth Mesh compatible
· Scheduling + motion sensors supported
About Razorlux: 25 Years of Lighting Engineering
Not just a manufacturer — your lighting partner.
Track Record:
· 500+ sports facilities worldwide
· 200+ patents (LED optics, thermal management, drivers)
· 25 years in power supply engineering
Team:
· 10+ PhD-level optical engineers
· 30% bachelor's degree or higher
· In-house testing laboratory
Facility:
· ISO 9001 certified since 2001
· Automated production lines
· 72-hour burn-in testing (every fixture)
Real Questions from Real Customers
"Will my existing poles support these lights?"
Short answer:Probably yes.
Our 400W LED (15kg) is lighter than comparable 1000W HID systems (22-28kg). We provide free pole load calculations before purchase.
"How do I know if the light distribution is right for my court?"
We design it for you — free.
Send us:
1. Court dimensions
2. Pole positions (or we suggest ideal layout)
3. Sport type + level (recreational / competition)
Our engineers useDIALux softwareto model your exact scenario and deliver:
· 3D lighting simulation
· Lux distribution map
· Glare analysis (UGR rating)
"Can I see these lights before buying?"
Yes:
4. Visit Our Showroom
Xi'an Razorlux HQ (by appointment)
See 15+ lighting scenarios live
Ready to Cut Energy Costs by 60-70%?
Start with a free lighting assessment:
Contact our led court lights' team:sam@razorlux.com
