led sport court lighting
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
LED Sport Court Lighting - Professional Athletic Illumination Solutions
Change your athletic office with our led sport court lighting frameworks. At Xi'an Razorlux Optoelectronic Innovation Co., Ltd., we convey high-performance light arrangements that upgrade player perceivability and diversion quality. Our progressed lighting innovation guarantees uniform light conveyance over your whole court. Whether you work tennis courts, ball courts, or multi-purpose sports offices, our professional-grade installations give the brightness and unwavering quality you require for ideal athletic performance.
Product Introduction
Our premium sports court lighting framework highlights licensed multi-function plan reasonable for all athletic situations. Built with progressed Driven innovation and marine-grade solidness standards.

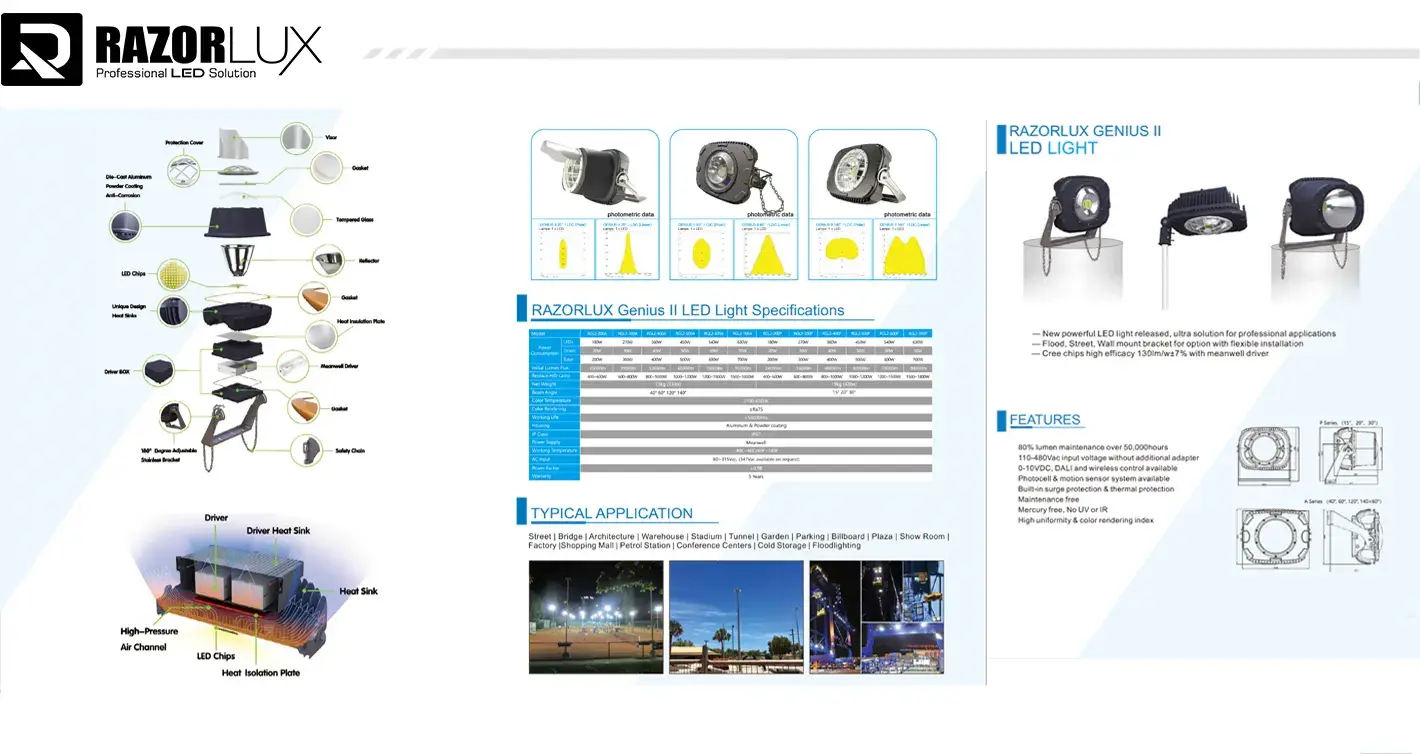

Specification
Model | RGL2-400A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 52000lm | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 15kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |

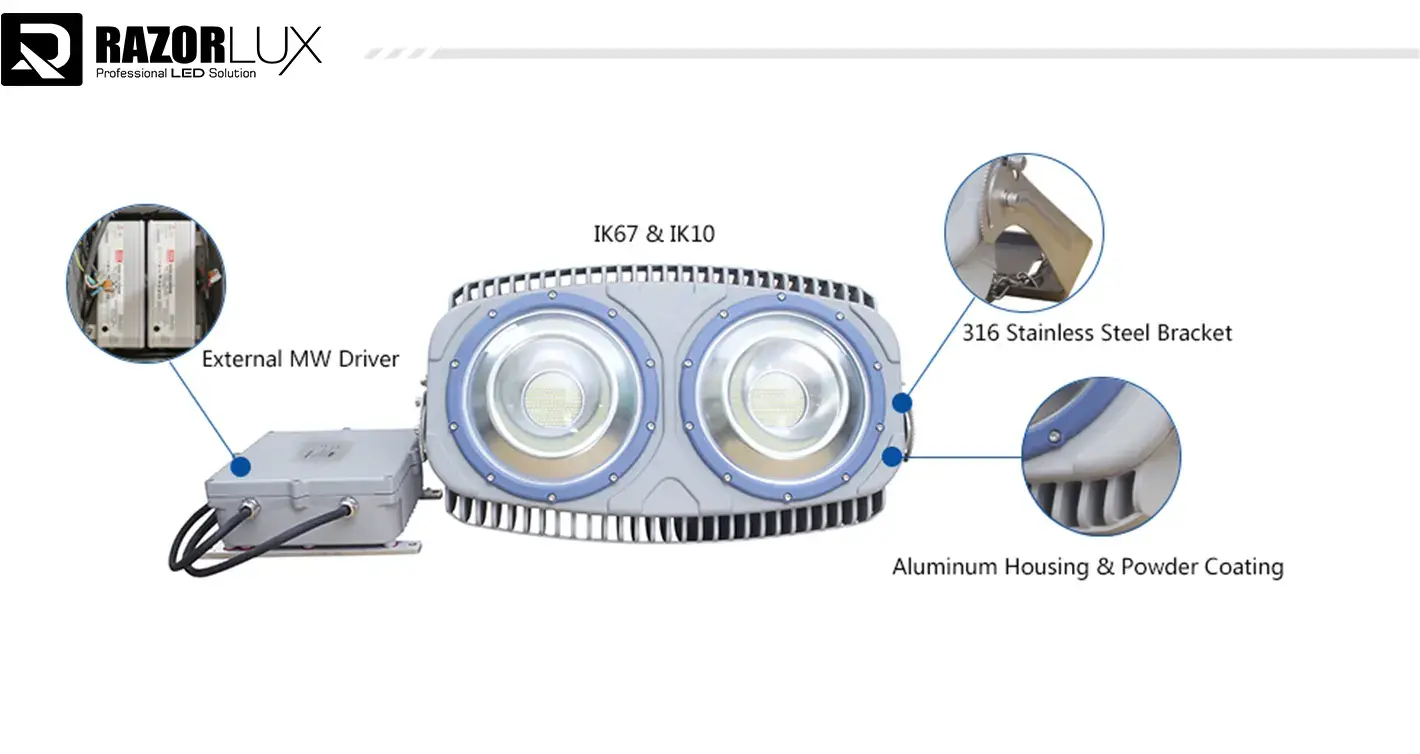

Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our LED Sport Court Lighting?
Superior Performance & Visibility
Our installations provide remarkable brightness with uniform dispersion. You'll kill dim spots and shadows that influence diversion quality. Players encounter improved ball following and progressed response times.
Energy Efficiency Excellence
Save up to 70% on power costs compared to conventional lighting. Our high-efficiency plan changes over 95% of electrical vitality into usable light. Lower working costs cruel speedier return on investment.
Professional Durability
Built with marine-grade components for extraordinary unwavering quality. Weather-resistant lodging withstands cruel open air conditions. Your venture remains ensured with IP67 waterproof rating.
Instant Operation
No warm-up time required - full brightness immediately. Perfect for evening games and tournaments. Reliable performance when you need it most.
Reduced Maintenance
100,000+ hour lifespan means fewer replacements. Robust construction minimizes downtime. Focus on your games, not lighting maintenance.

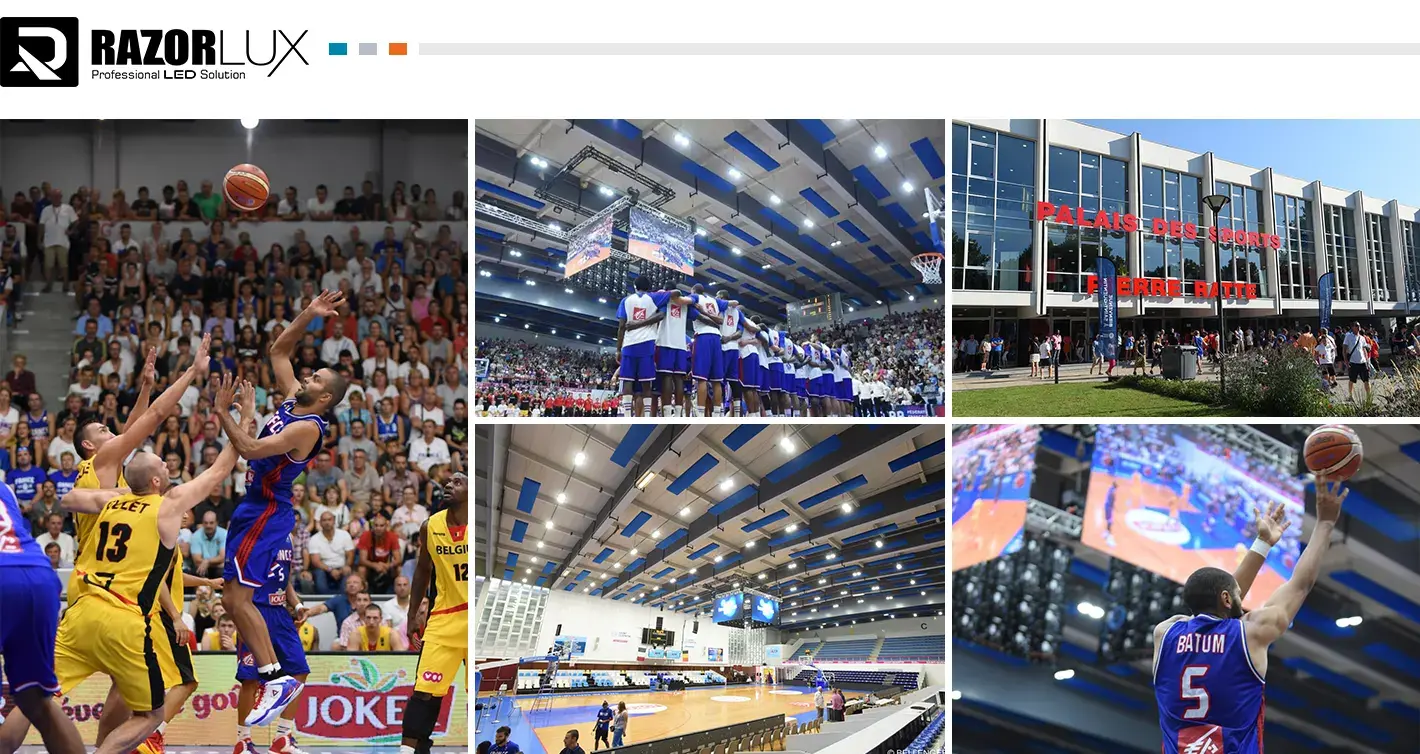

Applications
• Tennis Courts: Professional tournament lighting with precise beam control for optimal player visibility and minimal glare during competitive matches
• Basketball Courts: High-intensity illumination systems providing uniform coverage across full court dimensions with excellent vertical lighting for tracking ball movement
• Volleyball Courts: Specialized lighting design accommodating fast-paced gameplay with proper illumination for both indoor and beach volleyball facilities
• Soccer Fields: Large-area coverage solutions with strategic pole placement ensuring consistent light levels across entire playing surfaces and sideline areas
• Multi-Sport Complexes: Versatile lighting systems adaptable for various athletic activities with adjustable beam angles and brightness controls
• Recreational Centers: Community facility lighting providing safe and comfortable illumination for casual play and fitness activities
• School Athletic Programs: Educational institution sports lighting meeting safety standards while maintaining energy efficiency for budget-conscious operations
• Private Sports Clubs: Premium lighting solutions enhancing member experience with professional-grade illumination quality
• Training Facilities: Specialized lighting for athletic development centers requiring consistent performance under various training conditions
• Event Venues: Portable and permanent installations for sports events, tournaments, and competitions requiring broadcast-quality lighting standards
Quality Control
Our rigorous quality management system ensures every fixture meets the highest standards. We maintain ISO9001 certification for 22 consecutive years. Each product undergoes comprehensive testing before shipment.
All components pass strict durability tests. Our quality team inspects electrical performance, thermal management, and weatherproof sealing. We guarantee consistent performance across your entire order.
Shipment Samples
We provide customized samples for evaluation before bulk orders. Test our led sport court lighting performance at your facility. Sample orders ship within 3-5 business days via express courier.
Your sample package includes technical documentation and installation guidance. Evaluate light quality, beam angles, and mounting options. Make informed decisions with hands-on testing.

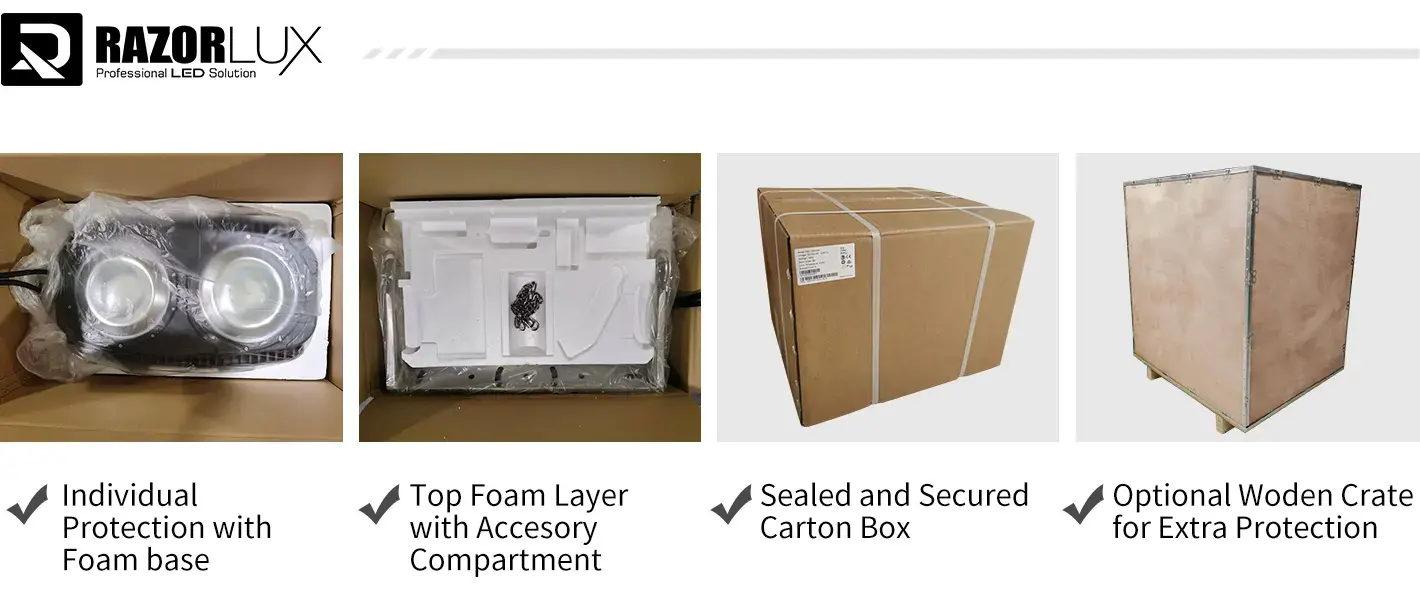

Packaging and Transportation
Professional Packaging protects your investment during shipping. Each fixture receives individual protective wrapping. Custom foam inserts prevent damage during transport.
We offer flexible shipping options including air freight, sea cargo, and rail transport. Global logistics network ensures timely delivery worldwide. Tracking information provided for all shipments.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Quality Control
Every product undergoes multiple inspection stages. Pre-production testing validates component specifications. In-line quality checks monitor assembly processes. Final inspection confirms complete functionality.
Our testing laboratory uses advanced equipment for photometric analysis. Thermal cycling tests ensure long-term reliability. Environmental testing validates weather resistance claims.
After Sales Service
Our technical support team provides comprehensive assistance. Installation guidance helps ensure proper setup. Troubleshooting support resolves any operational questions quickly.
We honor our 5-year warranty commitment. Replacement parts available for extended product life. Our global service network supports your facility's ongoing needs.
Professional lighting design consultation available. Our engineers help optimize your led sport court lighting layout. Maximize performance while minimizing installation costs.
Qualification Certification
Our products meet international safety and performance standards. RMRS certification validates marine-grade durability. UL listing ensures North American electrical safety compliance.
European CE marking confirms regulatory conformity. Australian SAA approval enables installation across Australia and New Zealand. ISO9001 certification demonstrates consistent quality management.
FAQ
Q: How many fixtures do I need for my tennis court?
A: Court size determines fixture quantity. Standard tennis courts typically require 4-8 fixtures depending on pole height and beam angles. Our engineers provide custom calculations for your specific layout.
Q: What mounting height works best for sports courts?
A: Optimal mounting height ranges from 8-12 meters. Higher mounting reduces glare while ensuring adequate coverage. We recommend professional site evaluation for best results.
Q: Can these lights work with existing electrical systems?
A: Yes, our wide input voltage range (AC90-305V) accommodates most electrical systems. Our technical team verifies compatibility before installation begins.
Q: How long do these fixtures last in outdoor conditions?
A: Our fixtures provide 100,000+ hour lifespan with proper installation. Marine-grade construction ensures reliable performance in harsh weather conditions.
Q: Do you offer dimming capabilities?
A: Yes, we provide 0-10V and DALI dimming options. Adjust brightness levels for different activities and energy management requirements.
Contact Us
Ready to upgrade your sports facility with professional led sport court lighting? Contact our expert team for personalized consultation and quotation.
Email: sam@razorlux.com
Our lighting specialists respond within 24 hours. Get professional guidance for your next lighting project. Experience the difference quality illumination makes for your athletic facility.
