cricket stadium flood light

Patented Multi-function design, suitable for all working environments.
Rated Power: 800W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Cricket Stadium Flood Light - Professional LED Lighting Solutions

Each cricket coordinate merits idealize lighting—whether it's a neighborhood competition or an universal broadcast. Our cricket stadium flood light framework delivers2000+ lux uniformityacross the pitch, assembly ICC broadcasting measures whereas cutting vitality costs by 60% compared to conventional metal halide systems.

Designed for real-world conditions:IP67 weatherproofing • -40°C to +50°C operation • 50,000-hour lifespan

Trusted by scenes worldwide:15-year Xi'an Razorlux building legacy • 200+ protected innovations • ISO9001 certified since 2001

product-1-1

Why Stadium Managers Choose This Lighting System

Meet Broadcasting Standards Without Overspending

International cricket requiresminimum 2000 lux horizontal illuminationwith <15% uniformity variation. Our optical design achieves this at 30-40m mounting heights while consuming 20% less power than comparable 1000W systems.

Built for Harsh Environments (Not Just IP Ratings)

We've stress-tested these fixtures in:

· Coastal venues (C5M corrosion resistance)

· Desert climates (+50°C sustained operation)

· Monsoon regions (IP67 submersion protection)

Engineering detail:Our thermal management system uses aviation-grade aluminum heat sinks with graphene coating—technology developed through 8 years of military power supply manufacturing.

product-1-1

Flexible Control for Every Event Type

Different cricket formats need different lighting:

· Test matches:100% brightness for 8+ hours

· T20 games:Dynamic dimming for player entrances

· Training sessions:40-60% output to extend lifespan

Control compatibility:0-10V analog, DALI digital, DMX512 for entertainment integration

Works with Philips Dynalite, Lutron, and Crestron systems

Maintenance That Doesn't Disrupt Your Schedule

Modular driver designallows on-site replacement without crane rental. Our regional distribution centers stock critical components for 48-hour shipping across 30+ countries.

Lifespan comparison:

· Metal halide: 6,000-15,000 hours (requires yearly re-lamping)

· Our cricket stadium flood light system: 50,000 hours (replace once per decade)

product-1-1

Cricket Stadium Flood Light Specification

Model		RGL-800P-L20
Beam Angle		20°
Stable Flux (5700K after 1 hour)		88000lm
Dimension (mm)		671405322
Power Consumption	LEDs	720W
	Driver	80W
	Total	800W
Replace HID Lamp		1500~2500W
Net Weight		32kg
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65,IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~305Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

product-1-1

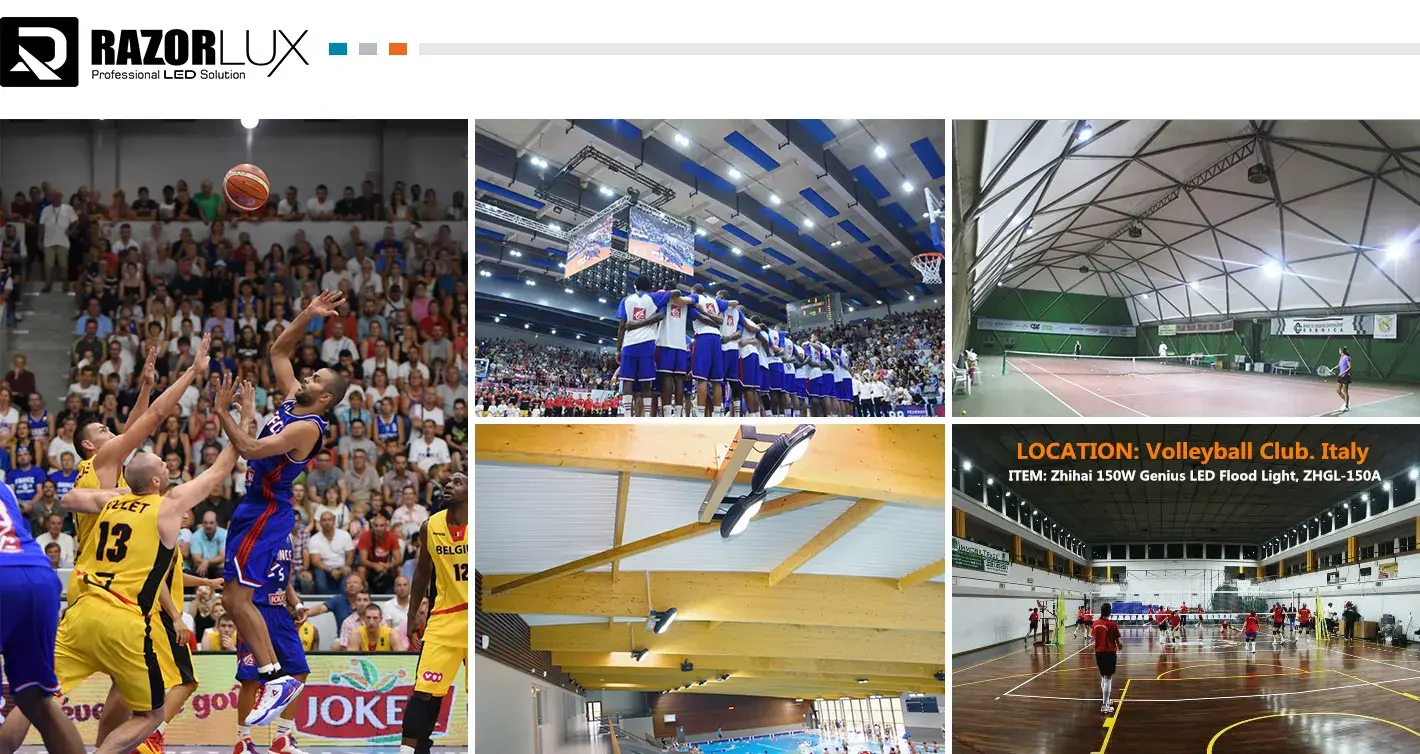

Proven Applications & Case Studies

Multi-Sport Complexes

Perfect for scenes facilitating cricket, football, games, and tennis. Alter color temperature (2700K-6500K) to coordinate sport-specific prerequisites without changing fixtures.

Cricket Training Academies

Educational teach advantage from darkening capabilities amid drills and instant-on usefulness (no warm-up delays).

ROI example:A Mumbai institute recuperated establishment costs in 22 months through vitality reserve funds alone.

Municipal Sports Parks

Vandal-resistant stainless steel brackets and shatterproof polycarbonate focal points withstand open office requests. C5M coastal rating avoids erosion in ocean side communities.

product-1-1

Understanding Our Certifications

Certification	Why It Matters
UL/DLC	Required for North American insurance compliance and utility rebates
CE/RoHS	Ensures no hazardous materials (required in EU/UK markets)
SAA/C-Tick	Australian electrical safety mandatory standard
IP67	Survives temporary submersion (critical for outdoor installations)
ISO9001	Audited quality control (we've maintained this since 2001)
C5M	Highest corrosion resistance rating—essential for coastal venues

Our Xi'an Led Engineering Laboratory is authorized by China's National Development & Reform Commission.

product-1-1

Frequently Asked Questions

How do I calculate how many fixtures I need?

It depends on:

· Ground dimensions (standard cricket pitch is 137m × 150m)

· Pole height and positions

· Required lux level (training: 500 lux | amateur: 750 lux | broadcast: 2000+ lux)

We provide free lighting simulation:Send us your stadium CAD file or Google Maps coordinates, and we'll deliver a photometric analysis within 48 hours.

What's the real-world lifespan?

50,000 hours equals:

· 10 yearsat 4 hours/day, 5 days/week

· 13.7 yearsat 10 hours/day (intensive use)

Lifespan extends significantly with dimming. At 60% brightness, expect 70,000+ hours.

Can these integrate with our existing control system?

Yes. We support:

· 0-10V analog dimming(most common)

· DALI digital control(recommended for 20+ fixtures)

· DMX512(for stadiums with entertainment systems)

Our engineering team has integrated with Philips, Lutron, Crestron, and custom BMS platforms.

What happens if a fixture fails during a match?
