led football field lights
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

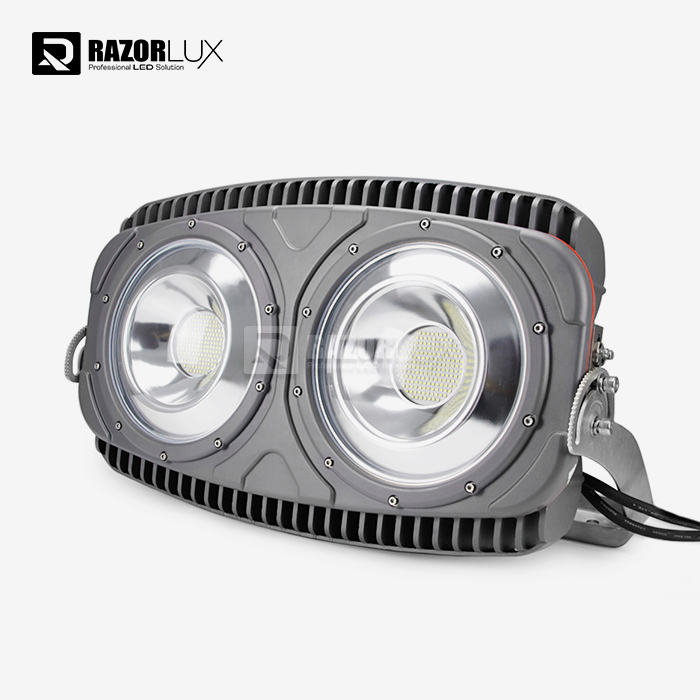

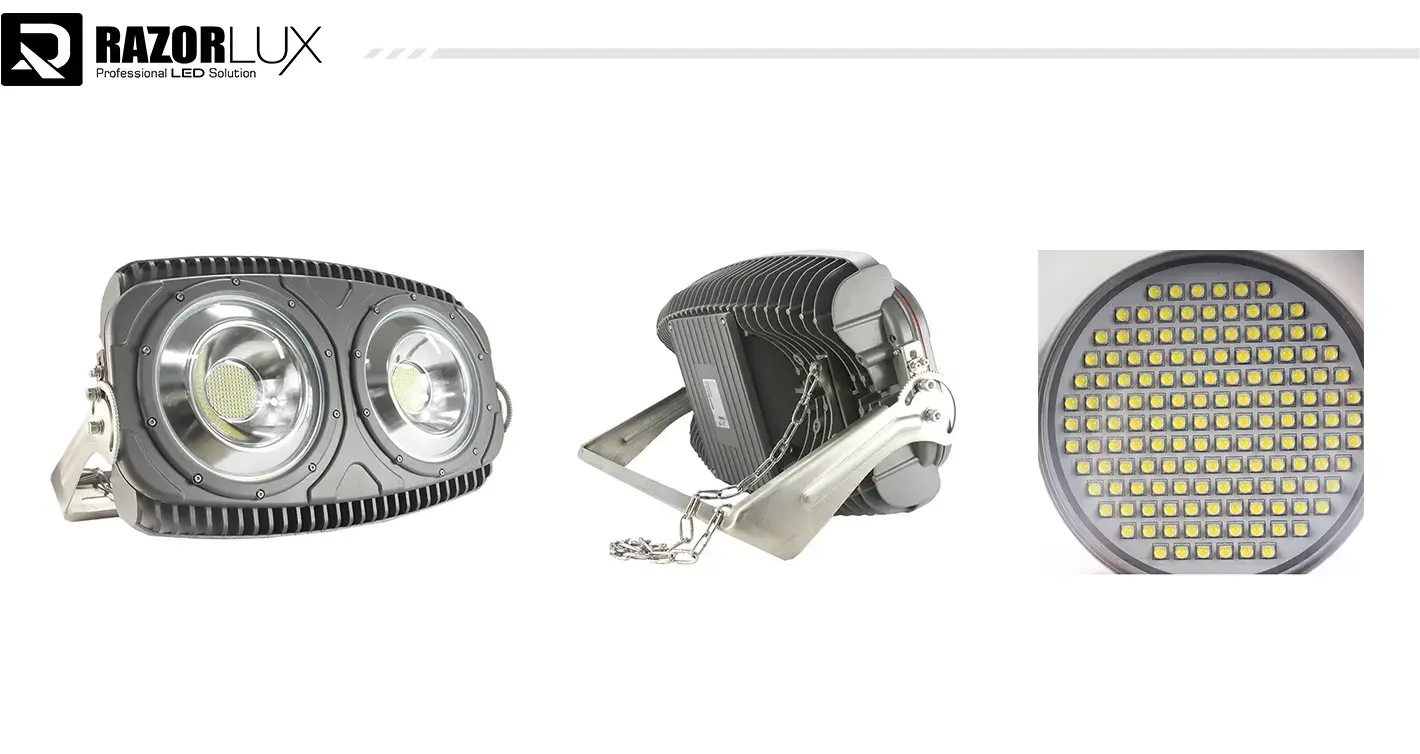

LED Football Field Lights - Professional Sports Lighting Solutions
Product Introduction
Change your football field with our premium led football field lights that convey extraordinary brightness and strength. Our 1000W sports lighting installations are built particularly for athletic scenes, giving steady light over the whole playing surface. With protected multi-function plan innovation, these driven football field lights adjust to all working situations and climate conditions, guaranteeing your recreations never stop.
Specification
Model | RGL-1000A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 130000lm | |
Dimension (mm) | 671*405*379 | |
| LEDs | 900W |
| Driver | 100W |
| Total | 1000W |
Replace HID Lamp | 2000~3000W | |
Net Weight | 29kg (66lbs) | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 65 (Upgradeable to IP 67) | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80~305Vac | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our LED Football Field Lights?
Proven Excellence Since 1998
Razorlux brings over 25 a long time of lighting ability to your sports office. Our building group incorporates 10+ teachers and specialists who get it the one of a kind requests of athletic lighting.
Superior Light Performance
You get 130LM/W productivity with customizable pillar points from 15° to 140°×60°. This implies superior perceivability for players and onlookers whereas diminishing vitality costs by up to 60% compared to conventional metal halide fixtures.
All-Weather Durability
IP67 assurance rating guarantees your lights perform faultlessly through rain, snow, and extraordinary temperatures. The stainless steel mounting bracket stands up to erosion and wind loads.
Zero Flicker Technology
Our progressed driver innovation dispenses with glint, giving consistent light that's culminate for broadcast tv and high-speed cameras amid games.

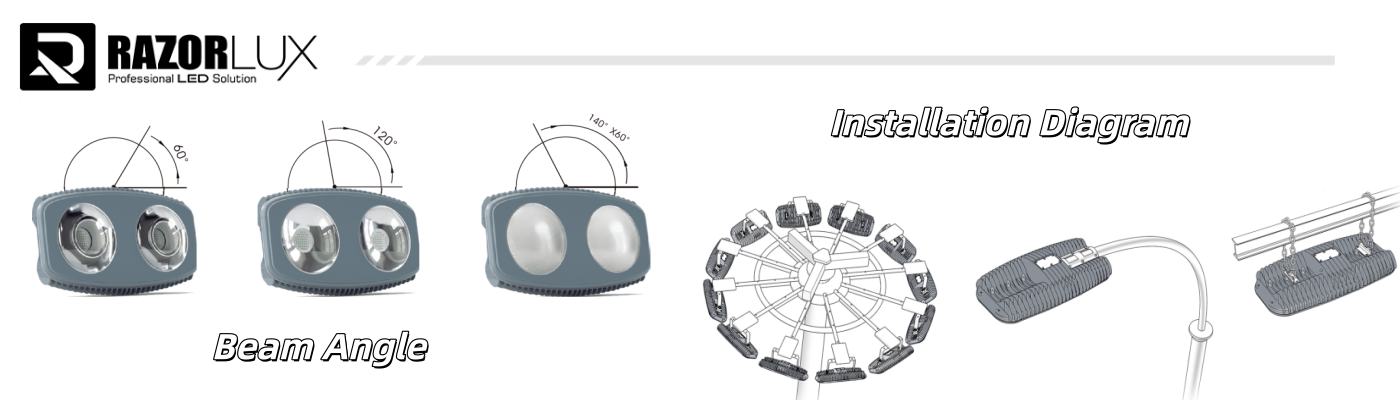

Flexible Installation Options
Multiple bar point choices permit exact light dissemination. Whether you require limit spot bars for pole-mounted installations or wide surge designs for lower establishments, we have the solution.
Applications
- Professional Football Stadiums: FIFA and NFL standard light levels for broadcast diversions and tournaments
- College and College Areas: Comprehensive lighting for preparing, competitions, and campus diversion activities
- High School Athletic Offices: Cost-effective arrangements assembly state athletic affiliation prerequisites for varsity sports
- Municipal Sports Complexes: Multi-use field lighting supporting football, soccer, and community events
- Training Offices: Proficient group hone areas requiring reliable, high-quality illumination
- Youth Association Areas: Secure, satisfactory lighting for evening hones and end of the week games
- Recreation Centers: Indoor and open air sports offices with adaptable lighting control systems
- Military Base Amusement: Tough lighting for military establishment sports and preparing facilities
Quality Control
Every installation experiences thorough testing in our Xi'an Driven Lighting Building Research facility. We keep up ISO9001 certification for 22+ sequential a long time, guaranteeing steady quality you can trust.
Our military-grade quality framework incorporates warm cycling tests, vibration resistance testing, and photometric confirmation. Each unit is separately tried some time recently shipment to ensure execution specifications.
Shipment Samples
We give customized tests for your assessment some time recently bulk orders. This permits you to test light dissemination, mounting compatibility, and control framework integration at your facility.
Sample orders regularly dispatch inside 7-10 commerce days through express messenger with full following information.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Packaging and Transportation
Professional bundling ensures your venture amid shipping. Each installation incorporates froth padding, dampness boundaries, and shock-resistant cartons.
We offer adaptable shipping choices counting discuss cargo for critical ventures, rail transport for taken a toll proficiency, and sea cargo for expansive establishments. All shipments incorporate comprehensive protections coverage.
After Sales Service
Your fulfillment doesn't conclusion at conveyance. We give 5-year guarantee scope with responsive specialized back from our building team.
Our worldwide benefit arrange guarantees speedy determination of any issues. Substitution parts are supplied territorially for negligible downtime.
Qualification Certifications
Our led football field lights hold certifications from major testing research facilities around the world counting UL (North America), CE (Europe), SAA (Australia), and DLC for utility discount eligibility.
RoHS compliance guarantees natural obligation whereas RMRS certification approves marine-grade toughness guidelines.
FAQ
Q: What spacing should I use between light poles for a football field?
A: Typical pole spacing ranges from 180-250 feet depending on mounting height and beam angles. We provide free lighting calculations to optimize your layout.
Q: Can these lights be dimmed for different events?
A: Yes, our fixtures support 0-10V and DALI dimming protocols, allowing you to adjust brightness for practices, games, or special events.
Q: How do these compare to metal halide sports lights?
A: Our LED fixtures provide instant-on operation, 50,000+ hour lifespan, and 60% energy savings compared to traditional metal halide systems.
Q: What mounting height works best for football field lighting?
A: We recommend 80-120 foot mounting heights for optimal uniformity. Higher poles reduce glare while providing even distribution across the field.
Q: Do you offer photometric layouts for my specific field?
A: Absolutely! Our engineering team provides complete lighting design services including lux calculations, uniformity analysis, and compliance verification at no charge.
