Led Outdoor Arena Lights
Rated Power: 270W
Input Voltage: 80-315Vac, DC80 ~ 400Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 8KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Led Outdoor Arena Lights: Illuminate Your Sporting Events with Brilliance
Xi'an Razorlux Optoelectronic Technology Co., Ltd. is a leading manufacturer and supplier of high-quality Led Outdoor Arena Lights. With over two decades of experience in LED technology, Razorlux offers cutting-edge lighting solutions that combine durability, energy efficiency, and superior performance. Our products are designed to meet the demanding requirements of professional sports facilities and large-scale event venues.
Why Choose Our Products?
Our products are engineered to deliver exceptional illumination for stadiums, sports complexes, and outdoor entertainment areas. Here's why our lights stand out:
- Unmatched Durability: Built to withstand harsh weather conditions and impacts.
- Energy Efficiency: High lumens per watt ratio for significant cost savings.
- Customizable Lighting: Adjustable beam angles and color temperatures.
- Smart Integration: Compatible with IoT controls for advanced lighting management.
- Long Lifespan: L70/L90 ratings that ensure sustained performance.
- Regulatory Compliance: Meets international standards including CE, RoHS, and UL.
Product Specifications
Model | RGL-270A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 32400 lm | |
Dimension (mm) | 360*358*187 | |
| LEDs | 243W |
Power | Driver | 27W |
Consumption | Total | 270W |
Replace HID Lamp | 600~1000W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year |

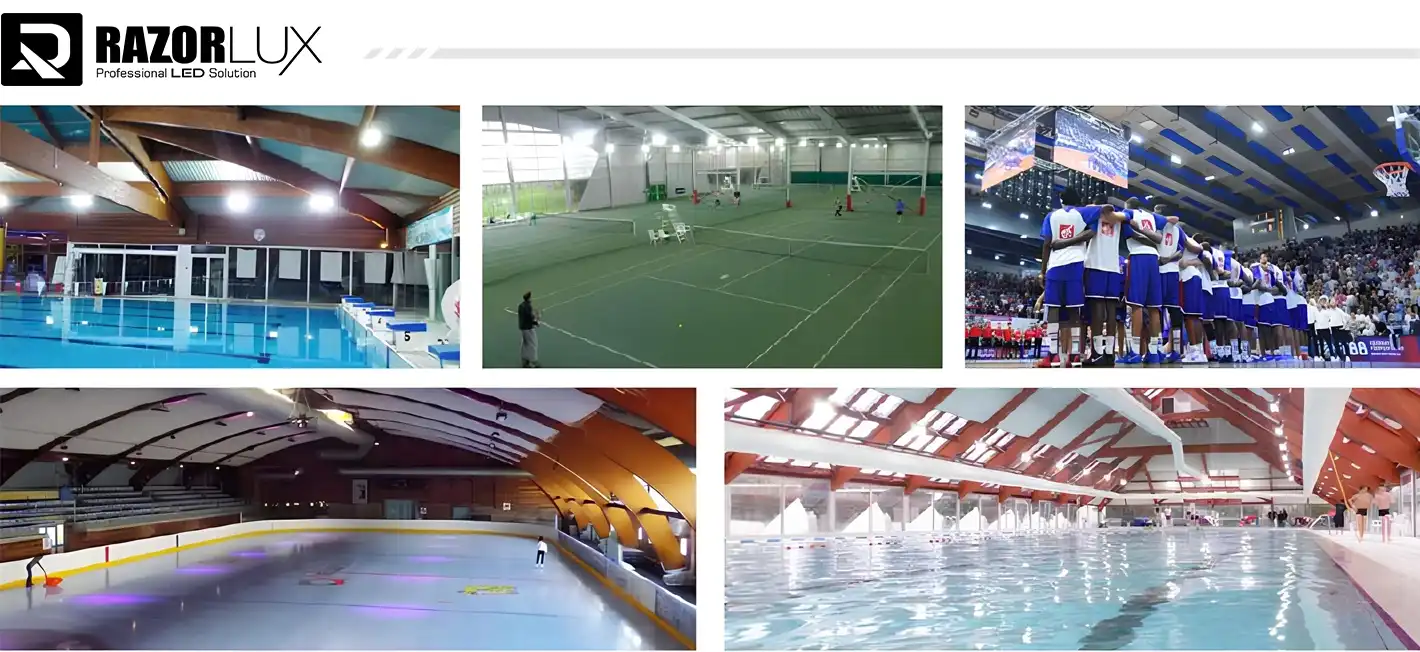

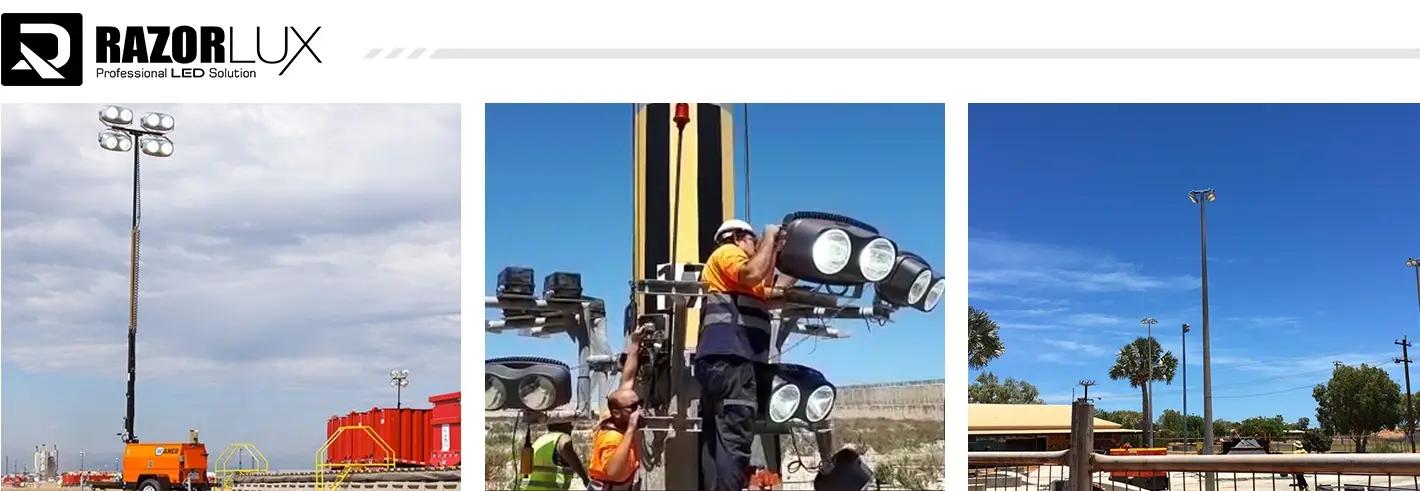

Applications
Our Led Outdoor Arena Lights are versatile and ideal for various large-scale outdoor applications:
- Professional sports stadiums
- College and high school athletic fields
- Tennis and basketball courts
- Swimming pools and aquatic centers
- Concert venues and festival grounds
- Public parks and recreational areas
- Parking lots and large outdoor spaces
- Television broadcast events
Quality Control
At Razorlux, quality is paramount. We maintain strict quality control measures:
- ISO 9001 certified quality management system
- DFMEA failure mode analysis for enhanced reliability
- Rigorous testing for IP68 protection and environmental compliance
- Continuous improvement based on customer feedback
Why Choose Razorlux
- Industry pioneer with 20+ years of LED lighting expertise
- Comprehensive R&D capabilities with 200+ patents
- Global presence with certifications for international markets
- Value-added services including lighting design and efficiency calculations
- Commitment to sustainability and energy-efficient solutions
Shipment & Samples
We offer flexible shipping options to meet your project timelines. Sample units are available for testing and evaluation upon request.
Packaging and Transportation
Our products are securely packaged to ensure safe transportation. We use robust materials and custom-designed boxes to protect the fixtures during shipping.
Transaction Feedback
We value your feedback and continuously strive to improve our products and services based on customer input.
After-Sales Service
Razorlux provides comprehensive after-sales support:
- 5-year warranty on all Led Outdoor Arena Lights
- Technical support and maintenance guidance
- Spare parts availability
- On-site assistance for large-scale installations
Qualification Certification
Our products and processes are certified by leading international bodies, ensuring quality and compliance across global markets.
FAQ
Q: What is the lifespan of your products?
A: Our lights are designed to last 50,000+ hours with L70 ratings.
Q: Are your lights suitable for broadcast-quality lighting?
A: Yes, we offer options with CRI>90 for TV broadcast requirements.
Q: Can the lights be dimmed or controlled remotely?
A: Absolutely. Our lights are compatible with various smart control systems.
Q: How energy-efficient are your products?
A: They offer up to 60% energy savings compared to traditional lighting solutions.
Q: Do you provide lighting design services?
A: Yes, we offer complimentary lighting layout and efficiency calculations.
