marine deck lights
Rated Power: 150W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

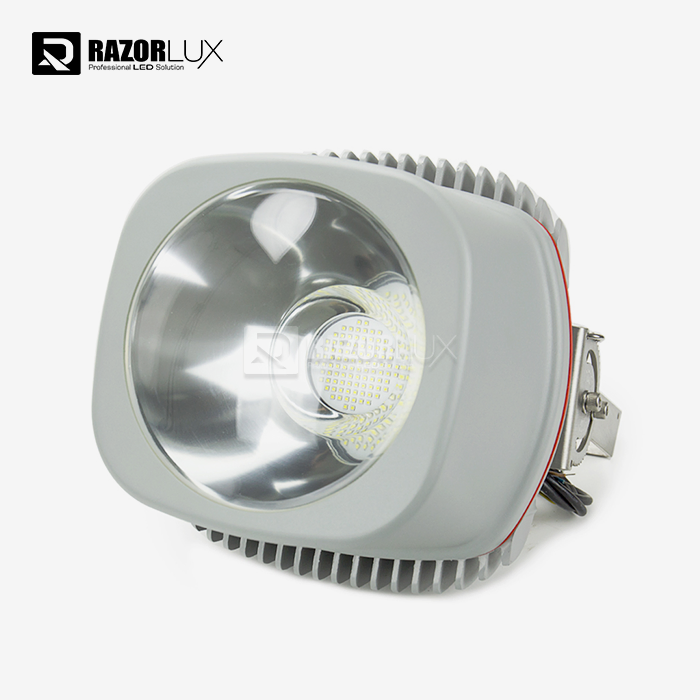

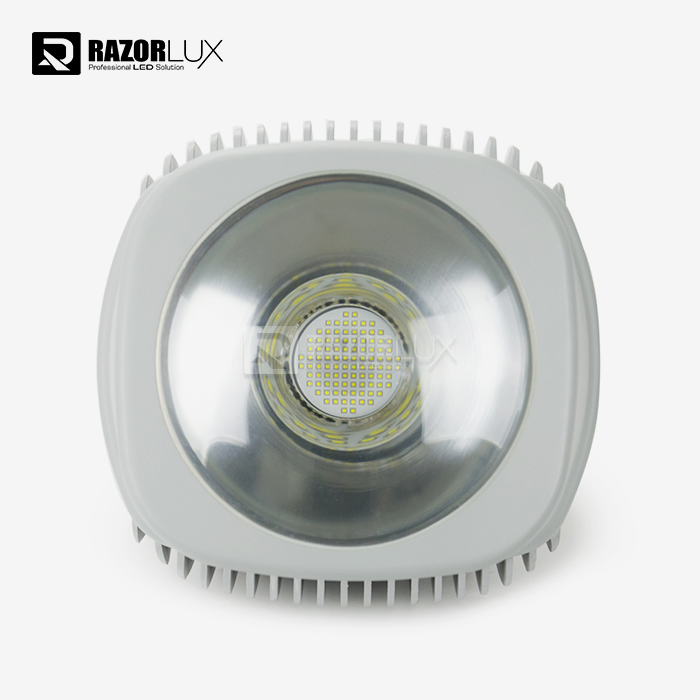

Professional Marine Deck Lights - High-Performance LED Lighting Solutions
When you're exploring the requesting marine environment, dependable light is pivotal for security and operational productivity. Our proficient marine deck lights provide extraordinary execution with progressed Driven innovation planned particularly for oceanic applications. These premium deck lighting arrangements combine vigorous development with predominant brightening, guaranteeing your vessel works securely in all conditions. Our lights include protected multi-function plan, making them the perfect choice for proficient oceanic operations worldwide.
Product Introduction
Our marine deck lighting frameworks speak to the apex of sea brightening innovation. Each installation combines cutting-edge Driven effectiveness with marine-grade durability.
Specification
Model | RGL-150P | |
Beam Angle | 20° | |
Stable Flux (5700K after 1 hour) | 13200 lm | |
Dimension (mm) | 360*358*306 | |
| LEDs | 135W |
Power | Driver | 15W |
Consumption | Total | 150W |
Replace HID Lamp | 300~400W | |
Net Weight | 10kg(22lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Marine Deck Lights?

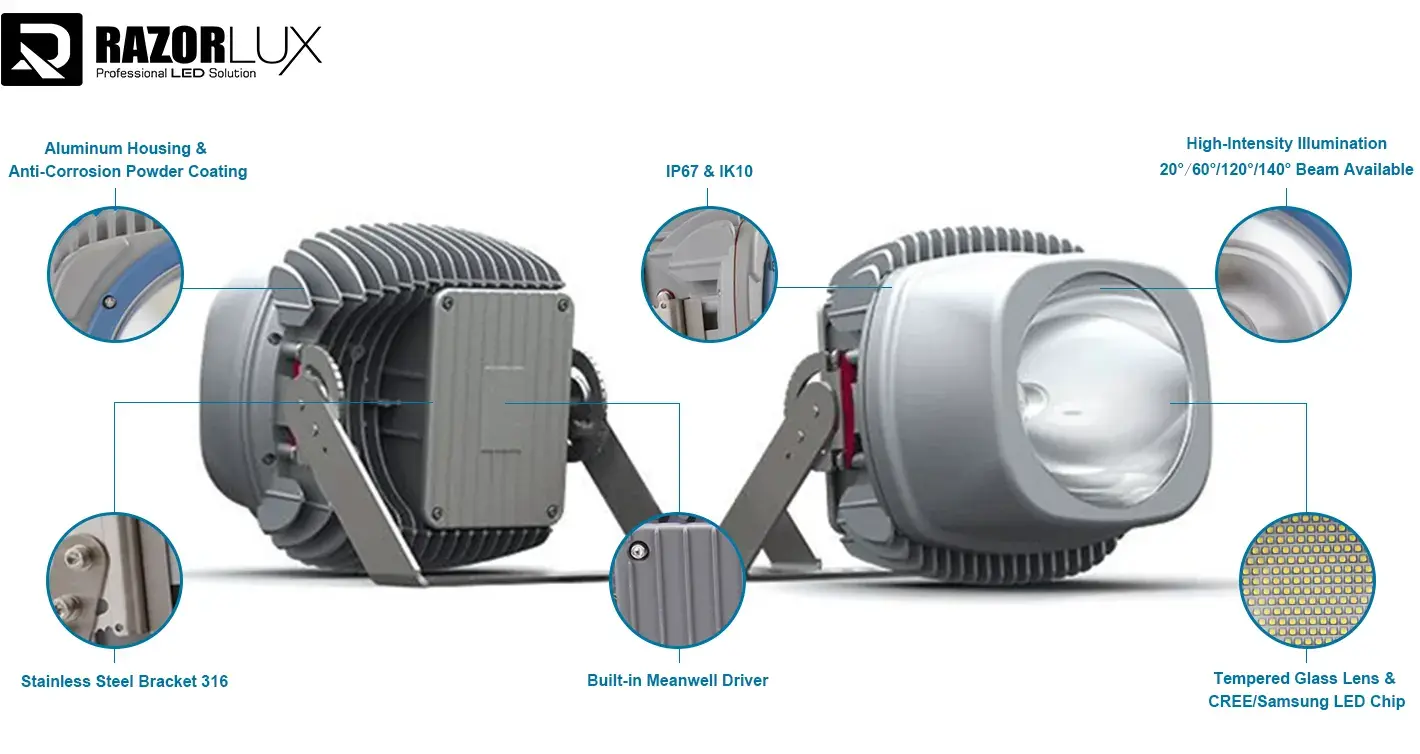

Superior Marine Designing: Our lights include protected multi-function plan particularly designed for unforgiving marine situations. The IP67 security guarantees total water resistance.
Exceptional Proficiency: With 130LM/W productivity and adaptable voltage input (AC90-305V, DC127-431V), these installations adjust to different marine electrical frameworks seamlessly.

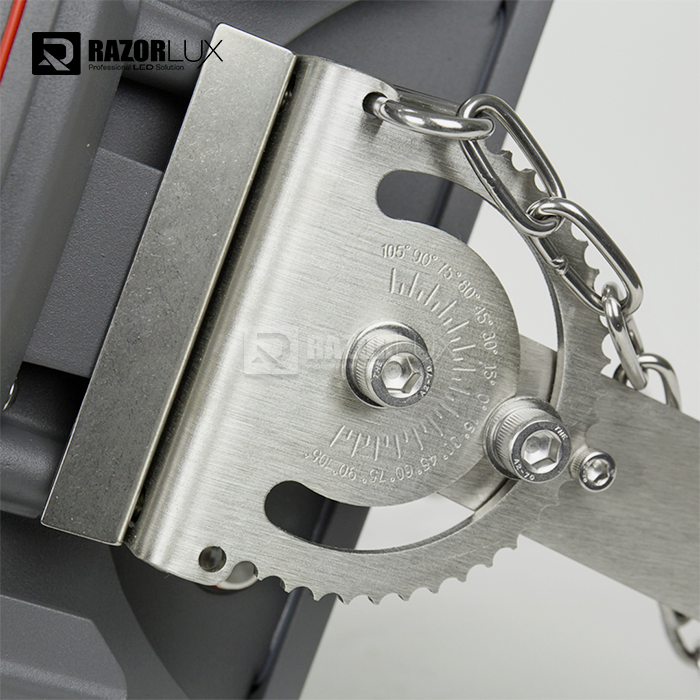

Robust Development: Stainless steel brackets stand up to erosion whereas keeping up basic astuteness in saltwater environments.
Versatile Pillar Choices: Seven pillar point arrangements permit exact lighting customization for diverse deck ranges and operational requirements.
Global Compliance: RMRS certification guarantees sea security compliance, whereas numerous universal certifications ensure around the world acceptance.
Extended Guarantee: Five-year guarantee scope reflects our certainty in item toughness and execution reliability.
Application

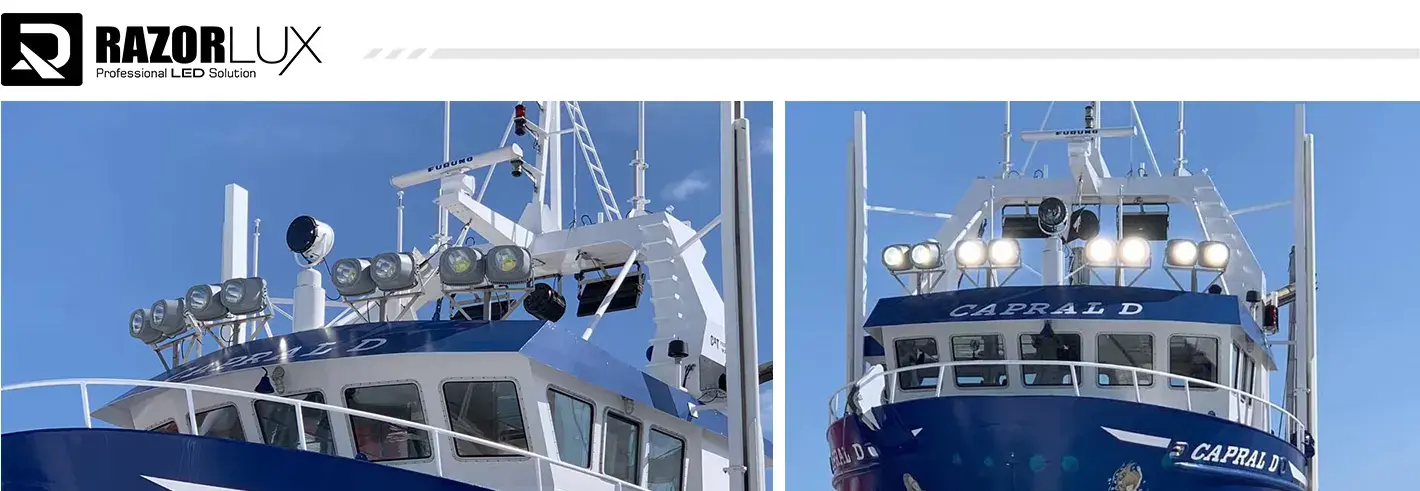

- Commercial Vessels: Enlighten cargo taking care of ranges, deck operations, and crisis clearing courses on vendor ships and tankers
- Offshore Stages: Give solid lighting for boring operations, helipad ranges, and upkeep zones on oil rigs and wind farms
- Naval Vessels: Back military operations with strategic lighting arrangements for deck operations and hardware maintenance
- Fishing Vessels: Improve security amid night angling operations, net dealing with, and capture preparing activities
- Cruise Ships: Make secure traveler ranges, deck diversion spaces, and benefit zones with professional-grade illumination
- Harbor Foundation: Light dock ranges, stacking docks, holder yards, and marine terminal offices for 24/7 operations
- Yacht and Extravagance Pontoons: Give rich however useful lighting for deck excitement ranges and route safety
- Coast Watch Vessels: Bolster protect operations and watch exercises with solid, high-performance deck lighting systems
Quality Control
Our comprehensive quality administration framework guarantees each marine lighting installation meets the most noteworthy guidelines. We keep up ISO9001 certification ceaselessly since 2001, illustrating our commitment to reliable quality.
Each light experiences thorough testing counting salt splash resistance, vibration testing, and warm cycling to confirm marine environment execution. Our quality control handle incorporates approaching fabric review, generation observing, and last item approval some time recently shipment.
Shipment Samples
We give test units for assessment some time recently bulk orders. Test shipments ordinarily incorporate specialized documentation, establishment guides, and execution determinations. This permits you to confirm compatibility with your particular marine applications and affirm execution expectations.
Packaging and Transportation
Each installation gets defensive bundling planned for marine gear shipping. We utilize shock-resistant materials and dampness boundaries to guarantee secure conveyance. Different shipping choices incorporate discuss cargo for critical conveyances, ocean cargo for bulk orders, and rail transport for particular regions.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Quality Control
Our quality confirmation expands past fabricating to incorporate comprehensive testing conventions. Each unit experiences execution confirmation, natural testing, and security compliance checks some time recently taking off our facility.
After Sales Service
We give comprehensive back all through your item lifecycle. Our specialized group offers establishment direction, investigating help, and upkeep suggestions. Ought to any issues emerge, our responsive benefit group guarantees speedy determination to minimize operational disruption.
Qualification Certification
Our marine deck lights hold basic sea certifications counting RMRS for marine security compliance. Extra certifications incorporate CE, UL, SAA, and RoHS, guaranteeing worldwide administrative compliance and natural duty.
FAQ
Q: What makes these lights suitable for marine environments?
A: Our lights feature IP67 protection, stainless steel construction, and specialized corrosion-resistant coatings designed specifically for saltwater exposure and marine conditions.
Q: Can these fixtures work with different voltage systems?
A: Yes, our wide voltage range (AC90-305V, DC127-431V) accommodates various marine electrical systems without additional transformers.
Q: How do I select the appropriate beam angle?
A: Consider your specific application - narrow beams (15°-30°) for focused tasks, medium beams (40°-60°) for general deck lighting, and wide beams (120°-140°) for broad area coverage.
Q: What warranty coverage is provided?
A: We offer a comprehensive 5-year warranty covering manufacturing defects and performance degradation under normal marine operating conditions.
Q: Are replacement parts available?
A: Yes, we maintain inventory of replacement components and provide technical support for maintenance and repair requirements throughout the product lifecycle.
Contact Us
For technical specifications, pricing information, or project consultation, please reach out to our marine deck lights specialists.
Email: sam@razorlux.com
Our experienced team is ready to help you design the optimal lighting solution for your marine applications.
